Dimensional Measuring

Dimensional measuring tools help machinists, inspectors, quality teams, maintenance professionals, and shop personnel check and compare workpiece features. This category includes tools for measuring small holes, slots, heights, radii, coating thickness, linear movement, and reference positions, with options that also support layout marking and measurement readout.

Product Display:
Helpful Buying Guide

Choose Dimensional Measuring Tools for the Feature You Need to Check

Start with the type of feature and measurement task. Pin gage sets are suited to small holes and slots, radius gages compare curved profiles, and height gauges support vertical measurement and layout marking. Other tools address coating thickness, remote measurement readout, and machine-fence movement.

Visual Guide

Popular examples in this category

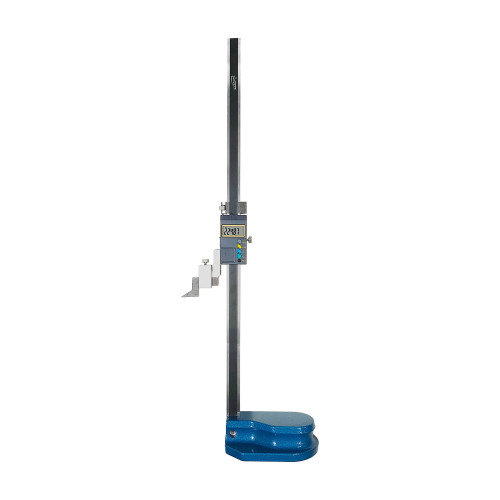

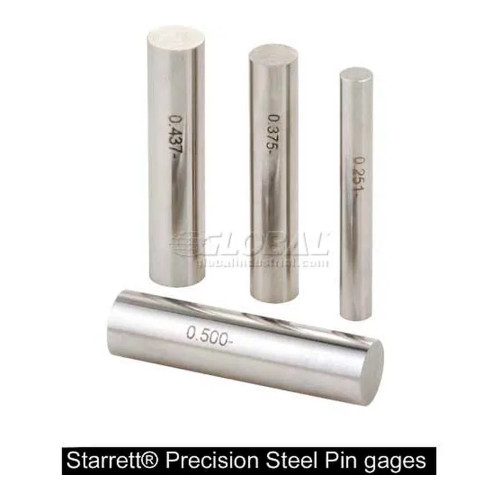

Precision Pin Gage Set, 0.061–0.250 in.Precision Pin Gage Set, 0.061–0.250 in.WBB679315Absolute Digital Height Gauge with Carbide Scriber, 0 to 18 in. RangeAbsolute Digital Height Gauge with Carbide Scriber, 0 to 18 in. RangeWBB3220230Digital Height Gauge with Attachable Scriber, 0.001 in. AccuracyDigital Height Gauge with Attachable Scriber, 0.001 in. AccuracyWBB3220231Dual-Technology Coating Thickness Tester with CaseDual-Technology Coating Thickness Tester with CaseWBB1642069
Use Cases

Match the tool to the measurement task

Use pin gages for small holes, slots, and hole-distance work; radius gages for concave and convex curves; and height gauges for vertical measurement and layout reference points.

How to Choose

Compare range, accuracy, and readout needs

Check the available measuring range and stated accuracy or resolution first. Then compare unit formats, origin or zero functions, display style, and whether a scriber, data output, or remote readout is useful for the work.

Applications

Support inspection, layout, and machine adjustment

The represented tools support dimensional inspection, quality-control work, shop layout, coating checks, and position or depth adjustments on listed machine and fence applications.

Additional Info

Consider storage and shop protection

Several options include cases, pouches, or marked storage locations. Selected digital measuring tools also list IP54 or IP65 protection for dust, moisture, or water exposure.

0.011–0.250 in.Pin gage coverage

Two listed pin gage sets cover small-hole and slot measurement across these combined ranges.

18 or 24 in.Height-gauge ranges

Listed digital height-gauge options include 18 in. and 24 in. measuring ranges.

0.010–0.500 in.Radius range

One 26-leaf radius gage set checks concave and convex radii within this range.

IP54 or IP65Listed protection

Selected digital tools list protection against dust, moisture, or water exposure.

Comparison Guide

Compare Dimensional Measuring Tool Types

Use this overview to narrow the choice by the measurement feature and the listed selection considerations.

Tool typePrimary measurement taskSelection factors represented
Pin gage setsCheck small holes, slots, and hole distancesRange, 0.001 in. increments, 0.0002 in. tolerance, go/no-go handle, marked case
Height gaugesMeasure heights and mark layout reference pointsMeasuring range, accuracy or resolution, scriber type, origin functions, units, output, base, and IP54 protection on selected models
Radius gage setsCompare concave and convex radiiRadius range, number of leaves or gauging surfaces, marked sizes, holder, and pouch
Specialized digital toolsCheck coatings, monitor indicator readings, or follow machine-fence movementSubstrate compatibility, calibration accessories, remote display, reading format, mounting, output, and protection
Planning Guide

Plan the right fit before choosing

Plan by feature

Select a tool built for the workpiece feature

Different measuring tasks call for different tool formats. A focused selection helps keep the measurement method aligned with the feature being checked.

  • Choose precision pin gages for small-hole and slot checks in the listed ranges of 0.011–0.060 in. or 0.061–0.250 in.
  • Choose radius gage sets to compare concave and convex radii, including ranges from 0.010–0.500 in. or 1/64 in. to 1/2 in.

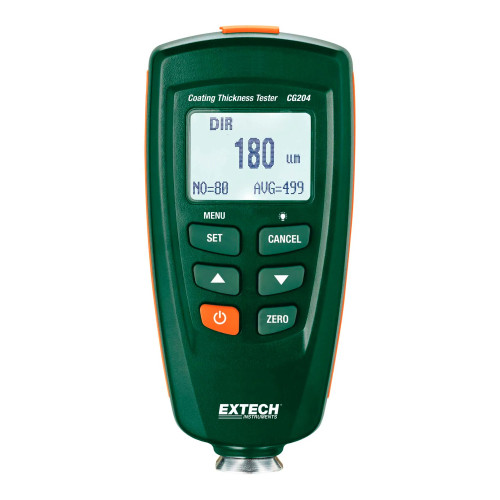

  • Choose a coating thickness tester for coating checks on ferrous and non-ferrous substrates.

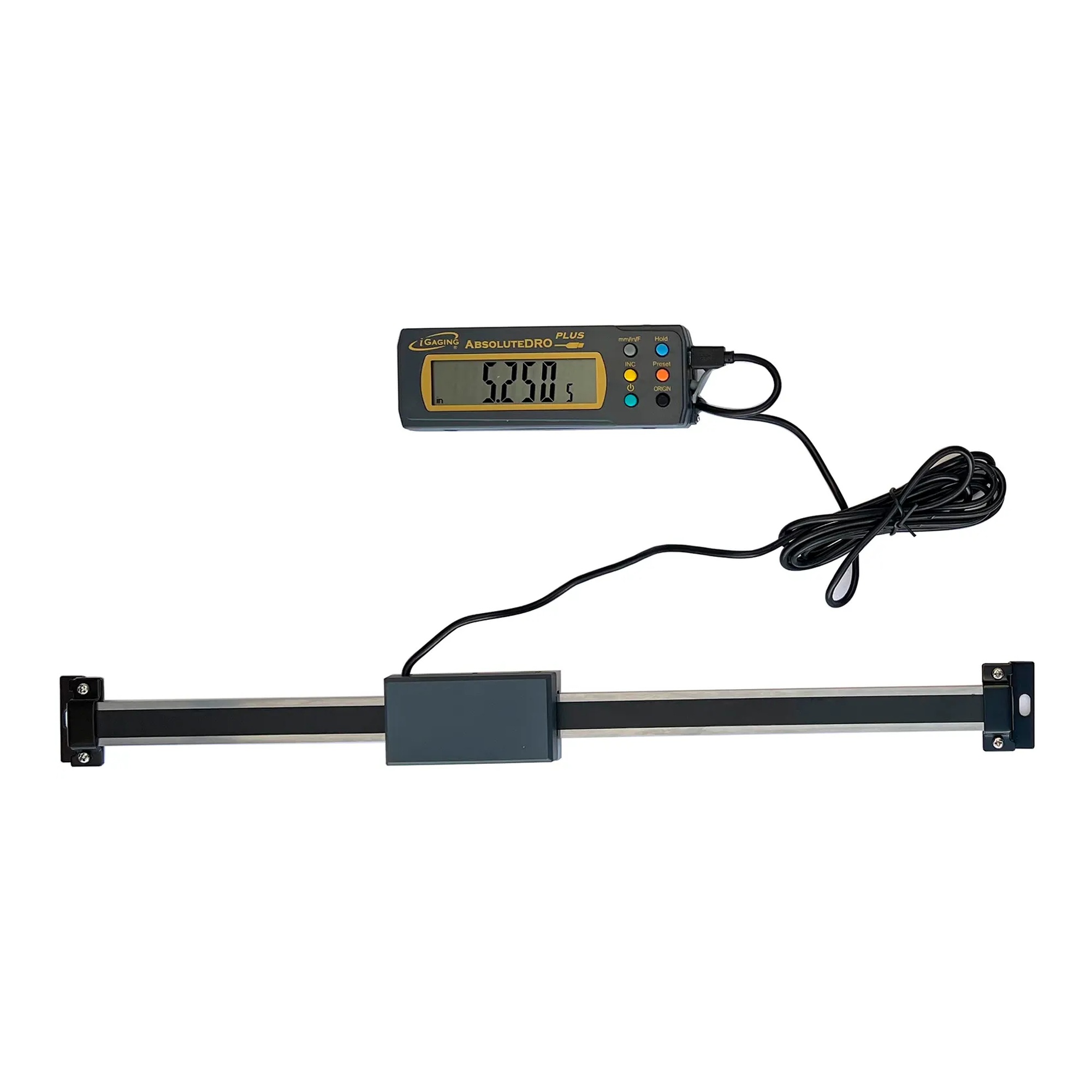

  • Choose a machine fence readout for monitoring linear movement on listed milling machines, router tables, planers, and table saw fences.
Plan by measurement setup

Compare height and reference-control features

Height gauges and indicators offer different ways to establish and view a measurement reference. Consider working range, the need to mark a workpiece, and the readout or origin functions required for the task.

  • Height-gauge ranges represented include 18 in. and 24 in.
  • Listed height-gauge accuracy includes 0.001 in. / 0.03 mm and 0.0015 in.; one model lists 0.0005 in. / 0.01 mm resolution.
  • Carbide-tipped or attachable scribers support layout marking on selected height gauges.
  • Absolute origin, origin-zero, and preset functions support repeat measurement setup on selected tools.
Plan for handling and data needs

Review displays, outputs, and storage details

Digital readouts vary by unit format, display location, and connection options. Storage and included accessories can also help keep measuring tools and related pieces together.

  • Selected tools display inch, metric, fractional, decimal, or multiple reading formats.
  • A remote LCD indicator uses a 48 in. cable, while selected height gauges offer USB or SPC output.
  • The coating thickness tester includes calibration pieces, precision standards, a USB cable, software, a case, and a pouch.
  • Pin and radius gage sets include marked cases, holders, or pouches on selected options.
FAQ

Common questions before buying

What are pin gage sets used for?

Pin gage sets are used to check small hole sizes, evaluate or gage slots, and locate hole distances.

What can a height gauge do besides measure height?

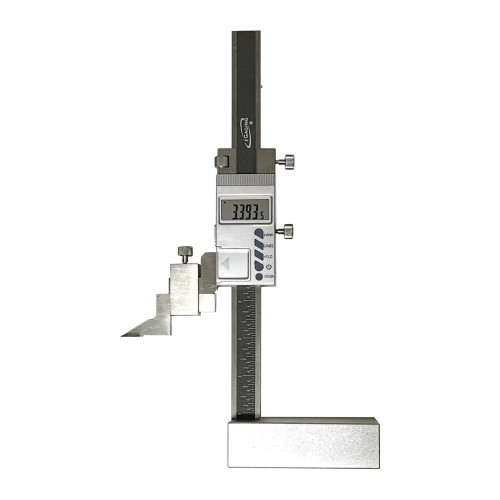

Selected height gauges include a carbide-tipped or attachable scriber for marking layout locations or reference points.

Which tools can check curved profiles?

Radius gage sets compare concave and convex radii on workpieces.

Are digital readout options available?

The represented products include digital height gauges, an indicator with a remote LCD readout, and a machine fence readout with multiple reading formats.
