Shoulder Screw Shims

Shoulder screw shims provide defined spacing adjustments for shoulder-screw assemblies in tooling, maintenance, die work, and assembly applications. Lengthening shims install over stripper screw threads beneath the shoulder to increase effective screw length, while shortening shims install beneath the screw head to shorten the effective shoulder length for a closer assembly fit.

Product Display:
Helpful Buying Guide

Choose Shoulder Screw Shims for the Required Adjustment

Compare shoulder screw shims first by whether the application calls for lengthening or shortening, then match the shim to the compatible shoulder screw diameter and required thickness. The available options include metric and inch-based screw fits, defined thickness increments, stainless steel and spring steel constructions, and 25- or 50-piece packs.

Visual Guide

Popular examples in this category

8mm ID x 10mm OD x 0.40mm Shoulder Screw Lengthening Shim, 25-Pack8mm ID x 10mm OD x 0.40mm Shoulder Screw Lengthening Shim, 25-PackWBB5121525 mm ID x 6 mm OD x 0.25 mm Shoulder Screw Lengthening Shims, 25-Pack5 mm ID x 6 mm OD x 0.25 mm Shoulder Screw Lengthening Shims, 25-PackWBB5122706 mm Shoulder Screw Shortening Shims, 0.50 mm Thick, 25-Pack6 mm Shoulder Screw Shortening Shims, 0.50 mm Thick, 25-PackWBB51180012 mm ID x 16 mm OD x 0.50 mm Shoulder Screw Lengthening Shim, 25-Pack12 mm ID x 16 mm OD x 0.50 mm Shoulder Screw Lengthening Shim, 25-PackWBB512367
Use Cases

Adjust effective screw or shoulder length

Use lengthening shims beneath the shoulder to increase effective stripper screw length. Use shortening shims beneath the screw head to shorten the effective shoulder length.

How to Choose

Match function, fit, and thickness

Start with the needed adjustment direction, confirm the shoulder screw diameter, and select the stated thickness increment for the setup or assembly.

Applications

For tooling, maintenance, and assembly

These shims are represented for tooling adjustments, die work, maintenance tasks, repeated setup needs, and shoulder-screw assemblies.

Additional Information

Review material and pack count

Available constructions include 302 full-hard stainless steel, tempered spring steel, 1095 spring steel, and 1075 tempered spring steel. Pack counts are 25 or 50 pieces.

2Shim functions

Lengthening and shortening designs are represented.

6Screw fit sizes

Options are represented for 6 mm, 8 mm, 10 mm, 16 mm, 3/8 in., and 1/2 in. shoulder screws.

7Listed thicknesses

Metric and inch-based defined spacing increments are available.

25 or 50Pieces per pack

Pack quantities vary by shim option.

Comparison Guide

Compare Shoulder Screw Shim Types

Use this overview to identify the shim style that aligns with the adjustment direction and shoulder screw size required for the work.

Shim typeInstallation and adjustmentRepresented selection details
Lengthening shimsInstall over stripper screw threads beneath the shoulder to increase effective screw length.Fits are represented for 6 mm, 10 mm, 16 mm, 3/8 in., and 1/2 in. shoulder screws; 25- and 50-piece packs are available.
Shortening shimsInstall beneath the screw head to shorten effective shoulder length.Represented for 6 mm and 8 mm shoulder screws, with precision die-cut profiles on listed options; 25-piece packs are available.
Material and thickness choicesSelect the stated construction and defined spacing increment for the application.Materials include 302 stainless steel and specified spring steels; listed thicknesses range from 0.25 mm to 0.80 mm and from 0.005 in. to 0.032 in.
Planning Guide

Plan the right fit before choosing

Select the shim function

Decide whether the assembly needs lengthening or shortening

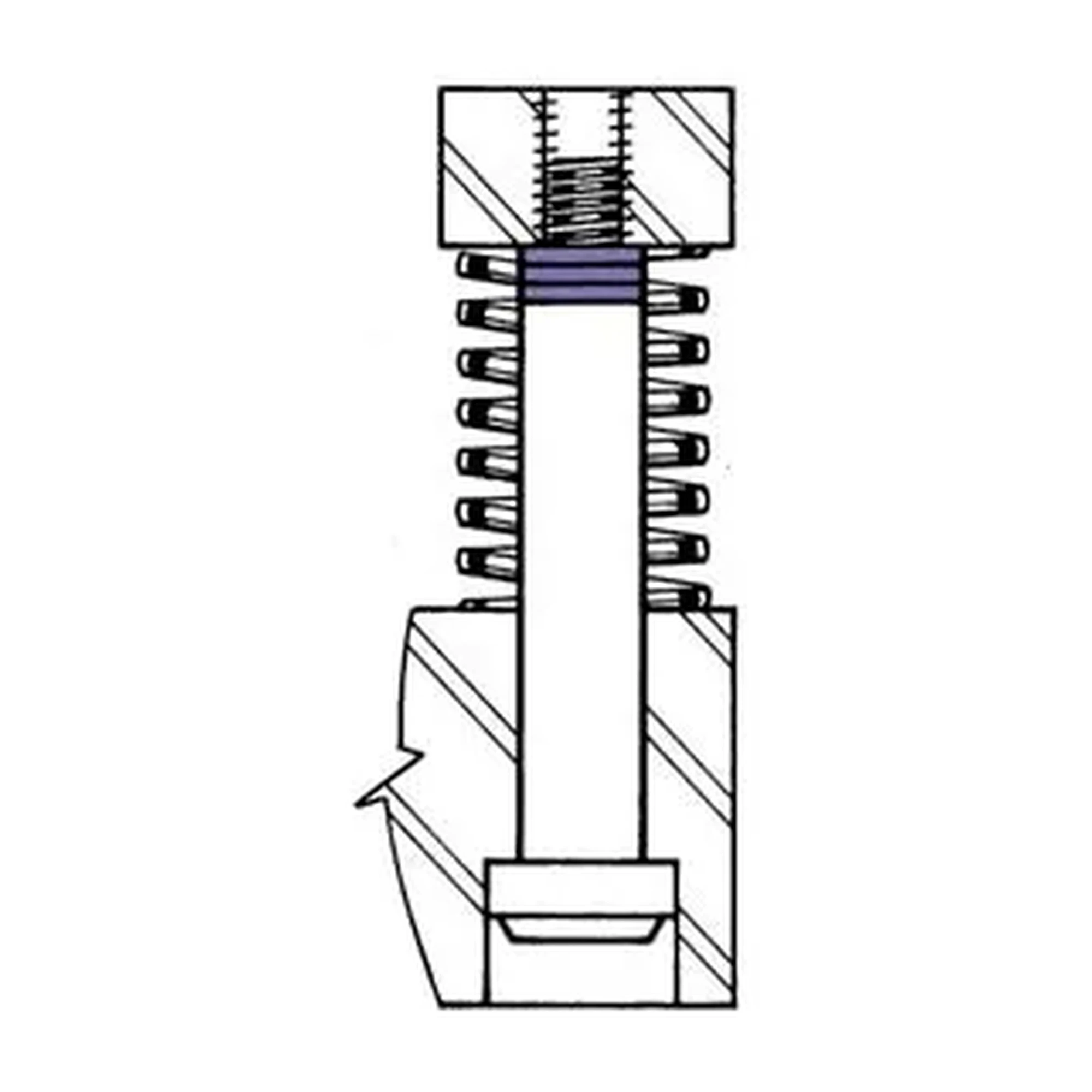

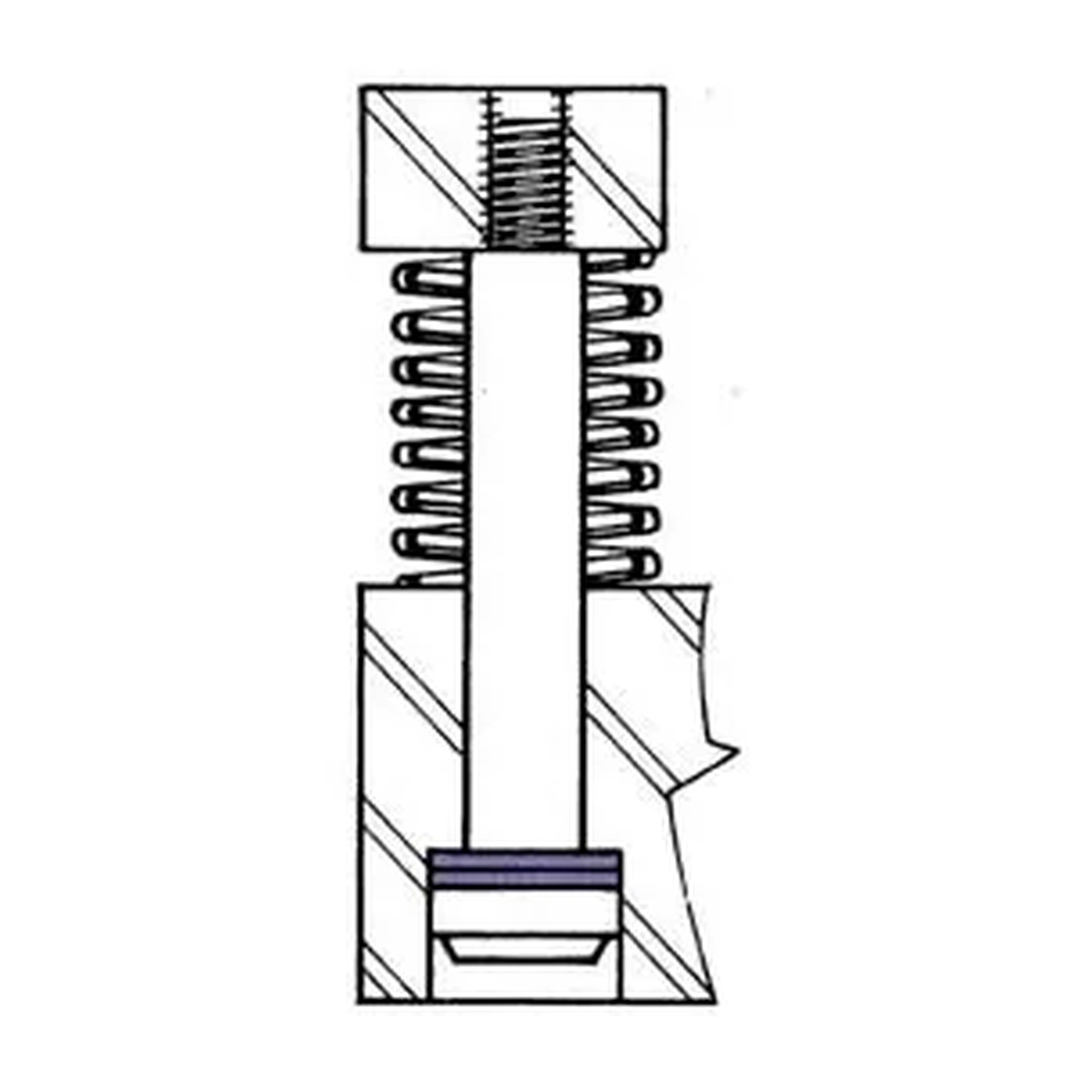

The installation location distinguishes the two shim types. Lengthening shims fit over stripper screw threads beneath the shoulder. Shortening shims fit beneath the screw head and are described with precision die-cut openings or profiles that fit closely around the shoulder screw shank.

  • Choose lengthening shims to increase effective stripper screw length.
  • Choose shortening shims to shorten effective shoulder length.
  • Confirm the intended installation location before selecting a shim.
Match the screw and spacing

Use the stated screw fit and thickness

The represented range includes shims for 6 mm, 8 mm, 10 mm, and 16 mm shoulder screws, along with options for 3/8 in. and 1/2 in. shoulder screws. Listed thicknesses include 0.25 mm, 0.40 mm, 0.50 mm, and 0.80 mm, plus 0.005 in., 0.015 in., and 0.032 in. options.

  • Match the shim to the compatible shoulder screw diameter.
  • Select the defined thickness increment needed for the adjustment.
  • Review stated ID and OD dimensions where they are provided.
Plan for ongoing work

Consider material and quantity needs

Stainless steel options are specified as 302 or 302 full-hard stainless steel. Spring steel options include tempered spring steel, 1095 spring steel, and 1075 tempered spring steel. Packs of 25 support installation, replacement, assembly, or maintenance needs, while 50-count packs are represented for repeated setup and tooling adjustments.

  • Choose from stainless steel or specified spring steel constructions.
  • Use 25-piece packs for multiple shim needs.
  • Consider 50-piece packs for ongoing tooling adjustments.
FAQ

Common questions before buying

What is the difference between lengthening and shortening shoulder screw shims?

Lengthening shims install beneath the shoulder over stripper screw threads to increase effective screw length. Shortening shims install beneath the screw head to shorten effective shoulder length.

What shoulder screw sizes are represented?

The product summaries include options for 6 mm, 8 mm, 10 mm, 16 mm, 3/8 in., and 1/2 in. shoulder screws.

What thicknesses are available?

Listed options include 0.25 mm, 0.40 mm, 0.50 mm, 0.80 mm, 0.005 in., 0.015 in., and 0.032 in. thicknesses.

What materials and pack counts are represented?

Materials include 302 stainless steel and specified spring steels. Pack counts are 25 pieces or 50 pieces, depending on the option.

!
