Tee Knobs

Tee knobs and T-handles provide a practical handhold for manual adjustment, positioning, and clamping on equipment, machines, and fixtures. The T-shaped grip helps operators and maintenance personnel apply turning force by hand when tightening, releasing, or adjusting compatible threaded components.

Product Display:
Helpful Buying Guide

Choose Tee Knobs for the Connection and Task at Hand

Tee knobs in this selection are designed for hand-operated adjustment and clamping. Start by matching the thread style and size to the existing component, then compare handle material, diameter, stud length where stated, and the temperature requirements of the application.

Visual Guide

Popular examples in this category

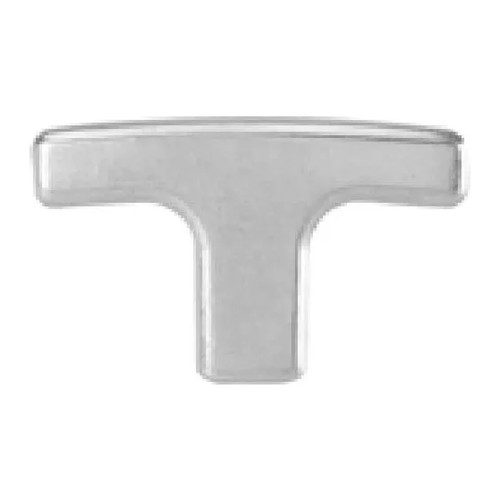

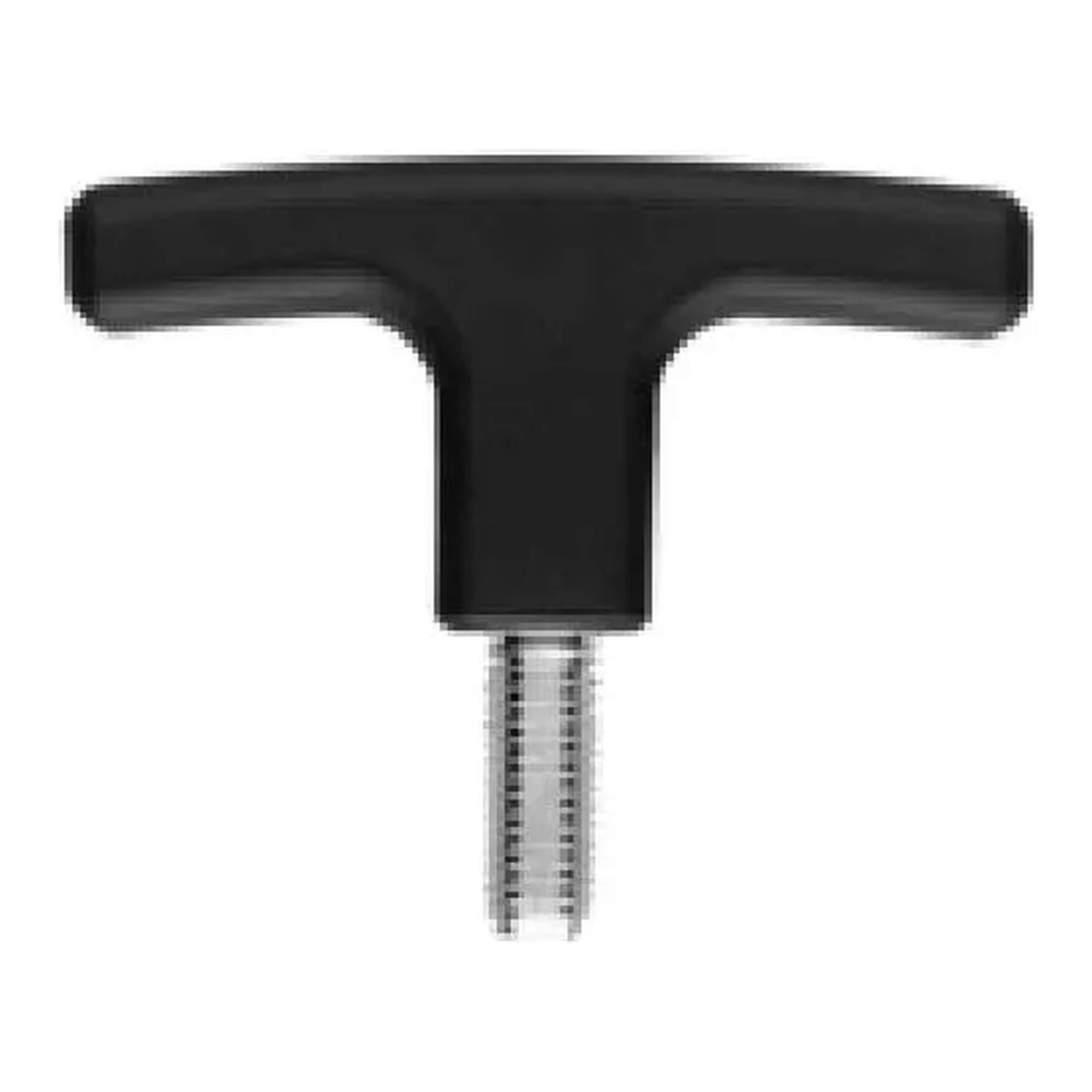

Aluminum T-Handle with M8 x 1.25 Threaded StudAluminum T-Handle with M8 x 1.25 Threaded StudWBB1504684Technopolymer T-Handle with 5/16-18 Threaded StudTechnopolymer T-Handle with 5/16-18 Threaded StudWBB1504939Nylon T-Bar Knob with M6 x 1.0 Thread, 57 mm LengthNylon T-Bar Knob with M6 x 1.0 Thread, 57 mm LengthWBB1504792Technopolymer T-Handle with M8 x 1.25 Threaded StudTechnopolymer T-Handle with M8 x 1.25 Threaded StudWBB1504961
Use Cases

Manual adjustment and clamping

Use a tee knob or T-handle where a hand-operated grip is needed to adjust equipment, position components, or apply clamping force.

How to Choose

Match the thread first

Confirm whether the application requires a threaded stud or a tapped thread or blind bore, then match the listed thread size and pitch.

Applications

Equipment, machines, and fixtures

These hand grips are suited to machine operators, setup personnel, maintenance teams, and fixture users working with compatible threaded mounting points.

Additional Info

Compare material and heat limits

Technopolymer options are listed with heat resistance up to 265°F, while nylon T-bar knobs are listed with heat resistance up to 110°C and resistance to solvents, oils, grease, and other chemical agents.

55–80 mmListed handle diameters

Available listed diameters span 55 mm, 67 mm, and 80 mm.

M6 to M10Metric thread options

Listed metric sizes include M6 x 1, M8 x 1.25, and M10 x 1.5.

Up to 265°FTechnopolymer heat resistance

Technopolymer options are listed for use within this maximum temperature limit.

20 mmSpecified stud length

Selected threaded-stud handles list a 20 mm stud length.

Comparison Guide

Compare the Main Tee Knob Options

Use this overview to distinguish the connection styles and materials represented in the selection.

Selection factorThreaded-stud T-handlesTapped-thread or blind-bore T-handles
How they mountStud connects to a compatible threaded mounting point.Tapped thread or blind bore installs on a compatible threaded component.
Listed thread examplesM6 x 1, M8 x 1.25, 5/16-18, and 3/8-16.M8 x 1.25, M10 x 1.5, and 1/4-20.
Materials representedAluminum, technopolymer, and nylon.Technopolymer.
Other listed considerationsSelected options list 20 mm studs; diameters include 55 mm, 67 mm, and 80 mm.Selected bores list H9 blind-bore tolerance; diameters include 55 mm and 80 mm.
Planning Guide

Plan the right fit before choosing

Connection Planning

Select the correct mounting style

The available tee knobs include threaded-stud styles as well as tapped-thread and tapped blind-bore styles. A threaded stud is intended for a matching threaded mounting point, while a tapped bore supports installation on a compatible threaded component.

  • Threaded stud sizes include M6 x 1, M8 x 1.25, 5/16-18, and 3/8-16.
  • Tapped options include M8 x 1.25, M10 x 1.5, and 1/4-20 connections.
  • Specified stud lengths of 20 mm are available on selected M6 x 1 and M8 x 1.25 technopolymer handles.
  • Selected tapped bores list an H9 blind-bore tolerance.
Grip and Material Planning

Balance handhold size with the operating environment

T-handle and T-bar profiles provide a broad surface for hand-operated turning and clamping. Compare the listed handle diameter when replacing existing hardware or planning fit around equipment components.

  • Listed handle diameters include 55 mm, 67 mm, and 80 mm.
  • Aluminum provides a metal handle for manual operating and clamping applications.
  • Technopolymer handles are listed for temperatures up to 265°F (130°C where stated).
  • Nylon T-bar knobs resist solvents, oils, grease, and other chemical agents, with a stated heat resistance of 110°C.
Fit Planning

Check thread, reach, and available space

Before selecting a tee knob, verify the exact thread designation on the receiving component. For stud-mounted options, review the stated stud length when provided. Also consider whether the 55 mm, 67 mm, or 80 mm handle size is appropriate for the available operating space and desired handhold.

  • Do not substitute metric and inch thread designations without confirming compatibility.
  • Choose a threaded stud for a compatible threaded mounting location.
  • Choose a tapped thread or blind bore for a compatible threaded component.
  • Use the stated temperature limit as part of application planning.
FAQ

Common questions before buying

What are tee knobs used for?

They provide a handhold for manual adjustment, positioning, operating, and clamping tasks on compatible equipment, machines, and fixtures.

How do I choose between a threaded stud and a tapped bore?

Match the knob to the existing component: choose a threaded stud for a compatible threaded mounting point, or a tapped thread or blind bore for a compatible threaded component.

What thread sizes are represented?

Listed sizes include M6 x 1, M8 x 1.25, M10 x 1.5, 1/4-20, 5/16-18, and 3/8-16.

Which material should I consider for heat or chemical exposure?

Technopolymer options are listed with heat resistance up to 265°F. Nylon T-bar knobs are listed with 110°C heat resistance and resistance to solvents, oils, grease, and other chemical agents.

!
