Contactor Panels

Contactor panels provide centralized switching for lighting circuits in commercial lighting-control installations. Used by electrical professionals and facility teams, these electrically held contactor assemblies are available in multiple pole counts, control-coil voltages, and enclosure styles to suit compatible lighting circuit control requirements.

Product Display:
Helpful Buying Guide

How to Choose a Lighting Contactor Panel

Compare contactor panels by the number of circuits to be switched, the control-coil voltage required by the system, and whether an open or enclosed configuration is appropriate for the installation. The represented options provide 30A full-load ratings and electrically held operation for lighting-control applications.

Visual Guide

Popular examples in this category

Use Cases

Centralized lighting switching

Use contactor panels to control compatible lighting circuits from a panel-mounted or open contactor arrangement.

How to Choose

Match poles, coil voltage, and enclosure

Start with the number of normally open contacts needed, then confirm the control system uses 120V, 120VAC, or 277VAC as specified. Choose an open, NEMA 1, or NEMA 3R configuration represented for the installation.

Applications

Commercial lighting control

These panels are represented for commercial lighting control and other applicable lighting-control installations managed by electrical professionals and facility teams.

Additional Info

Electrically held operation

Electrically held contactors remain engaged while the coil is energized. Available contact arrangements include normally open configurations, with one 2-pole open option offering one normally open and one normally closed contact.

2–12Pole range

Available configurations span 2, 4, 6, 8, and 12 poles.

30AFull-load rating

Each represented option is rated at 30A full load.

120V / 277VACCoil options

Control-coil options include 120V or 120VAC and selected 277VAC models.

3Configuration types

Choose from open, NEMA 1, and NEMA 3R configurations.

Comparison Guide

Compare Contactor Panel Types

Use this overview to narrow the represented configurations before confirming pole count and coil voltage for your lighting-control system.

Selection factorOpen configurationsEnclosed configurations
Available pole counts2, 4, 6, and 12 poles are represented2, 4, 6, 8, and 12 poles are represented
Coil voltage choices120VAC and selected 277VAC options120V or 120VAC options are represented
Enclosure styleOpen configuration for installations requiring an open-style component or assembly integrationNEMA 1 and NEMA 3R enclosure types are represented
Planning Guide

Plan the right fit before choosing

Plan Your Circuit Control

Select a pole count for the circuits you need to switch

The available contactor panels range from 2-pole through 12-pole configurations. Many options provide normally open contacts for lighting circuit switching.

  • 2-pole options for compatible two-circuit control requirements
  • 4-pole and 6-pole options for additional controlled circuits
  • 8-pole and 12-pole options for managing multiple lighting circuits
Confirm Control and Load Requirements

Check coil voltage and stated contactor rating

All represented products have a 30A full-load rating. Coil choices include 120V or 120VAC on many models, plus selected open configurations with 277VAC coils.

  • 30A full-load rating across the represented range
  • 120V and 120VAC coil options
  • 277VAC coil options in selected open configurations
  • Electrically held operation while the coil is energized
Choose the Panel Configuration

Compare open and enclosed arrangements

Open contactor panels are intended for installations requiring an open configuration or integration into a suitable control assembly or enclosure. Enclosed versions are represented with NEMA 1 or NEMA 3R enclosure types.

  • Open configurations across several pole counts

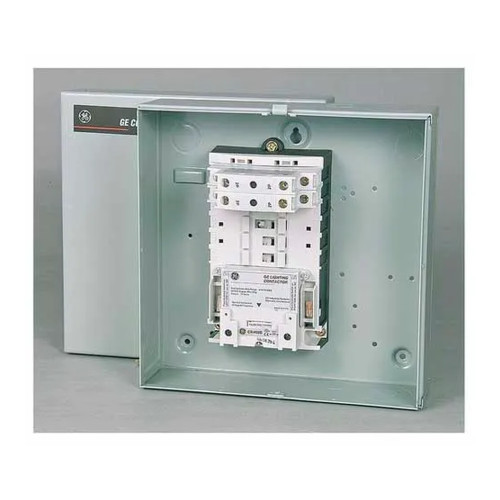

  • NEMA 1 enclosed options in 4-, 8-, and 12-pole configurations
  • NEMA 3R enclosed options in 2-pole and 6-pole configurations
FAQ

Common questions before buying

What pole counts are available for these contactor panels?

The represented range includes 2-, 4-, 6-, 8-, and 12-pole configurations.

What is the full-load rating of the represented panels?

The represented contactor panels have a 30A full-load rating.

Which control-coil voltages are available?

Options include 120V or 120VAC coils, plus selected open models with 277VAC coils.

What enclosure configurations are represented?

The range includes open configurations as well as models with NEMA 1 or NEMA 3R enclosures.
