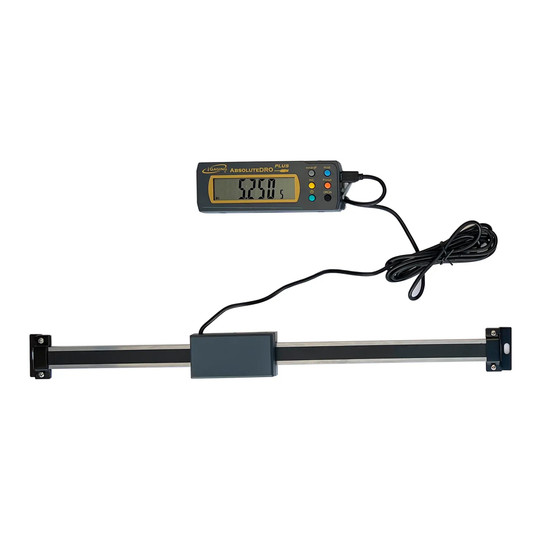

Absolute Digital Readout with Remote Display, 24 in. Travel, Black

This absolute digital readout helps machinists and other measurement professionals monitor linear position during dimensional measuring tasks. Its remote display provides a clear view of the sensor position to support efficient setup and measurement.

The readout uses absolute memory technology to retain a user-set origin position after power is turned off and back on. It measures up to 24 in. of travel, with 0.001 in. accuracy and 0.0005 in./0.01 mm resolution. The hardened stainless steel rule has a 28.5 in. total beam length, while the display supports inch, metric, and fractional readings. A 76 in. remote cable connects the display, which has magnets for attachment to steel surfaces.

Key Features:

• Absolute origin memory: Retains the set origin position when the unit is powered on, reducing the need to reset zero.
• 24 in. travel range: Supports linear measurements across a 0 to 24 in. range.
• Multiple display formats: Allows readings in inches, millimeters, or fractions for workflow flexibility.
• Large magnetic display: Provides an easy-to-view readout that can attach to steel surfaces.
• Mounting hardware included: Includes an articulating arm and two mounting bracket styles to support installation flexibility.

Choose this black digital readout for dimensional measurement setups requiring retained origin settings, a remote viewing location, and selectable inch, metric, or fractional display modes.

No additional information available.
