Hydronic Baseboard Heaters

Hydronic baseboard heaters provide baseboard-level heat through circulating hot-water systems. Facility teams, HVAC professionals, contractors, and maintenance crews use these components when installing, extending, replacing, or finishing heating runs in commercial, residential, and light commercial spaces.

Product Display:
Helpful Buying Guide

Hydronic Baseboard Heater Buying Guide

Plan a compatible hydronic baseboard run by separating heating sections from enclosure-only components and finishing parts. The available options include complete baseboard heaters, panel-track heater assemblies, dummy enclosures, and left- or right-side end caps.

Visual Guide

Popular examples in this category

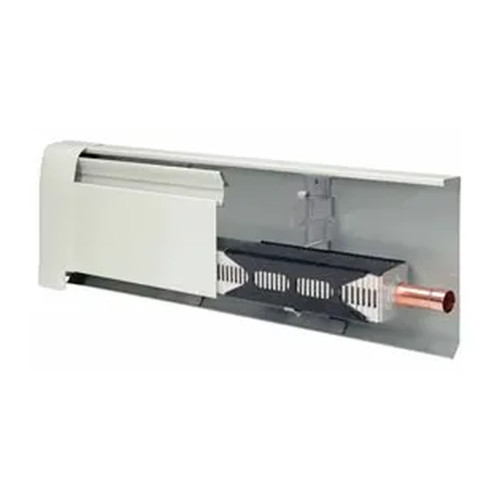

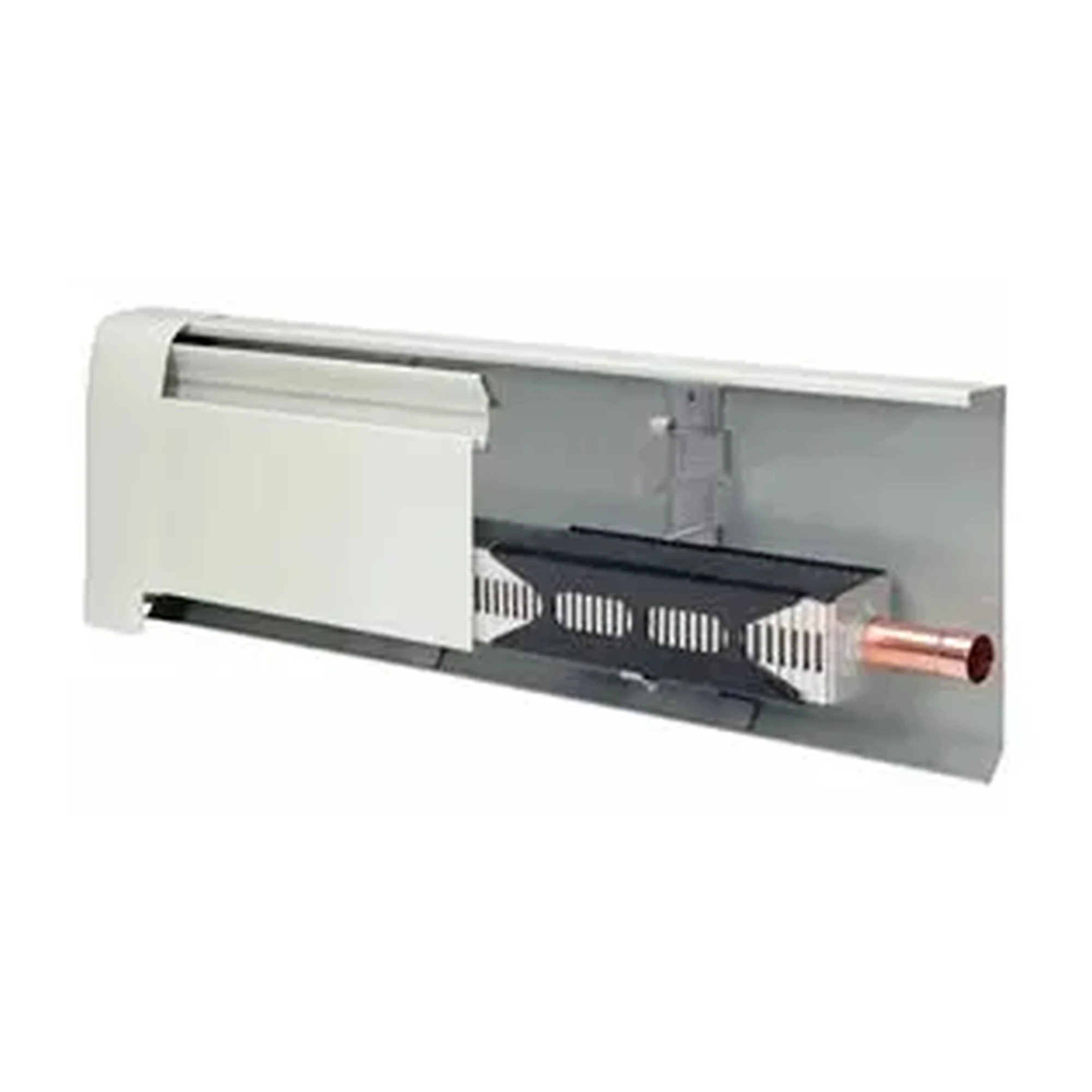

60-Inch White Panel Track Hydronic Baseboard Heater with 3/4-Inch Element60-Inch White Panel Track Hydronic Baseboard Heater with 3/4-Inch ElementWBB3048704-Foot Hydronic Complete Baseboard Heater, White4-Foot Hydronic Complete Baseboard Heater, WhiteWBB3066278-Foot Hydronic Complete Baseboard Heater, White8-Foot Hydronic Complete Baseboard Heater, WhiteWBB30663172-Inch Panel Track Hydronic Baseboard Heater with 3/4-Inch Element72-Inch Panel Track Hydronic Baseboard Heater with 3/4-Inch ElementWBB304871
Use Cases

Build, extend, or finish a baseboard run

Use complete hydronic baseboard sections for hot-water heating runs, panel-track sections where a coordinated panel and element assembly is needed, dummy enclosures where no heat output is required, and end caps to finish compatible ends.

How to Choose

Match length, configuration, and connections

Compare the required run length, whether the location needs heat output or enclosure only, the specified 3/4-inch element or connection sizing, and the required left- or right-hand finishing component.

Applications

For hydronic heating layouts

These components support hydronic heating installations and maintenance work in commercial, residential, and light commercial settings, including compact sections and longer baseboard runs.

Additional Information

Check included and separate components

Some panel-track options include panels, dampers, brackets, splicer sets, and an element. End caps may be separate components, so confirm the pieces needed to complete the installation.

24–96 in.Section lengths

Available heater and enclosure lengths range from 24-inch sections to an 8-foot complete heater.

580 BTU/hListed output

Specified for several complete heaters at 1 GPM with 180°F water.

3/4 in.Element sizing

Panel-track options include or support the stated 3/4-inch element and connection sizing.

2 enclosure typesNon-heating options

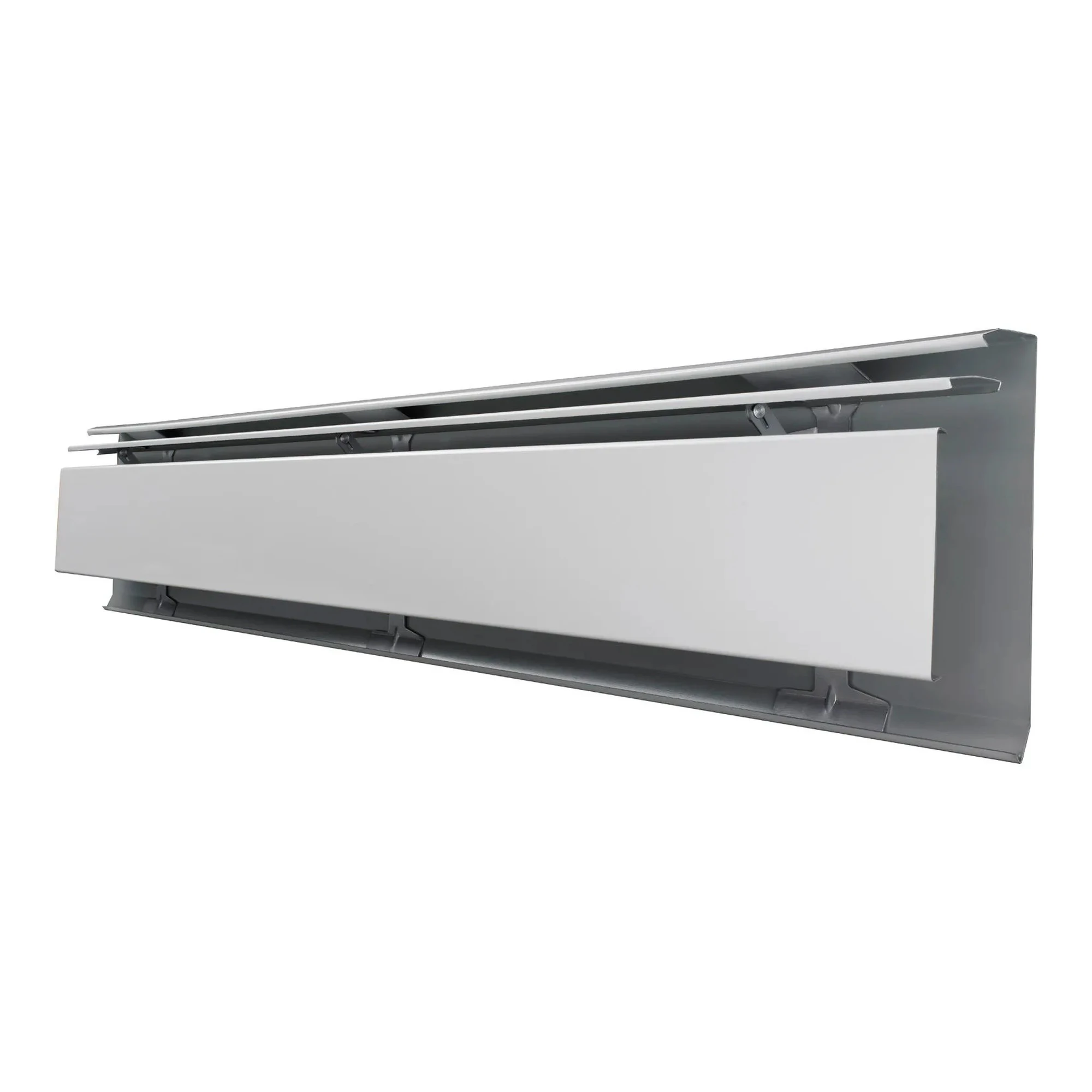

Dummy enclosures are offered in 2-foot and 4-foot lengths.

Comparison Guide

Compare hydronic baseboard component types

Select the component type based on whether the section must provide heat, extend the finished run, or complete an end.

Component typeWhat it providesSelection considerations

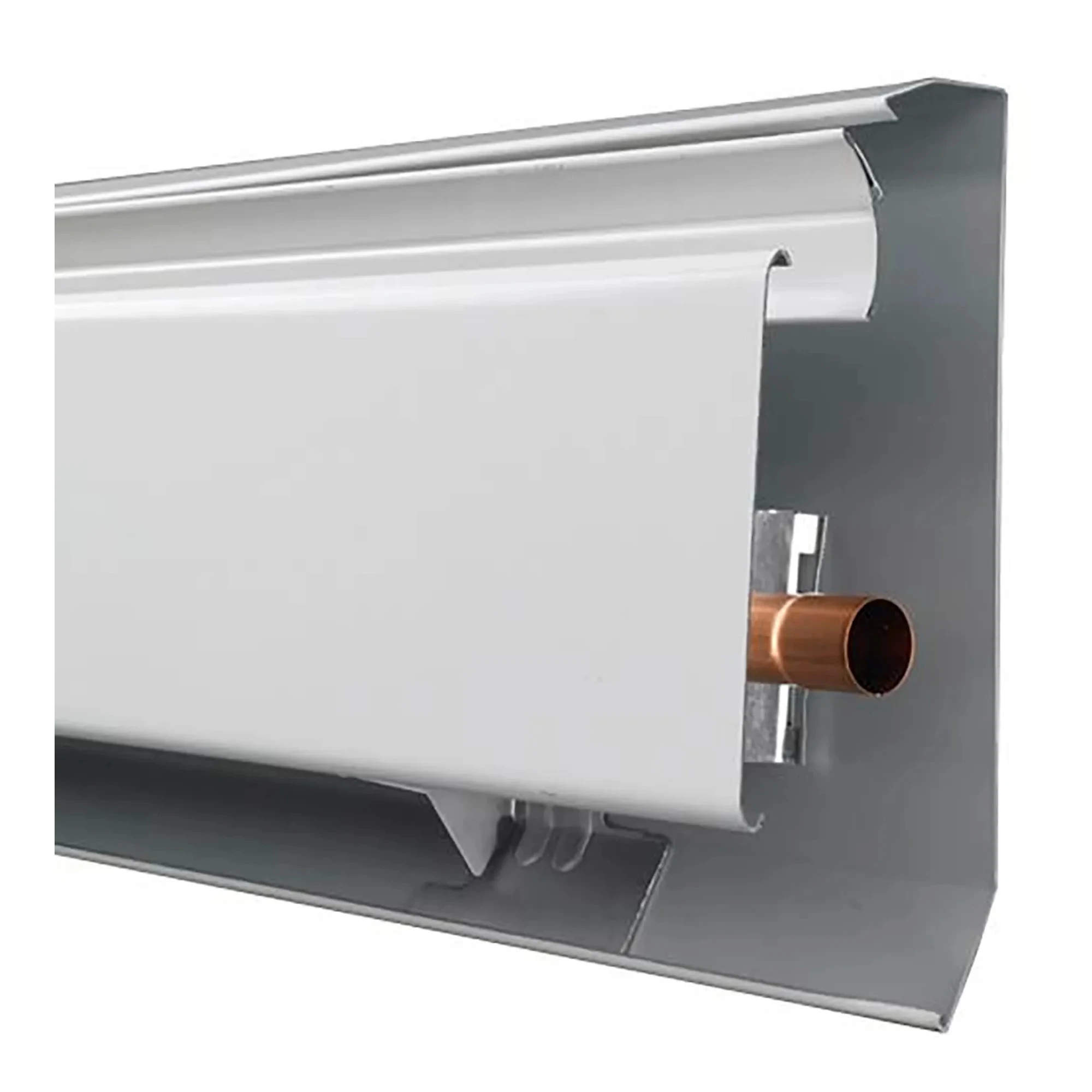

Complete baseboard heaterA complete hydronic baseboard heating section with a white, galvanized steel enclosure.Match the required length; several units list 580 BTU/h output at 1 GPM and 180°F water.
Panel-track heaterA panel-style hydronic heater configuration with a 3/4-inch element; certain options include coordinated assembly components.Confirm required length, 3/4-inch sizing, return-line needs, and whether end caps are separate.
Dummy enclosure or end capA non-heating enclosure section or a dedicated left- or right-end finishing component.Use dummy enclosures where heat is not required; match end-cap orientation and compatible assembly requirements.
Planning Guide

Plan the right fit before choosing

Start with the heating requirement

Choose an active heater or a non-heating enclosure

Complete hydronic baseboard heaters and panel-track heater sections are intended for hydronic heating systems. Dummy enclosures provide a finished baseboard section without a heating element, making them useful where a continuous appearance is needed but heat output is not.

  • Complete heaters are available in 24-inch, 3-foot, 4-foot, and 8-foot sections.
  • Panel-track heater options are available in 24-inch, 48-inch, 60-inch, and 72-inch formats.
  • Dummy enclosures are available in 2-foot and 4-foot lengths.
Plan the run dimensions

Match the section length to the layout

Measure the baseboard location and select sections that fit the planned run. Available heating and enclosure components cover compact 24-inch sections as well as 36-inch, 48-inch, 60-inch, 72-inch, and 96-inch runs.

  • A 3-foot complete heater provides a 36-inch heating section.
  • A 4-foot complete heater or dummy enclosure covers a 48-inch run.
  • An 8-foot complete heater covers a 96-inch baseboard run.
Confirm assembly details

Review connection, return-line, and finish needs

Several panel-track options use a 3/4-inch element and connection. Return-line-equipped panel-track models support installations requiring a return line, and one bracket arrangement accepts return pipe, PEX tubing, or copper tubing. White-finish components help coordinate a consistent installed appearance.

  • Panel-track assemblies may include front and back panels, a damper, brackets, splicer sets, and a 3/4-inch element.
  • Some panel-track models have separate end caps, which must be selected for the installation.
  • Choose a hinged left-hand or right-side end cap as required for a compatible assembly.
FAQ

Common questions before buying

What is the difference between a complete baseboard heater and a dummy enclosure?

A complete baseboard heater is a hydronic heating section, while a dummy enclosure provides a finished baseboard section without a heating element.

What lengths are represented in this category?

Available lengths include 24-inch, 36-inch, 48-inch, 60-inch, 72-inch, and 96-inch heater sections, plus 24-inch and 48-inch dummy enclosures.

Do panel-track heaters include a heating element?

The represented panel-track heaters include a 3/4-inch element. Some also include front and back panels, a damper, brackets, and splicer sets.

How do I choose an end cap?

Select the required left-hand or right-hand configuration and verify compatibility with the baseboard heater assembly. Some panel-track installations use separately selected end caps.

!
