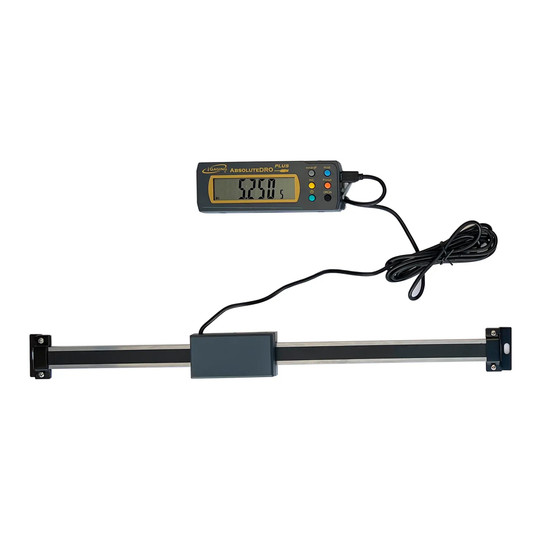

Absolute Digital Readout with Remote Display, 12 in. Travel Range

This absolute digital readout helps machinists, inspectors, and shop personnel monitor linear position during dimensional measuring tasks. Its remote display provides a clear position reading for setups where the sensor and viewing location need to be separated.

The readout uses absolute memory technology to retain the established origin position after power-off, so it displays the sensor’s actual position when powered on without resetting zero. It measures 0 to 12 in. (0 to 300 mm) of travel with 0.0015 in. accuracy and 0.0005 in. / 0.01 mm resolution. The hardened stainless steel rule has a 16.5 in. total beam length, and the unit supports inch, metric, and fractional display modes. A 76 in. remote cable connects the display, which has magnets for attachment to steel surfaces.

Key Features:

• Absolute origin memory: Retains the selected reference point after shutdown to reduce repeated zero-setting.
• 12 in. travel range: Supports linear position measurement across a 0 to 300 mm travel range.
• Large multi-format display: Allows readings in inches, millimeters, or fractions for convenient measurement reference.
• Hardened stainless steel rule: Provides a durable measuring surface designed to support accuracy and repeatability.
• Remote magnetic display: Lets users place the readout on a steel surface for easier viewing near the work area.
• Mounting accessories included: Includes an articulating arm and two mounting bracket styles for installation flexibility.

This digital readout is a practical choice for dimensional measurement setups that need retained origin positioning, a remote viewing option, and flexible mounting arrangements.
