Toggle Clamps

Toggle clamps are hand-operated components used to hold workpieces and fixtures in position or to secure compatible panels, covers, enclosures, and other mating parts. This category includes horizontal-acting, push-pull, and hook-style clamps for workholding and positioning tasks, along with toggle latches for closure applications and a flat-tip screw assembly for compatible clamp setups.

Product Display:
Helpful Buying Guide

Choose Toggle Clamps for the Way You Hold or Close

Start by separating clamping needs from latching needs. Workholding setups can use horizontal-acting, push-pull, or hook-type toggle clamps, while closures and mating parts can use toggle latches. Then compare operating action, mounting arrangement, material, size, included catch hardware, and the contact or holding features relevant to the installation.

Visual Guide

Popular examples in this category

Flat-Tip Toggle Clamp Screw AssemblyFlat-Tip Toggle Clamp Screw AssemblyWBB1172061Hook Toggle Clamp with Draw Hook, Size 200Hook Toggle Clamp with Draw Hook, Size 200WBB1172383Horizontal-Acting Steel Toggle Clamp with Vertical Mounting BaseHorizontal-Acting Steel Toggle Clamp with Vertical Mounting BaseWBB2958416Steel Toggle Latch, Size 110Steel Toggle Latch, Size 110WBB1172233
Use Cases

Hold work or secure a closure

Use toggle clamps for fixture and workholding tasks, positioning, and manual holding of workpieces. Use toggle latches to fasten compatible panels, covers, enclosures, and mating parts.

How to Choose

Match the operating action

Choose horizontal-acting, push-pull, or hook-style action based on the motion required by the setup. For closure applications, select a toggle latch and confirm whether a safety catch or a no-safety-catch configuration is needed.

Applications

Plan around the mounting and engagement arrangement

Compare vertical or horizontal base configurations for clamps. For latch assemblies, determine whether an integrated catch bracket is needed for the mating engagement point.

Additional Info

Review material, size, and contact details

Available options include steel, sheet steel, stainless steel, and zinc-plated steel components. Listed latch sizes include 50, 55, 100, 110, and 200; some products also list 6 x 6 x 2 in. dimensions.

900 NListed holding capacity

Provided by the horizontal-acting steel toggle clamp.

3Clamp action styles

Horizontal-acting, push-pull, and hook-style operation are represented.

50–200Listed sizes

Representative latch and hook clamp sizes range from 50 to 200.

6 x 6 x 2 in.Listed dimensions

Shown on selected latch and push-pull products.

Comparison Guide

Compare Toggle Clamp and Latch Styles

Use the component type and operating arrangement to narrow the selection for a compatible fixture, workholding, or closure setup.

Product typeOperation or configurationSelection considerations

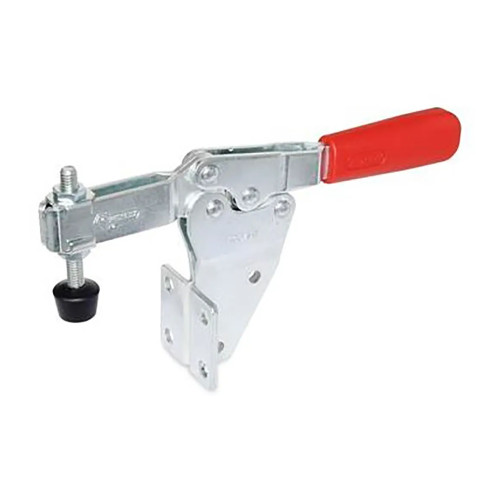

Horizontal-acting toggle clampLever and clamping bar move in opposite directions; vertical mounting baseFor manual holding tasks; includes a neoprene rubber-tip spindle and a listed 900 N holding capacity.
Push-pull toggle clampHand-operated push-pull compression actionFor fixture and clamping arrangements; selected models include lubricated moving sections and oil-resistant grips.

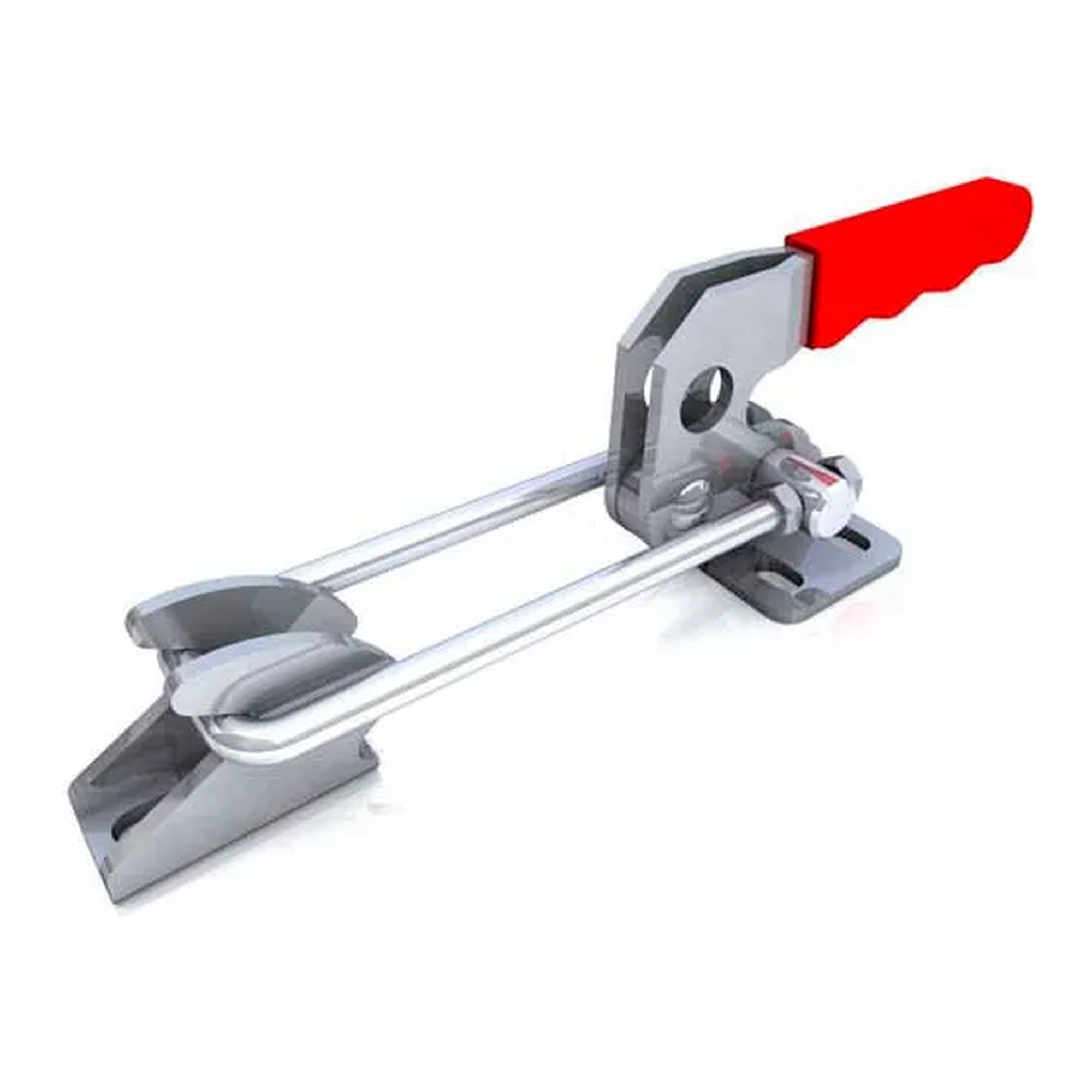

Hook clamp or toggle latchDraw hook, pulling latch, or latch-and-catch arrangementFor hooked clamping connections or mating closures; compare size, catch bracket inclusion, safety-catch requirement, and material.
Planning Guide

Plan the right fit before choosing

Clamp Types

Select the motion that fits the workholding task

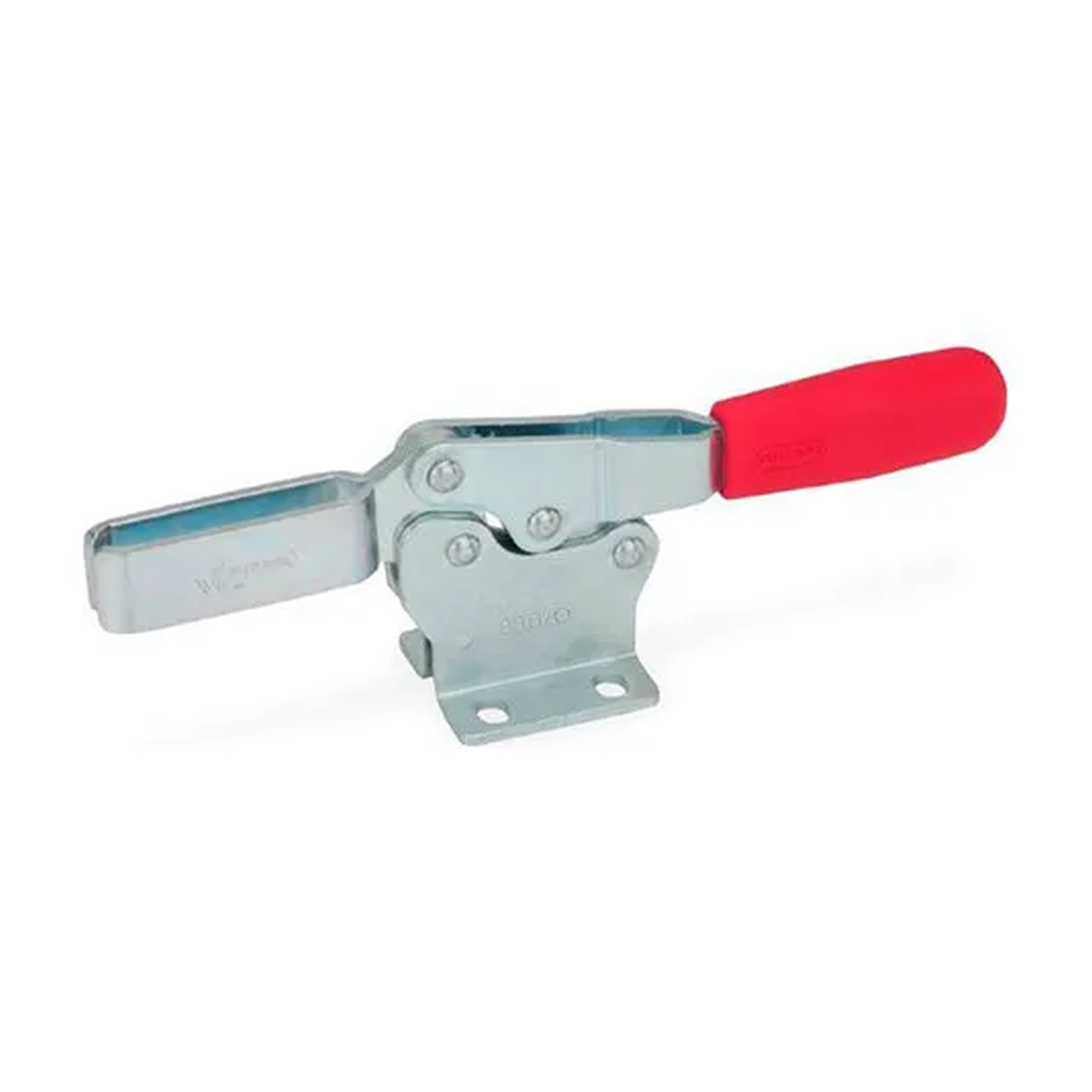

Horizontal-acting clamps move the lever and clamping bar in opposite directions. Push-pull models provide a manual compression action for fixture and clamping arrangements. Hook-style options use a draw hook or pulling latch to create a hooked clamping connection.

  • Horizontal-acting steel clamp with a vertical mounting base and 900 N holding capacity
  • Push-pull clamps for controlled engagement and release
  • Hook and pull-latch clamps for compatible hooked connections
Latch Types

Match latch assemblies to compatible closure requirements

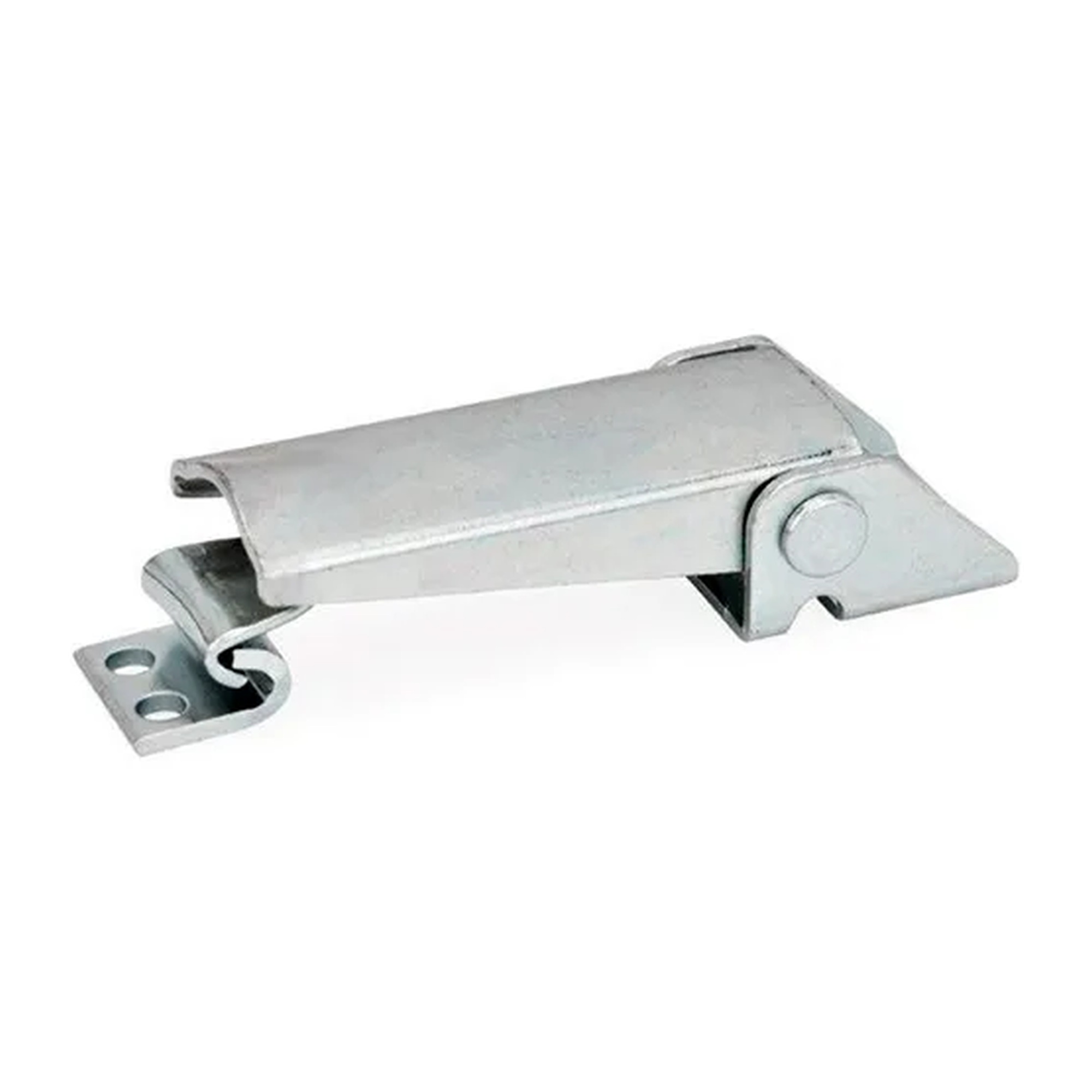

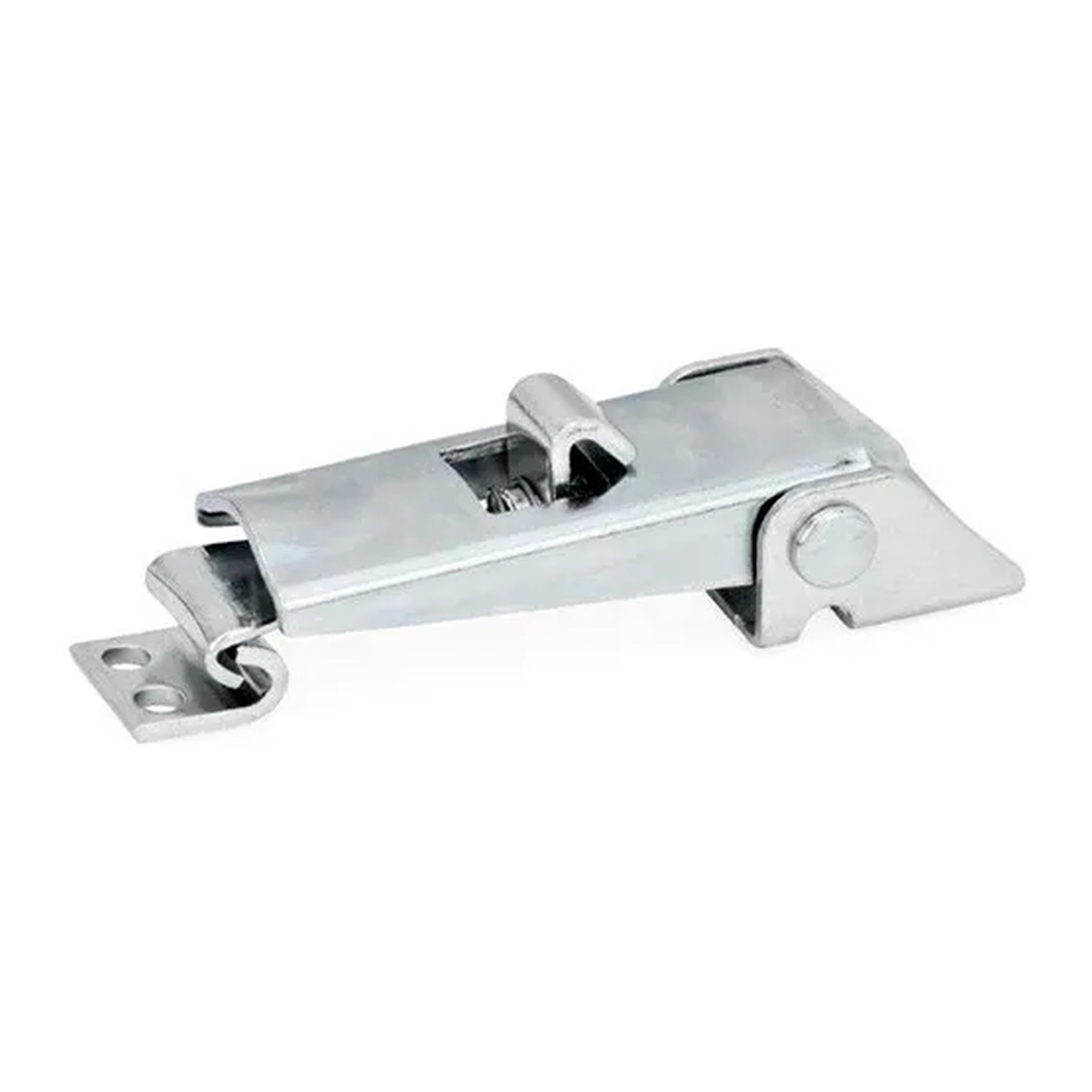

Toggle latches are intended to hold mating parts, closures, panels, covers, and enclosures in a secured position. Some latch assemblies include an integrated catch bracket, while one steel option includes a safety catch and one stainless steel option is configured without a safety catch.

  • Steel and stainless steel latch options
  • Size 50, 55, 100, and 110 latch formats represented
  • Integrated catch brackets on selected assemblies
Installation Details

Check the features that affect fit and operation

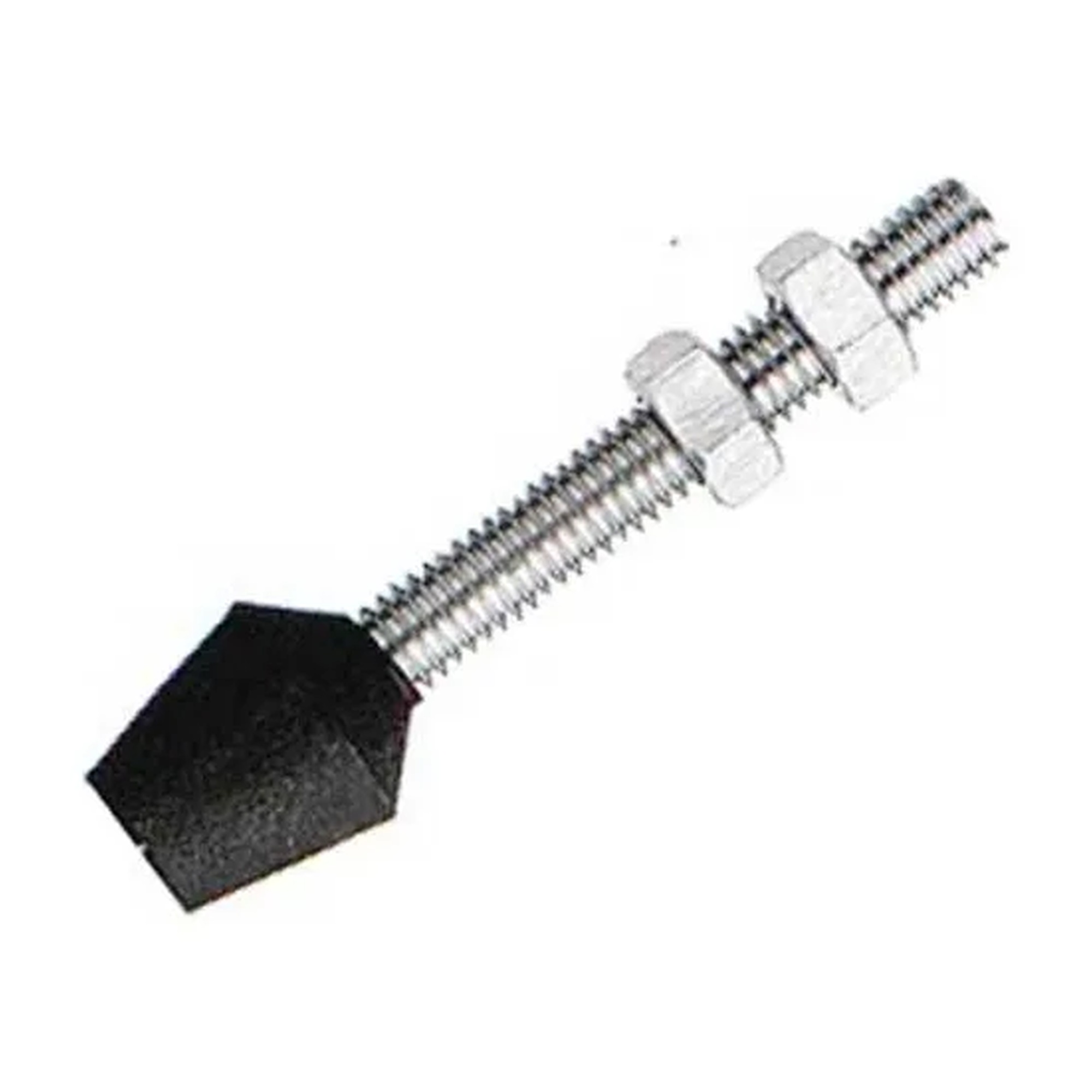

Review mounting orientation, listed size, and available space before selecting a component. A neoprene rubber-tip spindle provides a rubber contact point on the horizontal-acting clamp, while a flat neoprene-tipped screw assembly offers a cushioned flat contact surface for compatible toggle clamp setups. Lubricated moving sections, greased bearing points, and oil-resistant grips are available on selected products.

  • Vertical and horizontal base arrangements are represented
  • Selected products list 6 x 6 x 2 in. dimensions or footprint
  • Steel, sheet steel, stainless steel, and zinc-plated components are available
FAQ

Common questions before buying

What is the difference between a toggle clamp and a toggle latch?

Toggle clamps are used for holding workpieces or fixtures, while toggle latches are used to secure compatible closures, panels, enclosures, and mating parts.

Which clamp actions are available in this category?

The represented options include horizontal-acting, push-pull, and hook-style clamp actions.

Are catch brackets included with every toggle latch?

No. Integrated catch brackets are listed on selected latch assemblies.

What materials are represented?

The summaries include steel, sheet steel, stainless steel, and zinc-plated steel components.

!
