Locking Plugs & Receptacles

Locking plugs and receptacles provide compatible connection points for generator power cords, temporary power cords, electrical installations, and cord repair work. This category includes locking cord ends, flush receptacles, panel-mount inlets, and straight-blade connections for electricians, maintenance teams, and users assembling or repairing compatible power-cord setups.

Product Display:
Helpful Buying Guide

Choose compatible plugs and receptacles for cord assembly or installation

The right connection starts with matching the NEMA configuration, connection type, electrical rating, grounding arrangement, cable size, and installation format to the compatible cord or equipment connection. Options in this category include locking and straight-blade formats for building, repairing, or installing compatible power connections.

Visual Guide

Popular examples in this category

Use Cases

Build or repair compatible power cords

Assembly plugs and female connectors are suited to generator power-cord creation and repair. A straight-blade male plug can also be used for compatible temporary power and generator power cords.

How to Choose

Match the connection before selecting

Compare the required NEMA configuration, male or female end, amp and voltage rating, pole and wire arrangement, and compatible cable-size range. For installed connections, also determine whether a flush receptacle or flanged inlet is needed.

Applications

Support cord-end and mounted connections

Locking plugs and connectors provide cord-end connections, while the locking flush receptacle provides a flush-mount outlet format and the flanged inlet provides a panel-mount connection point.

Additional Info

Review handling and installation details

Available details include back-wired connections, a straight clamp cord design, graspable bodies, grab-cord styling, a weatherproof cap, and selected color finishes.

15A–50AAmperage options

Represented connection ratings range from 15 amp through 50 amp.

2Grounding arrangements

Choose from 2-pole, 3-wire or 3-pole, 4-wire grounded configurations.

Locking or straight-bladeConnection styles

The category includes both locking and straight-blade connection formats.

10/3–16/3 to 6/4–10/4Cable ranges

Cable compatibility varies by product and connection format.

Comparison Guide

Compare common connection formats

Use this overview to narrow the product type before confirming the exact NEMA configuration, rating, wiring arrangement, and cable compatibility.

Product typeConnection and installation formatSelection considerations
Locking assembly plugMale cord-end connection for compatible power-cord assembly or repairMatch the NEMA male end, rating, grounding arrangement, and stated cable range.
Locking female connectorFemale cord-end connection for compatible generator power-cord workMatch the compatible connection, amp and voltage rating, 3-pole/4-wire arrangement where required, and cable range.
Receptacle or flanged inletFlush-mounted outlet or panel-mounted male connection pointChoose a flush receptacle or flanged inlet based on installation format, then confirm NEMA configuration and electrical requirements.
Planning Guide

Plan the right fit before choosing

Connection types

Select the format that fits the job

Cord-end products include male assembly plugs and female connectors for compatible power-cord assemblies. A locking flush receptacle accepts compatible locking plugs in a flush-mount installation. A straight-blade flanged inlet provides a panel-mount male connection point, while straight-blade male and female cord ends support compatible cord connections.

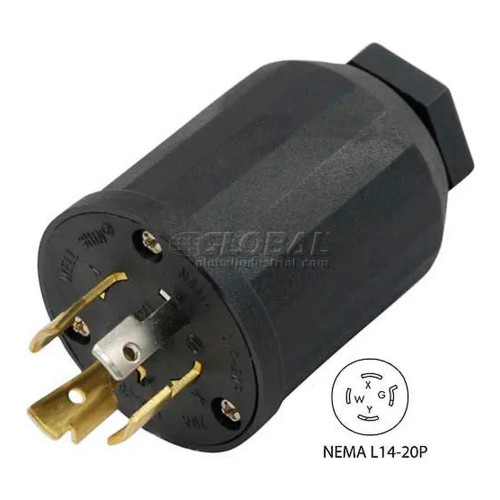

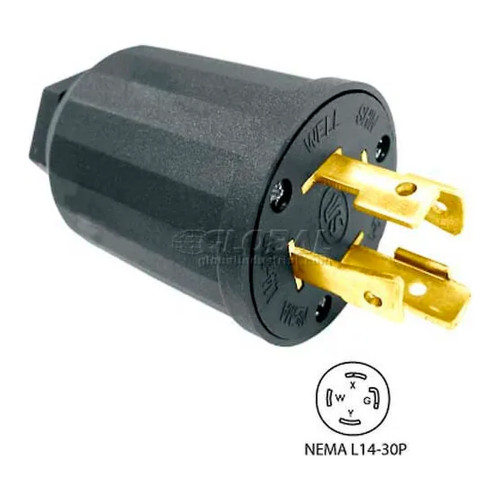

  • Male options include NEMA L14-30P, L14-20P, L5-30P, and 5-15P configurations.
  • Female options include NEMA L14-30R, L5-30R, 5-15/20R, and California standard locking configurations.
  • Choose locking or straight-blade format according to the compatible connection required.
Electrical and cable matching

Compare ratings, grounding, and cable compatibility

Products represented in this category cover 15A, 20A, 30A, and 50A connection options. Grounded arrangements include 2-pole, 3-wire and 3-pole, 4-wire formats. Cable compatibility varies by cord end, so confirm that the cable falls within the stated range before selecting.

  • 15A and 15/20A straight-blade options support 125V applications.
  • 30A locking options include 125V and 125/250V configurations.

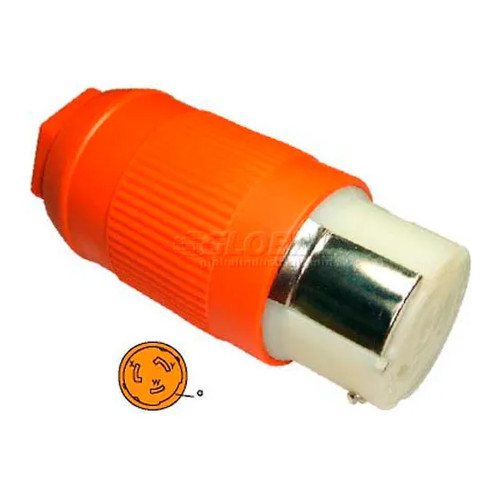

  • 50A female connectors support 250V or 125/250V power-cord applications as stated.
  • Compatible cable ranges include 10/3 to 16/3, 10/3 to 12/3, 10/4 to 12/4, and 6/4 to 10/4.
Installation and usability

Consider mounting and cord-handling features

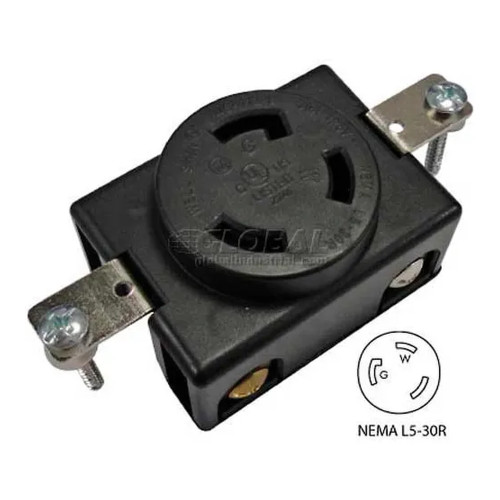

For an installed outlet, a 30A NEMA L5-30R receptacle offers a flush-mount, back-wired format. For a panel connection, the 15A NEMA 5-15P inlet is back-wired and includes a weatherproof cap. Cord-end options may include a straight clamp cord design, graspable body, grab-cord design, or color finish for visual distinction.

  • Use a flush receptacle where a flush installation is required.
  • Use a flanged inlet where a panel-mount connection point is needed.
  • Review cord retention and handling features for the selected cord-end style.
FAQ

Common questions before buying

What is the difference between a locking plug and a locking connector?

A locking plug has a male end, while a locking connector has a female end. Both are used for compatible cord-end power connections.

How do I choose the right NEMA configuration?

Match the required male or female NEMA configuration to the compatible receptacle, plug, equipment connection, or cord assembly.

What cable sizes are represented in this category?

Stated compatibility ranges include 10/3 to 16/3, 10/3 to 12/3, 10/4 to 12/4, and 6/4 to 10/4, depending on the product.

When should I choose a receptacle or a flanged inlet?

Choose a flush receptacle for a flush-mount outlet installation. Choose a flanged inlet when a panel-mount male connection point is required.
