Consumer Transformers

Consumer transformers convert or support specified AC voltages for commercial, residential, industrial, and electrical control work. This category includes transformers for low-voltage signaling equipment, doorbells and chimes, HVAC/R control circuits, and compatible electrical installations where input voltage, output voltage, capacity, mounting style, and connection options need to align with the job.

Product Display:
Helpful Buying Guide

Consumer Transformer Buying Guide

Choose a transformer by first matching the available input voltage and the voltage required by the connected control or signaling load. Then compare the stated VA capacity, application type, mounting arrangement, connection features, and available installation space.

Visual Guide

Popular examples in this category

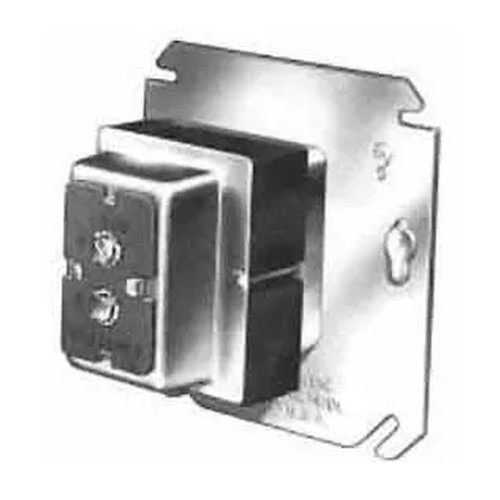

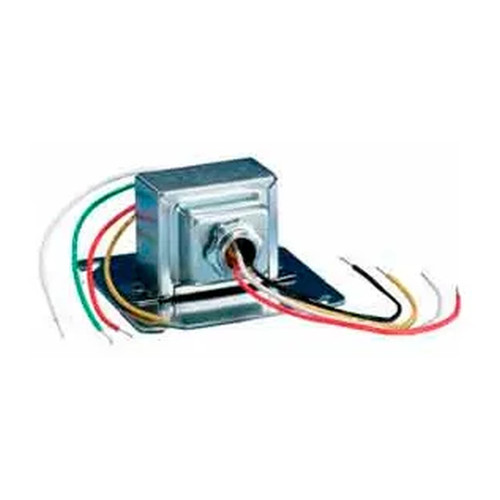

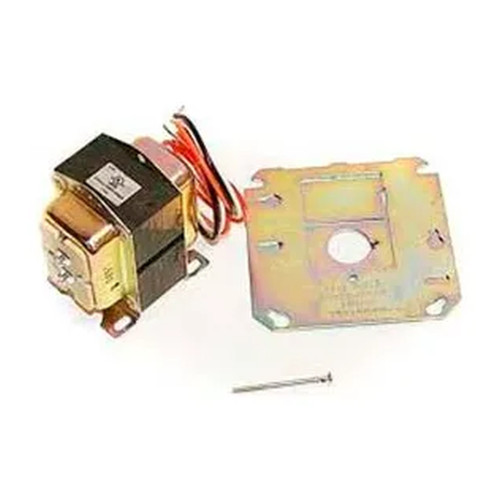

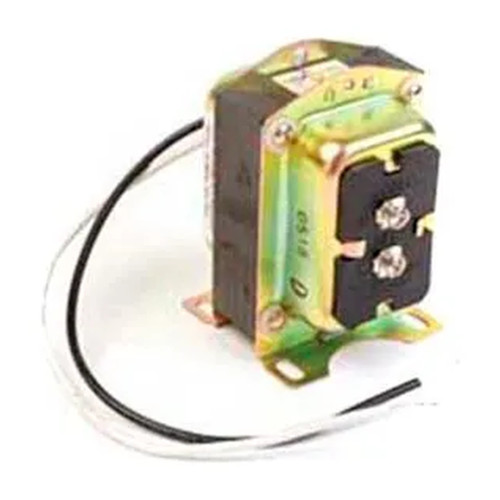

120V to 24V 40 VA Transformer with Universal Mounting120V to 24V 40 VA Transformer with Universal MountingWBB394651Plate-Mounted 120 VAC Transformer with Junction ProtrusionPlate-Mounted 120 VAC Transformer with Junction ProtrusionWBB393760120/208/240 VAC Transformer with 13 in. Primary Lead Wires120/208/240 VAC Transformer with 13 in. Primary Lead WiresWBB39376848 VA Universal Control Transformer48 VA Universal Control TransformerWBB434593
Use Cases

Match the transformer to the electrical job

Available options support low-voltage signaling equipment, standard doorbells and chimes, control-transformer applications, HVAC/R control circuits, and compatible 120V, 208V, 240V, or 480V electrical work.

How to Choose

Start with voltage and capacity

Verify the primary supply voltage, required secondary voltage, and stated VA capacity. Examples include 120V-to-6V, 120V-to-8V, and 120V-to-24V AC signaling transformers, plus multi-voltage control transformer options.

Applications

Plan around mounting and connections

Select plate, foot, knockout, surface, or compatible enclosed mounting as needed for the installation. Leadwire length, pre-stripped pigtails, and secondary screw terminals can also affect connection planning.

Additional Information

Compare installation-focused details

Some models have metal end bells, junction protrusions, back box compatibility, compact dimensions, or non-regenerative thermal overload protection. These details vary by transformer type and installation.

6V, 8V, 24VSignaling outputs

Listed low-voltage AC output options.

40, 48, 75 VACapacity ratings

Stated ratings on select models.

120–480 VInput configurations

Voltage configurations represented in the category.

Plate, foot, knockoutMounting styles

Installation options on select transformers.

Comparison Guide

Compare Consumer Transformer Types

Use this overview to narrow the selection based on the application and features stated for each product type.

Transformer TypeVoltage and ApplicationInstallation Features
120V low-voltage signaling transformers120V AC input to 6V, 8V, or 24V AC for signaling loads; 6V models are for standard doorbells and chimesKnockout or surface mounting on applicable models; select models include back box compatibility, pre-stripped pigtails, secondary screw terminals, and thermal overload protection
Multi-voltage and universal transformers120, 208, or 240 VAC applications; one control transformer accepts 120/208/240 VAC input with selectable 2.5, 8, 12, 16, or 24 VAC secondary voltagesPlate, foot, or knockout mounting varies by model; select models have 9-inch or 13-inch lead wires and metal end bells
HVAC/R control transformer120/208/240/480 V configurations for HVAC/R control-circuit applications; 75 VA stated capacityCompact 3.5 x 5 x 3 in. dimensions for suitable equipment layouts
Planning Guide

Plan the right fit before choosing

Voltage Selection

Confirm the input and output needed

The listed transformers cover several voltage arrangements. Signaling models convert 120V AC input to 6V AC, 8V AC, or 24V AC output. Other models support 120V, 208V, or 240V applications, while one HVAC/R control transformer supports 120/208/240/480 V configurations.

  • Match the available primary voltage to the transformer configuration.
  • Choose the secondary voltage required by the connected signaling or control load.
  • For control work, consider models with selectable 2.5, 8, 12, 16, and 24 VAC secondary options.
Capacity and Application

Compare the stated VA rating for the intended use

Capacity is identified on select transformers as 40 VA, 48 VA, or 75 VA. The 40 VA option provides 24V output from a 120V input, the 48 VA model is intended for low-voltage AC control-transformer applications, and the 75 VA model is designed for HVAC/R control-circuit work.

  • Use the listed VA rating as part of compatibility planning.
  • Consider signaling transformers for low-voltage signaling loads, doorbells, and chimes.
  • Choose an HVAC/R design when the work calls for an HVAC/R control transformer.
Mounting and Wiring

Fit the transformer to the installation layout

Mounting choices represented here include plate, foot, knockout, surface, combination plate-or-foot, and compatible enclosed arrangements. Connection-related features include 9-inch or 13-inch lead wires, pre-stripped pigtails, secondary screw terminals, and a junction protrusion on one plate-mounted model.

  • Choose plate, foot, or knockout mounting based on the available location.
  • Consider surface mounting or back box compatibility for applicable signaling transformer installations.
  • Check leadwire length and terminal style before planning connections.
FAQ

Common questions before buying

What low-voltage outputs are available for signaling transformers?

The listed signaling transformers provide 6V AC, 8V AC, or 24V AC output from a 120V AC input.

Which transformers support more than one input voltage?

Select transformers support 120, 208, and 240 VAC applications. One HVAC/R control transformer supports 120/208/240/480 V configurations.

What mounting options are represented in this category?

Depending on the model, options include plate, foot, knockout, surface, combination plate-or-foot, and compatible enclosed mounting arrangements.

What connection features are available on select models?

Available features include 9-inch or 13-inch lead wires, pre-stripped pigtails, secondary screw terminals, and a junction protrusion.

!
