Diffusers, Grilles, & Registers

Diffusers, grilles, and registers help manage airflow at supply, return, and transfer openings in commercial heating, cooling, and ventilation applications. This category includes ceiling and sidewall registers for directing conditioned air, return-air grilles and filter grilles for covering return openings and accessing filters, door louvers for moving air between spaces with added privacy, and eggcrate core panels for ventilation openings and other open-grid uses.

Product Display:
Helpful Buying Guide

How to Choose Diffusers, Grilles & Registers

Match the product to the opening and airflow job first, then compare listed dimensions, construction, mounting details, and access requirements before ordering.

Visual Guide

Popular examples in this category

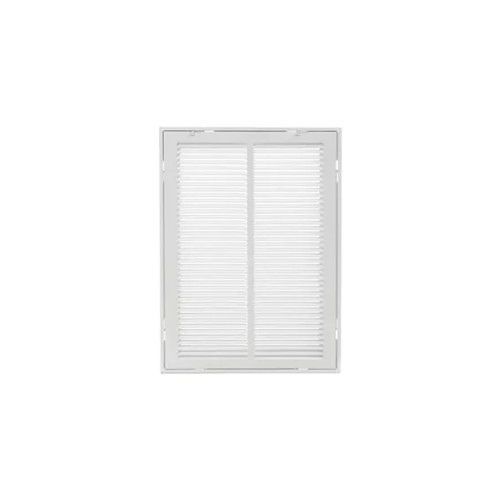

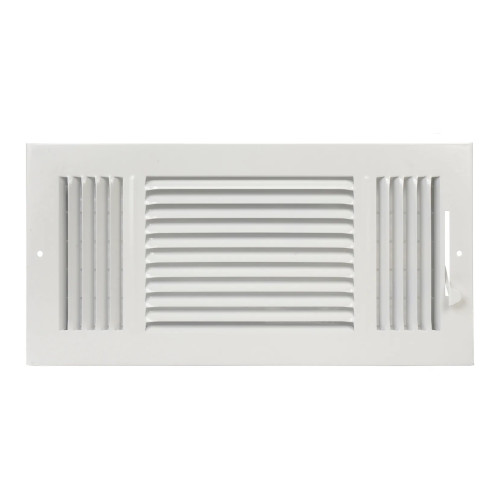

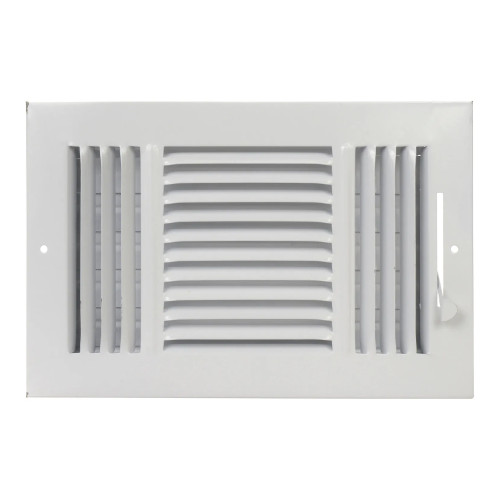

Steel 3-Way Ceiling and Sidewall Register, White, 10-PackSteel 3-Way Ceiling and Sidewall Register, White, 10-PackWBB289803-Way Steel Ceiling/Sidewall Register, 15-3/4 in. x 7-3/4 in., White, Pack of 103-Way Steel Ceiling/Sidewall Register, 15-3/4 in. x 7-3/4 in., White, Pack of 10WBB28981Steel Return Air Filter Grille, 22-5/8 in. W x 22-5/8 in. HSteel Return Air Filter Grille, 22-5/8 in. W x 22-5/8 in. HWBB28963Steel Return Air Filter Grille, 22-5/8 in. W x 1-5/8 in. D x 27-5/8 in. HSteel Return Air Filter Grille, 22-5/8 in. W x 1-5/8 in. D x 27-5/8 in. HWBB28964
What These Products Are For

Manage supply, return, and transfer airflow

Registers direct conditioned air into a room, return-air grilles cover return openings, door louvers move air between spaces, and eggcrate panels provide an open-grid option for ventilation openings. Choose the family that matches the opening's job before comparing sizes.

How To Choose

Start with airflow function and opening size

Identify whether the opening supplies air, returns air, transfers air through a door, or needs an open-grid panel. Measure the required opening carefully, then confirm face dimensions, depth, damper or filter access, and mounting details listed for the product.

Common Applications

Commercial HVAC and interior air movement

These products support ceiling and sidewall supply outlets, return-air and filter access points, door-transfer openings, and ventilation panels in offices, schools, healthcare spaces, storage areas, service rooms, and other commercial interiors.

Additional Information

Check the complete listed dimensions

Nominal opening size and overall face size are not always the same. Review width, height, depth, pack quantity, finish, included hardware, filter compatibility, blade or cell details, and any installation notes shown on the individual product page.

SupplyDirect airflow

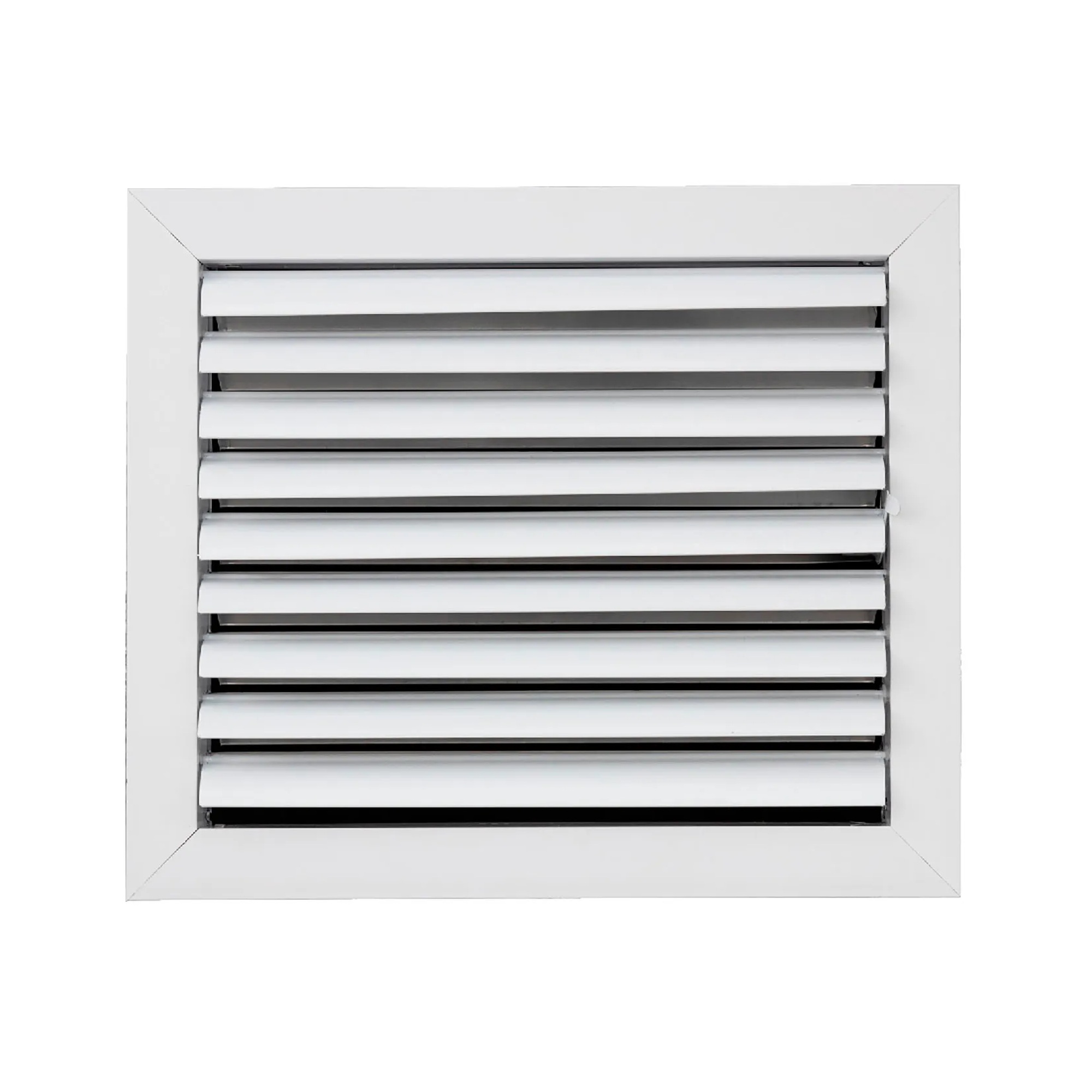

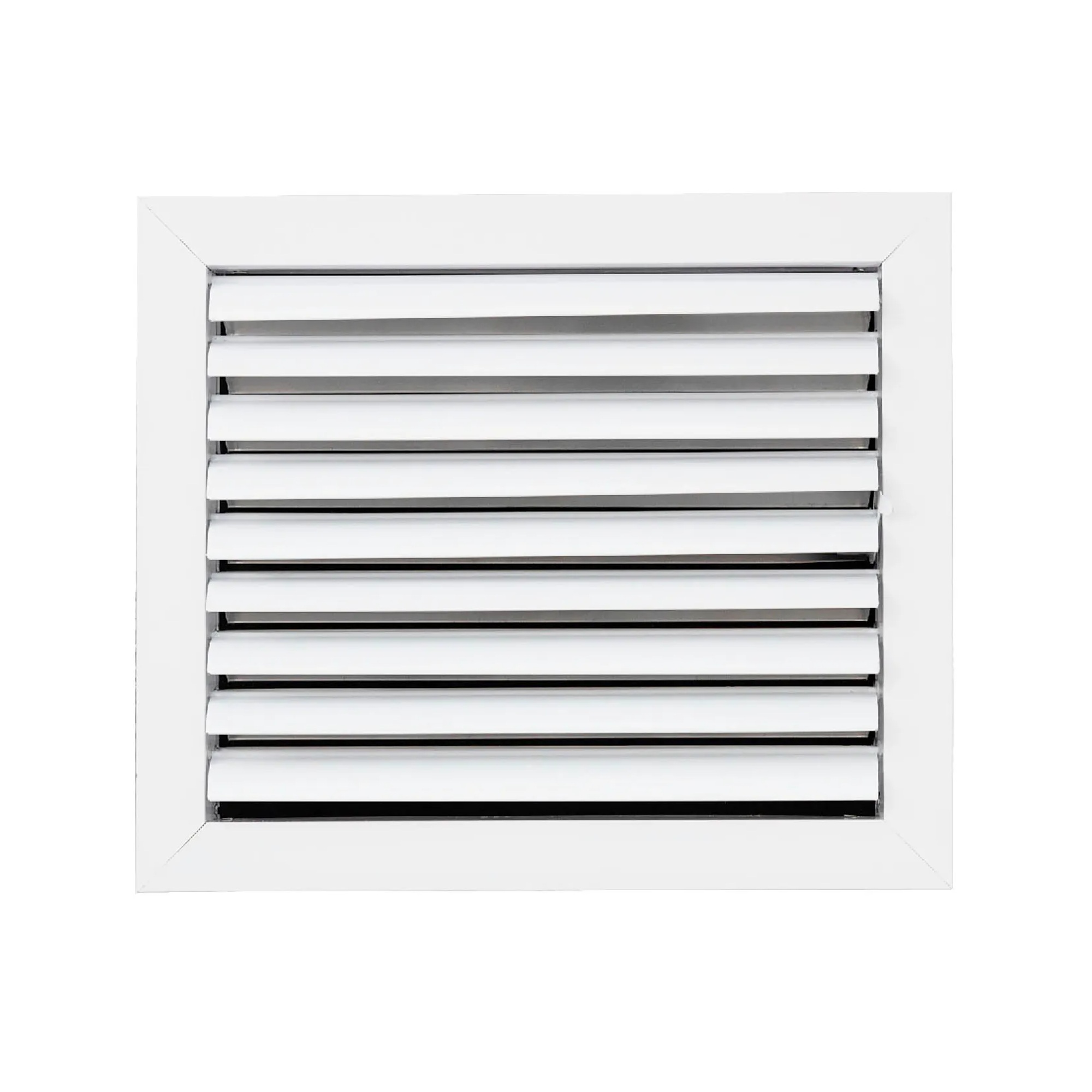

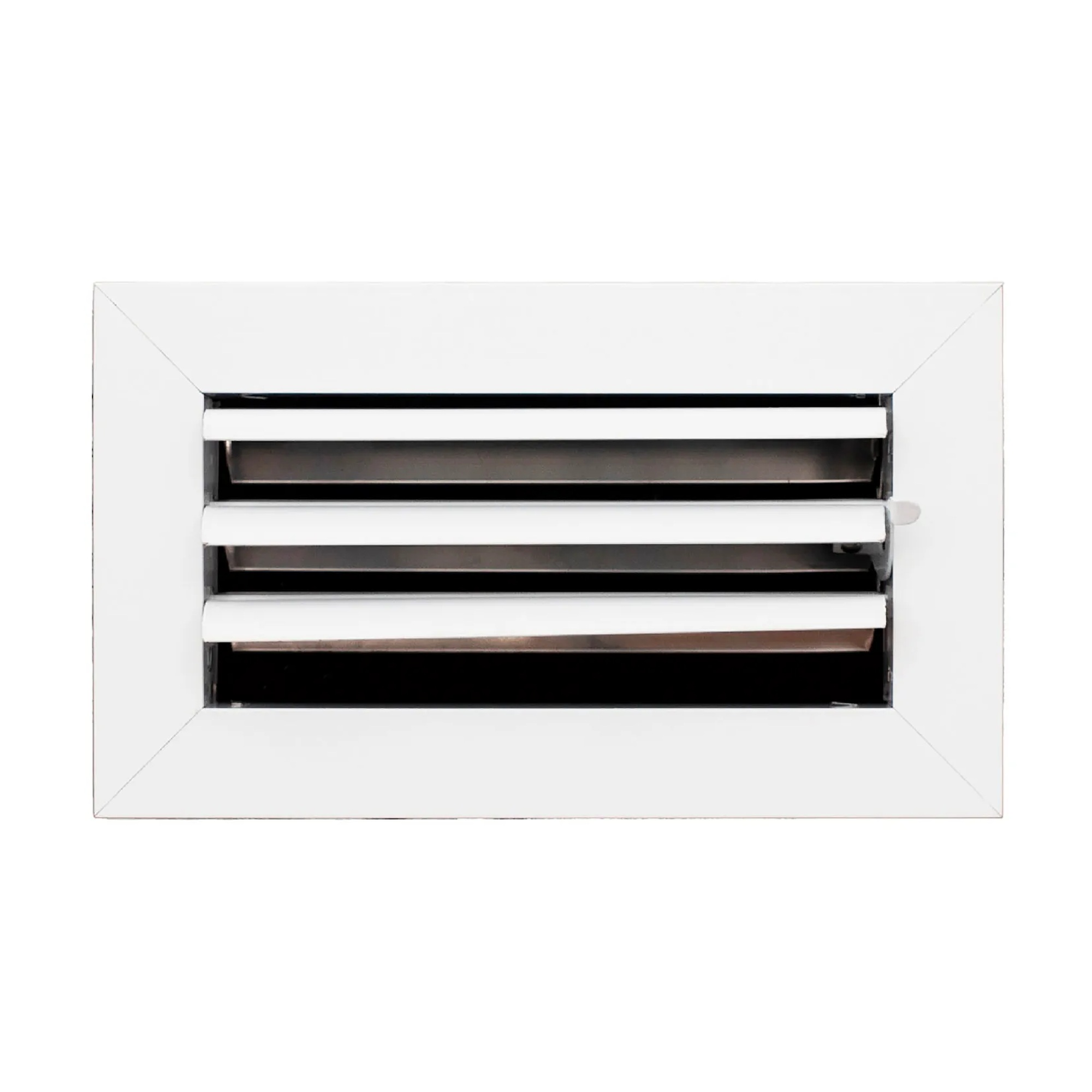

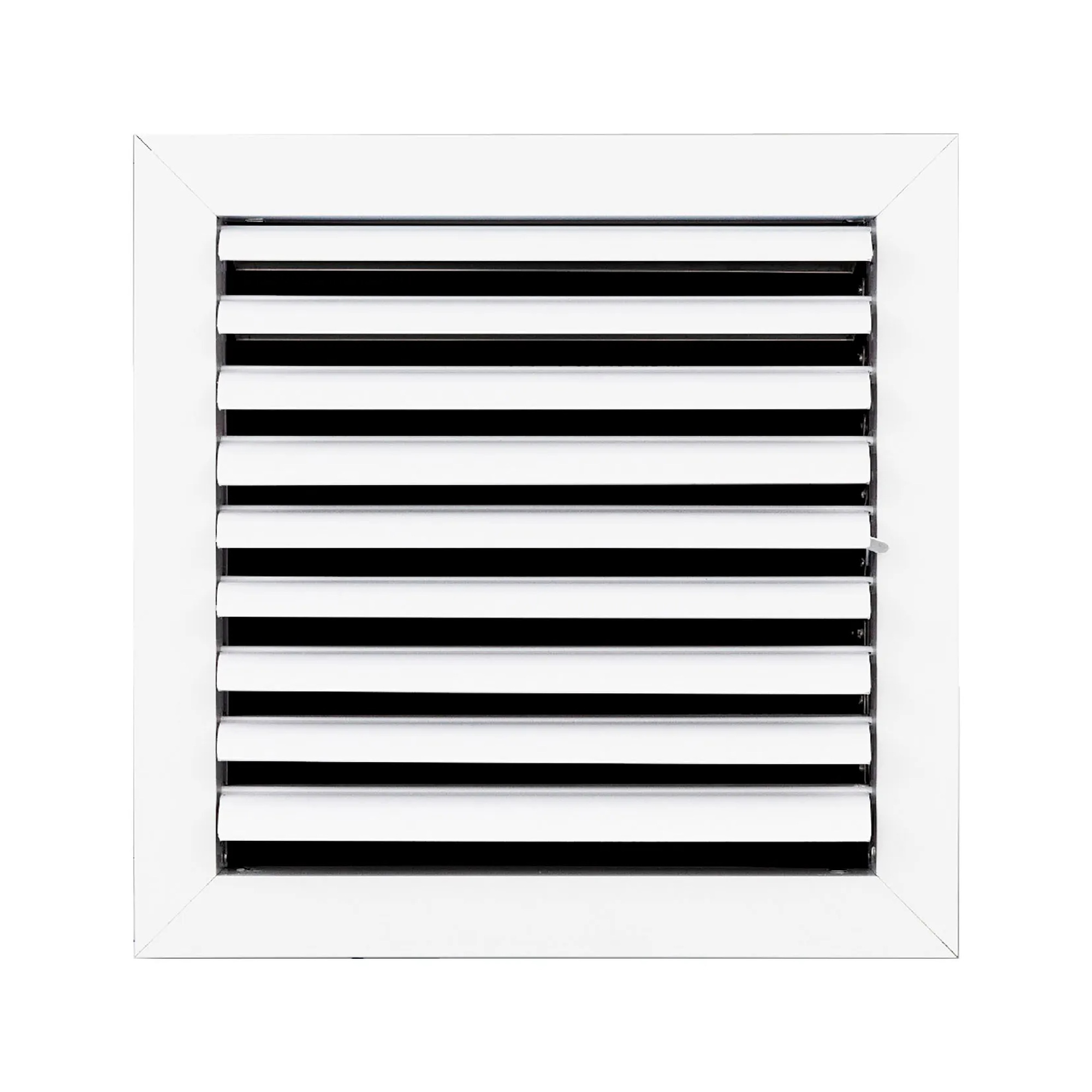

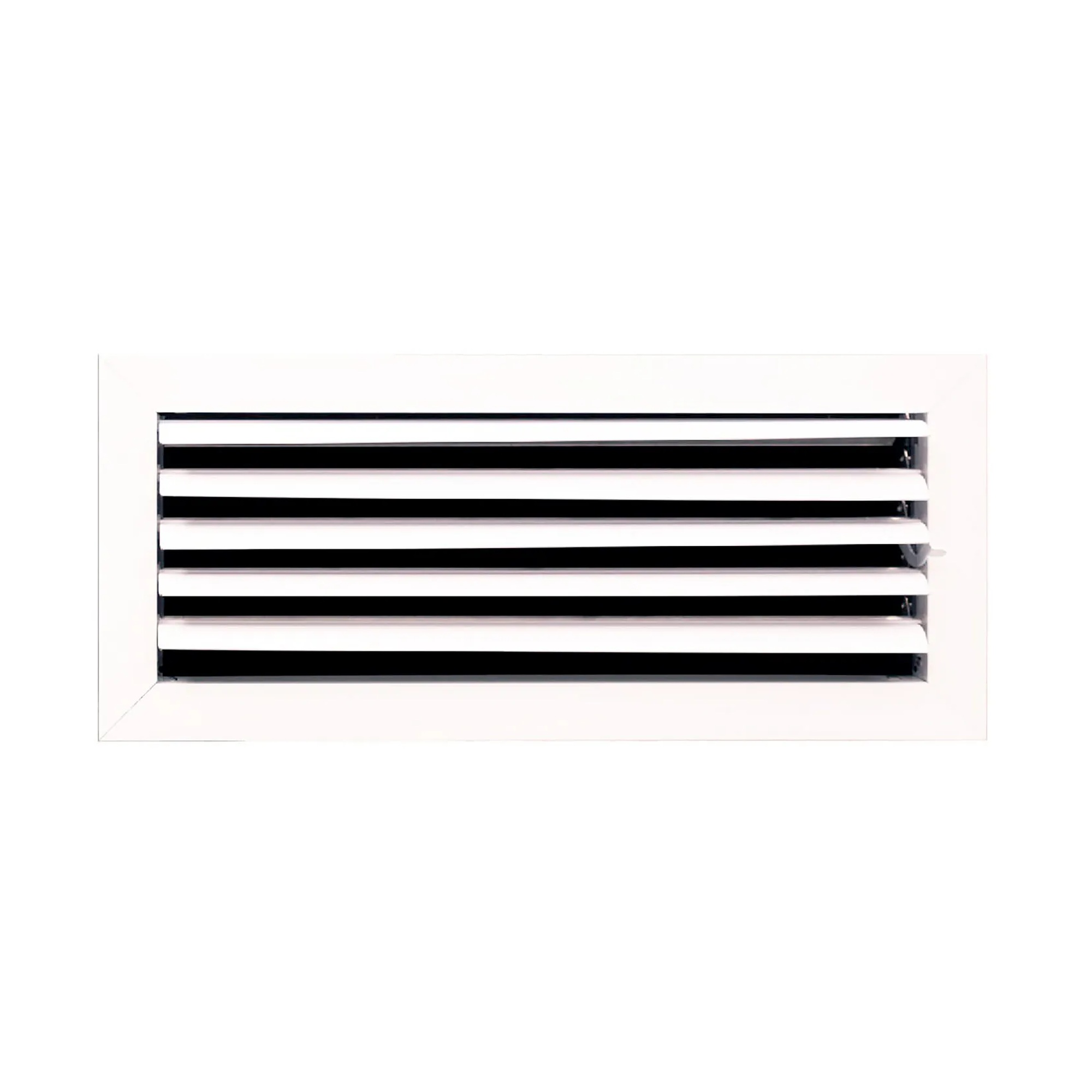

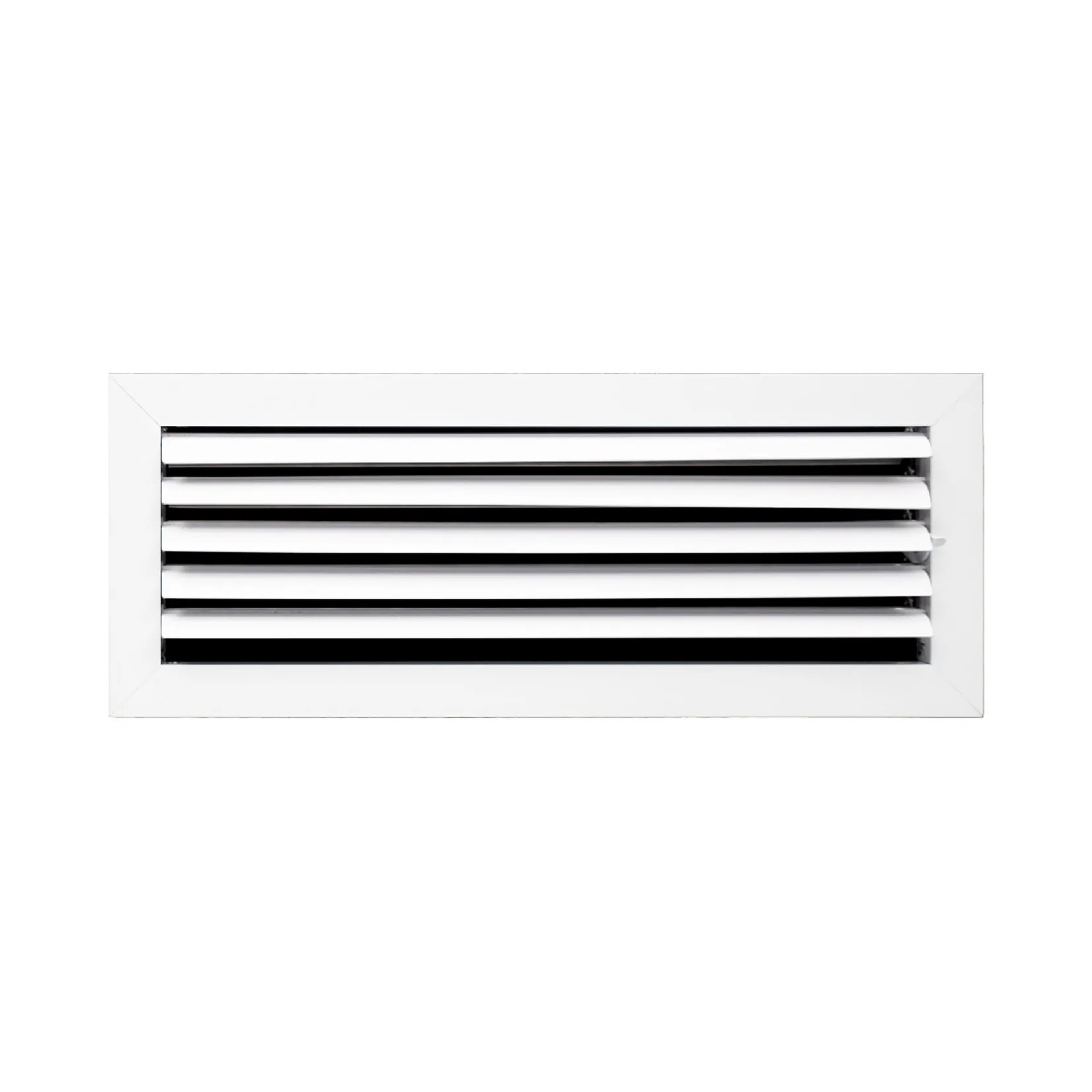

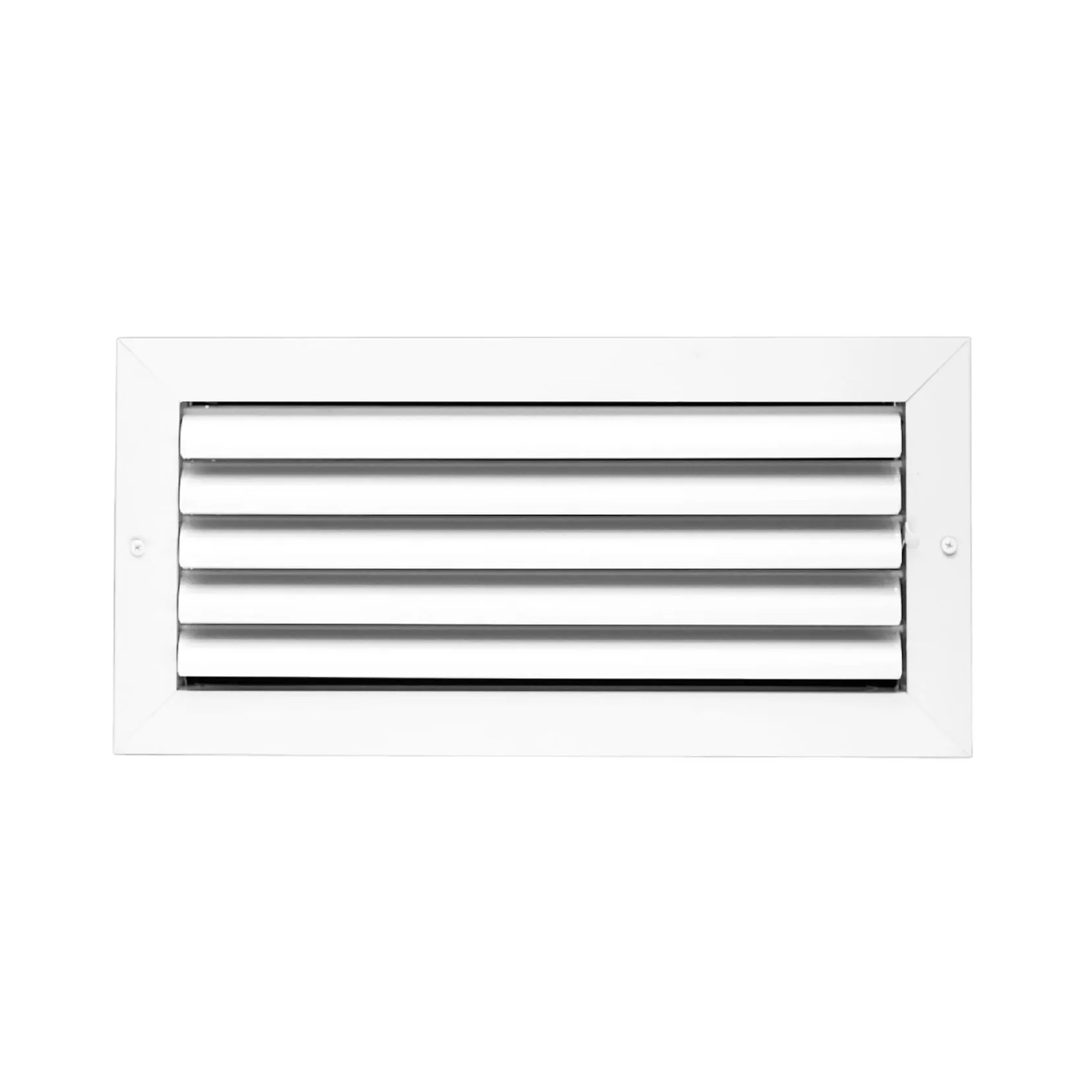

Registers and diffusers distribute conditioned air from ceiling or sidewall openings.

ReturnCover return openings

Return-air and filter grilles provide airflow while supporting access where specified.

TransferMove air between spaces

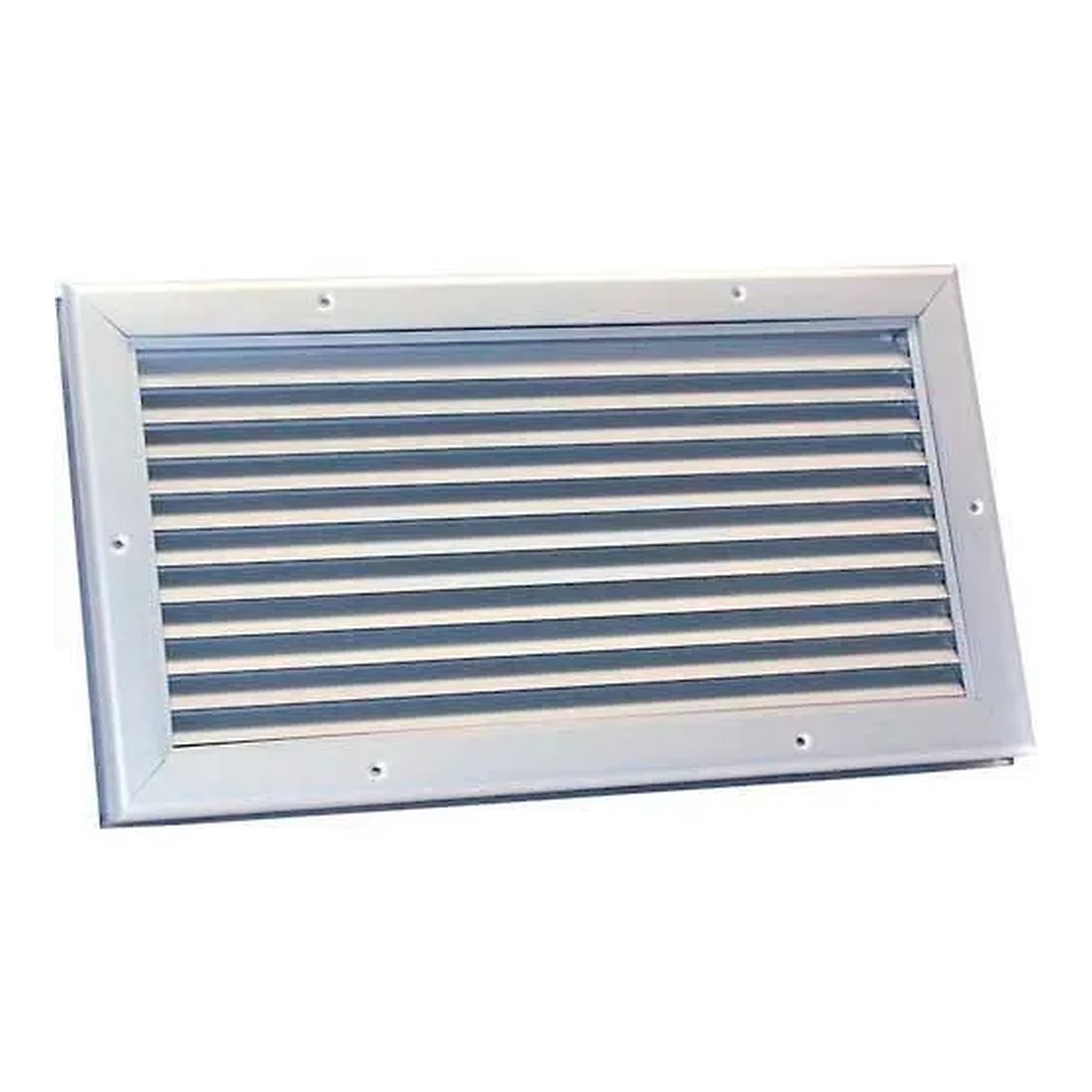

Door louvers support air transfer while limiting a direct line of sight.

Open GridVentilation panels

Eggcrate cores and panels provide a high-open-area option for compatible openings.

Comparison Guide

Compare by airflow function

Use the opening's purpose to narrow the product family, then verify the individual product specifications.

Opening NeedProduct TypeDetails to Confirm
Direct supply airCeiling or sidewall registerOpening size, directional louvers, damper, finish
Cover a return openingReturn-air grilleOpening and face dimensions, mounting style
Return air with filter accessFilter grilleFilter size, hinged access, clearance, depth
Transfer air through a doorDoor louverDoor cutout, door thickness, blade design, hardware
Open-grid ventilationEggcrate core or panelPanel dimensions, cell details, pack quantity, listed use
Planning Guide

Plan the right fit before choosing

Planning Guide

Measure the opening before choosing a size

Use the product's listed dimensions rather than relying on the category image alone. Confirm the opening location and whether the listed measurement describes the duct opening, door cutout, panel, or overall face.

  • Measure width and height at more than one point.
  • Confirm available mounting depth and surrounding clearance.
  • Check whether face dimensions extend beyond the opening.
Selection Checklist

Match operation and service access

Selection also depends on how the opening will be adjusted or serviced after installation. A supply register may need directional control, while a filter grille needs adequate clearance for routine filter changes.

  • Confirm supply, return, transfer, or open-grid use.
  • Review damper, louver, hinge, and filter details.
  • Verify material, finish, pack quantity, and mounting hardware.
FAQ

Common questions before buying

What is the difference between a register and a grille?

A register commonly includes adjustable louvers or a damper for directing or controlling supply air. A grille primarily covers an opening while allowing air to pass. Always confirm the features listed for the specific product.

Should I order by the duct opening or the outside face size?

Product naming and measurement conventions can vary. Measure the opening, then compare it with the product's complete width, height, depth, and installation details before ordering.

How do I choose a return-air filter grille?

Confirm the opening dimensions, supported filter size, grille depth, hinged access, and the clearance required to replace the filter after installation.

What should I check for a door louver?

Verify the required cutout, overall dimensions, compatible door thickness, blade spacing or privacy design, finish, and included mounting hardware shown on the product page.

!
