Bodies

Turnbuckle bodies are the central threaded components used to assemble or replace adjustable turnbuckle connections. Commercial maintenance and fabrication buyers use them with compatible threaded end fittings when building, servicing, or planning turnbuckle hardware assemblies.

Product Display:
Helpful Buying Guide

Guide to Choosing Turnbuckle Bodies

A turnbuckle body must match the threaded components and dimensional needs of the assembly. Compare thread size, tapping designation, body length, finish, and stated specification details before selecting a replacement or assembly component.

Visual Guide

Popular examples in this category

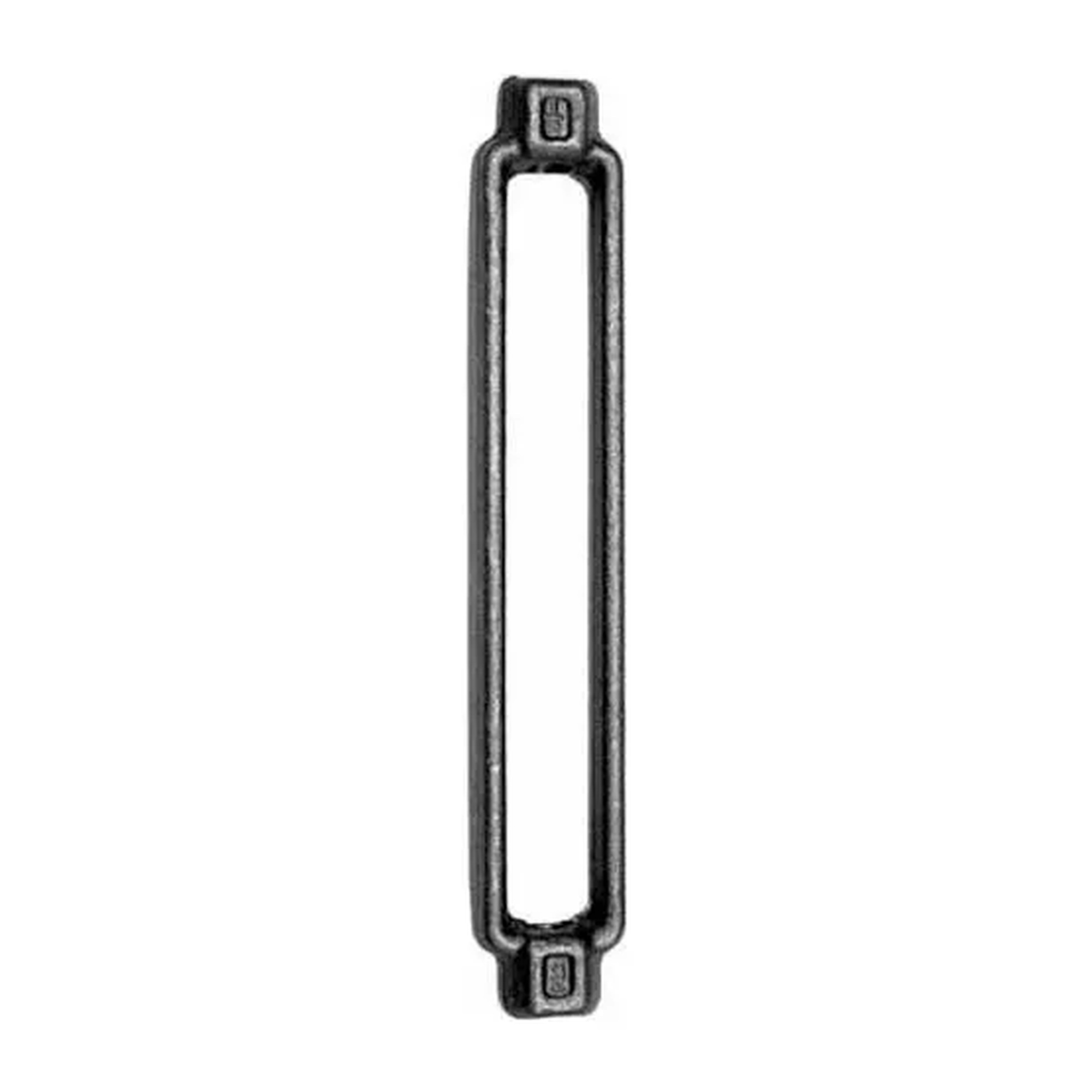

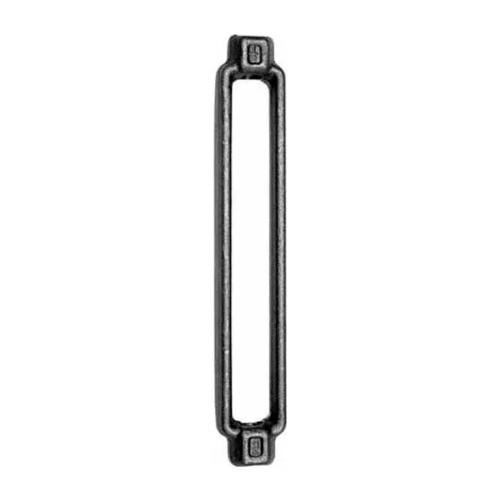

Drop-Forged Carbon Steel Turnbuckle BodyDrop-Forged Carbon Steel Turnbuckle BodyWBB1978666Galvanized Drop-Forged Turnbuckle Body, 3/4-10 x 11-7/16 in.Galvanized Drop-Forged Turnbuckle Body, 3/4-10 x 11-7/16 in.WBB1978700Galvanized Drop-Forged Turnbuckle Body, 5/16-18 x 5-1/2 in.Galvanized Drop-Forged Turnbuckle Body, 5/16-18 x 5-1/2 in.WBB1978687Galvanized Turnbuckle Body, 3/4-10 x 8-7/16 in.Galvanized Turnbuckle Body, 3/4-10 x 8-7/16 in.WBB1978699
Use Cases

Build or replace adjustable connections

Turnbuckle bodies provide the threaded center section for assembling turnbuckles or replacing an existing body in compatible hardware setups.

How to Choose

Match threads and body length first

Confirm the required thread size and UNC-2B tapping, then compare the listed body length with the needs of the assembly.

Applications

Maintenance and fabrication work

These bodies are suited to maintenance and fabrication buyers working with compatible threaded turnbuckle end fittings.

Additional Info

Compare finish and listed classifications

Available options include galvanized and self-colored finishes. Some bodies also list ASTM F1145 Type 1, Grade 1, Class B classification details.

7Listed thread sizes

Sizes represented range from 1/4-20 through 1-8.

5-1/2 to 11-7/16 in.Listed lengths

Compare body length for replacement and assembly planning.

2Finish options

Choose galvanized or self-colored configurations where available.

UNC-2BThread designation

Products list UNC-2B tapping, including oversized configurations on certain bodies.

Comparison Guide

Compare Turnbuckle Body Configurations

Use thread size, length, and finish to narrow the represented turnbuckle body options.

ConfigurationExamples of listed sizes and lengthsSelection consideration
Self-colored drop-forged carbon steel1/4-20 x 5-1/2 in.; 3/8-16 x 7-3/8 in.; 1/2-13 x 7-7/16 in.Choose when an uncoated steel appearance and the required compatible thread size are needed.
Galvanized drop-forged carbon steel5/16-18 x 5-1/2 in.; 1/2-13 x 7-7/16 in.; 3/4-10 x 8-7/16 in.; 3/4-10 x 11-7/16 in.Compare galvanized finish, thread size, and body length with the assembly requirement.
Drop-forged carbon steel with listed thread and length variations5/8-11 x 6-3/16 in.; 5/8-11 x 8-3/16 in.; 1-8 x 8-15/16 in.Match the tapping designation and stated length to compatible turnbuckle end fittings.
Planning Guide

Plan the right fit before choosing

Start With Compatibility

Confirm the thread size and tapping configuration

The body is the connection point between compatible threaded turnbuckle components. Select a body with the thread size needed for the end fittings in your assembly.

  • Listed thread sizes include 1/4-20, 5/16-18, 3/8-16, 1/2-13, 5/8-11, 3/4-10, and 1-8.
  • Products are described with UNC-2B tapped threads or oversized UNC-2B tapping.
  • Match the thread size and stated tapping configuration to compatible turnbuckle components.
Plan for Assembly Fit

Compare the stated body length

Body length helps buyers evaluate fit when replacing a component or planning a turnbuckle assembly. The available summaries show several lengths across different thread sizes.

  • Listed lengths range from 5-1/2 in. to 11-7/16 in.
  • Examples include 7-3/8 in., 7-7/16 in., 8-3/16 in., 8-7/16 in., and 8-15/16 in.
  • Check the complete size designation rather than choosing by thread size alone.
Choose the Required Configuration

Review construction, finish, and specification references

The represented bodies use drop-forged carbon steel construction. Finish options and stated classification references vary by item, so compare these details with the project requirement.

  • Galvanized bodies have a galvanized surface finish.
  • Self-colored bodies provide an uncoated steel appearance.
  • Selected products list ASTM F1145 Type 1, Grade 1, Class B requirements.
FAQ

Common questions before buying

What is a turnbuckle body?

It is the central tapped component of a turnbuckle assembly, used to connect compatible threaded end fittings.

Which thread sizes are represented?

The summaries include 1/4-20, 5/16-18, 3/8-16, 1/2-13, 5/8-11, 3/4-10, and 1-8 sizes.

What finishes are available?

Represented options include galvanized and self-colored finishes.

Why does body length matter?

The stated length helps buyers confirm fit when replacing a body or planning a compatible turnbuckle assembly.

!
