Belleville Springs

Belleville springs are curved disc springs used when a compact component needs to provide spring-like action and controlled compression in heavy-load applications. They are commonly selected for fastening, hardware, maintenance, assembly, replacement, and equipment service work where outside diameter, inside diameter, material, and pack quantity must fit the assembly.

Product Display:
Helpful Buying Guide

Belleville Spring Buying Guide

Belleville disc springs provide spring-like movement in a compact curved-disc design. Use the dimensions and material listed for each option to match the spring with the fastener or assembly requirements of your heavy-load application.

Visual Guide

Popular examples in this category

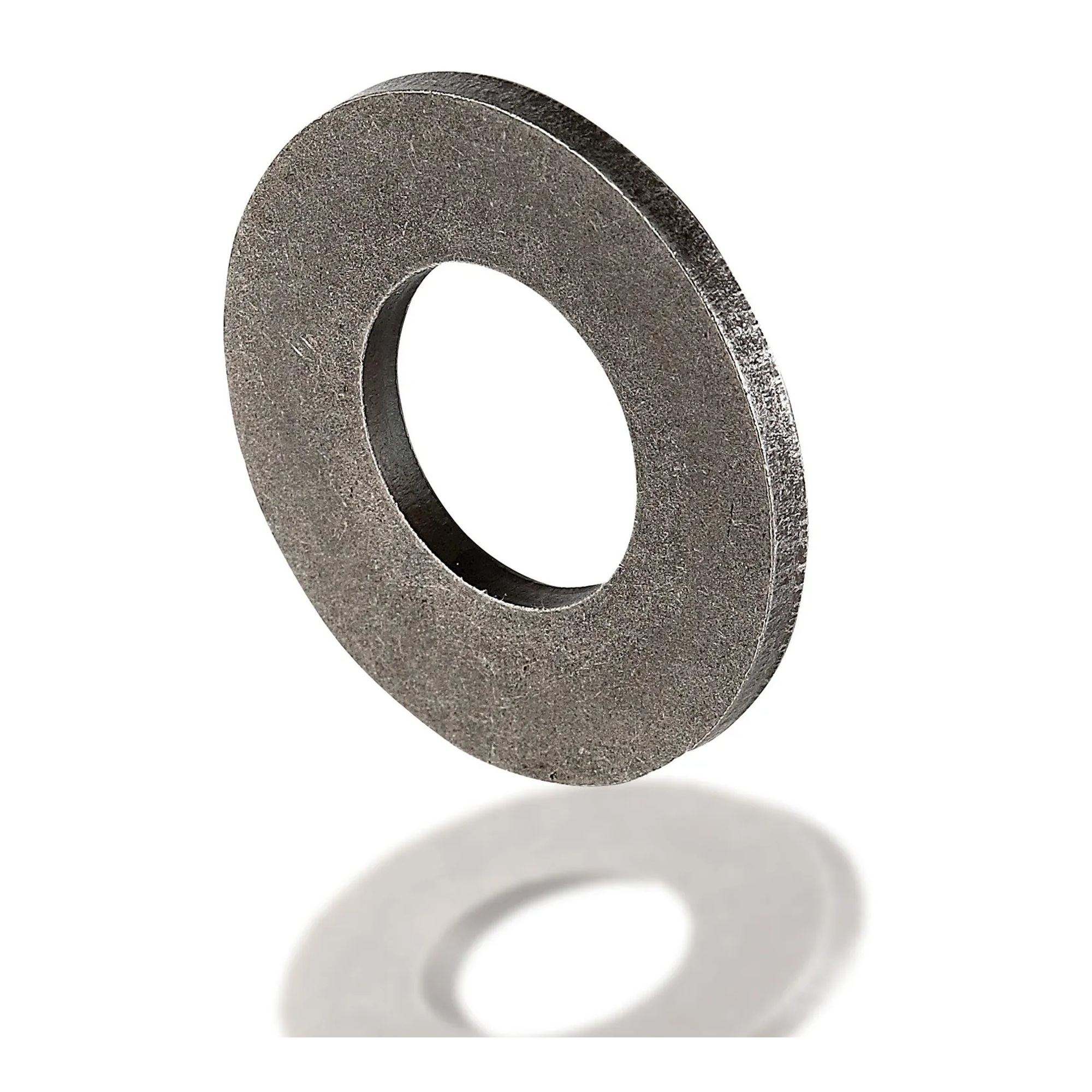

302 Stainless Steel Belleville Disc Springs, 1-1/2 in. OD, 6-Pack302 Stainless Steel Belleville Disc Springs, 1-1/2 in. OD, 6-PackWBB2170083Carbon Steel Belleville Disc Springs, 1.5 in. OD, 12-PackCarbon Steel Belleville Disc Springs, 1.5 in. OD, 12-PackWBB2170089302 Stainless Steel Belleville Disc Springs, 1/4 in. OD, 12-Pack302 Stainless Steel Belleville Disc Springs, 1/4 in. OD, 12-PackWBB2170020Carbon Steel Belleville Disc Springs, 0.75 in. OD, 12-PackCarbon Steel Belleville Disc Springs, 0.75 in. OD, 12-PackWBB2170059
Use Cases

Support compact spring action

Use Belleville springs in heavy-load fastening, hardware, assembly, maintenance, replacement, and equipment service applications that call for a compact disc-shaped spring component.

How to Choose

Match the spring to the assembly

Start with the required outside diameter and, where listed, inside diameter. Then compare the specified material and choose a pack quantity that suits the planned installation or replacement task.

Applications

Built around controlled compression

The curved disc profile is used where spring-like action and controlled compression are needed within an assembly, including applications with limited space for a compact spring element.

Additional Info

Compare available sizes and packs

The represented range includes 302 stainless steel and carbon steel options, outside diameters from 0.343 in. through 2-1/2 in., and 6- or 12-piece pack options.

0.343–2.5 in.Outside diameter range

Represented disc spring sizes span compact to larger assembly requirements.

0.164–1.25 in.Listed inside diameter range

Compare listed IDs where fitment information is provided.

2Material types

Choose from 302 stainless steel or carbon steel options.

6 or 12Pieces per pack

Select a pack quantity for installation or replacement needs.

Comparison Guide

Compare Belleville spring options

Use dimensions, construction, and pack quantity together when narrowing the available disc spring types.

Selection factor302 Stainless Steel OptionsCarbon Steel Options
Construction302 stainless steelCarbon steel; several options specify 1074 carbon steel
Represented outside diameters1/4 in., 0.75 in., 1.125 in., and 1-1/2 in.0.343 in., 0.75 in., 1.125 in., 1.5 in., 2 in., and 2-1/2 in.
Pack quantities6-piece or 12-piece options6-piece or 12-piece options
Fit detailsSelected products list inside diameters including 0.38 in. and 0.567 in.Selected products list inside diameters from 0.164 in. to 1-1/4 in.
Planning Guide

Plan the right fit before choosing

Understand the design

Why choose a Belleville disc spring?

Belleville springs have a curved disc profile rather than the form of a conventional coil spring. This shape provides spring-like operation in a compact component and is represented here for heavy-load applications.

  • Curved disc form provides spring-like action.
  • Compact shape suits fastening and hardware assemblies.
  • Used where controlled compression is needed.
  • Available in stainless steel and carbon steel constructions.
Plan for fit

Check both outside and inside diameter

Diameter is a central selection point. Compare the listed outside diameter with the available assembly space, and use the inside diameter where provided to assess compatibility with the applicable fastener or assembly requirement.

  • Available outside diameters include 0.343 in., 0.75 in., 1.125 in., 1.5 in., 2 in., and 2-1/2 in.
  • Listed inside diameters range from 0.164 in. to 1-1/4 in.
  • Some 0.75 in. OD options have different listed inside diameters.
  • Confirm the dimensions required before selecting a pack.
Choose material and quantity

Select the represented construction and pack size

Choose between 302 stainless steel and carbon steel options according to the component requirements stated for your application. Several carbon steel products specify 1074 carbon steel. Pack quantities are offered in six-piece and 12-piece options for installation or replacement needs.

  • 302 stainless steel options are available in several outside diameters.
  • Carbon steel options include products specified as 1074 carbon steel.
  • Six-piece packs are represented in select sizes.
  • Twelve-piece packs are represented across multiple sizes.
FAQ

Common questions before buying

What is a Belleville spring?

A Belleville spring is a curved disc spring that provides spring-like action in a compact disc form.

What materials are available?

The represented options include 302 stainless steel and carbon steel, with several carbon steel products specified as 1074 carbon steel.

What sizes are represented?

Outside diameters range from 0.343 in. to 2-1/2 in. Listed inside diameters vary by product.

How many springs come in a pack?

The represented products are offered in six-piece and 12-piece pack quantities.

!
