Circuit Breakers

Circuit breakers are replacement and configuration components for compatible electrical load centers and distribution equipment. Electrical professionals and facility maintenance teams use them when maintaining panel breaker positions, restoring circuit protection, or configuring compatible single-pole, two-pole, bolt-on, and duplex circuit locations.

Product Display:
Helpful Buying Guide

Circuit Breaker Buying Guide

Selecting a replacement circuit breaker starts with matching the existing load center and the required breaker position. Compare the required amperage, pole count, breaker type, mounting format, interrupting rating, and any space or clip requirements shown for the panel configuration.

Visual Guide

Popular examples in this category

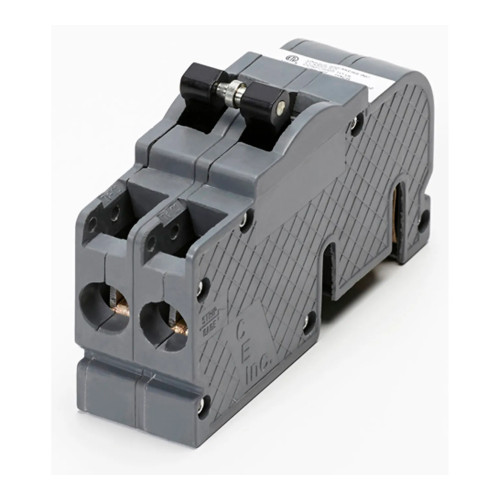

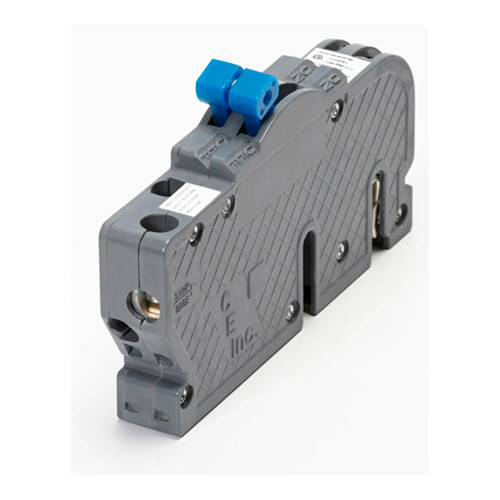

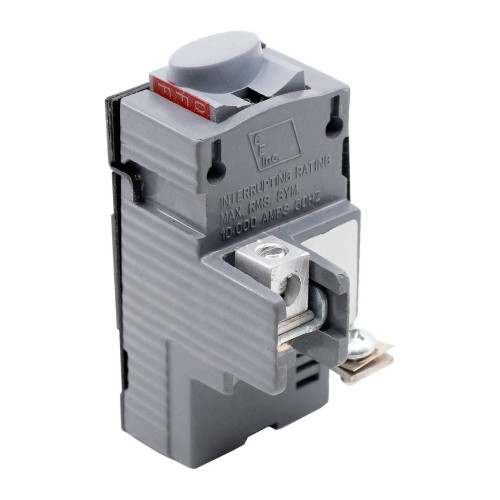

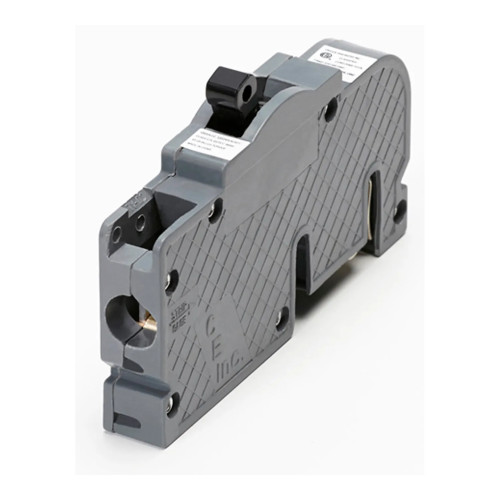

20 Amp Single-Pole Replacement Circuit Breaker20 Amp Single-Pole Replacement Circuit BreakerWBB318230330A 2-Pole Replacement Circuit Breaker for Type RC Load Centers30A 2-Pole Replacement Circuit Breaker for Type RC Load CentersWBB2236057125A Two-Pole Replacement Circuit Breaker125A Two-Pole Replacement Circuit BreakerWBB223606220A 1-Pole Type UBIZ Replacement Circuit Breaker20A 1-Pole Type UBIZ Replacement Circuit BreakerWBB2235858
Use Cases

Maintain compatible load centers

These breakers support replacement and configuration work in compatible electrical panels and distribution equipment. Available options cover single-pole, two-pole, bolt-on, and twin duplex breaker positions.

How to Choose

Match the panel requirements

Confirm the load center accepts the stated breaker type, then match the amperage rating, pole configuration, and mounting format. Select a bolt-on unit only where the panel requires bolt-on installation.

Applications

Support panel replacement work

Representative applications include replacing a specified breaker position, restoring circuit protection in compatible panels, and filling designated panel spaces with the required breaker arrangement.

Additional Information

Review ratings and fit details

The represented products include 10,000 AIC options and listed options. Certain models add fit details such as compact dimensions, a right-hand clip, 1/2-inch thickness, or a Class CTL rejection clip.

15A/20ATwin duplex option

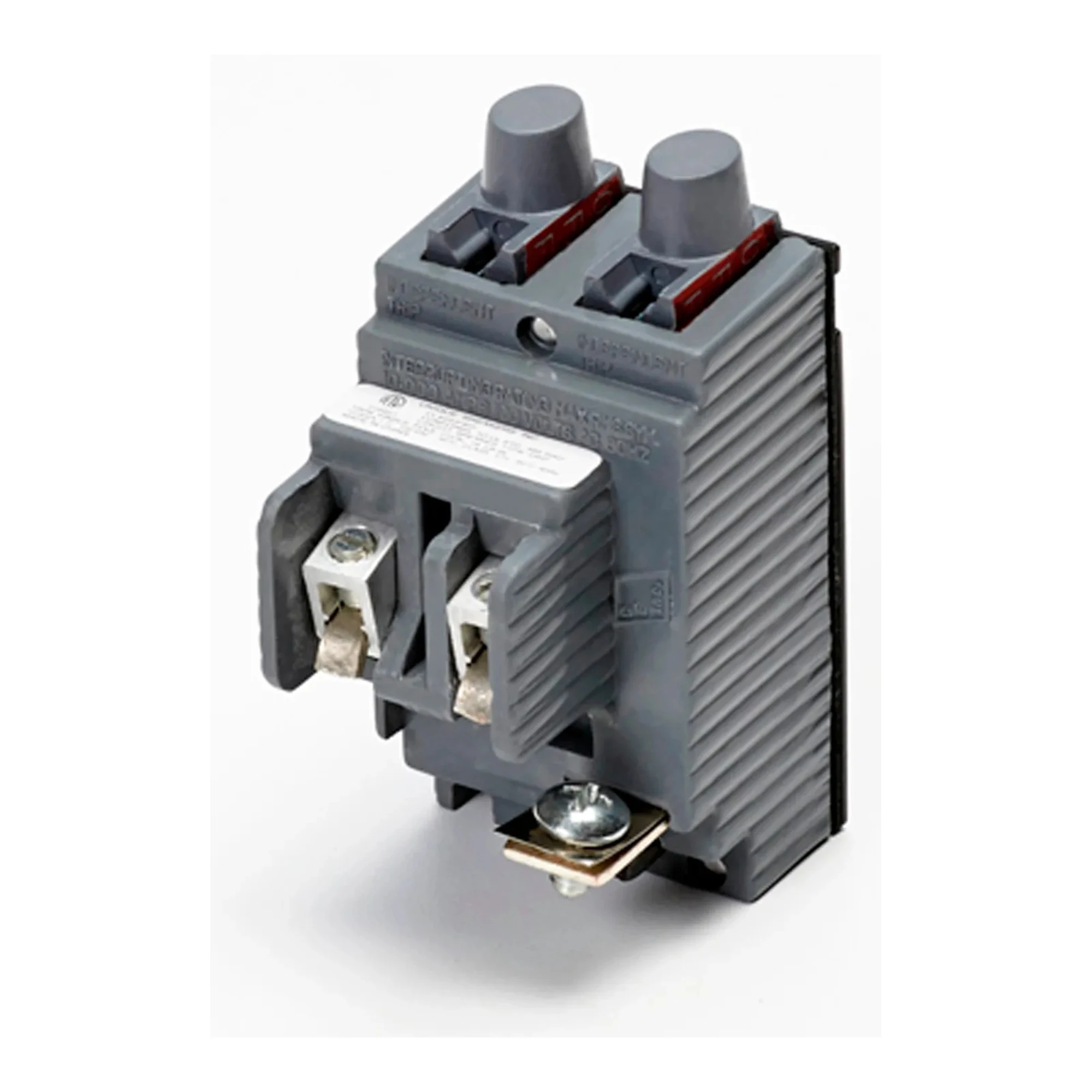

One twin 1-pole breaker combines 15A and 20A circuit protection in one position.

20A–125ARepresented amperage range

Available examples span from 20A single-pole units through a 125A two-pole replacement breaker.

1 or 2Pole configurations

The selection includes single-pole and two-pole breaker options.

10,000 AICInterrupting rating

This rating is represented across many of the available breaker options.

Comparison Guide

Compare Circuit Breaker Types

Use this overview to narrow the selection based on the breaker position and configuration specified for the compatible load center.

Product typeRepresented configurationsKey selection considerations
Standard replacement breakers20A or 30A single-pole; 30A, 60A, 100A, or 125A two-poleMatch the accepted breaker type, required amperage, pole count, and stated 10,000 AIC rating where applicable.

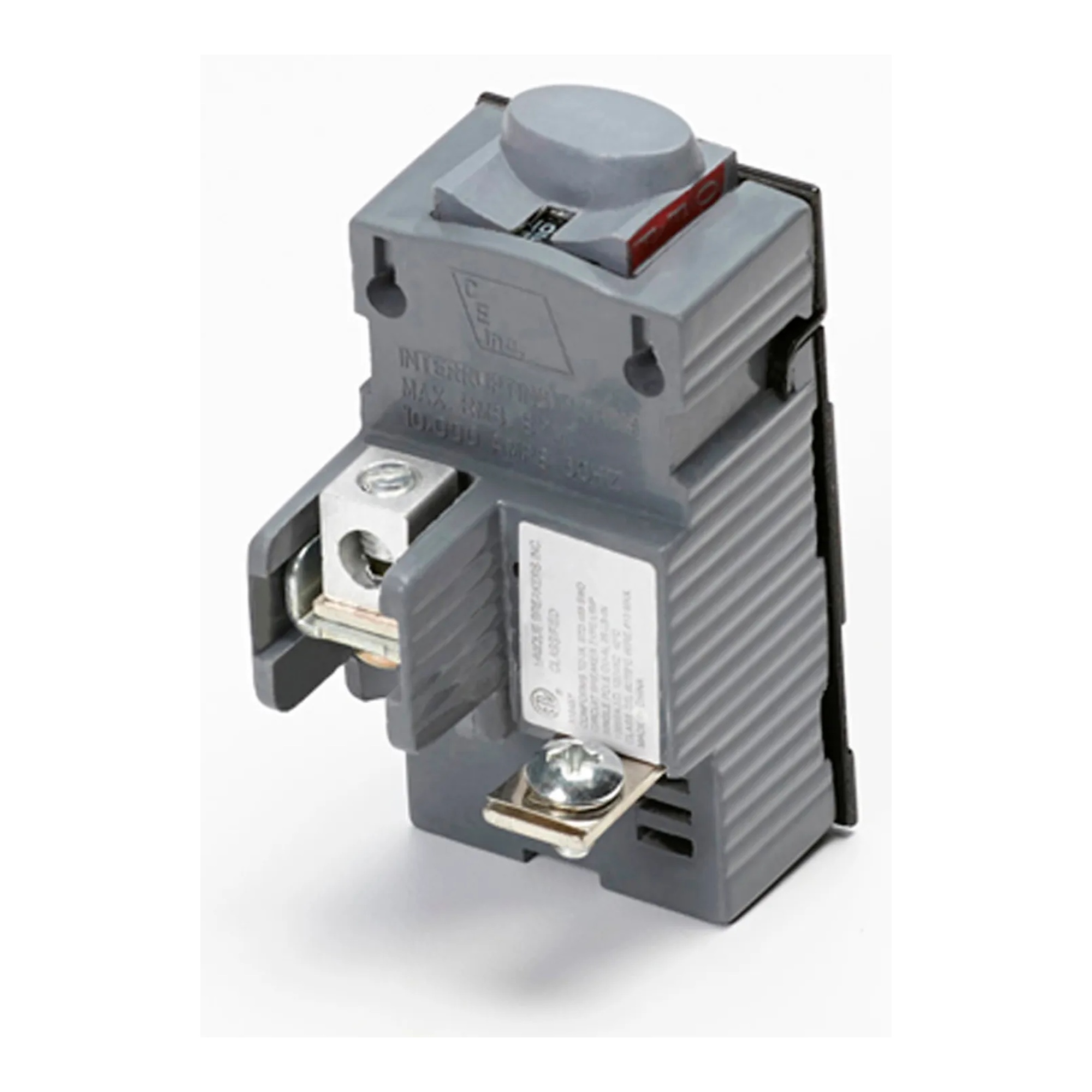

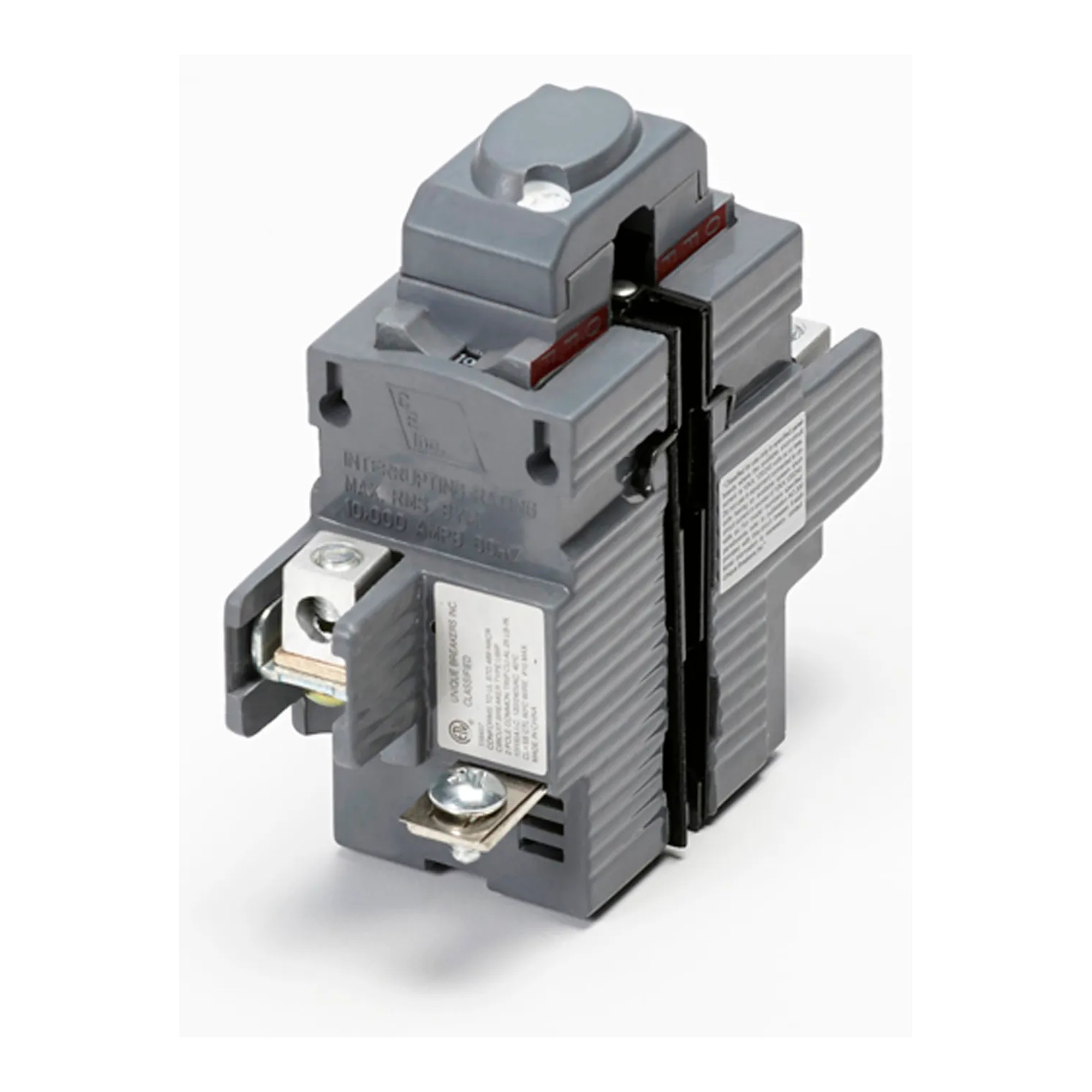

Bolt-on replacement breakers30A single-pole; 40A or 70A two-poleChoose for compatible load centers designed for bolt-on breaker installation; confirm amperage and pole count.
Twin and space-specific breakers15A/20A twin duplex; 30A right-clip single-poleCheck the required breaker type and special panel-space features, such as a Class CTL rejection clip, right-hand clip, or stated thickness.
Planning Guide

Plan the right fit before choosing

Start With Compatibility

Identify the breaker type your load center accepts

The available replacement options are designed for load centers that accept specified breaker types, including RC, QC, QP, QT, Type A, and Type UBIP configurations. Compatibility is the first comparison point because the replacement must match the designated load-center position.

  • Match the breaker type specified for the load center.
  • For bolt-on positions, select a bolt-on breaker format.
  • Check whether the panel position calls for a standard, twin, duplex, or right-clip arrangement.
Match Electrical Configuration

Compare amperage and pole count

The represented selection includes 15A/20A twin duplex, 20A single-pole, 30A single-pole, 30A two-pole, 40A two-pole, 60A two-pole, 70A two-pole, 100A two-pole, and 125A two-pole options. Select the stated amperage and number of poles required for the compatible breaker position.

  • Single-pole options represented include 20A and 30A configurations.
  • Two-pole options represented range from 30A to 125A.
  • A twin 1-pole duplex model provides 15A and 20A circuit protection in one breaker position.
Check Ratings and Physical Details

Review interrupting capacity, listing, and panel-space needs

Many of the represented breakers have a 10,000 AIC rating. Listed options include ETL-listed and UL-listed products. Where applicable, account for physical and installation details such as compact dimensions, 1-inch width, 1/2-inch thickness, a right-hand clip, or a Class CTL rejection clip.

  • Use the stated 10,000 AIC rating when matching application requirements.
  • Review listed status where purchasing or installation documentation calls for it.
  • Confirm special fit details for designated panel-space configurations.
FAQ

Common questions before buying

How do I choose a replacement circuit breaker?

Match the load center's accepted breaker type, the required amperage, pole count, and mounting format. Also review the stated interrupting rating and any fit requirements.

What pole configurations are represented?

The selection includes single-pole and two-pole breakers, plus a twin 1-pole duplex breaker that combines 15A and 20A circuit protection in one position.

When is a bolt-on circuit breaker needed?

A bolt-on breaker is used for a compatible load center designed for bolt-on breaker installation. Confirm that the panel requires this mounting format.

What does 10,000 AIC mean in these product summaries?

It is the stated interrupting-current rating provided for many of the represented circuit breakers and should be matched to application requirements.

!
