Wave Springs

Wave springs help reduce axial end play in compatible assemblies, particularly ball bearing applications. Used by maintenance professionals, equipment builders, and assembly teams, these springs provide light to medium spring support where installation space and available deflection are limited.

Product Display:
Helpful Buying Guide

Wave Spring Buying Guide

Choose a wave spring by confirming the fit required by the assembly, the material specified for the application, the available deflection space, and whether one spring or a 25-piece pack suits the job. The products represented here are intended for light to medium loading and axial end-play control in applicable assemblies.

Visual Guide

Popular examples in this category

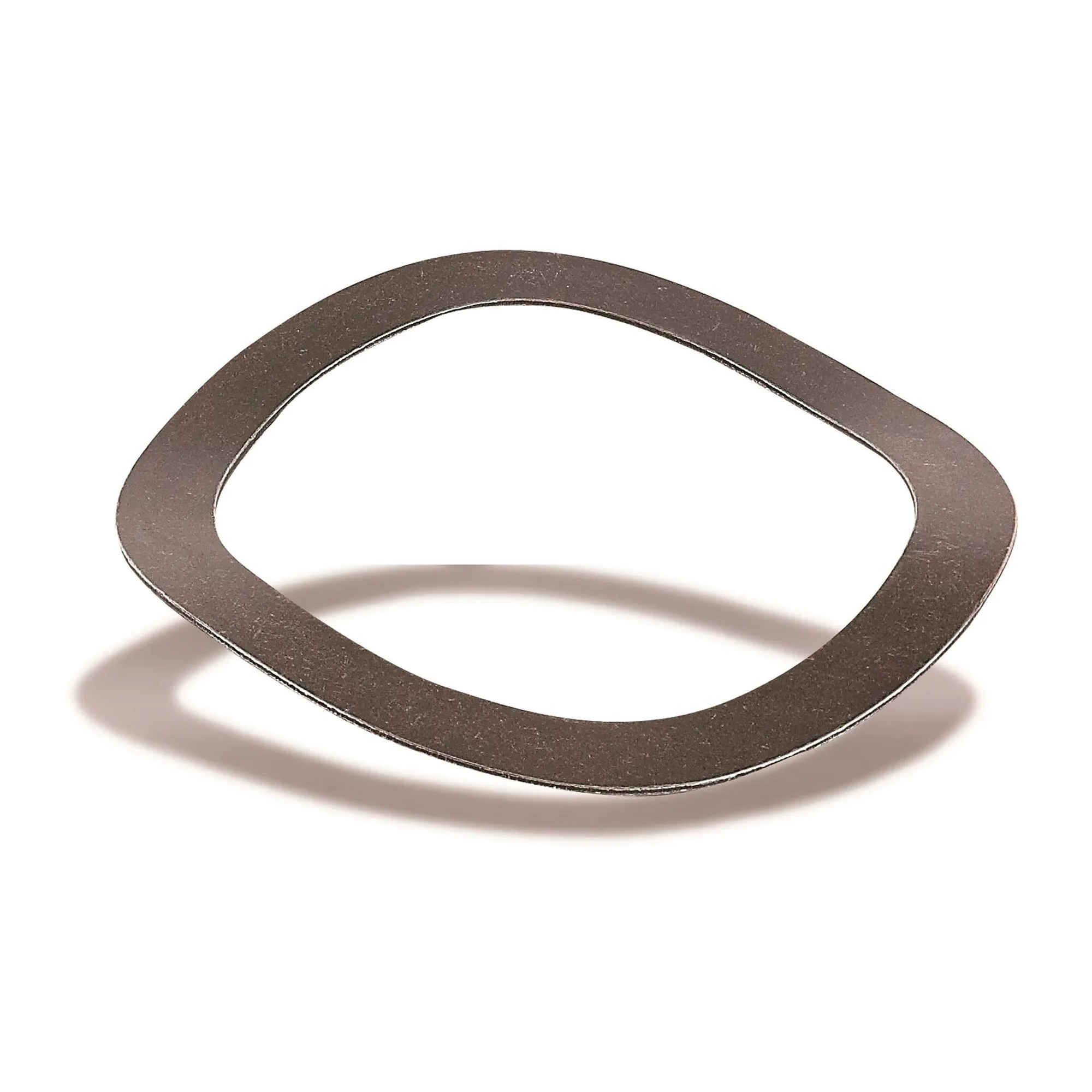

Carbon Steel Wave Spring, 2.645 in. OD x 2.057 in. ID x 0.184 in. HCarbon Steel Wave Spring, 2.645 in. OD x 2.057 in. ID x 0.184 in. HWBB2198365Carbon Steel Wave Spring, 1.543 in. OD x 1.201 in. ID, 25-PackCarbon Steel Wave Spring, 1.543 in. OD x 1.201 in. ID, 25-PackWBB2198341Carbon Steel Wave Spring, 3.917 in. OD x 3.047 in. IDCarbon Steel Wave Spring, 3.917 in. OD x 3.047 in. IDWBB2198329302 Stainless Steel Wave Spring, 0.734 in. OD x 0.531 in. ID, 25-Pack302 Stainless Steel Wave Spring, 0.734 in. OD x 0.531 in. ID, 25-PackWBB2198355
Use Cases

Control axial end play

Wave springs are used to help reduce axial end play in compatible equipment assemblies, especially ball bearing applications.

How to Choose

Start with assembly fit

Compare outside diameter and inside diameter with the available housing, shaft, or bearing-area clearances. Also confirm that the application has limited available deflection.

Applications

For light to medium loading

These wave springs support applications needing controlled spring force rather than heavy-load compression, including maintenance, replacement, and assembly work.

Additional Info

Material and pack options

The selection includes carbon steel and 302 stainless steel springs, with single-piece options and 25-piece packs for different purchasing needs.

0.242–4.3 in.Outside diameter range represented

Options range from a 0.242 in. OD stainless steel spring to a 4.3 in. OD carbon steel spring.

Light to mediumLoad support

The represented products are intended for light to medium spring loading.

2 materialsMaterial options

Choose from carbon steel or 302 stainless steel construction.

1 or 25Pack quantities

Available product summaries include single-piece packages and 25-piece packs.

Comparison Guide

Compare wave spring options

Use material, dimensional fit, and package quantity to narrow the selection for a compatible assembly.

Option typeDimensions representedQuantity represented
Carbon steel wave springs1.08 in. OD x 0.839 in. ID to 4.3 in. OD x 3.37 in. IDSingle piece or 25-pack
302 stainless steel wave springs0.242 in. OD x 0.194 in. ID to 0.855 in. OD x 0.650 in. ID25-pack
Wave springs for limited deflectionProfiles for applications with restricted available deflectionSingle piece or 25-pack, depending on option
Planning Guide

Plan the right fit before choosing

Confirm the dimensions

Match the spring to available assembly space

Outside diameter and inside diameter are primary fit checks for a wave spring. The represented options range from compact 0.242 in. OD and 0.194 in. ID springs to larger 4.3 in. OD and 3.37 in. ID springs.

  • Check the outside diameter against the available housing or assembly space.
  • Check the inside diameter around the mating shaft or bearing area.
  • Review height when it is specified, such as 0.184 in. or 0.040 in.
Select for the load and deflection available

Use these springs where deflection is limited

The products in this category are described for light to medium load support where limited deflection is required or available. They are suited to controlled spring-force needs and axial end-play management in applicable assemblies.

  • Choose a wave spring for compatible axial end-play control needs.
  • Confirm that light to medium loading matches the application.
  • For the represented 1.08 in. OD carbon steel option, the spring rate is nearly linear between 20% and 80% of available deflection.
Choose material and quantity

Align the order with the job

Carbon steel and 302 stainless steel options are represented. Select the material specified for the assembly, then choose a single spring for an individual replacement or assembly need, or a 25-pack for repeated maintenance, production, or stock replenishment.

  • Carbon steel options are available across compact and larger diameter profiles.
  • 302 stainless steel options are available in compact profiles.
  • 25-piece packs support multiple assembly or maintenance tasks.
FAQ

Common questions before buying

What are wave springs used for?

They help reduce axial end play in compatible assemblies, particularly ball bearing applications.

What load range do these wave springs support?

The represented products provide light to medium load support or spring loading.

Which materials are available?

The product summaries include carbon steel and 302 stainless steel wave springs.

Are wave springs available in multipacks?

Yes. Many represented options come in 25-piece packs, while select carbon steel options are supplied as single pieces.

!
