Press Inserts

Press inserts are threaded fasteners pressed into thermoset plastic parts to create internal fastening points for compatible hardware. They are used in commercial assembly, fabrication, maintenance, and component-building work where plastic parts need defined threads for attached components.

Product Display:
Helpful Buying Guide

Press Insert Buying Guide

Choose press inserts by matching the required thread, insert profile, material, and available package quantity to the thermoset plastic assembly or replacement task. The products represented here install by pressing into compatible thermoset plastic parts and provide threaded connection points for matching fasteners.

Visual Guide

Popular examples in this category

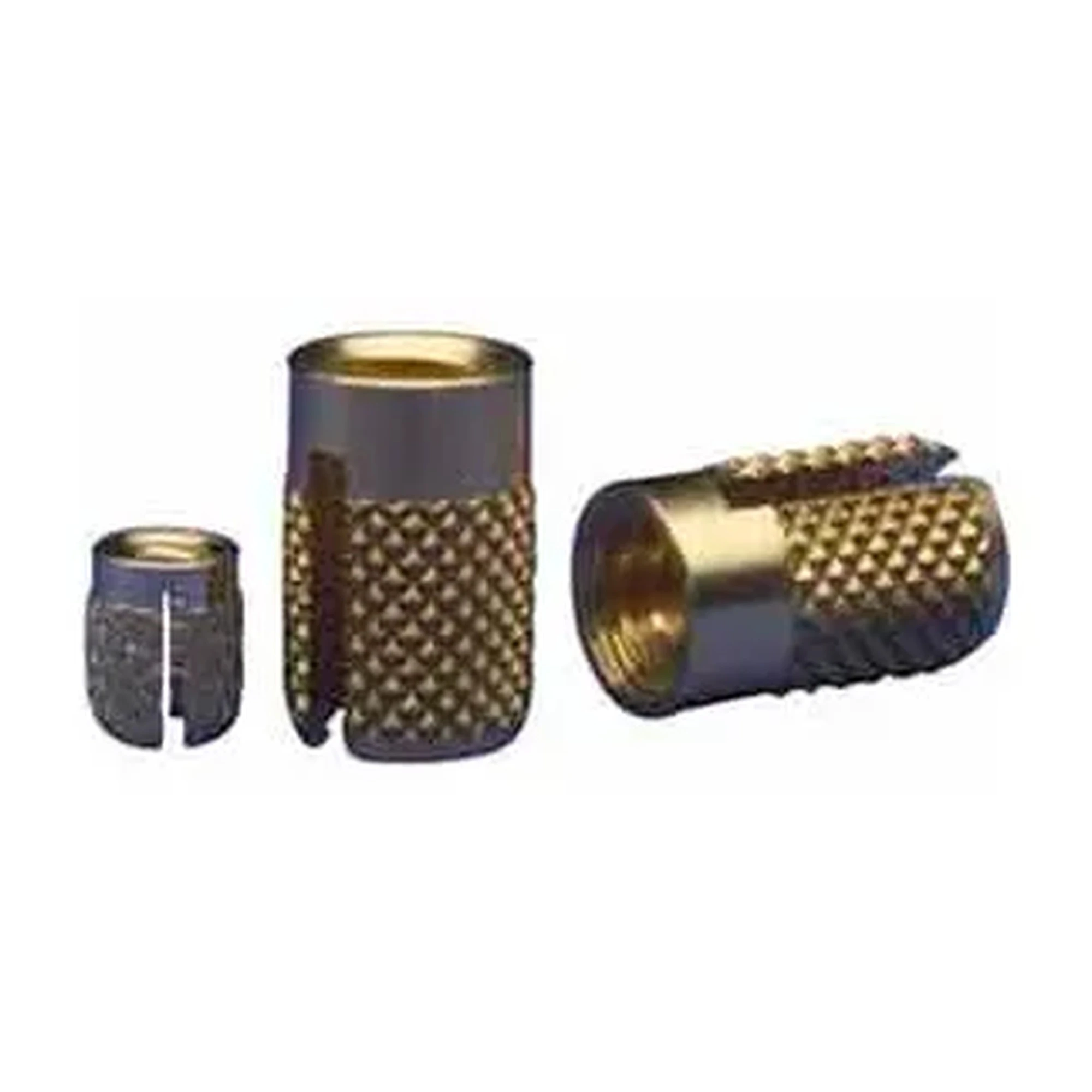

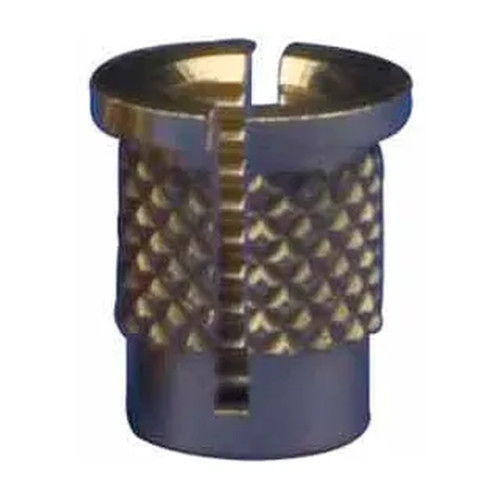

10-32 Brass Reverse-Slot Press Insert10-32 Brass Reverse-Slot Press InsertWBB43552110-24 Flush Brass Press Insert10-24 Flush Brass Press InsertWBB4354896-32 Flanged Brass Press Insert6-32 Flanged Brass Press InsertWBB435498M4-0.7 Flush Brass Press InsertM4-0.7 Flush Brass Press InsertWBB435492
Use Cases

Add threads to plastic components

Use press inserts when a thermoset plastic part needs a threaded fastening point for compatible hardware. They support assembly, fabrication, replacement, and repeat installation needs.

How to Choose

Match the thread and profile

Start with the required fastener thread, then choose a flush, flanged, or reverse-slot configuration that matches the planned insert style. Confirm the insert is intended for thermoset plastic.

Applications

For commercial assembly and fabrication

These inserts are suited to assemblers, fabricators, and commercial users adding threaded attachment locations to thermoset plastic parts.

Additional Information

Compare material, length, and pack size

Available options include brass and stainless steel construction. Listed lengths include 0.250, 0.375, 0.500, and 0.625 inch on select inserts, with package quantities from 5 to 100 pieces.

10Thread sizes

Ten inch and metric thread sizes are represented.

3Profile types

Flush, flanged, and reverse-slot configurations are represented.

2Material options

Choose from brass or stainless steel construction.

5–100Inserts per package

Listed package quantities range from 5 to 100 pieces.

Comparison Guide

Compare Press Insert Options

Use this overview to narrow the selection based on the thread system, insert configuration, and available construction options represented in the category.

Selection factorAvailable optionsWhat to check
Thread size6-32 through 3/8-16; M4-0.7 and M6-1.0Match the required compatible fastener thread.
ProfileFlush, flanged, reverse-slotChoose the installation profile specified for the part or assembly.
ConstructionBrass or stainless steelSelect the material option represented for the intended thermoset plastic application.
Planning detailsSelect lengths and 5-, 10-, 25-, or 100-piece packagesCheck listed length and quantity where those details are needed.
Planning Guide

Plan the right fit before choosing

Thread Selection

Select the thread required by your compatible fastener

The first selection step is identifying the thread needed for the connection point. The represented range includes inch and metric thread sizes for different fastening requirements.

  • Inch sizes include 6-32, 8-32, 10-24, 10-32, 1/4-20, 5/16-18, and 3/8-16.
  • Metric sizes include M4-0.7 and M6-1.0.
  • Match the insert thread to the compatible fastener or hardware planned for the assembly.
Insert Profile

Choose a flush, flanged, or reverse-slot design

Profile affects the specified configuration of the installed insert. Flush inserts are intended to sit flush or level with the part surface, while flanged inserts include a flange at the installation surface. One represented brass option uses a reverse-slot design.

  • Choose flush profiles where a level installation profile is required.
  • Choose flanged designs when the assembly calls for a flanged insert configuration.
  • Choose a reverse-slot insert when that specified configuration matches the application.
Material and Quantity

Plan around construction, length, and project volume

Brass and stainless steel press insert options are represented. Select listings also identify insert length and package count, helping buyers align an option with planned assembly, maintenance, or replacement quantities.

  • Brass options are available in flush, flanged, and reverse-slot configurations.
  • Stainless steel options are available in flush and flanged configurations.
  • Package quantities shown include 5, 10, 25, and 100 inserts.
FAQ

Common questions before buying

What are press inserts used for?

They are pressed into thermoset plastic parts to provide internal threaded fastening points for compatible hardware.

Which thread sizes are available?

Represented sizes include 6-32, 8-32, 10-24, 10-32, 1/4-20, 5/16-18, 3/8-16, M4-0.7, and M6-1.0.

What is the difference between flush and flanged press inserts?

Flush inserts are designed for a flush or level profile, while flanged inserts include a flange as part of the insert configuration.

Are both brass and stainless steel options available?

Yes. The represented products include brass and stainless steel press inserts for thermoset plastic applications.

!
