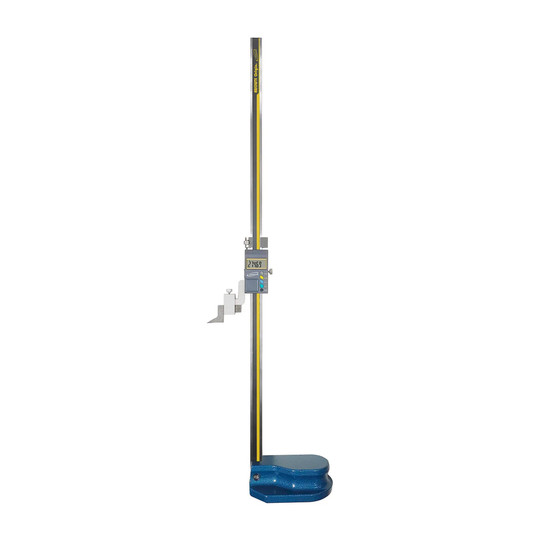

Absolute Digital Height Gauge with Carbide-Tipped Scriber, 0–24 in. Range

This digital height gauge is designed for inspectors, machinists, and other measurement professionals who need to measure heights and mark workpieces with a carbide-tipped scriber. Its 0–24 inch measuring range supports dimensional layout and inspection tasks.

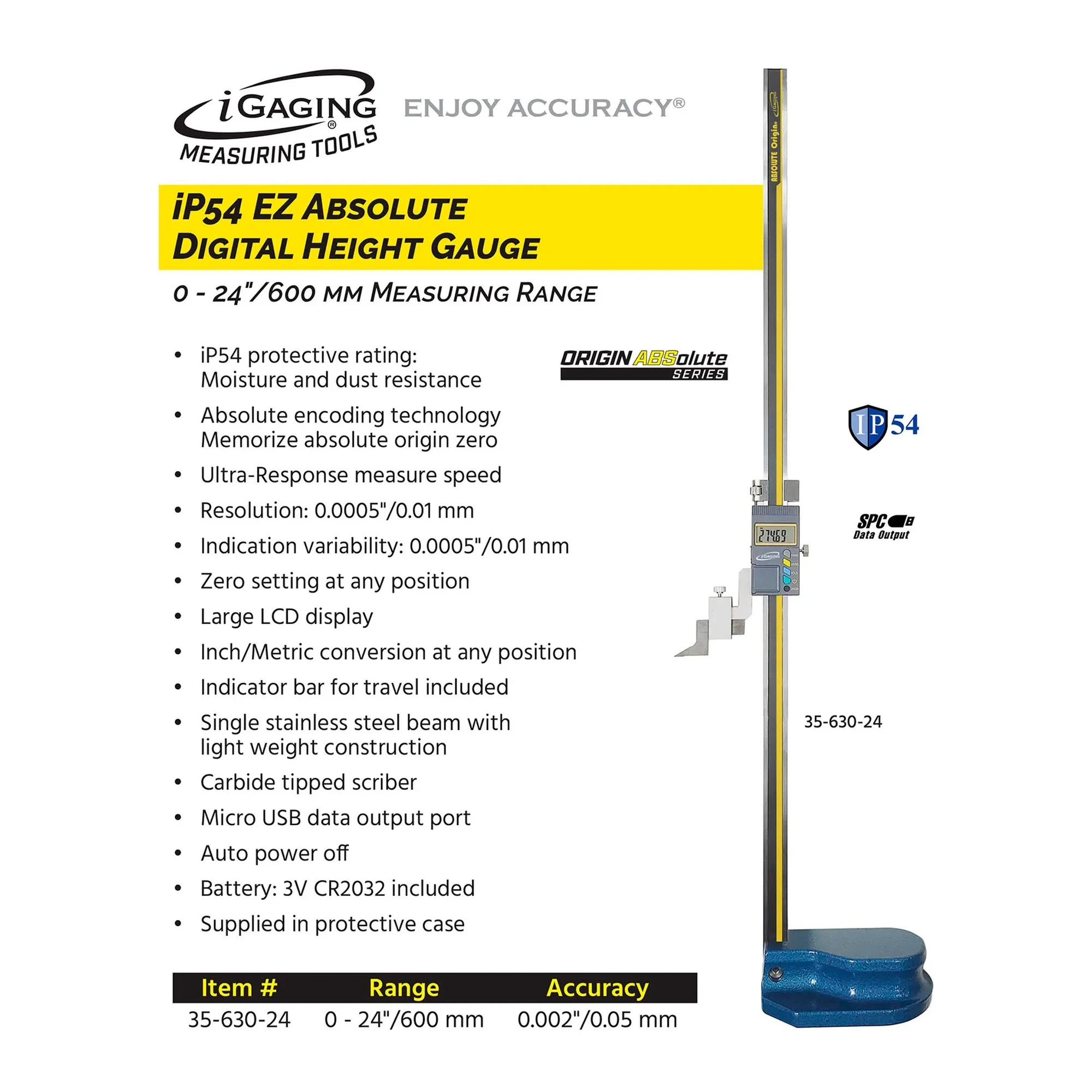

The gauge uses absolute encoding technology with an origin memory function and can be zeroed at any position. It provides 0.0005 inch/0.01 mm resolution and 0.002 inch accuracy, with inch, metric, and fractional readouts on a large LCD display. Construction includes a single stainless steel beam and carbide-tipped scriber. An IP54 rating provides moisture and dust resistance. A micro USB data output port, travel indicator bar, auto power-off function, CR2032 battery, and protective shop case are included.

Key Features:

• 0–24 in. measuring range: Handles height measurement and layout work across a broad working range.
• Absolute encoding: Retains the absolute origin for consistent reference positioning.
• 0.0005 in./0.01 mm resolution: Supports detailed dimensional readings.
• Inch, metric, and fractional display: Lets users change measurement formats at any position.
• Carbide-tipped scriber: Allows measured locations to be marked during layout work.
• IP54 protection: Helps resist moisture and dust in shop environments.

Choose this height gauge for dimensional measurement and layout applications that require a 24-inch range, digital readout options, and an integrated carbide-tipped scriber.
