HVAC Mixing Valves

HVAC mixing valves blend hot and cold water to a selected mixed-water temperature in heating, HVAC-related water, domestic water, and water-heater installations. They are commonly used by plumbing, maintenance, and facility teams to support comfortable water delivery at sinks, showers, and tubs, as well as controlled temperatures in commercial heating and hot-water systems.

Product Display:
Helpful Buying Guide

How to Choose an HVAC Mixing Valve

Start by matching the valve to the connection size, temperature range, and installation style required by the system. The available selection includes standard NPT and union NPT valves, direct-connect water-heater models, replacement valves, and a rebuild kit for specified compatible thermostatic direct-connect valves.

Visual Guide

Popular examples in this category

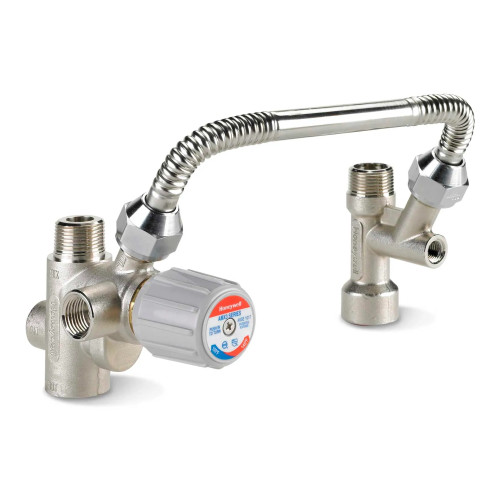

1/2 in. Union NPT Lead-Free Mixing Valve, 70°F to 145°F1/2 in. Union NPT Lead-Free Mixing Valve, 70°F to 145°FWBB13193571/2 in. Union NPT Lead-Free Mixing Valve, 70°F to 120°F1/2 in. Union NPT Lead-Free Mixing Valve, 70°F to 120°FWBB1319359Lead-Free 1/2-Inch Direct-Connect Water Heater Mixing Valve KitLead-Free 1/2-Inch Direct-Connect Water Heater Mixing Valve KitWBB13195403/4-Inch Union Sweat Direct-Connect Mixing Valve3/4-Inch Union Sweat Direct-Connect Mixing ValveWBB1319544
Use Cases

Control mixed-water temperature

Mixing valves blend hot and cold water for selected delivery temperatures in domestic water, water-heater, heating, and HVAC-related water systems.

How to Choose

Match piping and temperature needs

Compare connection type and size first, then choose a listed temperature range that fits the required mixed-water setting.

Applications

Support fixture and system use

Options are represented for sinks, showers, tubs, water heaters, recirculating setups, and commercial heating and hot-water systems.

Additional Information

Consider built-in installation features

Selected direct-connect valves include recirculation connections, integral cold-port check valves, alternate hot ports, or included tees, connectors, and adapters.

70°F–145°FAvailable domestic-water range

Represented lead-free valves offer adjustment within this stated range.

110°F–150°FHVAC valve range

Represented 1 in., 1-1/4 in., and 1-1/2 in. HVAC valves use this range.

1/2 in.–1-1/2 in.Connection sizes represented

Available connection sizes span from 1/2 in. through 1-1/2 in.

Within secondsCold-water response

Selected valves reduce flow within seconds after a cold-water interruption.

Comparison Guide

Compare HVAC Mixing Valve Types

Use this overview to narrow the selection by installation approach, connection options, and represented features.

Valve TypeBest-Fit ApplicationsKey Selection Details
Standard lead-free mixing valvesDomestic water at sinks, showers, and tubsAvailable in 1/2 in. or 1 in. NPT and 1/2 in. union NPT options; listed ranges include 70°F–120°F and 70°F–145°F.
HVAC mixing valvesHeating and HVAC-related water systemsAvailable in 1 in., 1-1/4 in., and 1-1/2 in. NPT sizes with 110°F–150°F adjustment; selected models have Teflon wear surfaces and cold-water shutoff response.
Direct-connect and service optionsWater-heater installations and valve repairDirect-connect models mount on a water-heater hot port and may support mixing or diverting; replacement and rebuild options are available for specified applications.
Planning Guide

Plan the right fit before choosing

Plan the Installation

Confirm connection style and valve format

Select a valve with a connection format compatible with the installation. Available formats include 1/2 in. NPT, 1/2 in. union NPT, 3/4 in. union NPT, 3/4 in. union sweat, and 1 in., 1-1/4 in., and 1-1/2 in. NPT connections.

  • Choose standard NPT or union NPT to match existing compatible plumbing.
  • For water-heater installations, consider a direct-connect model that mounts on the hot port.
  • For repair work, verify that a replacement valve or rebuild kit matches the valve being serviced.
Set the Temperature Requirement

Compare the available adjustment ranges

The represented valves offer different mixed-water temperature ranges. Domestic-water options include 70°F to 120°F and 70°F to 145°F, while HVAC mixing valves are available with 110°F to 150°F adjustment. The rebuild kit supports specified compatible applications rated from 90°F to 130°F.

  • Choose 70°F to 120°F or 70°F to 145°F options for listed fixture and domestic-water applications.
  • Choose 110°F to 150°F options for listed heating and HVAC-related water systems.
  • Match the required setting to the valve's stated range before selection.
Review Response and System Features

Choose features that suit the system layout

Several valves reduce flow within seconds when the cold-water supply is interrupted. Direct-connect choices may also provide proportional temperature control, a recirculation connection, an integral cold-port check valve, or an alternate hot port for non-mixed-temperature applications. Selected HVAC valves use Teflon wear surfaces to help limit calcium buildup.

  • Look for cold-water interruption response where that function is needed.
  • Use a recirculation connection for the listed fast-response recirculating setups.
  • Consider lead-free models where a lead-free mixing valve is required.
FAQ

Common questions before buying

What does an HVAC mixing valve do?

It blends hot and cold water to a selected mixed-water temperature for compatible heating, HVAC-related water, domestic-water, or water-heater applications.

What temperature ranges are available?

Represented valves include 70°F–120°F, 70°F–145°F, and 110°F–150°F ranges. The rebuild kit supports specified compatible applications rated from 90°F to 130°F.

Are direct-connect options available for water heaters?

Yes. Direct-connect models install on the water-heater hot port, and selected options can be used for mixing or diverting water.

What should I check before choosing a rebuild kit?

Verify compatibility with the listed direct-connect thermostatic valve models, confirm the required 90°F to 130°F application range, and note that the kit is not for the excluded valve series.

!
