Gauge Block & Sets

Gauge block and set products provide dependable reference surfaces, reference lengths, and workpiece positioning for commercial machine shops, inspection areas, toolrooms, and quality-control work. This category includes inch gage block sets for measurement setup and dimensional verification, along with machinist blocks, V-blocks, parallels, and setup blocks for layout, grinding, clamping, alignment, and repeatable machine setups.

Product Display:
Helpful Buying Guide

Choose gauge blocks and setup tools for the work at hand

The products in this category serve different but complementary shop and inspection needs. Start by deciding whether you need reference lengths for measuring equipment, square blocks for layout and clamping, V-grooves for round workpieces, matched parallels for setup, or height and spacing blocks for machine work.

Visual Guide

Popular examples in this category

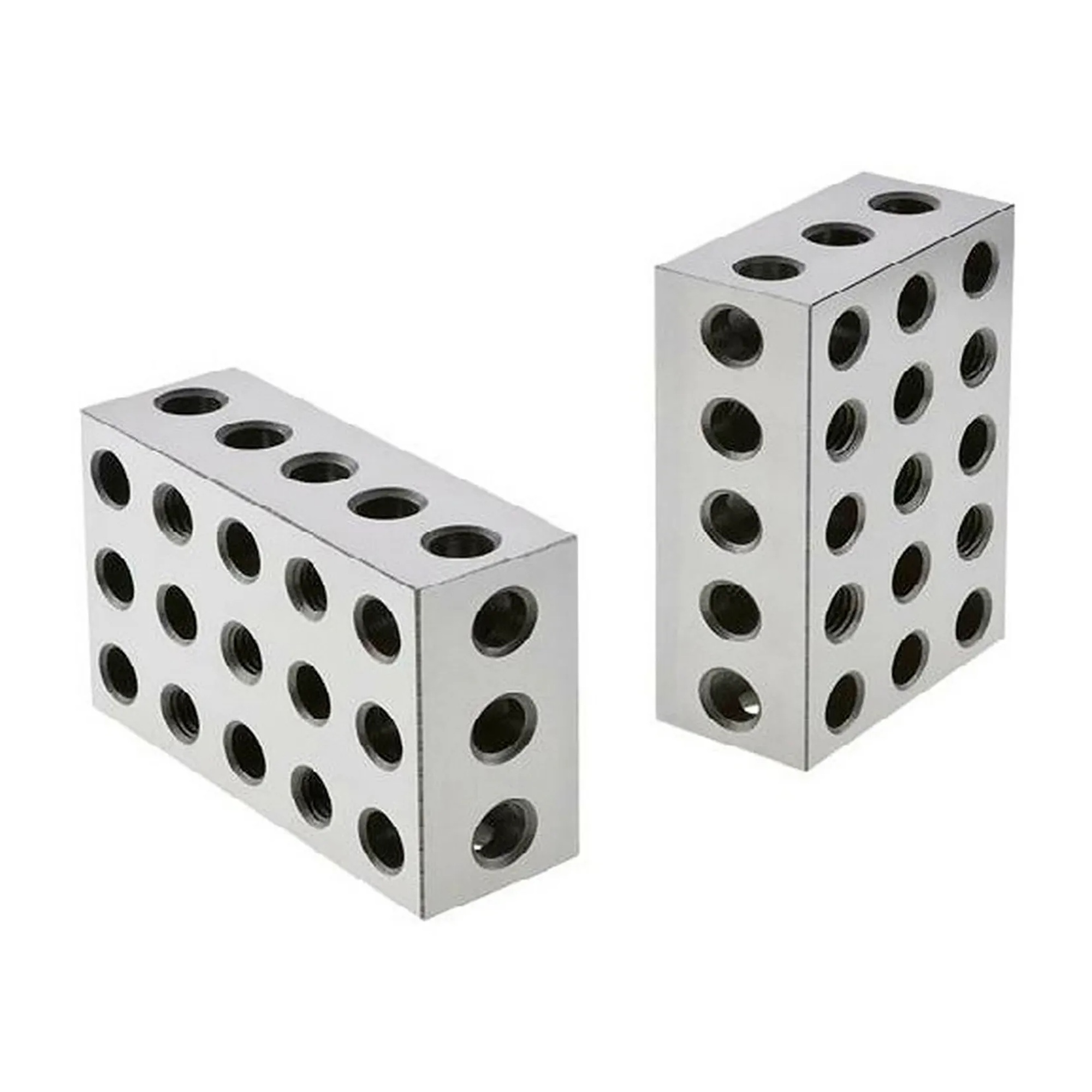

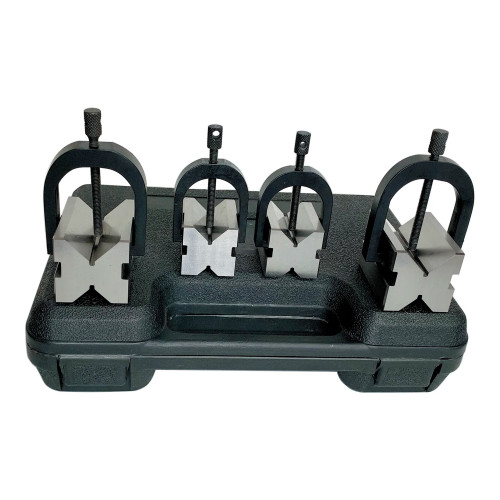

Precision Ground Machinist Blocks, 4 in. W x 2 in. D x 6 in. HPrecision Ground Machinist Blocks, 4 in. W x 2 in. D x 6 in. HWBB3126655V-Block and Clamp SetV-Block and Clamp SetWBB3126659Precision Machinist Blocks, 2 in. W x 1 in. D x 3 in. H, Pack of 2Precision Machinist Blocks, 2 in. W x 1 in. D x 3 in. H, Pack of 2WBB312676181-Piece Inch Rectangular Gauge Block Set, Grade 081-Piece Inch Rectangular Gauge Block Set, Grade 0WBB611423
Use Cases

Match the tool to the task

Gage block sets establish reference lengths for calibration, measurement setup, and dimensional verification. Machinist blocks support layout, grinding, clamping, and setup work. V-blocks position round stock, while parallels and setup blocks support consistent heights, spacing, and positioning.

How to Choose

Compare accuracy, range, and configuration

For reference-length work, compare Grade 0 or shop-grade options, block count, inch increments, and calibration documentation. For setup tools, compare dimensions, hole patterns, V capacities, matched-pair construction, parallelism, height matching, and storage case style.

Applications

Support shop and inspection workflows

These tools are represented for machinists, inspectors, quality-control teams, toolroom professionals, and other shop professionals. Common tasks include checking measuring equipment, layout, grinding, holding round workpieces, and establishing repeatable setup positions.

Additional Info

Consider protection and recordkeeping

Several gage block sets include NIST-traceable or NIST-certified documentation for measurement records. Protective, fitted, wood, or molded cases are available on selected sets to keep components organized and protected between uses.

36 or 81Block configurations

Represented rectangular inch gage block sets offer 36-piece and 81-piece selections.

Grade 0Reference option

Grade 0 sets are represented for demanding measurement and inspection work.

23 holesClamping flexibility

Selected machinist blocks feature 23 clamping holes for setup arrangements.

10 pairsParallel selection

The 1/8-inch parallel set includes 10 matched pairs.

Comparison Guide

Compare the main product types

Use the product form and included features to narrow the category to the setup, measurement, or workholding task you need to complete.

Product typeBest suited forWhat to compare

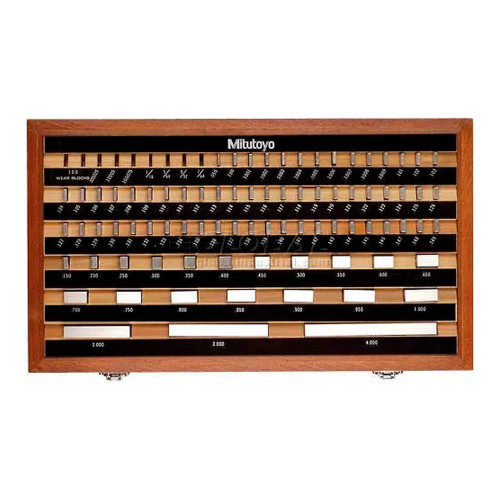

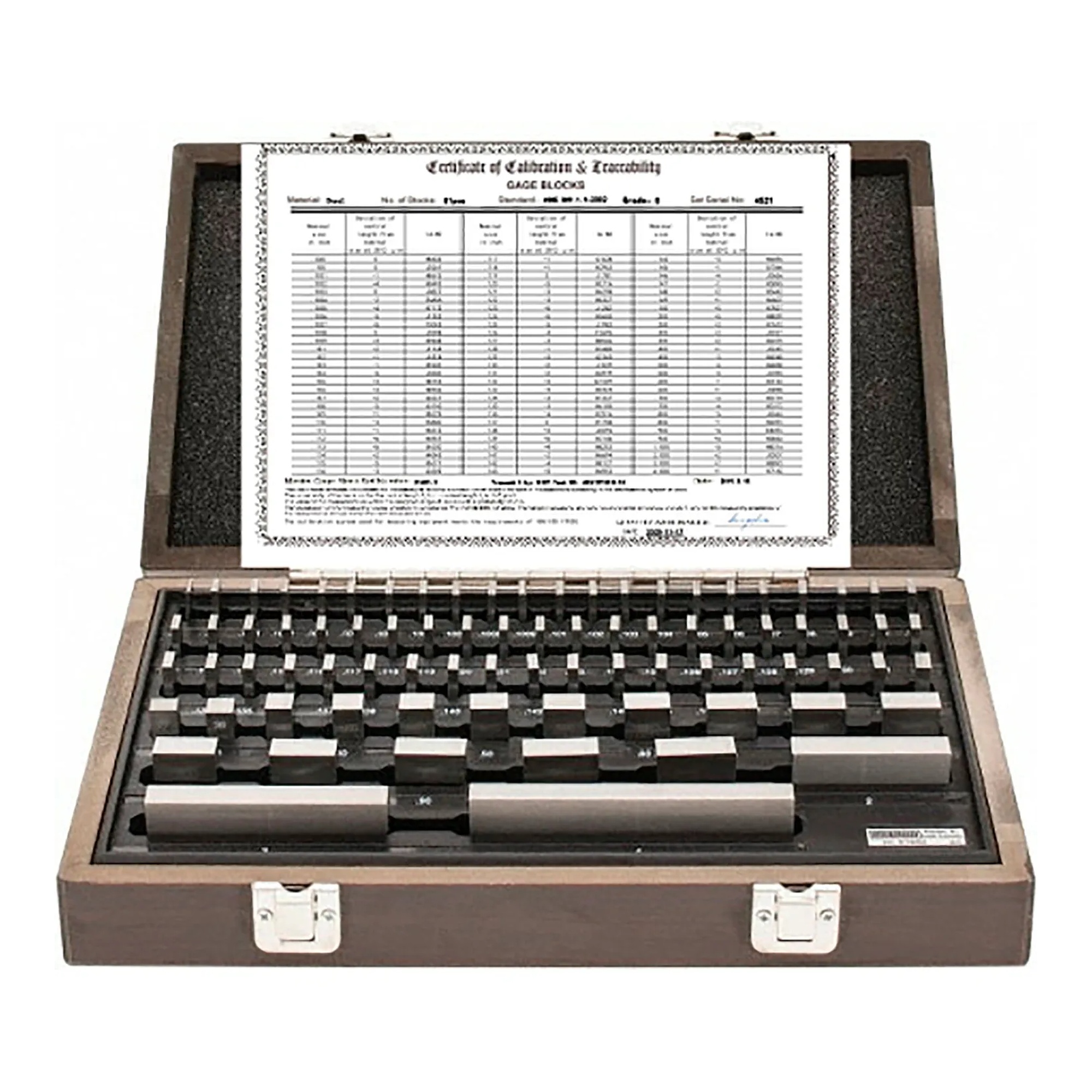

Rectangular inch gage block setsCalibration, measurement setup, and dimensional verificationGrade 0 or shop grade, 36 or 81 blocks, inch increments, and calibration documentation
Machinist and setup blocksLayout, grinding, clamping, heights, spacing, and positioningBlock dimensions, square or ground surfaces, clamping holes, material, accuracy, and graduations
V-blocks and parallel setsHolding round workpieces or creating matched setup heightsV capacity, included clamps, matched pairs, parallelism, height matching, and storage case
Planning Guide

Plan the right fit before choosing

Reference-Length Sets

Select gage blocks for measurement and verification

Rectangular inch gage block sets provide multiple lengths that can be assembled for measurement setup, calibration work, and dimensional checks. Grade 0 options are represented for demanding measurement and inspection tasks, while a shop-grade 81-piece set provides a practical selection for routine measurement and setup work.

  • Compare 36-piece and 81-piece configurations based on the range of measurement combinations needed.
  • Look for fine increments such as 0.0001 inch, 0.001 inch, and 0.010 inch when close adjustment is required.
  • Choose NIST-traceable calibration documentation or NIST-certified options when documented traceability is needed.
  • Consider protective or wood cases for organized storage between uses.
Setup and Workholding Tools

Choose blocks that fit the workpiece and setup method

Machinist blocks offer square, ground reference faces for layout, grinding, positioning, and clamping. V-block and clamp sets support round workpieces with 90-degree V-grooves and included clamps. Parallel sets provide matched heights, while aluminum setup blocks help establish repeatable heights and spacing.

  • Choose 1-2-3 style machinist blocks with 23 clamping holes for flexible clamping arrangements.
  • Compare V capacities of 1 inch and 1-1/2 inches for round-stock setups.
  • Use matched parallel pairs when consistent paired heights are important.
  • Consider aluminum setup blocks with 0.001 inch thickness accuracy and engraved graduations for convenient height and spacing reference.
Plan for the Working Environment

Balance the needed precision with practical shop details

Construction and storage features can help guide the selection. Hardened steel blocks provide durable working surfaces for shop tasks, while high-carbon, high-chrome steel is represented in a Grade 0 set for dimensional stability. Cases help protect and organize components, and compact listed dimensions can assist with storage planning.

  • Check whether square construction, V-grooves, or matched pairs best suit the setup.
  • Review clamping-hole configurations when fixtures or workpieces must be secured.
  • Use listed set dimensions where available to assess storage space.
  • Keep serial-marked blocks organized when individual identification supports calibration and recordkeeping.
FAQ

Common questions before buying

What are gage block sets used for?

Gage block sets provide reference lengths for measurement setup, calibration work, dimensional verification, and checking or setting dimensional measuring equipment.

What is the difference between Grade 0 and shop-grade gage block sets?

Grade 0 sets are represented as high-precision options for demanding measurement and inspection work. The shop-grade 81-piece set is represented for routine measurement and setup work.

When should I use a V-block and clamp set?

Use a V-block and clamp set to position and hold round workpieces during measurement, layout, inspection, and shop operations. The represented set has 1-inch and 1-1/2-inch V capacities and includes four clamps.

Why choose machinist blocks with clamping holes?

Clamping holes provide options for securing blocks, workpieces, and fixtures during layout, grinding, and setup tasks. Selected blocks in this category have 23 clamping holes.
