Overhead Infrared Heaters

Overhead infrared heaters provide directional radiant heat from an elevated installation, helping warm people and objects within a defined coverage pattern. Commercial facility teams use these heaters for targeted indoor comfort heating, spot heating, active work areas, and, on select lamp-based models, exposed outdoor areas where snow and ice control is needed.

Product Display:
Helpful Buying Guide

Choose an overhead infrared heater for focused radiant warmth

This category includes suspended flat-panel electric heaters and overhead lamp-based fixtures. Compare the heater’s installation approach, electrical requirements, heat pattern, and the type of area being warmed to find an option suited to your targeted heating needs.

Visual Guide

Popular examples in this category

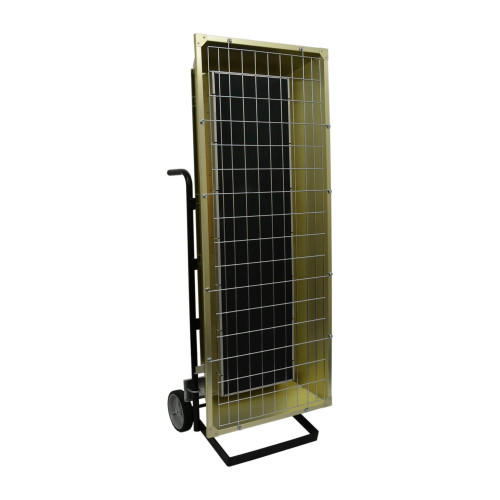

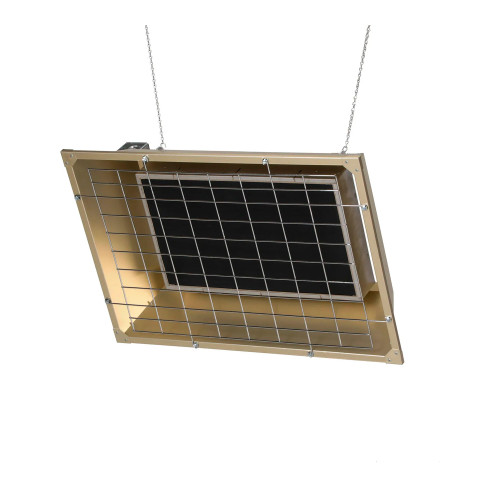

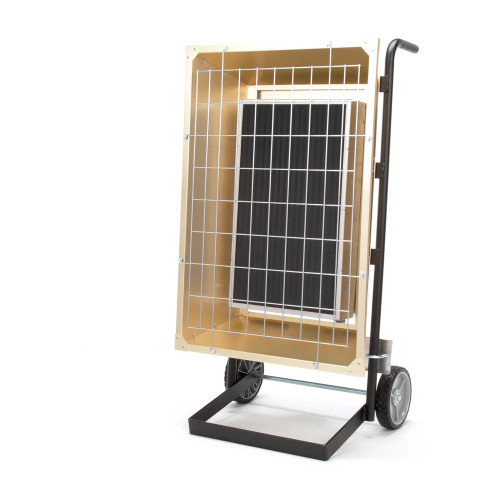

Overhead Infrared Electric Heater, 6500W, 277V, GoldOverhead Infrared Electric Heater, 6500W, 277V, GoldWBB3178763Portable Infrared Heater, 9.5 kW, 208VPortable Infrared Heater, 9.5 kW, 208VWBB20468816500W 277V Portable Electric Infrared Heater6500W 277V Portable Electric Infrared HeaterWBB31788456,500W 208V Overhead Infrared Electric Heater6,500W 208V Overhead Infrared Electric HeaterWBB3178702
Use Cases

Targeted heat where it is needed

Use overhead infrared heaters for directional warmth in commercial facilities, spot-heating areas, and active work zones. Select two- and three-lamp fixtures can also support comfort heating and snow or ice control in indoor or exposed outdoor locations.

How to Choose

Match power, voltage, and coverage

Compare wattage and available voltage first. Flat-panel models represented here include 4.30 kW, 6,500W, and 6,500W options at 208V, 240V, 277V, and 480V, while lamp-based fixtures include 3,200W and 4,800W choices.

Applications

Consider fixture placement

Choose suspended flat-panel heaters when a uniform, non-glare 60° symmetric pattern is preferred for overhead heating. Choose adjustable lamp-based fixtures when directing heat with horizontal tilt or asymmetrical coverage is important.

Additional Info

Review protection and mounting details

Many flat-panel models feature wire guards, protective steel around the emitter, and gold-anodized housings that support reflectivity and corrosion resistance. Some overhead models include L-brackets for chain suspension, while lamp fixtures use adjustable mounting brackets.

60°Heat pattern

A 60° symmetric pattern is available on many flat-panel models.

2 or 3Lamp options

Overhead lamp-based fixtures are available with two or three lamps.

Up to 45°Horizontal tilt

Adjustable brackets on lamp fixtures allow horizontal tilt for positioning.

25,000 hoursExpected element life

Listed on select 6,500W flat-panel heater models.

Comparison Guide

Overhead infrared heater comparison

Use this overview to compare the main heater configurations represented in this category.

TypeHeating and coverageInstallation and application details
Suspended flat-panel overhead heaterMedium-wavelength radiant heat; uniform, non-glare 60° symmetric patternDirectional overhead heating; select models include L-brackets for chain suspension and a field wiring box.
Two-lamp overhead fixtureHigh-intensity radiant heat with a 60° asymmetrical reflectorAdjustable bracket with up to 45° horizontal tilt; for indoor or exposed outdoor targeted heating, comfort heating, and snow or ice control.
Three-lamp overhead fixtureHigh-intensity radiant heat with a symmetrical reflector; maximum output in less than 60 secondsAdjustable bracket with up to 45° horizontal tilt; stainless steel housing for indoor or fully exposed outdoor locations.
Planning Guide

Plan the right fit before choosing

Heater styles

Compare flat-panel and lamp-based overhead heat

Flat-panel overhead infrared heaters provide medium-wavelength radiant output in a defined 60° symmetric pattern. Their non-glare heat pattern is designed for uniform, directional warmth from a suspended position. Two-lamp and three-lamp overhead fixtures provide high-intensity radiant heat for targeted areas; available reflector designs include 60° asymmetrical and symmetrical options.

  • Flat-panel models offer focused, non-glare overhead heat.
  • Two-lamp fixtures use a 60° asymmetrical reflector to direct heat.
  • Three-lamp fixtures use a symmetrical reflector for even distribution.
Installation planning

Confirm electrical and mounting needs before selecting

Available flat-panel heater configurations include 208V, 240V, 277V, and 480V at 6,500W, plus a 4.30 kW, 240V portable configuration. Overhead flat-panel models may include L-brackets for chain-suspension mounting and, on select models, a field wiring box. Lamp-based overhead fixtures include adjustable brackets that allow up to 45° of horizontal tilt.

  • Match heater voltage and wattage to the application requirements.
  • Select a 60° symmetric pattern for balanced directional coverage.
  • Use adjustable lamp-fixture brackets to position heat toward the intended area.
Construction details

Look for features suited to demanding work areas

Several flat-panel heaters are built with rugged emitter elements for high-vibration areas, heavy-duty wire guards, and gold-anodized aluminum housings. These housings help maintain reflectivity and resist corrosion. Certain 6,500W flat-panel heaters list a 25,000-hour expected element life, while the three-lamp overhead model has a stainless steel housing and reaches maximum heat output in less than 60 seconds.

  • Wire guards add protection around heating elements.
  • Steel surrounding structures help shield select flat-panel emitters.
  • Stainless steel construction is available on a three-lamp overhead fixture.
FAQ

Common questions before buying

What is the difference between flat-panel and lamp-based overhead infrared heaters?

Flat-panel models provide medium-wavelength radiant heat in a 60° symmetric pattern and are available with non-glare output. Lamp-based fixtures use two or three lamps with reflector designs for targeted high-intensity radiant heat.

Which voltages are represented in this category?

The represented heaters include 208V, 240V, 277V, and 480V configurations.

Can these heaters be used in exposed outdoor areas?

The represented two-lamp and three-lamp overhead fixtures are described for indoor or exposed outdoor areas. Confirm the specific model’s intended application before selecting.

How can heat be directed toward a specific area?

Flat-panel models use a defined 60° symmetric pattern. The represented lamp-based fixtures have adjustable mounting brackets that allow up to 45° of horizontal tilt, and one two-lamp model has a 60° asymmetrical reflector.

!
