Screw Anchors

Screw anchors provide fastening options for installation, maintenance, and facility work on concrete, brick, masonry block, stone, and selected wood base materials. The category includes concrete screw anchors for attaching electrical boxes, light fixtures, and other components; sleeve anchors for masonry surfaces; nail drive anchors for light-duty, tamper-resistant work; and rod hangers for suspending threaded rod from concrete overhead structures.

Product Display:
Helpful Buying Guide

Choose screw anchors for the base material and attachment task

Start by identifying the material being fastened into and the type of connection required. The available products include self-tapping concrete screw anchors in several lengths and head styles, expanding sleeve anchors, flat-head nail drive anchors, and bottom-mount rod hangers for compatible threaded rod. Most listed options come in 100-piece packs for installation and maintenance work.

Visual Guide

Popular examples in this category

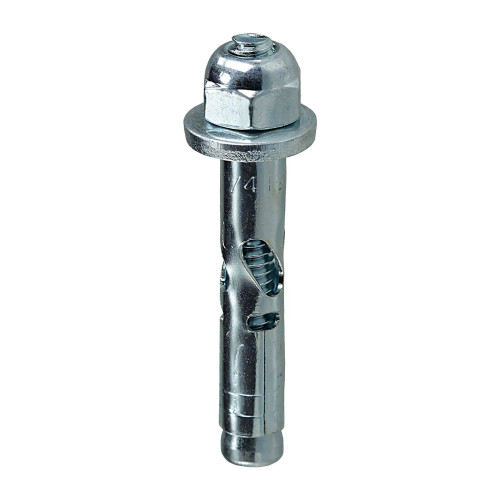

1/4 in. x 1-3/8 in. Sleeve Anchor with Acorn Nut Hex Head, 100-Pack1/4 in. x 1-3/8 in. Sleeve Anchor with Acorn Nut Hex Head, 100-PackWBB3148260Phillips Flat Head Concrete Screw Anchors, 3/16 in. x 2-3/4 in., 100-PackPhillips Flat Head Concrete Screw Anchors, 3/16 in. x 2-3/4 in., 100-PackWBB3148274Concrete Screw Anchors, Slotted Hex Washer Head, 1/4 in. x 1-1/4 in., 100-PackConcrete Screw Anchors, Slotted Hex Washer Head, 1/4 in. x 1-1/4 in., 100-PackWBB3148277Concrete Screw Anchors, Phillips Flat Head, 1/4 in. x 1-1/4 in., 100-PackConcrete Screw Anchors, Phillips Flat Head, 1/4 in. x 1-1/4 in., 100-PackWBB3148309
Use Cases

Match the anchor to the fastening job

Concrete screw anchors are represented for light- to medium-duty attachment work such as electrical boxes and light fixtures. Sleeve anchors provide an expanding fastening method in concrete, cement block, brick, and stone. Nail drive anchors are intended for light-duty and tamper-resistant fastening, while rod hangers create an anchoring point for supported overhead systems.

How to Choose

Compare base material, size, head style, and connection

Confirm the listed base-material compatibility first. Then compare anchor diameter and length, the needed head profile, and the installation method. Concrete screw anchors are available with Phillips flat heads or slotted hex washer heads; the rod hanger is made for compatible 1/4 in.-20 threaded rod.

Applications

Support installation and maintenance work

Use the listed concrete screw anchor options where attachment to concrete, brick, masonry block, or wood base materials is required. Select sleeve anchors for the listed masonry surfaces, including soft concrete. Choose bottom-mount rod hangers for threaded-rod suspension from concrete slabs, beams, or concrete over metal.

Additional Info

Consider installation accessories and pack quantity

Several concrete screw anchor options use a gimlet point that taps or forms threads during installation. An installation kit is available to support Phillips and hex head concrete screws across all lengths, with accessories that fit a standard 3-jaw style chuck. The represented anchor and hanger products are supplied in 100-piece packs.

100Pieces per represented pack

The listed anchor and rod hanger packs provide 100 pieces.

3/16 in. to 1/4 in.Listed screw diameters

Concrete and masonry screw options are represented in these stated diameters.

1-1/4 in. to 3-3/4 in.Listed concrete screw lengths

The selection includes several stated lengths for concrete screw anchors.

1/4 in.-20Rod hanger compatibility

The bottom-mount rod hanger matches compatible threaded rod of this size.

Comparison Guide

Compare the represented anchor formats

Use this overview to narrow the selection by connection type and listed application.

Anchor formatListed use and base materialsSelection details
Concrete screw anchorsLight- to medium-duty attachment of electrical boxes, light fixtures, and other items to concrete, brick, masonry block, or wood base materialsSelf-tapping gimlet point; Phillips flat head or slotted hex washer head; several listed sizes
Sleeve anchorsFastening in concrete, cement block, brick, and stonePreassembled expanding sleeve design; longer compression distribution; acorn nut hex head
Nail drive anchorsLight-duty, tamper-resistant fastening in concrete, block, brick, or stoneFlat head; Zamac alloy body; carbon steel pin
Bottom-mount rod hangersSuspending compatible threaded rod from concrete slabs, beams, or concrete over metalFits 1/4 in.-20 threaded rod; deep-cutting threads; low installation torque
Planning Guide

Plan the right fit before choosing

Plan the base-material match

Choose an anchor type that fits the listed substrate

The product range is built around concrete and masonry fastening, but compatibility varies by type. Review the product description before selecting an option for the job.

  • Concrete screw anchors are listed for concrete, brick, masonry block, and wood base materials.
  • Sleeve anchors are listed for concrete, cement block, brick, and stone, including soft concrete.
  • Nail drive anchors are listed for concrete, block, brick, and stone.
  • Bottom-mount rod hangers are listed for concrete slabs, beams, and concrete over metal.
Plan the attachment style

Select the fastening format for the component being installed

For surface-mounted components, compare the head profile and screw length available. For overhead support, select the dedicated threaded-rod hanger option rather than a standard screw anchor.

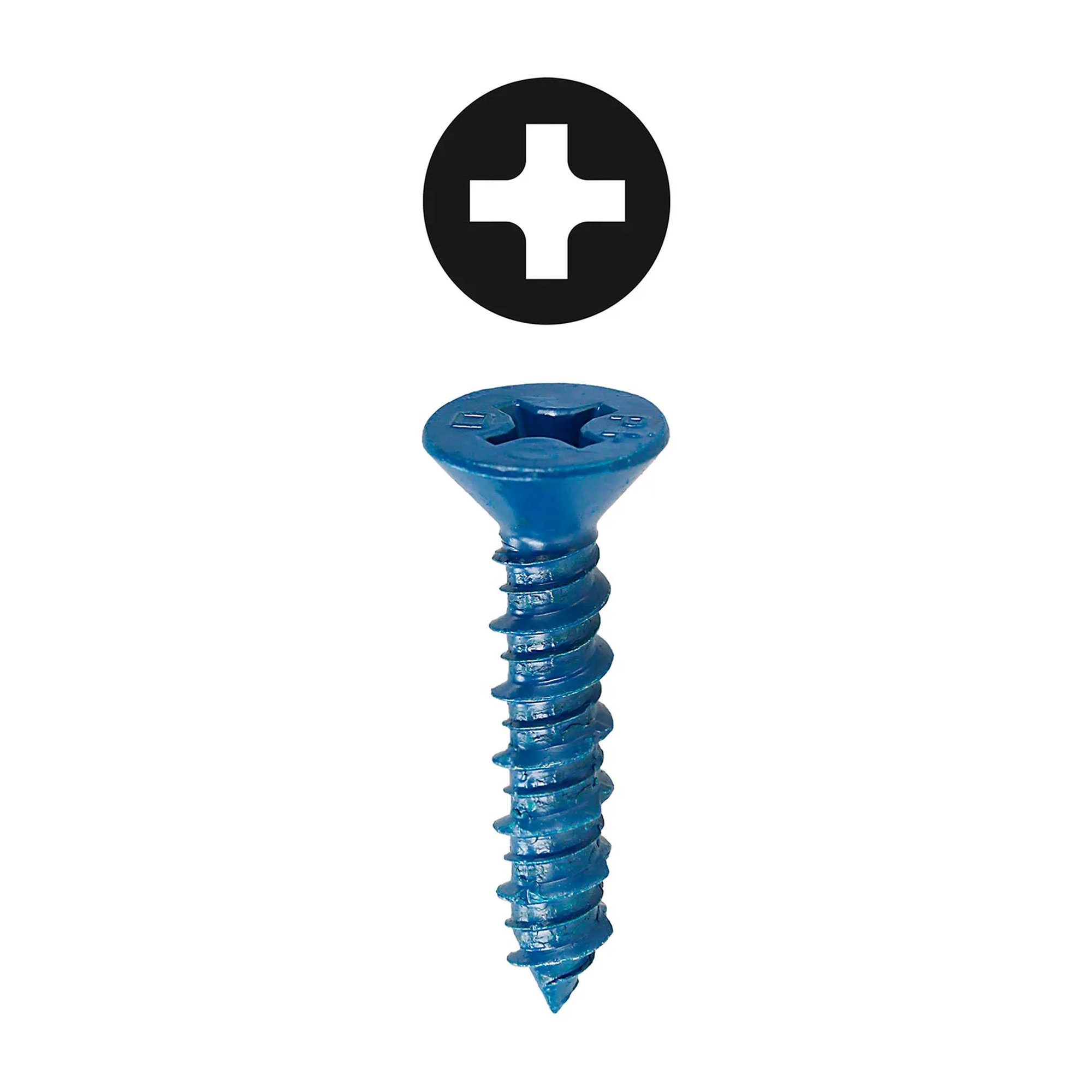

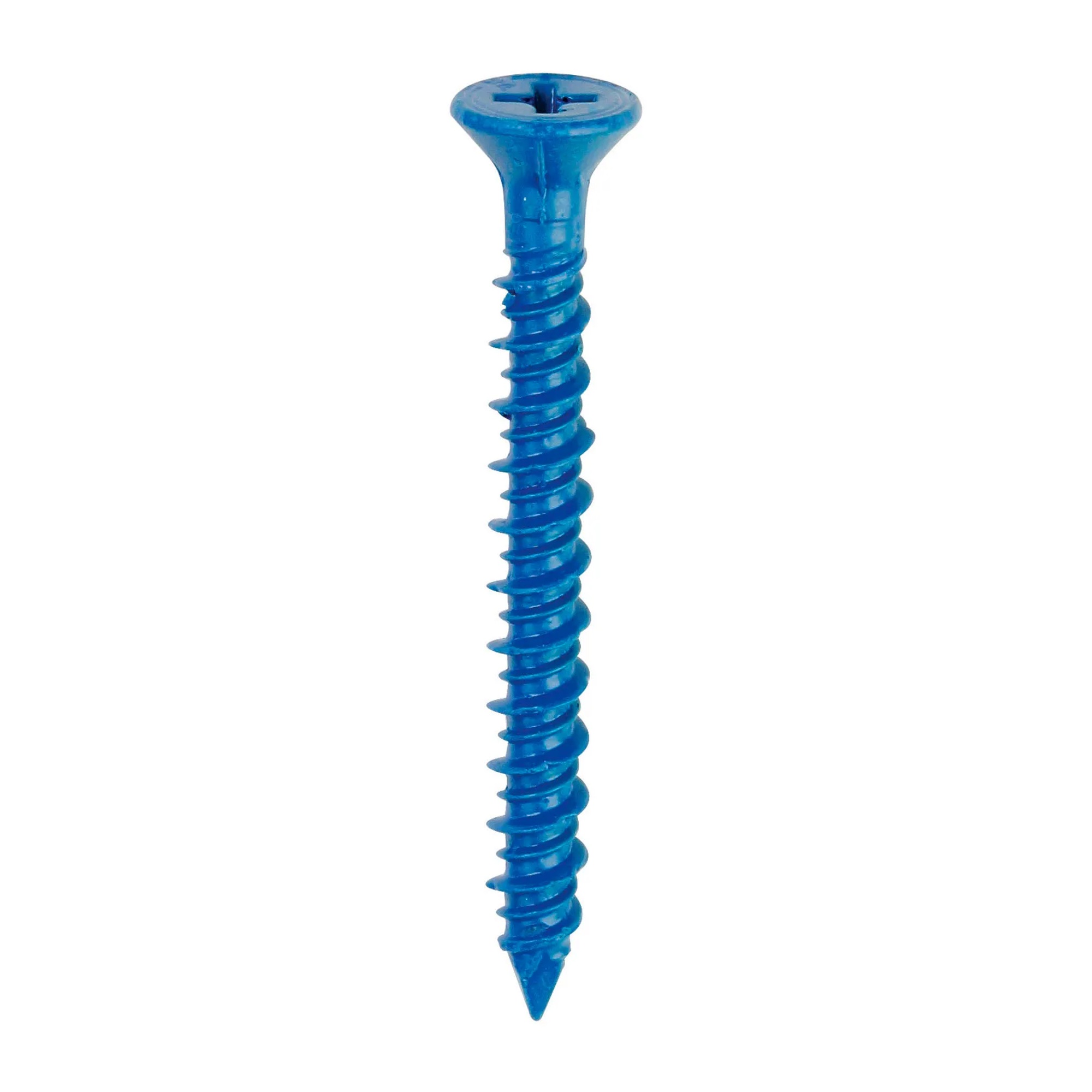

  • Phillips flat-head concrete screws are available in 3/16 in. and 1/4 in. diameters and several listed lengths.

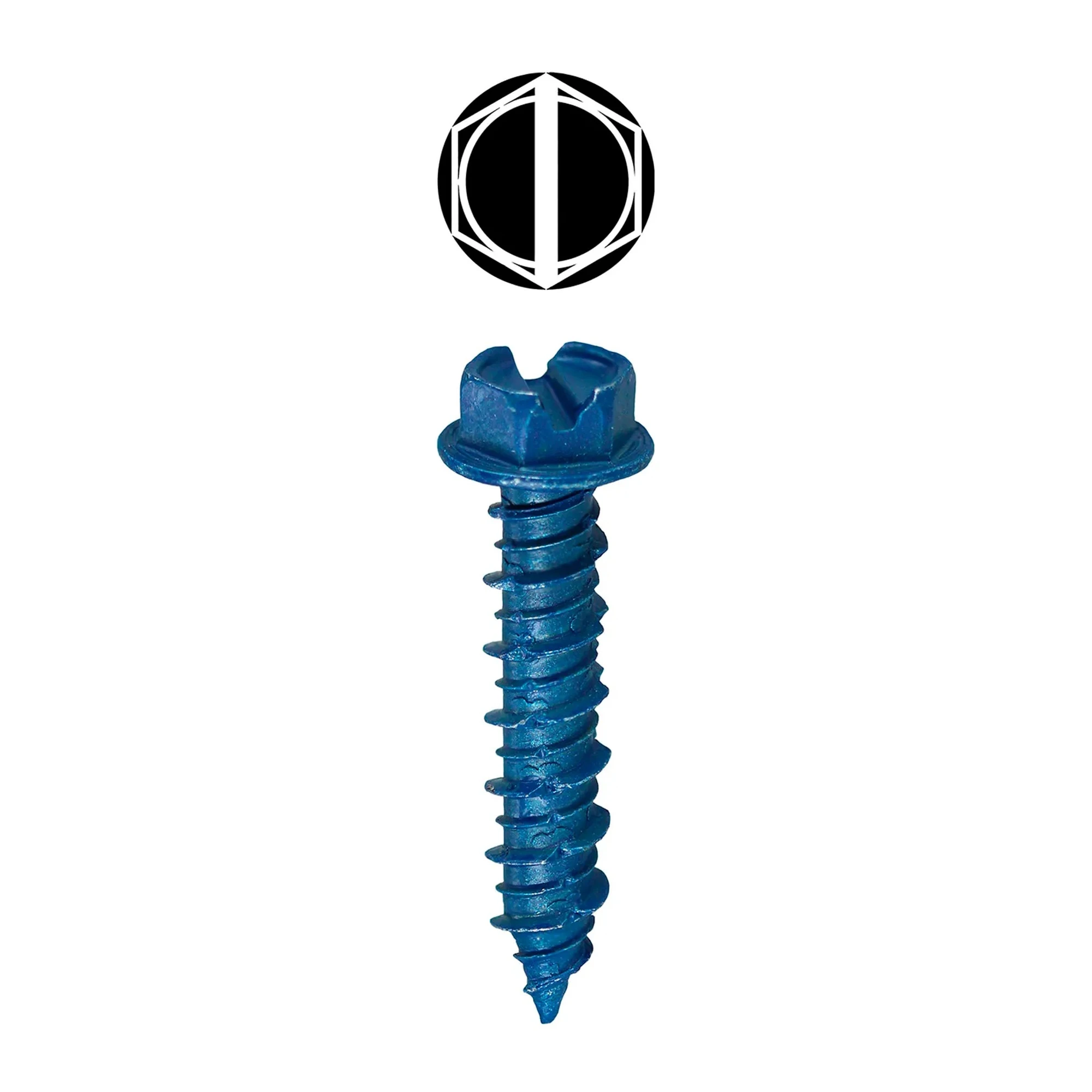

  • Slotted hex washer head concrete screws are available in 1/4 in. diameter and several listed lengths.
  • The sleeve anchor has an acorn nut hex head.
  • The nail drive anchor has a flat head, and the rod hanger fits compatible 1/4 in.-20 threaded rod.
Plan installation work

Use self-tapping and installation-support features as needed

Concrete screw anchors in the selection use gimlet points to tap or form threads in compatible base materials. The rod hanger has deep-cutting threads and is described as having low installation torque. For concrete screw installation, the kit supports Phillips and hex head screws and fits a standard 3-jaw style chuck.

  • Concrete screw anchors are intended for light- to medium-duty fastening work.
  • The nail drive option is intended for light-duty, tamper-resistant fastening.
  • The sleeve anchor is preassembled to help simplify anchor preparation.
  • 100-piece packs provide multiple fasteners or hangers for installation tasks.
FAQ

Common questions before buying

What can concrete screw anchors fasten into?

The represented concrete screw anchors are listed for concrete, brick, masonry block, and wood base materials.

Which anchor types are available for concrete and masonry?

The category includes concrete screw anchors, sleeve anchors, nail drive anchors, and bottom-mount rod hangers.

What head styles are represented for concrete screw anchors?

The listed concrete screw anchors have either Phillips flat heads or slotted hex washer heads.

Is there an option for suspending threaded rod?

Yes. The concrete bottom-mount rod hanger is listed for compatible 1/4 in.-20 threaded rod and overhead support applications.

!
