Circuit Tracers

Circuit tracers help electricians, maintenance teams, facility personnel, cable installers, telecom technicians, and IT professionals identify wiring or locate the breaker serving a circuit. These tools support commercial installation, labeling, troubleshooting, repair, replacement, outlet inspection, and circuit evaluation tasks.

Product Display:
Helpful Buying Guide

Choose a Circuit Tracer for the Work at Hand

Circuit tracers in this category cover several distinct tasks: tracing Ethernet or telephone wiring, locating a breaker from a receptacle or fixture circuit, and checking outlet wiring conditions. Start with the circuit or wiring connection you need to test, then compare the tracing, fault-testing, and indication features that fit the job.

Visual Guide

Popular examples in this category

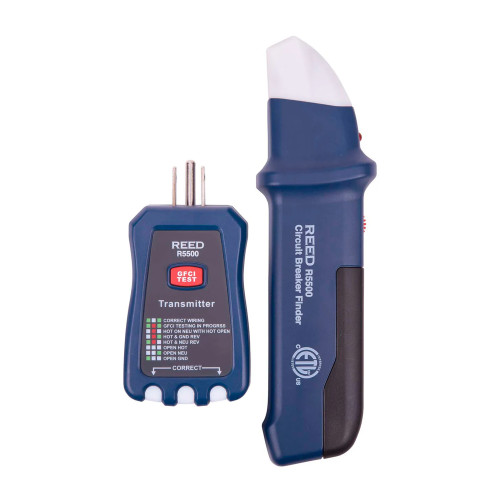

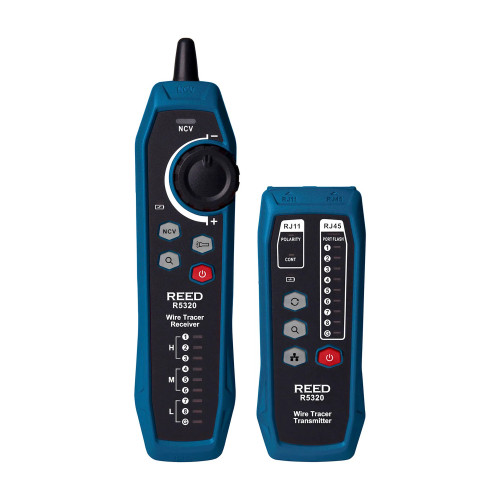

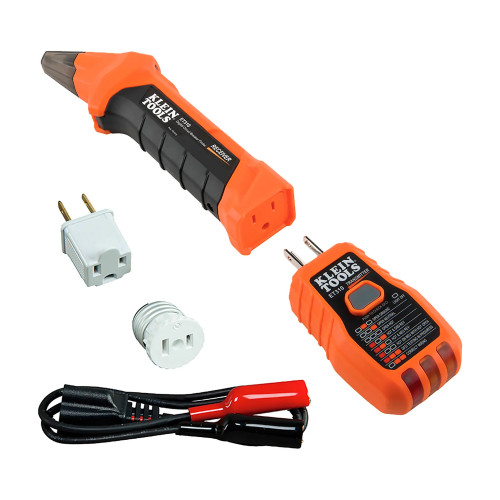

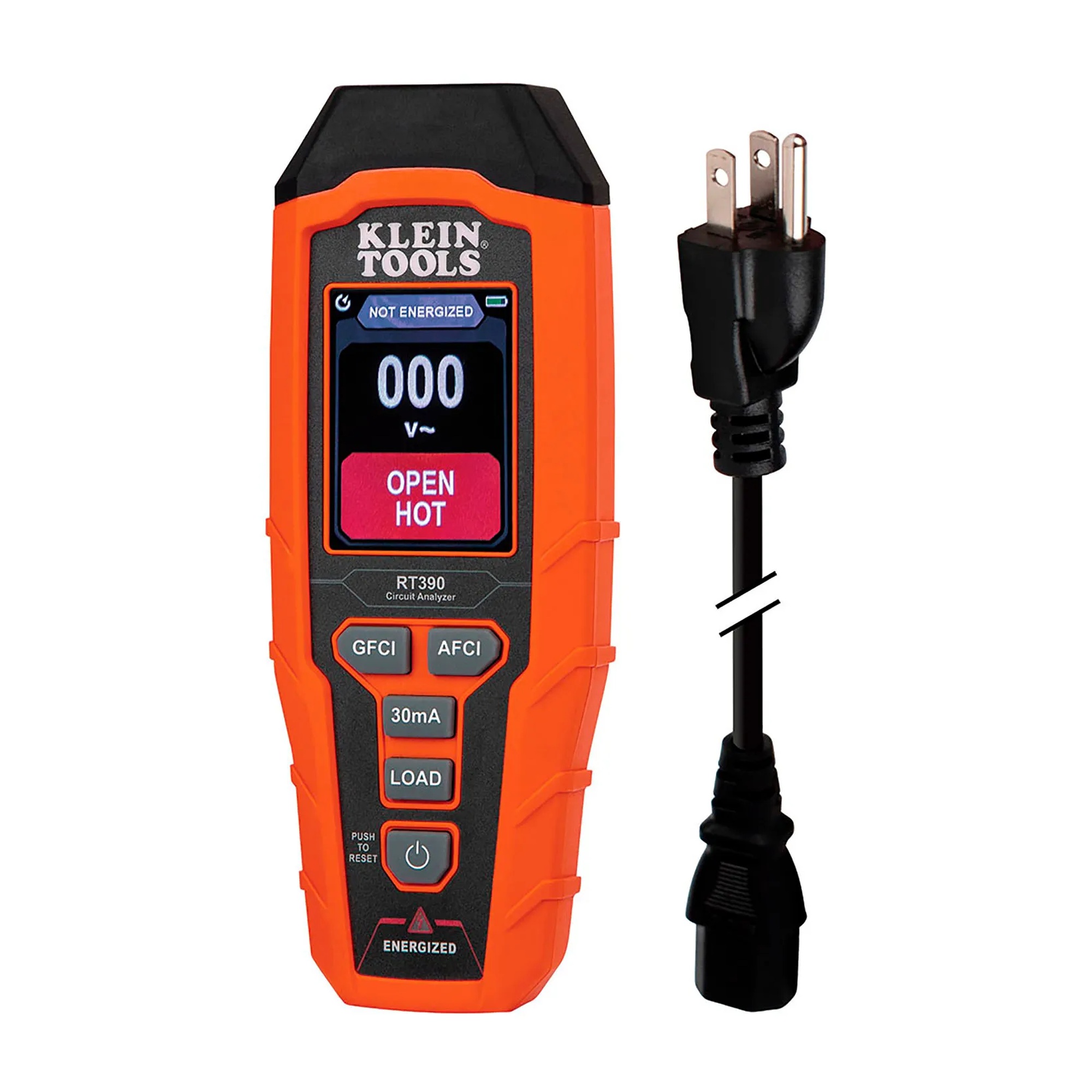

Wire Tracer and Circuit Testing KitWire Tracer and Circuit Testing KitWBB3161470Circuit Breaker Finder with Receptacle TesterCircuit Breaker Finder with Receptacle TesterWBB3161473120V AC Outlet Circuit Analyzer120V AC Outlet Circuit AnalyzerWBB3792379Digital Circuit Breaker Finder with GFCI Outlet TesterDigital Circuit Breaker Finder with GFCI Outlet TesterWBB3792396
Use Cases

Match the tool to the troubleshooting task

Use wire tracing kits for identifying and locating RJ45 Ethernet, RJ11 telephone, and other non-energized wires. Choose a breaker finder when the goal is to identify the breaker serving a receptacle, outlet, or fixture circuit. Use an outlet circuit analyzer to check wiring conditions and evaluate compatible outlets.

How to Choose

Compare connection types and test functions

Consider whether work begins at RJ45 or RJ11 wiring, a receptacle, a fixture circuit, or exposed conductors. Then compare needed capabilities such as adjustable sensitivity, receptacle fault testing, GFCI or AFCI testing, voltage-drop testing, and visual or audible confirmation.

Applications

Support installation, inspection, and repair work

These tools are suited to cable installation and labeling, electrical troubleshooting, outlet inspection, circuit repair or replacement, and facility maintenance. Some options add low-light support with an integrated flashlight or clearer outlet results with a color LCD display.

Additional Information

Understand the available feedback features

Tracing and breaker-finding models may use LEDs, buzzers, or pulsing beepers to help confirm identification. One wire tracing option also includes non-contact voltage detection, while an outlet analyzer provides time-to-trip information for standard AFCI and GFCI outlet tests.

RJ45 + RJ11Direct wire connections

Adapters support Ethernet and telephone wiring tests.

53-wire fault checks

Available on a breaker finder with receptacle testing.

12A–20AVoltage-drop test loads

Available at 12A, 15A, and 20A on the outlet analyzer.

5 minutesAutomatic power-off

The outlet analyzer powers off after five minutes without activity.

Comparison Guide

Compare Circuit Tracer Types

Use this overview to distinguish the wire, breaker, and outlet-testing functions represented in the category.

Product TypeBest-Fit TaskNoted Capabilities
Wire tracer and circuit testing kitIdentify and locate Ethernet, telephone, and other non-energized wiresRJ45/RJ11 adapters, alligator clip adapter, adjustable sensitivity, visual and audible indicators, non-contact voltage detector
Circuit breaker finderLocate the breaker serving a receptacle, outlet, or fixture circuitTransmitter and receiver operation, panel scanning, adjustable sensitivity, visual and audible confirmation; select options add GFCI testing or adapters for exposed conductors
Outlet circuit analyzerCheck wiring conditions at compatible electrical outletsColor LCD, common wiring-fault detection, AFCI and GFCI testing, time-to-trip information, voltage-drop testing
Planning Guide

Plan the right fit before choosing

Plan the connection point

Start with the wiring or circuit you need to access

The appropriate tool depends on where testing starts and what must be identified. A wire tracer and circuit testing kit connects directly to Ethernet and telephone wiring, with an alligator clip adapter for non-terminated wires. Breaker finders use a transmitter and receiver arrangement to identify a breaker after connecting to an outlet or fixture circuit; one option includes adapters for bare wires and other exposed conductors.

  • RJ45 and RJ11 adapters support Ethernet and telephone wiring tasks.
  • Alligator clips allow connection to non-terminated, non-energized wires.
  • Outlet- and fixture-circuit tracing helps locate the associated breaker.
  • Adapters for exposed conductors extend breaker identification options.
Plan the checks you need

Select tracing, fault detection, or circuit evaluation features

For breaker-panel work, adjustable sensitivity can help fine-tune the detection response while scanning. Receptacle-focused models can add five 3-wire wiring-fault checks and a GFCI check button. For broader outlet evaluation, the outlet analyzer identifies common issues including open-neutral and open-ground faults, supports AFCI and GFCI testing, and performs voltage-drop tests at 12A, 15A, and 20A current loads.

  • Adjustable sensitivity supports wire and breaker identification.
  • Receptacle fault testing adds troubleshooting information.
  • AFCI and GFCI testing supports outlet inspection.
  • Voltage-drop testing is available at 12A, 15A, and 20A loads.
Plan for clear results

Choose feedback that suits the work area

Clear indication can help during tracing and inspection. Available feedback includes flashing LEDs, a pulsing beeper, a buzzer, LED signals, and a color LCD display. An integrated flashlight supports work in low-light areas, while automatic power-off after five minutes without activity helps conserve battery life on the outlet analyzer.

  • Visual and audible indicators help confirm tracing results.
  • A color LCD makes outlet test results easier to read and interpret.
  • An integrated flashlight supports low-light work.
  • Automatic power-off helps conserve battery life after inactivity.
FAQ

Common questions before buying

What is a circuit tracer used for?

A circuit tracer can help identify wiring or locate the breaker serving a receptacle, outlet, or fixture circuit during troubleshooting, installation, labeling, repair, or replacement work.

Can circuit tracers be used for Ethernet and telephone wiring?

A wire tracing kit with RJ45 and RJ11 adapters supports Ethernet and telephone wiring. Its alligator clip adapter supports connection to other non-terminated, non-energized wires.

What does a circuit breaker finder do?

A circuit breaker finder helps locate the breaker associated with a connected receptacle, outlet, or fixture circuit. The receiver checks breakers at the panel after the transmitter is connected.

What can an outlet circuit analyzer check?

An outlet circuit analyzer can identify common outlet wiring issues, including open-neutral and open-ground faults. The represented model also supports standard AFCI and GFCI testing and voltage-drop tests at 12A, 15A, and 20A loads.

!
