Blank

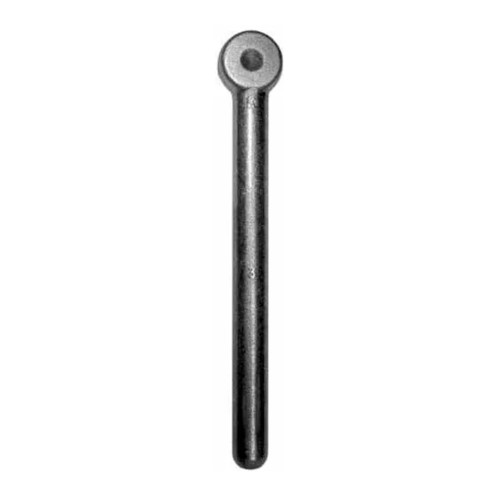

Blank rod ends are forged fastening components with an eye end and an oversized blank shank that can be cut and threaded for the required setup. They are used by fabricators, maintenance professionals, and commercial buyers preparing threaded rod-end connections for fabrication, repair, and assembly work.

Product Display:
Helpful Buying Guide

Buying Guide: Blank Rod Ends

Blank rod ends provide a starting component for applications where the shank must be prepared with cut threads. Compare the material, listed size, shank allowance, dimensional tolerances, and stated heat-treatment or specification details to select a part that fits the planned fabrication work.

Visual Guide

Popular examples in this category

Use Cases

Prepare custom threaded connections

Use a blank rod end when an application calls for a rod-end form with a shank that can be cut and threaded to suit the required connection.

How to Choose

Match material, size, and preparation needs

Start with the listed diameter and length, then compare the material and the available oversized shank allowance for planned thread cutting.

Applications

Support fabrication and maintenance work

These components are suited to fabrication, repair, and assembly tasks performed by commercial buyers and maintenance professionals.

Additional Information

Review stated dimensional details

Where provided, dimensional tolerances can help buyers plan around shank, eye-to-end or eye-to-eye, head diameter, and head-thickness requirements.

4Steel types represented

Carbon steel, C1045 carbon steel, 4140 alloy steel, and 316 stainless steel.

1/4 in.Smallest listed diameter

Represented by a 316 stainless steel blank rod end.

24 in.Longest listed length

Represented by a blank alloy steel rod end.

OversizedShank configuration

Provides material allowance for cut threading.

Comparison Guide

Compare Blank Rod End Options

Use this overview to compare the material groups and listed examples represented in this category.

Material or constructionListed size examplesStated details
316 stainless steel1/4 in. x 6 in.; 1 in. x 12 in.Drop-forged construction; oversized shank; one 1/4 in. x 6 in. option lists ASTM A193-B8M heat treatment.
4140 alloy steel5/8 in. x 3-1/2 in.; 1 in. x 24 in.Drop-forged construction; oversized shank; stated ASTM A193-B7 heat treatment.
Carbon steel5/8 in. x 3-1/2 in.; 3/4 in. x 6 in.; 1 in. x 12 in.Drop-forged construction; blank or oversized shank; selected options list dimensional tolerances or ASTM details.
Planning Guide

Plan the right fit before choosing

Start with the blank shank

Plan for cut threading

Each represented product is a blank rod end intended to give the user material for threading work. The oversized shank is the key feature to evaluate when the connection must be prepared for a specific application.

  • Confirm the listed shank diameter and length.
  • Allow for the planned cutting and threading work.
  • Use the eye-end form as part of the rod-end connection layout.
Compare material options

Choose the stated steel construction

The represented range includes drop-forged carbon steel, C1045 carbon steel, 4140 alloy steel, and 316 stainless steel rod ends. Select according to the material requirements identified for the application.

  • 316 stainless steel is represented in 1/4 in. x 6 in. and 1 in. x 12 in. sizes.
  • 4140 alloy steel is represented in 5/8 in. x 3-1/2 in. and 1 in. x 24 in. sizes.
  • Carbon steel and C1045 carbon steel options are also represented.
Check dimensions and stated requirements

Use available details for fit planning

Some blank rod ends include specified dimensional tolerances to support preparation and assembly planning. Certain products also list ASTM heat-treatment or material-class details for specification matching.

  • Review shank and length dimensions before selecting.
  • Check listed head and eye-related dimensional allowances where provided.
  • Compare stated ASTM A193-B8M, ASTM A193-B7, ASTM A521 Class CA, or ASTM A668 Class D details when applicable.
FAQ

Common questions before buying

What is a blank rod end?

It is a rod-end component with a blank shank intended to be cut and threaded for an application.

Why is the shank oversized?

The oversized shank provides added material or stock allowance for cut threading.

What materials are represented?

The represented products include carbon steel, C1045 carbon steel, 4140 alloy steel, and 316 stainless steel.

What dimensions should I compare?

Compare the listed diameter and length, plus any stated shank, eye-related, head-diameter, and head-thickness tolerances.
