Shutter & Guard Mount Fans

Shutter and guard mount fans are exhaust and ventilation fans designed to move air through wall or mounted openings. They are used in commercial work areas, agricultural buildings, barns, building peaks, greenhouses, warehouses, and indoor or outdoor spaces where exhaust airflow and air management are needed.

Product Display:
Helpful Buying Guide

Choose a Shutter or Guard Mount Fan for Your Ventilation Layout

Compare airflow capacity, fan size, mounting arrangement, speed options, power connection, and the features that fit the installation. The products represented here include shutter-mounted, standard wall, venturi-mounted, and shutter-and-guard configurations for exhaust ventilation.

Visual Guide

Popular examples in this category

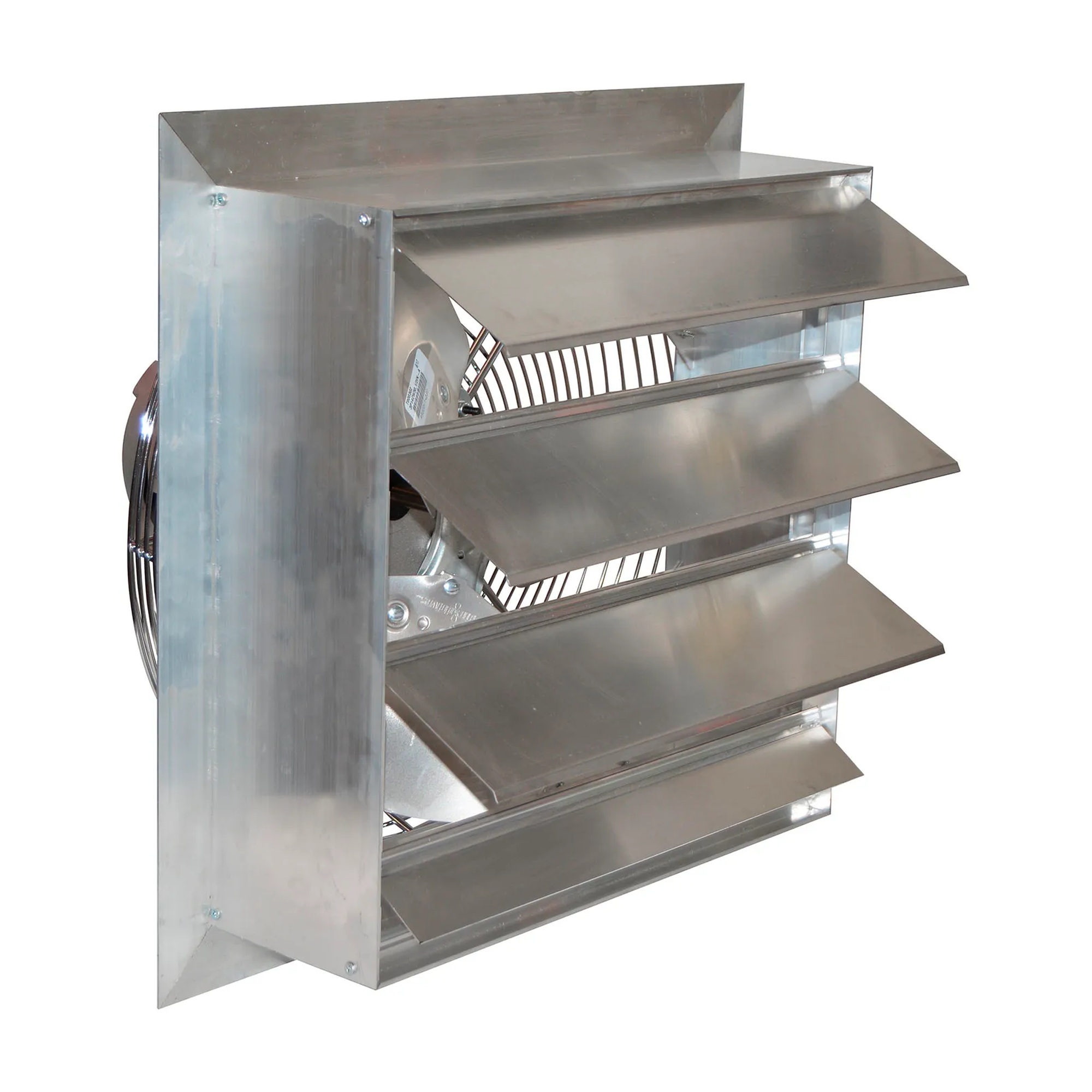

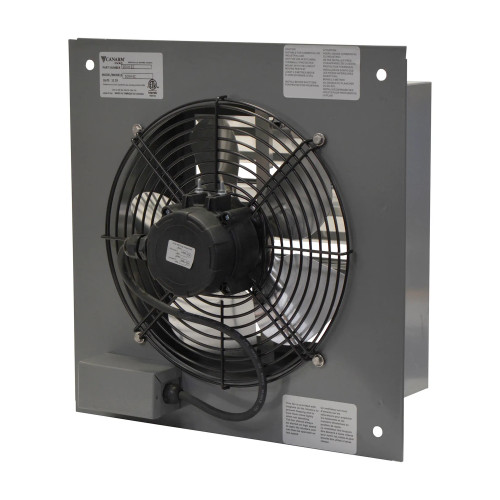

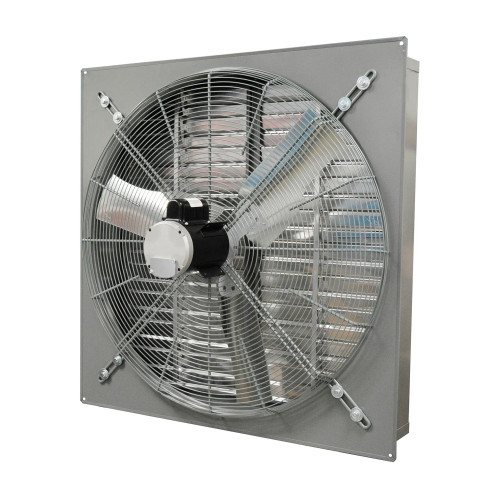

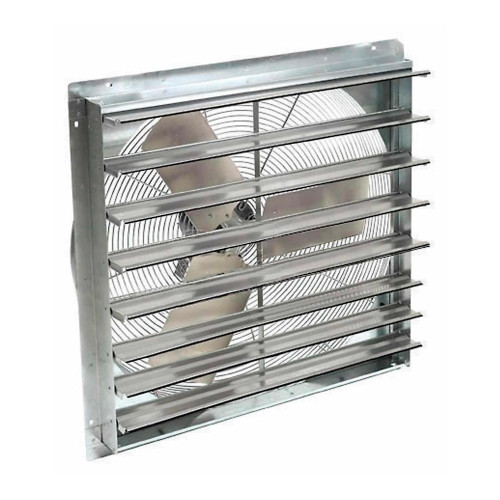

20-Inch Shutter-Mounted Exhaust Fan, 2,925 CFM, 120V20-Inch Shutter-Mounted Exhaust Fan, 2,925 CFM, 120VWB282980014-Inch Shutter-Mounted Exhaust Fan, 1,520 CFM14-Inch Shutter-Mounted Exhaust Fan, 1,520 CFMWB282950030-Inch Standard Exhaust Fan, 8,000 CFM, Single Speed, Single Phase30-Inch Standard Exhaust Fan, 8,000 CFM, Single Speed, Single PhaseWBB31922948-Inch Standard Wall Exhaust Fan, 360 CFM, 2-Speed, Single-Phase8-Inch Standard Wall Exhaust Fan, 360 CFM, 2-Speed, Single-PhaseWBB3192206
Use Cases

Support exhaust airflow in working spaces

These fans are represented for enclosed work areas, commercial interiors, agricultural buildings, barns, building peaks, greenhouses, warehouses, and indoor or outdoor ventilation locations.

How to Choose

Start with airflow and installation

Match the required airflow and fan diameter to the ventilation plan, then compare inside-wall, wall-exhaust, shutter, guard, or venturi mounting arrangements. Confirm the available electrical setup before selecting a unit.

Applications

Compare operating control needs

Choose from single-speed, two-speed, pull-chain, built-in switch, direct-wire, hardwired, or power-cord configurations where those features match the represented product details.

Additional Information

Review shutters, guards, and motor features

Available product features include aluminum shutters, shutter tie bars, intake-side or spiral wire guards, sealed ball bearings, permanently lubricated motors, thermal overload protection, and thermally protected motors.

360–8,000 CFMListed airflow range

Representative products span low- to higher-capacity exhaust airflow.

8–30 in.Listed fan diameters

Representative fan sizes range from 8 inches to 30 inches.

1 or 2 speedsOperating options

The summaries include single-speed and two-speed fan operation.

9 or 10 ft.Corded options

Selected models include attached 9-foot or 10-foot power cords.

Comparison Guide

Compare the represented fan configurations

Use this overview to identify the mounting style and product details most relevant to the planned ventilation installation.

Fan typeRepresentative configurationsWhat to compare
Shutter-mounted exhaust fans14-, 16-, and 20-inch examples; listed airflow includes 1,520, 2,100, and 2,925 CFMInside-wall installation, direct-drive design, direct wiring, guards, and permanently lubricated motors.
Standard wall and standard exhaust fans8-inch 360 CFM two-speed wall fan; 10-inch 690 CFM two-speed wall fan; 30-inch 8,000 CFM single-speed exhaust fanFan diameter, CFM, speed selection, wall-exhaust layout, motor protection, and louver shutter details.
Shutter, guard, and venturi configurations10-inch explosion-proof shutter and guard model; 12-inch venturi-mounted model; 16-, 20-, and 24-inch shutter exhaust modelsSpecified design, guard and shutter arrangement, controls, electrical connection, corded versus hardwired setup, and indoor/outdoor use where listed.
Planning Guide

Plan the right fit before choosing

Plan the airflow and location

Match fan capacity to the exhaust requirement

Airflow capacities in the represented products range from 360 CFM to 8,000 CFM. Smaller wall exhaust options include 8-inch and 10-inch models with two-speed operation, while larger shutter exhaust and standard exhaust fans provide higher listed airflow for larger ventilation needs.

  • Compare listed CFM with the air-moving requirement for the space.
  • Use the fan diameter and wall or mounted-opening layout together.
  • Consider whether the installation is an enclosed work area, agricultural building, greenhouse, warehouse, or indoor/outdoor location.
Select the mounting and connection style

Choose a configuration that fits the installation

Shutter-mounted models install on the inside of a wall and are described as eliminating the need for separate external framing or a separate shutter assembly. Standard wall exhaust fans support exhaust through a wall opening, while a venturi-mounted model supports wall or shutter mounting. Connection details vary by product, including direct-wire junction boxes, hardwired motors, pull-chain control, and attached power cords.

  • Choose shutter-mounted designs for inside-wall installation where the combined fan and shutter arrangement is needed.
  • Compare direct-wire junction boxes with hardwired or corded configurations.
  • Check the listed voltage, phase, and control method for compatibility with the intended setup.
Review construction and operational features

Focus on the features represented for the environment

Several models include aluminum blades, shutters, or shutter tie bars. Guards include steel wire, steel spiral wire, and intake-side wire designs depending on the product. Motor-related features represented include direct drive, sealed ball bearings, permanently lubricated motors, enclosed ball-bearing motors, thermal overload protection, and thermally protected motors.

  • Select two-speed or optional variable-speed compatibility when adjustable operation is needed.
  • Consider shutter tie bars where reducing shutter flapping in windy conditions is important.
  • Review the product-specific guard, shutter, motor, and finish details before purchase.
FAQ

Common questions before buying

What airflow range is represented in this category?

The representative products list airflow from 360 CFM to 8,000 CFM.

Are two-speed models available?

Yes. The represented 8-inch and 10-inch standard wall exhaust fans have two-speed operation.

What is the benefit of a shutter-mounted design?

The summaries describe shutter-mounted fans as installing from the inside of a wall without separate external framing or a separate shutter assembly.

Are corded fan options represented?

Yes. One 24-inch indoor/outdoor shutter exhaust fan has a 9-foot power cord, and another 24-inch shutter exhaust fan has a 10-foot grounded three-prong power cord.

!
