Low Water Cut-Offs

Low water cut-offs are heating-system controls and related components used in commercial boiler applications to monitor water level and interrupt burner power during a low-water condition. Options in this category support 24V and 120V control arrangements, low-pressure steam boilers, older boilers with sight glass tappings, and maintenance of compatible low water cut-off equipment.

Product Display:
Helpful Buying Guide

Choose low water cut-off equipment for the boiler control arrangement

The available products include direct low-water cut-offs, sight glass-mounted level controls, a compatible electro-well, and replacement maintenance parts. Compare the required control voltage, reset method, probe or mounting configuration, and the exact equipment compatibility stated for the item.

Visual Guide

Popular examples in this category

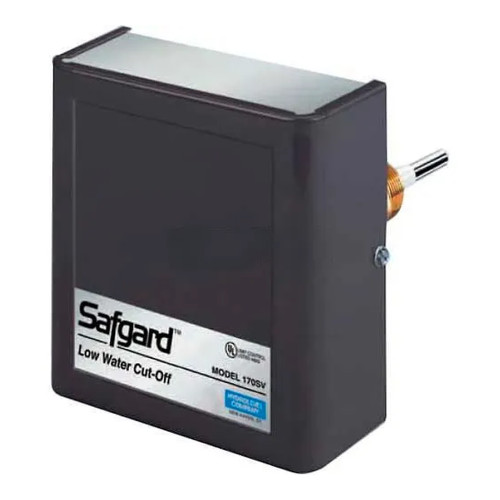

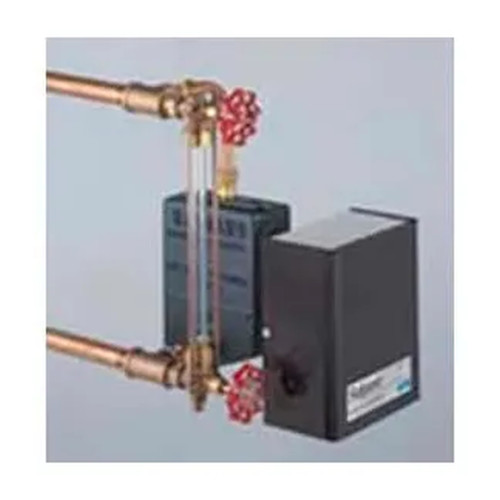

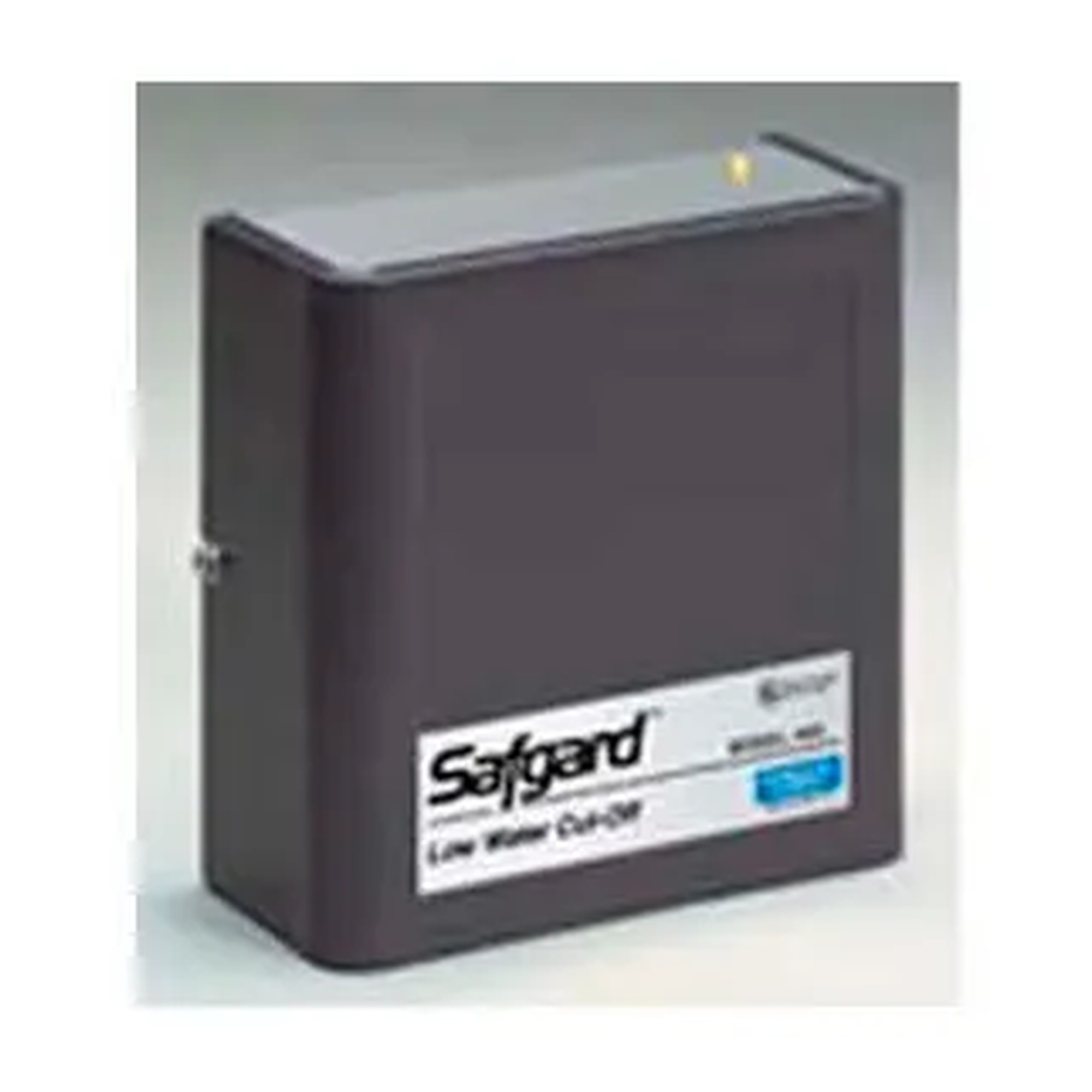

24V Automatic-Reset Low Water Cut-Off24V Automatic-Reset Low Water Cut-OffWBB97460824V Gas Steam Low Water Cut-Off24V Gas Steam Low Water Cut-OffWBB97460324V Manual-Reset Low Water Cut-Off with Short Probe24V Manual-Reset Low Water Cut-Off with Short ProbeWBB974592711 Series 120V Sight Glass Low Water Cut-Off711 Series 120V Sight Glass Low Water Cut-OffWBB974593
Use Cases

Protect burner operation during low-water conditions

Select a low water cut-off when the application calls for immediate burner-power interruption after a low-water condition is detected. Automatic-reset models restore burner operation when water returns, while manual-reset models provide a lockout function.

How to Choose

Match voltage, reset type, and installation configuration

Start with the required 24V or 120V control arrangement. Then compare automatic versus manual reset, short-probe models, direct-mounted probes for low-pressure steam boilers, or sight glass mounting for applicable older boiler setups.

Applications

Support commercial and steam boiler maintenance

The range is represented by commercial boiler controls, low-pressure gas steam boiler monitoring, secondary cut-off use on steam boilers, and sight glass applications designed to work with an existing water feeder.

Additional Information

Find compatible components and service parts

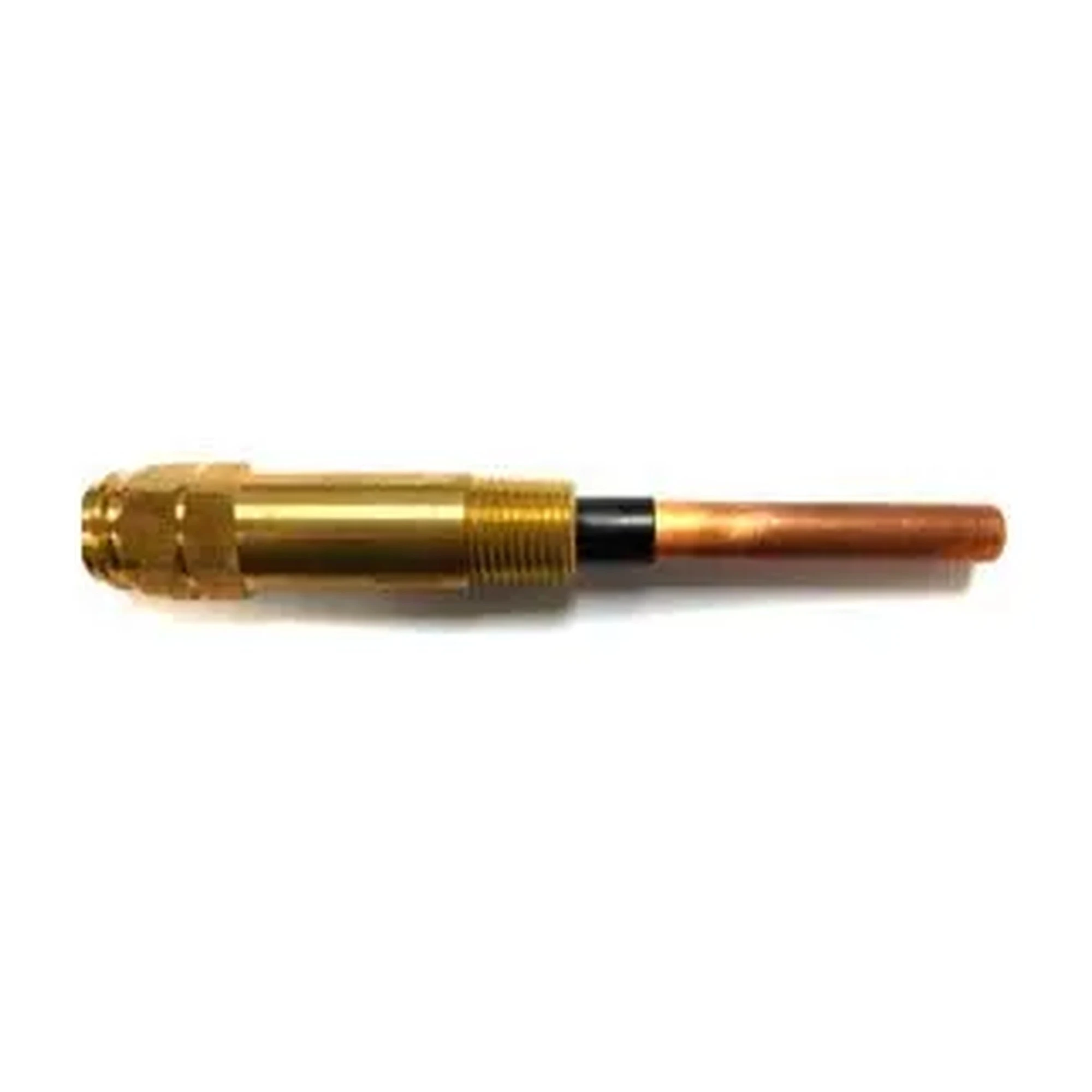

Related items include a standard 1/2-inch electro-well for compatible 3200 and 3250 controls, a replacement head mechanism for compatible 150-S Series units, and a cartridge and strainer kit for specified Series 101A, 47, 247, and 847 equipment.

24VControl options

Available on automatic-reset, manual-reset, gas steam, and sight glass configurations.

120VControl options

Available on automatic-reset and sight glass level-control configurations.

2 probesSight glass control

Sight glass models maintain water level between two probes.

30 secondsManual-reset lockout

Specified manual-reset models lock out the burner circuit when water remains below the probe for this period.

Comparison Guide

Compare the represented low water control types

Use the table to focus on the operating features and installation arrangements described for each type.

Product typeBest fit based on listed featuresKey listed characteristics
Automatic-reset low water cut-offsCommercial boiler control applications requiring burner-power interruption during low water and restart after water returns24V or 120V options; immediate power interruption; automatic reset; selected models include a short probe, test button, and indicator lights
Manual-reset low water cut-offsCommercial boiler users or secondary cut-off applications on steam boilers24V operation; short-probe option; immediate power interruption; 30-second burner lockout; manual reset
Sight glass low water cut-offsApplicable older boiler setups with sight glass tappings and an existing water feederSight glass mounting; two-probe level control; operation with an existing feeder; manifold, probes, and quick hook-up fittings included in the stated assembly
Planning Guide

Plan the right fit before choosing

Reset and control options

Decide how the cut-off should respond after water level returns

Automatic-reset low water cut-offs stop burner power when low water is detected and restart the burner when the water level returns. Manual-reset models also stop burner power and include a 30-second burner lockout when water remains below the probe; they are described as not tripping due to power failures.

  • Choose 24V or 120V models to match the stated control application.
  • Consider automatic reset where burner operation should resume after water returns.
  • Consider manual reset and lockout functionality for compatible commercial boiler or secondary steam-boiler cut-off use.
Mounting and water-level monitoring

Compare probe-based and sight glass connection arrangements

For low-pressure steam boilers, an electronic 24V control uses a direct-mounted probe positioned at or above the lowest safe water level and permits normal burner operation while water contacts the probe. Sight glass models install at sight glass tappings, maintain water level between two probes, and are designed to work with an existing water feeder.

  • Short-probe cut-offs are available in 24V configurations.
  • Sight glass assemblies include a manifold, two probes, and quick hook-up fittings for the stated configuration.
  • Select sight glass mounting for applicable older boiler configurations.
Parts and maintenance

Use listed compatibility to identify related components

Maintenance items are intended for specifically named compatible equipment. The electro-well enables the low water cut-off function when used with a compatible control, while the replacement head mechanism and cartridge-and-strainer kit are designated for their respective series.

  • The standard electro-well is specified as 1/2 inch.
  • The replacement head mechanism includes an integrated snap switch.
  • The cartridge and strainer kit is supplied as one unit.
FAQ

Common questions before buying

What does a low water cut-off do?

The listed cut-offs interrupt burner power when a low-water condition is detected. Automatic-reset versions restart the burner when the water level returns.

What is the difference between automatic and manual reset?

Automatic-reset models restore burner operation after water returns. Listed manual-reset models include a 30-second burner lockout when water remains below the probe and require manual reset.

When is a sight glass low water cut-off used?

Sight glass models are designed for applicable boilers with sight glass tappings. They maintain water level between two probes and work with an existing water feeder.

Are replacement and related components available?

The represented range includes a compatible electro-well, a replacement head mechanism with snap switch for specified equipment, and a cartridge and strainer kit for specified series.

!
