Installation Accessories

Installation accessories support HVAC and refrigeration service, replacement, and equipment setup. This category includes capillary tubing for applicable refrigerators and room air conditioners, equipment pads and stands for condenser support, mini-split mounting options, reusable forced-air filters, and a leak detector for refrigeration and air-conditioning troubleshooting.

Product Display:
Helpful Buying Guide

Choose installation accessories for the equipment and task

Start by identifying whether the job involves equipment support, mini-split mounting, tubing replacement, forced-air maintenance, or leak troubleshooting. Then compare the dimensions, capacity, adjustment features, vibration-isolation points, and application details shown for each product type.

Visual Guide

Popular examples in this category

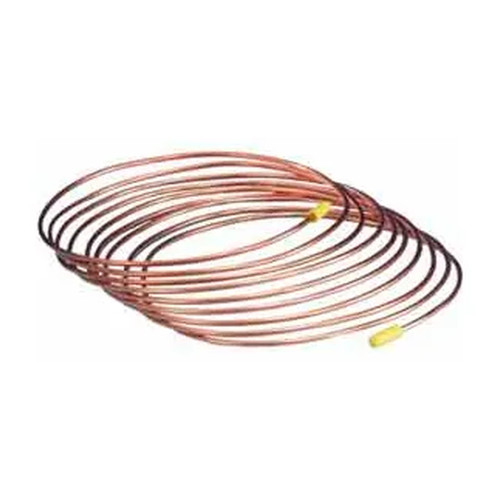

Capillary Tubing, 0.028 in. ID x 0.071 in. OD, 10 ftCapillary Tubing, 0.028 in. ID x 0.071 in. OD, 10 ftWBB461384Plastic Equipment Pad, 30 x 30 x 3 in., GrayPlastic Equipment Pad, 30 x 30 x 3 in., GrayWBB3167584Gray Plastic Air Conditioner Equipment Pad, 36 x 36 x 3 InchesGray Plastic Air Conditioner Equipment Pad, 36 x 36 x 3 InchesWBB3167586Adjustable Mini-Split Wall Bracket with Anti-Vibration IsolationAdjustable Mini-Split Wall Bracket with Anti-Vibration IsolationWBB2019145
Use Cases

Match the accessory to the service task

Use capillary tubing for applicable refrigeration and room air-conditioner service work; pads, brackets, and stands for equipment support; washable media for forced-air upkeep; and leak detection for compatible refrigeration and air-conditioning troubleshooting.

How to Choose

Compare fit, size, and support needs

For tubing, verify the required inside diameter and length. For pads, compare the footprint. For supports, check unit width, shelf depth, capacity, mounting arrangement, and available adjustment.

Applications

Plan around the installation location

Equipment pads provide ground-support bases, while the wall bracket mounts a mini-split unit off the wall and provides spacing for installation and service access. Stands support compatible mini-split condensers in raised or stacked configurations.

Additional Info

Review service-oriented features

Selected supports include rubber isolation components and installation hardware. The leak detector offers a gooseneck probe, adjustable sensitivity, audible and tricolor alerts, and a replaceable sensor.

0–34 in.Bracket width range

The adjustable wall bracket accommodates mini-split units across this width range.

12 in.Condenser stand height

The dual-fan condenser stand raises the unit 12 inches.

400 lb.Maximum stated support capacity

The condenser stand and the bottom level of the double-stack stand each support up to 400 lb.

15 in.Gooseneck probe length

The leak detector probe helps reach difficult-to-access locations.

Comparison Guide

Compare the main installation accessory types

Use this overview to narrow the category by the job being performed and the product details that matter most.

Product typeBest suited forKey selection factors
Equipment padsCreating a ground-support base for compatible equipment or air-conditioning condensersFootprint, textured surface, ribbed underside, and whether a drillable design is needed
Mini-split brackets and standsMounting, raising, or stacking compatible mini-split units and condensersUnit width, shelf depth, support capacity, adjustment, isolation points, and installation arrangement
Service and maintenance accessoriesTubing replacement, forced-air filter upkeep, and refrigerant leak troubleshootingTubing bore and length, filter dimensions, or detector refrigerant compatibility, probe reach, and sensitivity settings
Planning Guide

Plan the right fit before choosing

Equipment support planning

Select a pad or stand based on placement and load

Plastic equipment pads are available in square 30 x 30 inch, 32 x 32 inch, and 36 x 36 inch footprints, plus an 18 x 38 inch format. Ribbed undersides help provide ground support, and textured surfaces help reduce equipment movement. For mini-split equipment, compare the installation arrangement and stated capacity before selecting a stand.

  • Choose a pad footprint that matches the compatible equipment installation.
  • Use the 12-inch condenser stand for compatible units up to 400 lb.
  • Use the double-stack stand when separate top and bottom mini-split positions are needed; its bottom capacity is 400 lb. and top capacity is 200 lb.
  • Consider a drillable 32 x 32 inch pad when securing the installed unit to the pad is required.
Tubing, filtration, and troubleshooting planning

Confirm the required service dimensions and features

Capillary tubing options are represented in 10-foot and 12-foot lengths with specified inside diameters from 0.028 inch to 0.052 inch. The washable filter is sized 30 x 20 x 1 inches. For leak checks, the detector is intended for compatible CFC, HCFC, and HFC refrigerants and includes a 15-inch gooseneck probe.

  • Match capillary tubing bore and length to the applicable service requirement.
  • Confirm the forced-air system requires a 30 x 20 x 1 inch filter.
  • Use high or low sensitivity settings as needed during compatible leak troubleshooting.
  • Consider the probe reach and alert style when access to the suspected leak location is limited.
FAQ

Common questions before buying

What capillary tubing sizes are represented?

The listed options have 0.028 inch, 0.031 inch, and 0.052 inch inside diameters, in 10-foot or 12-foot lengths.

Which equipment pad sizes are available?

Representative pad footprints include 30 x 30 inches, 32 x 32 inches, 36 x 36 inches, and 18 x 38 inches.

How much weight can the mini-split stands support?

The dual-fan condenser stand supports up to 400 lb. The double-stack stand supports up to 400 lb. on the bottom level and 200 lb. on the top level.

What refrigerants can the leak detector check?

It supports leak checks for compatible CFC, HCFC, and HFC refrigerants.

!
