Electronic Timers

Electronic timers provide automatic, repeatable control for connected lighting, electrical circuits, and compatible refrigeration defrost applications. Facility teams, electrical professionals, contractors, and property managers use them to set timed shutoff periods, daily or weekly schedules, astronomic lighting programs, and adjustable defrost cycles.

Product Display:
Helpful Buying Guide

Electronic Timer Buying Guide

Choose an electronic timer by starting with the control task: a timed wall-switch shutoff, a recurring schedule for a circuit, lighting that follows sunrise and sunset, multi-zone lighting control, or an adjustable defrost routine. Then compare the electrical requirements, number of circuits or zones, programming range, mounting format, and needed override features for the compatible application.

Visual Guide

Popular examples in this category

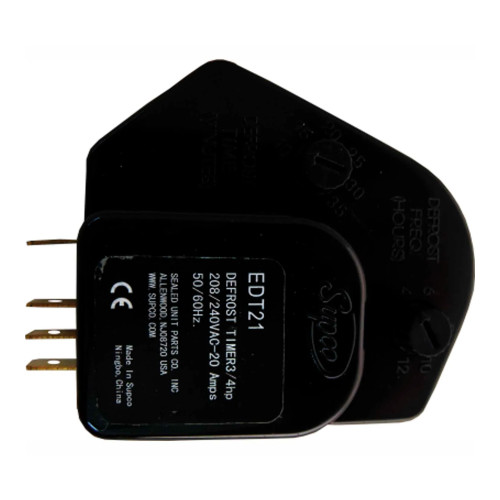

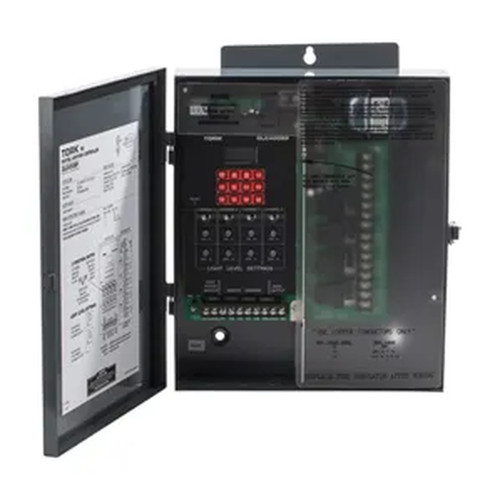

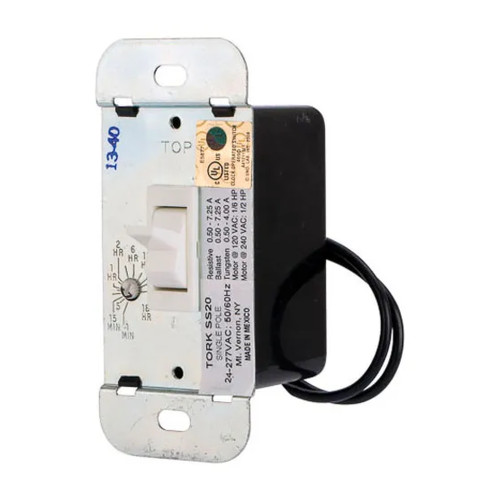

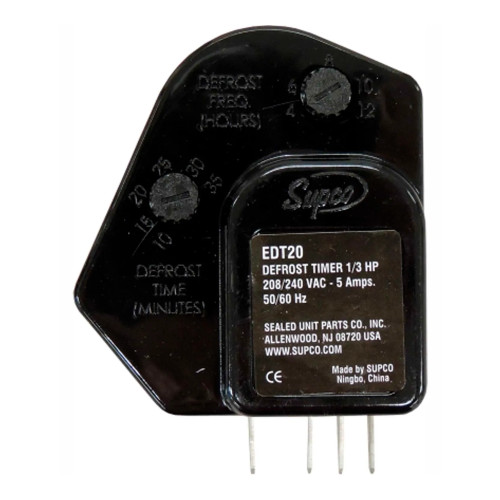

Four-Zone Astronomic Lighting Control PanelFour-Zone Astronomic Lighting Control PanelWBB434438Electronic Defrost Timer, 208/240V, 5 AmpElectronic Defrost Timer, 208/240V, 5 AmpWBB461363Electronic Defrost Timer, 208/240V, 20 Amp, 3/4 HPElectronic Defrost Timer, 208/240V, 20 Amp, 3/4 HPWBB46136418-Hour 3-Way Interval Wall Timer Switch18-Hour 3-Way Interval Wall Timer SwitchWBB434397
Use Cases

Match the timer to the control routine

Interval wall timers turn a connected lighting or small motor load off after a selected period. Digital timers automate one or two circuits on recurring schedules. Astronomic options coordinate lighting with seasonal sunrise and sunset changes, while defrost controls schedule defrost frequency and duration in compatible equipment.

How to Choose

Check electrical and scheduling needs

Compare the required voltage, amp or motor rating where provided, channel or zone count, and installation style. Also consider whether the job needs a simple interval, repeat daily programming, 365-day scheduling, photosensor input, 3-way compatibility, or no-neutral installation.

Applications

Support common facility control tasks

These timers are represented for lighting loads, small motor loads, single electrical circuits, multi-zone lighting, and commercial refrigeration defrost control. Wall-mounted models suit switch-location control, while enclosed digital timers support indoor or outdoor placement where stated.

Additional Information

Look for practical control features

Available features include manual or keypad override, remote override capability, battery backup, hidden timing adjustments, dust-proof cases, standard mounting formats, and indoor/outdoor enclosures. Select only the features that fit the installation and connected load.

1 min-18 hrInterval range

Available timed shutoff range on represented wall timer switches.

20Daily setpoints

Maximum listed daily on/off setpoints on represented 7-day digital timers.

4 zonesIndependent lighting zones

Available on the represented lighting control panel.

365 daysCalendar scheduling

Available on the represented two-channel digital electronic timer.

Comparison Guide

Compare Electronic Timer Types

Use this overview to narrow the timer format that best fits the control task and installation requirements.

Timer typeBest-suited control needKey represented features
Interval wall timer switchManual start with automatic shutoff for lighting or small motor loads1 minute to 18 hour shutoff range; 3-way capability; standard wallbox fit; 24-277 VAC operation
Digital circuit timerRecurring control of one or two electrical circuits7-day or 365-day scheduling; one or two channels; up to 20 daily setpoints on listed 7-day models; indoor/outdoor enclosures
Astronomic lighting timer or panelLighting schedules tied to time of day, light levels, or seasonal sunrise and sunsetAstronomic scheduling; photosensor input on the four-zone panel; override options; wall-switch or multi-zone control
Planning Guide

Plan the right fit before choosing

Timer Types

Compare the main electronic timer styles

The category includes several timer formats for different control needs.

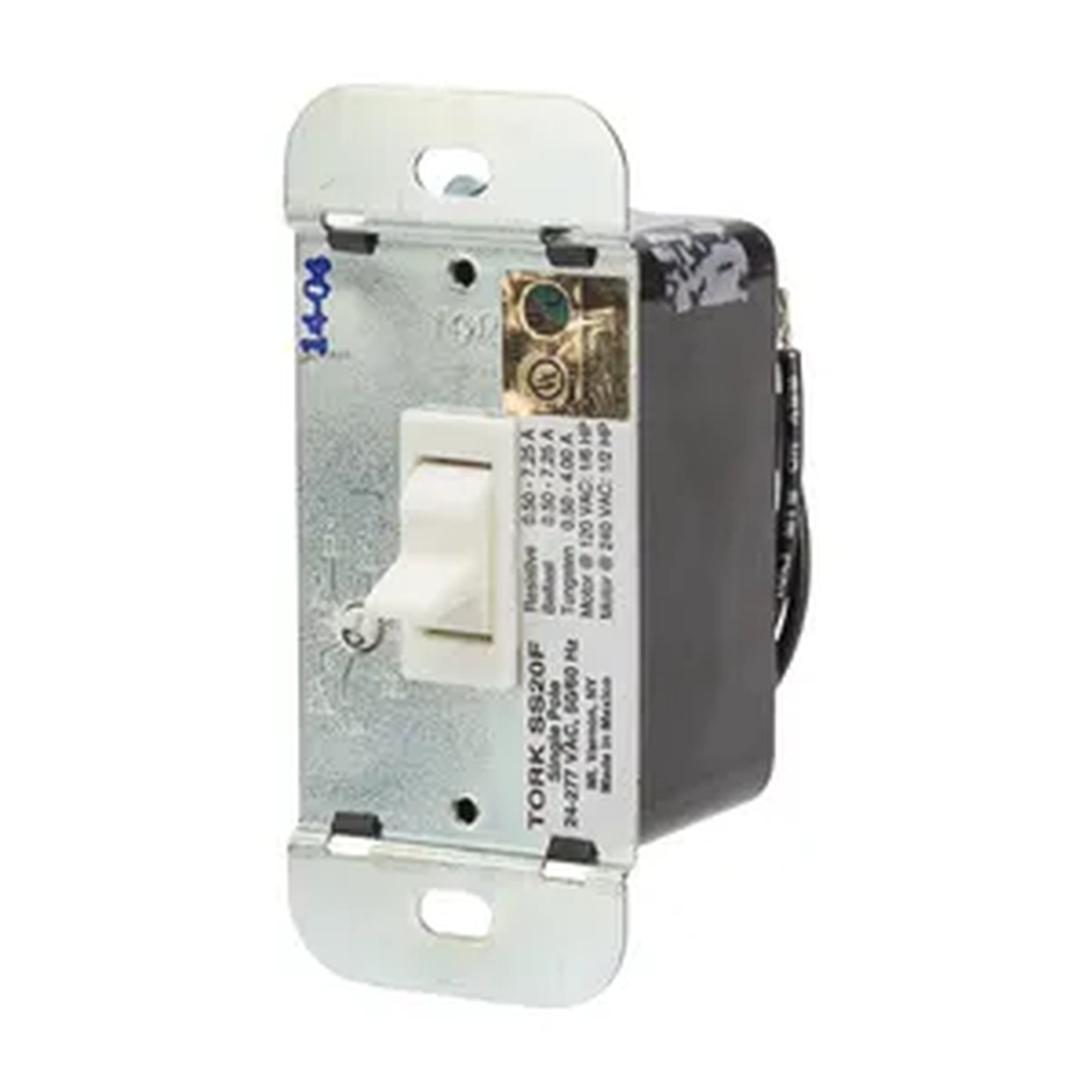

  • Interval wall timer switches provide automatic shutoff from 1 minute to 18 hours after manual switch activation.
  • 7-day digital timers provide repeatable scheduling for one circuit, with up to 20 daily setpoints and one-minute minimum settings.

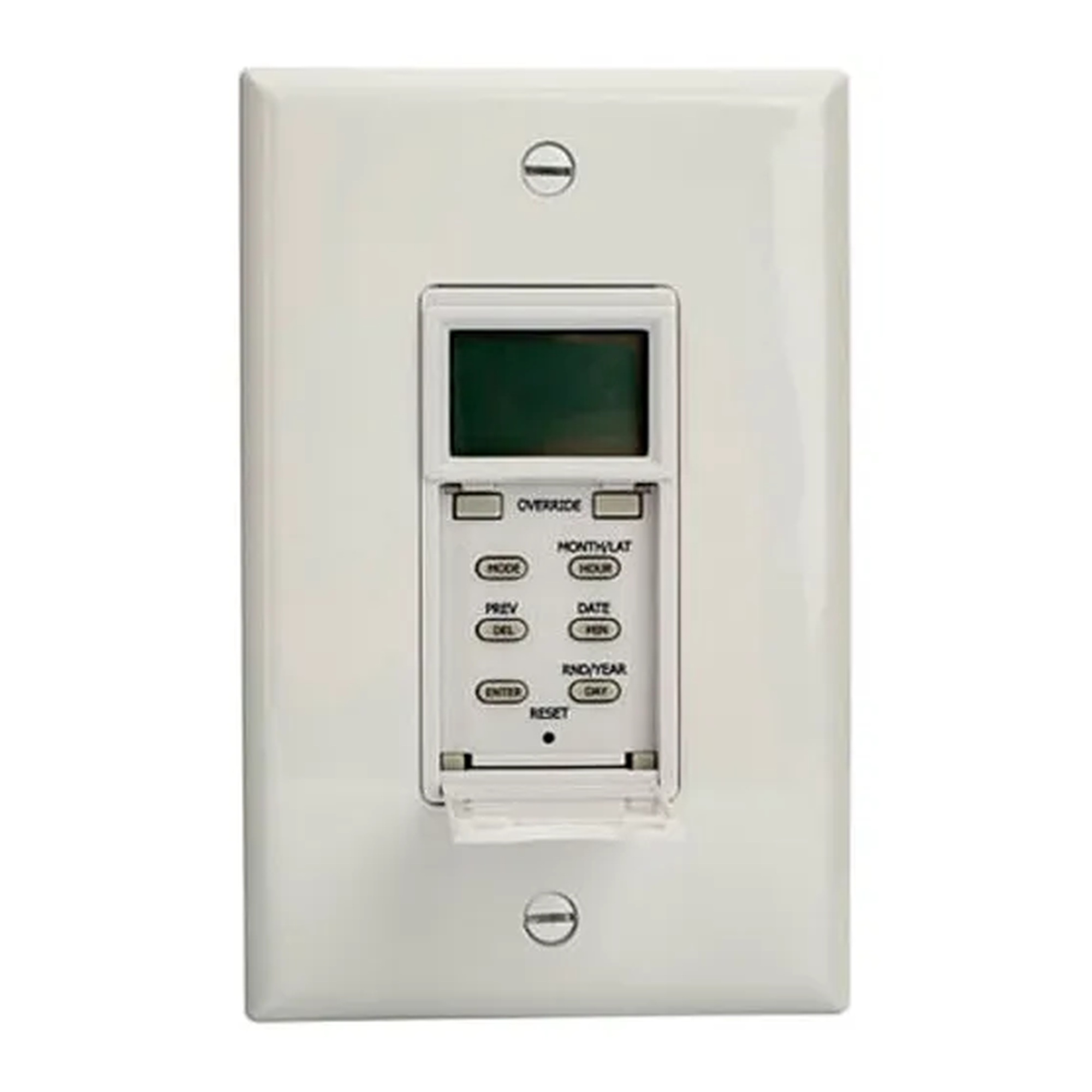

  • Astronomical wall switch timers adjust schedules with seasonal sunrise and sunset changes and can offer manual override.
  • Lighting control panels provide independent timing and light-level settings across up to four zones.
  • Electronic defrost controls offer adjustable intervals of 4 to 12 hours and adjustable defrost durations of 10 to 35 minutes.
Selection Checklist

Plan the installation before selecting a timer

Use the product details to match a timer to the compatible electrical system and intended control method.

  • Verify the voltage range, such as 24-277 VAC for interval wall timers, 120-277V for certain digital timers, or 115V and 208/240V for listed defrost controls.
  • Match the control capacity to the application, including 15A wall-switch control, 30A SPDT contacts, 40A digital timer capacity, or stated defrost control ratings.
  • Choose the required control arrangement: one channel, two channels, four zones, single-pole, or 3-way compatibility.
  • Confirm installation considerations such as a standard wallbox, standard mounting format, no-neutral wiring, or an indoor/outdoor enclosure.
  • Decide whether local, remote, or manual override capability is needed.
Programming Considerations

Choose the scheduling range that fits the routine

A simple shutoff period may be enough for a manually started load, while recurring or calendar-based programs can suit more detailed control plans.

  • Use interval timing for a selected automatic off period after the load is turned on.
  • Use daily repeating schedules for the same on/off routine each day of the week.
  • Use astronomical scheduling for lighting programs that follow seasonal sunrise and sunset changes.
  • Use 365-day scheduling when holiday, seasonal, and advance calendar scheduling are needed.
  • For defrost applications, select the needed frequency and duration within the listed adjustable ranges.
FAQ

Common questions before buying

What is the difference between an interval timer and a scheduled digital timer?

An interval timer turns a load off after a selected period, while a scheduled digital timer uses programmed on/off events for recurring operation.

Which timers can follow sunrise and sunset changes?

Astronomical wall switch timers and the two-channel 365-day digital timer include astronomic scheduling features. The four-zone lighting panel also supports astronomic scheduling.

Are 3-way timer options available?

Yes. Represented interval wall timers and the astronomical wall switch timer support 3-way applications.

What defrost timing adjustments are available?

Represented electronic defrost controls allow defrost intervals from 4 to 12 hours and defrost durations from 10 to 35 minutes.

!
