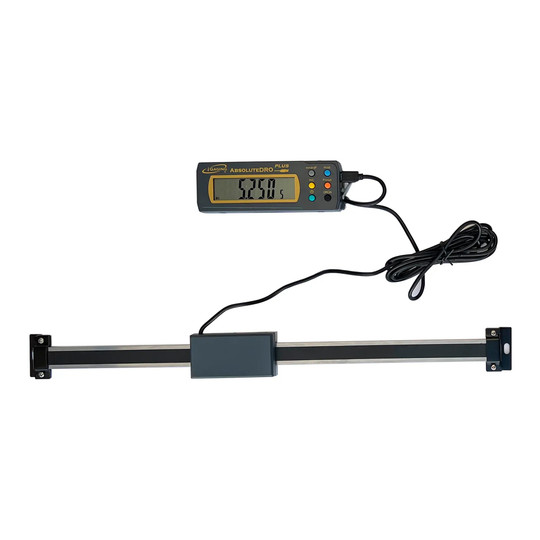

Absolute Digital Readout with Remote Display, 38-Inch Travel

This absolute digital readout helps machinists and shop personnel monitor linear travel during dimensional measuring tasks. Its remote display shows the sensor position at startup, helping users begin measuring without resetting the zero point after power is turned on.

The readout provides a 0 to 38-inch (0 to 950 mm) travel range with 0.001-inch accuracy and 0.0005-inch (0.01 mm) resolution. A hardened stainless steel rule supports repeatable measurement, while the large LCD displays inch, metric, and fractional readings. The unit has a 76-inch remote cable and measures 47 x 2.8 x 1.8 inches.

Key Features:

• Absolute origin memory: Retains the set origin position and recognizes it when powered on, reducing zero-reset steps.
• Large remote LCD: Provides an easy-to-view position display for convenient monitoring during measurement.
• Inch, metric, and fractional modes: Allows users to view measurements in the format that fits their work.
• 38-inch travel range: Supports measurement applications requiring up to 950 mm of travel.
• Magnetic display mounting: Allows the display to attach to steel surfaces for flexible positioning.
• Installation hardware included: Includes an articulating arm, two mounting bracket styles, and two sets of batteries for setup flexibility.

This digital readout is suited to dimensional measuring setups that need a remote, easy-to-read display, retained origin position, and flexible mounting options.
