Inside Diameter Measuring

Inside diameter measuring tools help machinists, inspectors, quality-control personnel, and maintenance professionals check the dimensions of bores, holes, slots, and other internal openings. This category includes taper gages for opening and slot-width checks, telescoping gages that transfer measurements for comparison with a micrometer, and bore gages with dial or digital readouts for internal diameter inspection.

Product Display:
Helpful Buying Guide

Choose an Inside Diameter Measuring Tool for Your Inspection Work

The right tool depends on the internal feature being checked, its size range, the needed readout style, and whether the work involves blind holes or deeper bores. Compare the measuring approach and listed features to match the tool to the task.

Visual Guide

Popular examples in this category

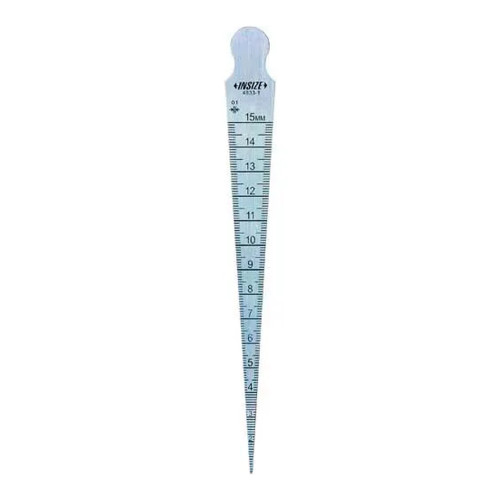

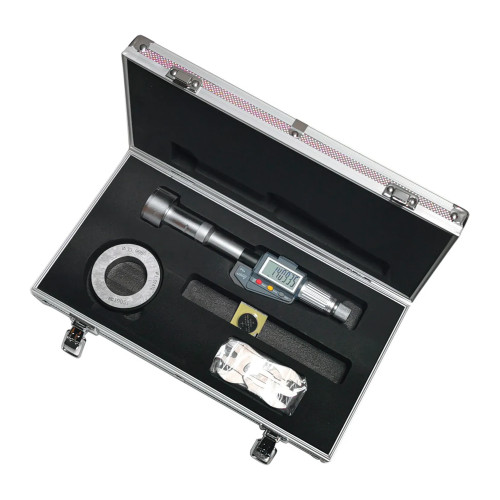

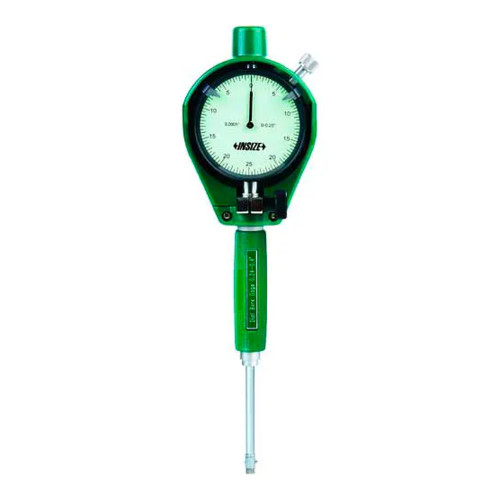

Stainless Steel Taper Gage, 1/32 in. to 5/8 in. RangeStainless Steel Taper Gage, 1/32 in. to 5/8 in. RangeWBB925141Digital Tri-Point Internal Bore Gauge, 1.6 to 2 in.Digital Tri-Point Internal Bore Gauge, 1.6 to 2 in.WBB3126741Tri-Point Internal Bore Gauge, 3.5–4 in.Tri-Point Internal Bore Gauge, 3.5–4 in.WBB3126762Bore Dial Gage, 0.24–0.4 in. RangeBore Dial Gage, 0.24–0.4 in. RangeWBB925185
Use Cases

Check internal openings and bores

Use these tools for inside-diameter checks in bores and holes, as well as opening and slot-width measurements. They are represented for machining, inspection, quality-control, setup, and maintenance work.

How to Choose

Start with range and measurement method

Match the tool's stated range to the dimensions you need to check. Then choose a taper gage, telescoping gage, dial bore gage, or tri-point internal bore gauge based on how you want to take and view the measurement.

Applications

Consider hole shape and access

For blind holes, select tri-point gauges with blind-hole contact points or designs described as reaching near the bottom of blind holes. For bores up to 10 inches deep, an extended-reach analog dial bore gauge set is represented.

Additional Info

Review display, contact, and storage details

Listed options include inch/metric displays or conversion, analog dials, large LCD displays, carbide contact surfaces, storage pouches, fitted cases, and self-centering telescoping contacts.

1/32–5/8 in.Taper gage range

The listed taper gage also covers 0.8 to 15 mm.

5/16–6 in.Telescoping range

Listed telescoping gage sets cover this broad internal-measurement span.

0.00005 in.Digital resolution

Listed on selected tri-point internal bore gauges, along with 0.001 mm resolution.

Up to 10 in.Bore depth

The extended-range analog dial bore gauge set is designed for bores up to this depth.

Comparison Guide

Inside Diameter Measuring Tool Comparison

Use this overview to compare the primary product types represented in this category.

Tool typeBest suited forListed features to compare
Taper gageChecking openings, slot widths, and hole sizesTapered profile; 1/32–5/8 in. range; 1/64 in. graduations
Telescoping gage setCapturing internal dimensions for comparison with a micrometer5/16–6 in. range; self-centering contacts on selected sets; locking plungers on a selected set
Dial or tri-point bore gaugeChecking inside diameters in bores and holesDial or digital readout; ranges from small bores to 6 in. on listed products; blind-hole and extended-reach options represented
Planning Guide

Plan the right fit before choosing

Measuring Tool Types

Compare the available approaches to internal measurement

Taper gages, telescoping gage sets, dial bore gages, and tri-point internal bore gauges each support different measurement workflows.

  • Taper gages have a tapered profile for checking openings, slot widths, and hole sizes; the listed model covers 1/32 to 5/8 inch with 1/64 inch graduations.
  • Telescoping gages use self-centering contacts on listed sets to capture an internal dimension for comparison with a micrometer.
  • Dial bore gages and dial bore gage sets provide dedicated bore-measurement formats with dial readings.
  • Tri-point internal bore gauges support internal measurements in bores and holes, with listed digital models offering inch/metric viewing or conversion.
Range and Access

Match the gage to the bore size and measuring location

The represented selection covers small bores, broad bore ranges, and applications involving blind holes or extended depth.

  • A listed bore dial gage covers 0.24 to 0.4 inch, while listed tri-point models cover 1.0 to 1.2 inches and 1.6 to 2 inches.
  • Listed dial bore gage sets cover 0.7 to 1.5 inches and 1.4 to 6 inches; a listed bore dial gage covers 2 to 6 inches.
  • Telescoping gage sets cover 5/16 to 6 inches.
  • A listed analog dial bore gauge set measures bores up to 10 inches deep, and selected tri-point gauges support measurement near the bottom of blind holes.
Readability and Handling

Choose features that fit your inspection routine

Readout, contact-surface, grip, and storage features vary across the category.

  • Digital tri-point gauges are listed with 0.00005 inch or 0.001 mm resolution and inch/metric display or conversion.
  • Listed dial bore gage sets have 0.0005 inch graduations.
  • Carbide measuring surfaces, carbide anvils, or a carbide-tipped plunger are listed on selected bore-measuring tools.
  • Several options include a pouch or fitted case; selected dial bore gage sets include an extension holder.
FAQ

Common questions before buying

What can inside diameter measuring tools check?

They are used to check inside diameters in bores and holes, along with openings and slot widths on applicable tools.

When is a telescoping gage used?

A telescoping gage captures an internal measurement for transfer and comparison with a micrometer.

Are digital options available?

Yes. Listed digital tri-point internal bore gauges include inch/metric display or conversion and 0.00005 inch or 0.001 mm resolution.

Which tools can help with blind holes?

Listed tri-point internal bore gauges include options with blind-hole contact points or designs intended to measure near the bottom of blind holes.

!
