Ultrasonic Inserts

Ultrasonic inserts are threaded fastener components installed in compatible thermoplastic parts to create a threaded connection point. They are used in commercial assembly, fabrication, repair, and production work when components need to be attached to thermoplastic material with a specified thread size and insert profile.

Product Display:
Helpful Buying Guide

Ultrasonic Insert Buying Guide

Choose ultrasonic inserts by first matching the required fastener thread, then selecting the insert profile specified for the thermoplastic part and application. This category includes tapered vane styles as well as flush straight and flanged straight configurations, with package quantities suited to smaller projects, stocking, and larger assembly needs.

Visual Guide

Popular examples in this category

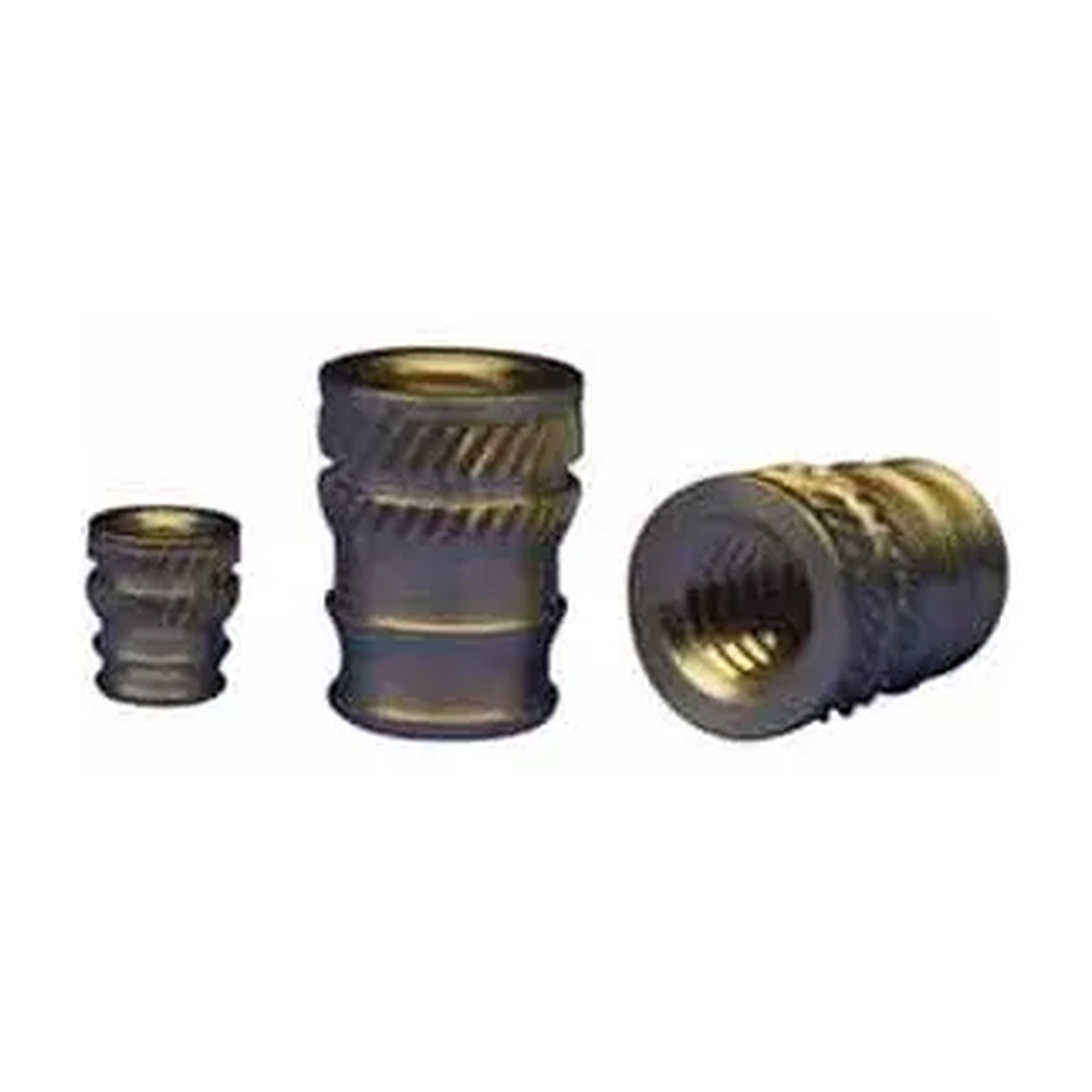

M3-0.5 Tapered Double-Vane Ultrasonic InsertM3-0.5 Tapered Double-Vane Ultrasonic InsertWBB4354724-40 Flush Straight Ultrasonic Insert4-40 Flush Straight Ultrasonic InsertWBB4354778-32 Tapered Double-Vane Ultrasonic Insert8-32 Tapered Double-Vane Ultrasonic InsertWBB4354511/4-20 Flanged Straight Ultrasonic Insert1/4-20 Flanged Straight Ultrasonic InsertWBB435510
Use Cases

Add threaded fastening points to thermoplastics

Ultrasonic inserts are used where a thermoplastic part needs a defined threaded connection for a compatible fastener. They support assembly, fabrication, repair, and repeat production work.

How to Choose

Start with thread and profile

Match the insert to the required metric or inch thread size, then choose the stated tapered, flush straight, or flanged straight profile. For tapered options, also confirm whether a single-vane or double-vane design is required.

Applications

For compatible thermoplastic components

These inserts are intended for installation in thermoplastic parts and components. Select the configuration that matches the threaded fastening point required by the assembly.

Additional Info

Plan around package quantity

Available quantities range from 25-piece packs to 1,000-pack options. Smaller counts can fit repair or project needs, while larger packs can support stocking and production requirements.

3Profile families

Tapered, flush straight, and flanged straight insert profiles are represented.

2Vane styles

Tapered options include single-vane and double-vane designs.

9Thread sizes

The listed selection spans nine metric and inch thread sizes.

25–1,000Pieces per package

Package quantities represented range from 25 to 1,000 inserts.

Comparison Guide

Compare ultrasonic insert profile options

Use the specified profile, vane configuration, and thread requirement to narrow the available ultrasonic insert styles for compatible thermoplastic applications.

Insert typeConfigurations representedSelection consideration
TaperedSingle-vane and double-vane designs; metric and inch thread sizesChoose when the application calls for a tapered ultrasonic insert and the required vane style.
Flush straightFlush profile with straight design; inch thread sizes representedChoose when a flush insert installation profile is required in a thermoplastic component.
Flanged straightFlanged profile with straight design; inch thread sizes representedChoose when the application specifies a flanged straight insert for thermoplastic assembly.
Planning Guide

Plan the right fit before choosing

Thread Selection

Match the insert to the fastener requirement

The listed assortment includes both metric and inch thread sizes. Selecting the correct thread is the first step toward creating a compatible threaded fastening point in a thermoplastic part.

  • Metric sizes represented include M3-0.5, M4-0.7, and M6-1.0.
  • Inch sizes represented include 4-40, 8-32, 10-32, 1/4-20, 3/8-16, and 3/8-24.
  • Use the stated thread size to match compatible fastener requirements.
Profile Selection

Compare tapered, flush straight, and flanged straight formats

Insert profile is a central selection factor. Tapered inserts are available with single-vane or double-vane designs, while straight inserts are offered in flush and flanged configurations.

  • Tapered inserts are represented in single-vane and double-vane styles.
  • Flush straight inserts are available for applications requiring a flush profile.
  • Flanged straight inserts provide the stated flanged profile for thermoplastic assembly work.
Quantity Planning

Choose a pack size that fits the work ahead

Package quantities vary across the assortment, allowing buyers to choose an amount aligned with a repair task, planned assembly work, stocking needs, or production requirements.

  • 25-count packages are represented for project, repair, or stocking needs.
  • 50-, 100-, 250-, and 500-count options support repeat assembly needs.
  • A 1,000-pack option is represented for larger assembly or production requirements.
FAQ

Common questions before buying

What are ultrasonic inserts used for?

They create threaded fastening points in compatible thermoplastic parts for use with compatible fasteners.

What thread sizes are available?

The represented selection includes M3-0.5, M4-0.7, M6-1.0, 4-40, 8-32, 10-32, 1/4-20, 3/8-16, and 3/8-24.

What insert profiles are represented?

The category includes tapered, flush straight, and flanged straight ultrasonic insert profiles.

What package quantities are available?

Listed package quantities range from 25 to 1,000 pieces, with 50-, 100-, 250-, and 500-count options also represented.

!
