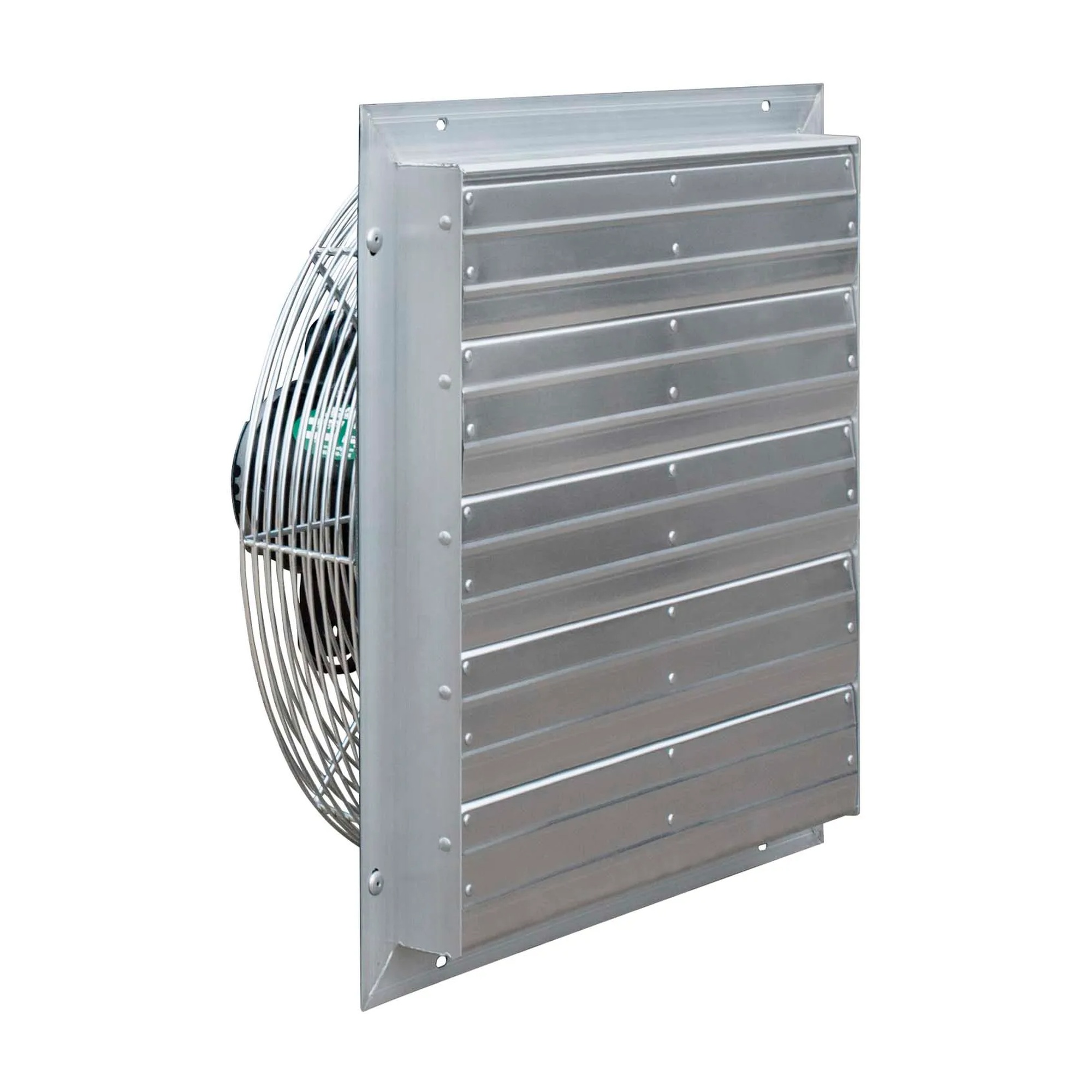

20-Inch ES Shutter Exhaust Fan, 1/3 HP, Single Phase

This 20-inch shutter exhaust fan is designed for agricultural and commercial facility operators who need to move air from barns, building peaks, greenhouses, and warehouses. It provides exhaust ventilation to support airflow management in these spaces.

The fan delivers 3,126 CFM with a 1/3 HP single-phase, 115/230V motor and must be hardwired. It measures 25 inches wide by 25 inches deep by 14 inches high. The motor has sealed ball bearings and can operate at variable speed when used with an optional variable-speed control. An aluminum shutter includes a tie bar, and the one-piece solid venturi is designed to add stability and reduce noise.

Key Features:

• 3,126 CFM airflow: Provides substantial exhaust airflow for ventilation applications.
• Hardwired 115/230V motor: Supports connection to the specified electrical supply.
• Sealed ball bearings: Helps provide maintenance-free motor operation.
• Shutter tie bar: Helps reduce shutter flapping in windy conditions.
• Fully assembled design: Eliminates fan assembly before installation.
• 2-year limited warranty: Provides limited warranty coverage for two years.

Choose this shutter exhaust fan for hardwired ventilation installations requiring 3,126 CFM airflow, a 20-inch fan configuration, and an aluminum shutter for agricultural or commercial spaces.
