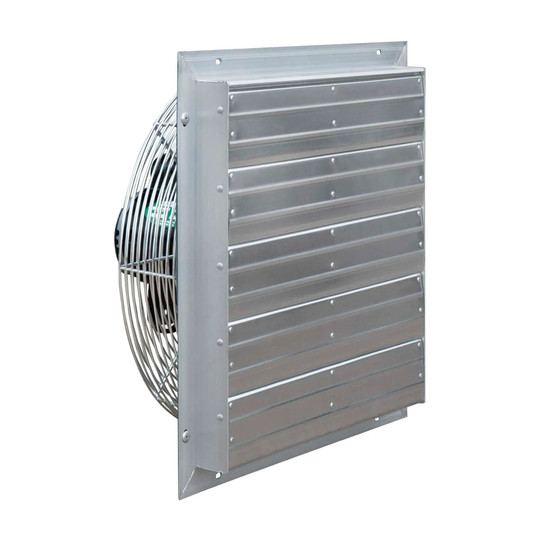

20-Inch Shutter Exhaust Fan, 1/10 HP, 1,644 CFM

This 20-inch shutter exhaust fan helps agricultural and commercial facility operators ventilate barns, building peaks, greenhouses, and warehouses. It is designed to move air out of enclosed spaces to support everyday ventilation needs.

The fully assembled fan delivers 1,644 CFM with a 1/10 HP, single-phase, 115V motor. It includes a 10-foot, three-prong grounded power cord and measures 25 inches wide by 25 inches deep by 14 inches high. The aluminum shutter has a tie bar to help reduce wind flapping, while the one-piece venturi adds stability and helps reduce noise. Sealed ball bearings are maintenance-free, and the motor can be used with an optional variable speed control.

Key Features:

• 1,644 CFM airflow: Provides exhaust airflow for ventilating enclosed agricultural and commercial spaces.
• 10-foot grounded cord: Gives the fan a prewired power connection with added reach.
• Aluminum shutter with tie bar: Helps limit shutter flapping in windy conditions.
• One-piece venturi: Adds fan stability while helping reduce operating noise.
• Sealed ball bearings: Supports maintenance-free motor operation.

Choose this shutter fan for barns, greenhouses, warehouses, and building-peak ventilation where a fully assembled 115V exhaust fan with a corded connection fits the installation.
