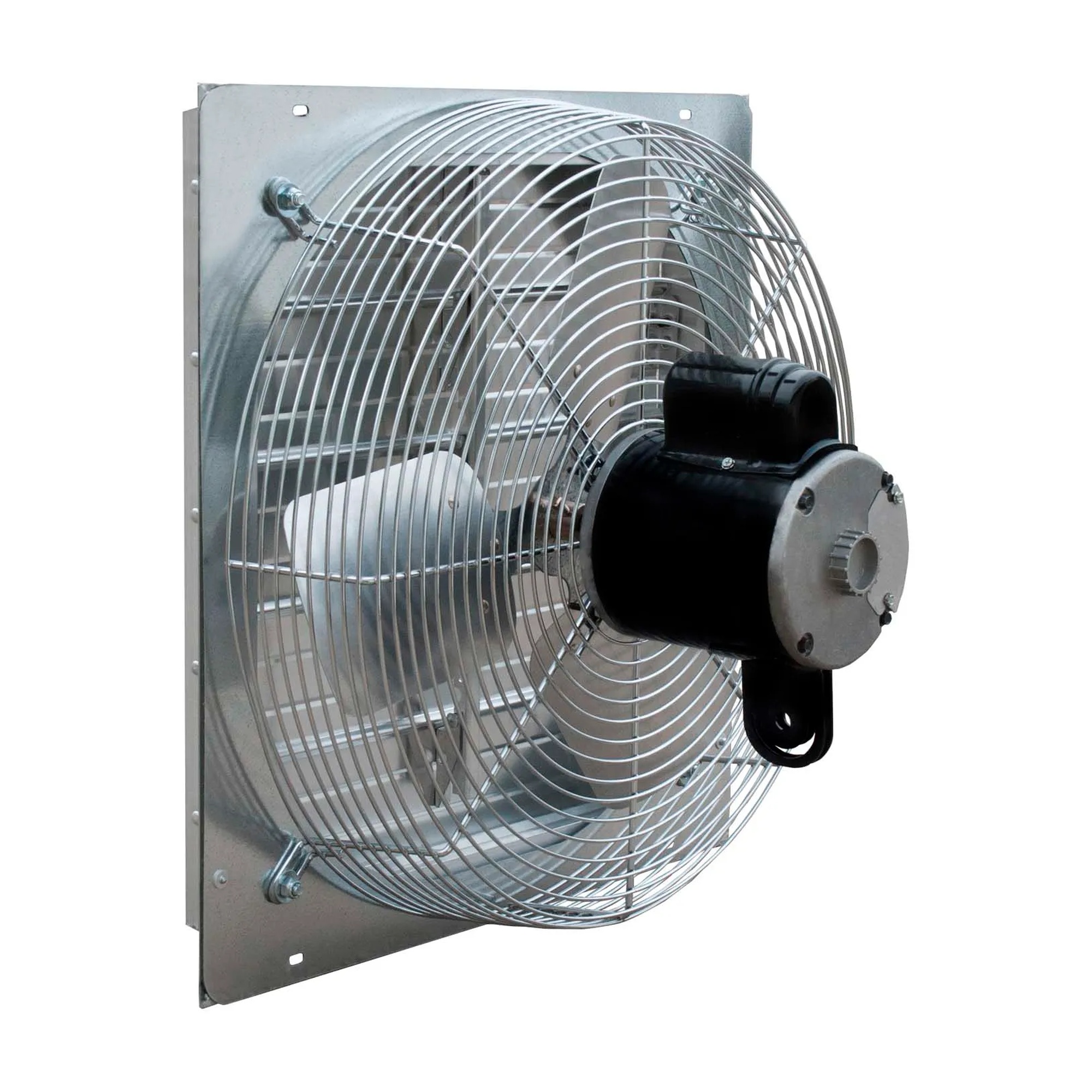

This 20-inch shutter exhaust fan helps agricultural and commercial facility operators move air from barns, building peaks, greenhouses, and warehouses. It provides exhaust ventilation for spaces that need dependable air movement.
The fan delivers 1,644 CFM with a 1/10 HP, single-phase, 115/230V motor and requires hardwired installation. Its variable-speed motor can be used with an optional variable-speed control. The 25 x 25 x 14 inch unit has sealed ball bearings, an aluminum shutter with a tie bar, and a one-piece solid venturi. It is supplied fully assembled and includes a 2-year limited warranty.
Key Features:
Choose this hardwired shutter fan for barn, greenhouse, warehouse, or building-peak exhaust ventilation where a 20-inch, single-phase fan with adjustable-speed capability is needed.
| Airflow (CFM): | 1,644 CFM |
| Color/Finish: | Silver |
| Country of Origin: | US |
| Material: | Aluminum |
| Motor: | 1/10 HP |
| Phase: | 1 |
| Product Depth: | 25 |
| Product Height: | 14 |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 25 |
| Quantity Included: | 1 |
| Voltage: | 115 / 230 V |
| Warranty: | 2 yr |
| Manufacturer Part Number: | VES201 |
| Color: | Silver |
| Weight: | 29 lbs |
| Fan Diameter: | 20 in |
| Rough Opening: | 20-1/2 X 20-1/2 in |
| Amperage: | 1.42 / 0.77 A |
| Assembly Required: | No |
| Brand Name: | J&D Manufacturing |
| CFM: | 1644 CFM |
| CFM High: | 1644 CFM |
| Drive Type: | Direct Drive |
| Fan Type: | Indoor |
| Hertz: | 60 Hz |
| Horsepower: | 1/10 HP |
| Indoor/Outdoor: | Indoor |
| Kilowatts: | 0.115 kW |
| Manufacturers Part Number: | VES201 |
| Motor Type: | Totally Enclosed |
| Mounting Location: | Wall |
| Number of Blades: | 3 |
| Number of Speeds: | 1 |
| Power Cord Included: | No |
| RPM: | 1720 rpm |
| Wattage: | 115 W |
| Certifications: | OSHA 1910.212(a)(5) |
| Shipping Method: | Parcel |
| Width: | 25.00 in |
| Height: | 14.00 in |
| Depth: | 25.00 in |
