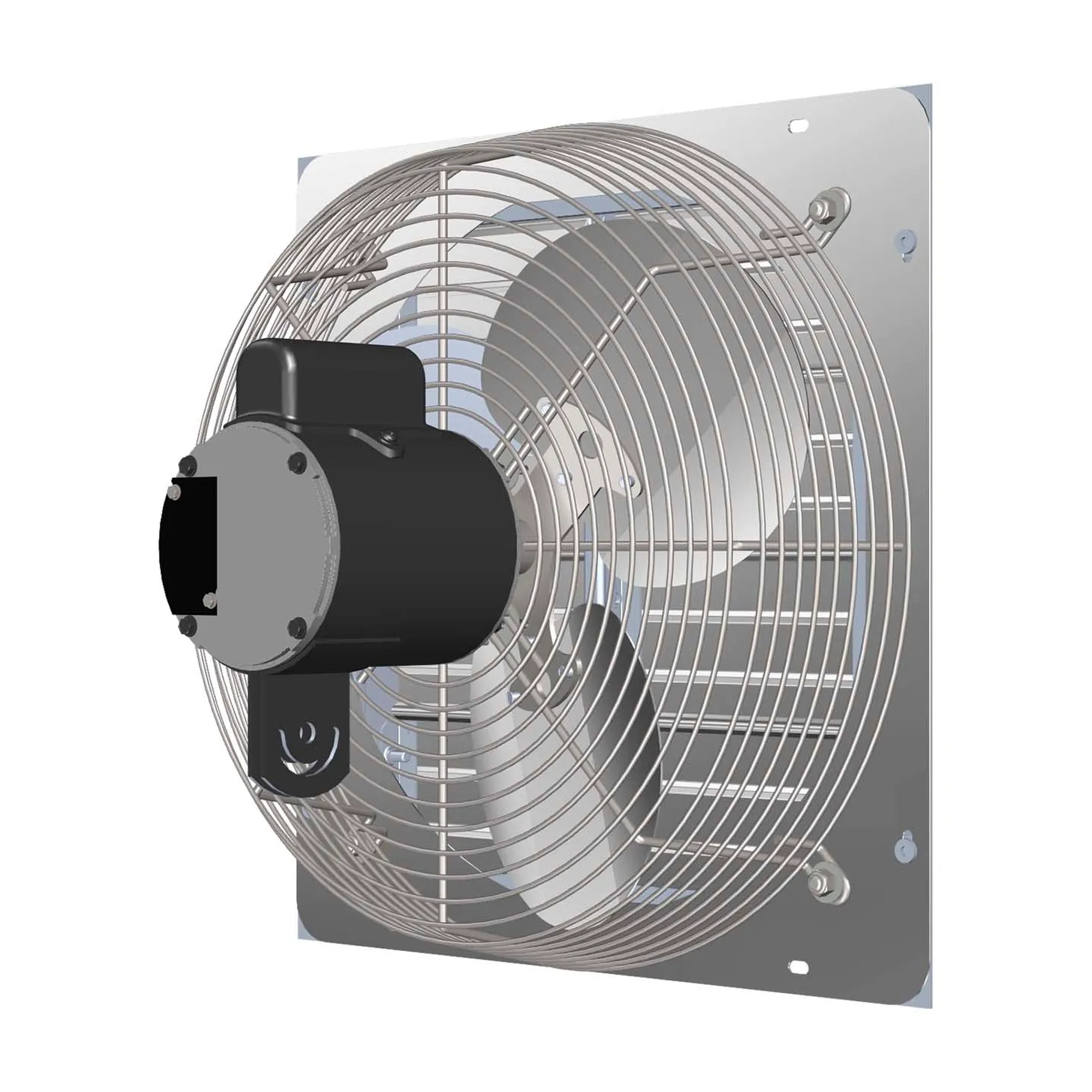

This 16-inch shutter exhaust fan is designed for agricultural and commercial building ventilation. It helps operators move air from barns, building peaks, greenhouses, and warehouses to support exhaust ventilation needs.
The fully assembled fan delivers 1,438 CFM with a 1/10 HP, single-phase, 115/230V motor. It must be hardwired and can operate at variable speed when paired with an optional variable-speed control. The 21 x 21 x 14-inch unit has sealed ball bearings, an aluminum shutter with a tie bar, and a one-piece solid venturi.
Key Features:
A practical choice for hardwired exhaust ventilation where a 16-inch shutter fan, 1/10 HP motor, and 1,438 CFM airflow are needed. Includes a 2-year limited warranty.
| Airflow (CFM): | 1,438 CFM |
| Color/Finish: | Silver |
| Country of Origin: | US |
| Material: | Aluminum |
| Motor: | 1/10 HP |
| Phase: | 1 |
| Product Depth: | 21" |
| Product Height: | 14" |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 21" |
| Quantity Included: | 1 |
| Shipping Weight: | 24 lbs |
| Voltage: | 115 / 230 V |
| Warranty: | 2 yr |
| Manufacturer Part Number: | VES161 |
| Color: | Silver |
| Width: | 19 in |
| Depth: | 13 in |
| Height: | 19 in |
| Weight: | 23 lbs |
| Fan Diameter: | 16 in |
| Rough Opening: | 16-1/2 X 16-1/2 in |
| Amperage: | 1.42 / 0.77 A |
| Assembly Required: | No |
| Brand: | J&D Manufacturing |
| CFM: | 1438 CFM |
| CFM High: | 1438 CFM |
| Drive Type: | Direct Drive |
| Fan Type: | Indoor |
| Hertz: | 60 Hz |
| Horsepower: | 1/10 HP |
| Indoor/Outdoor: | Indoor |
| Kilowatts: | 0.115 kW |
| Manufacturers Part Number: | VES161 |
| Motor Type: | Totally Enclosed |
| Mounting Location: | Wall |
| Number of Blades: | 3 |
| Number of Speeds: | 1 |
| Power Cord Included: | No |
| RPM: | 1727 rpm |
| Wattage: | 115 W |
| Certifications: | OSHA 1910.212(a)(5) |
| Width: | 21.00 in |
| Height: | 14.00 in |
| Depth: | 21.00 in |
