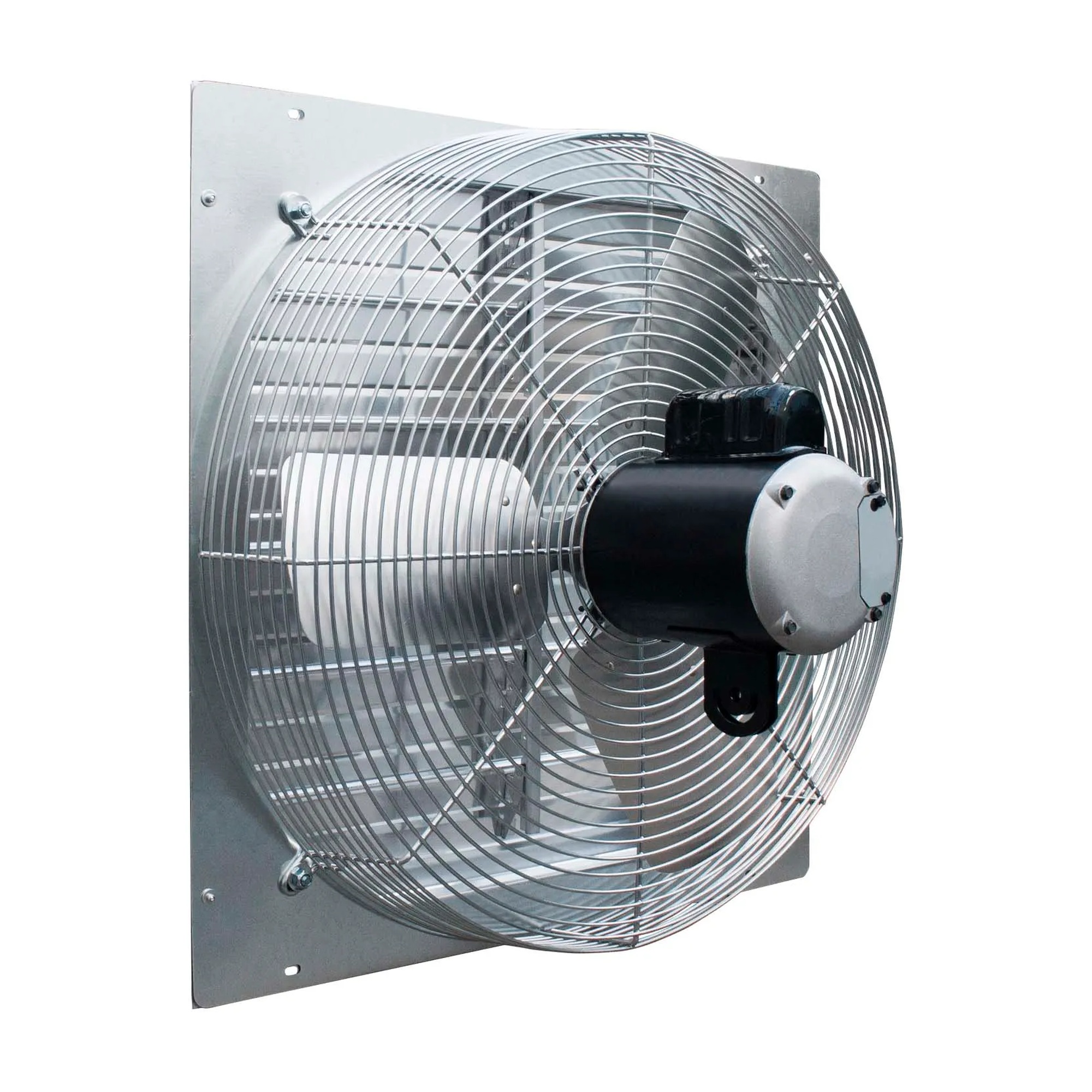

24-Inch Shutter Exhaust Fan, 1/2 HP, Single Phase

This 24-inch shutter exhaust fan is designed for agricultural and commercial building ventilation. Barn, greenhouse, warehouse, and building-peak operators can use it to exhaust air and support airflow in their spaces.

The fully assembled fan has a 1/2 HP single-phase, energy-efficient motor rated for 115/230V hardwired operation and delivers 4,548 CFM. Its motor uses completely sealed ball bearings and can operate at variable speed when paired with an optional variable-speed control. The unit measures 28 inches wide by 28 inches deep by 16 inches high. An aluminum shutter includes a tie bar, and the one-piece solid venturi adds stability and helps reduce noise.

Key Features:

• 4,548 CFM airflow: Provides substantial exhaust airflow for ventilation applications.
• 1/2 HP single-phase motor: Supports dependable hardwired operation on 115/230V power.
• Variable-speed capable: Allows airflow adjustment when used with an optional variable-speed control.
• Sealed ball bearings: Helps provide maintenance-free motor operation.
• Aluminum shutter with tie bar: Helps reduce shutter flapping in windy conditions.
• Fully assembled design: Helps simplify installation preparation.

Choose this shutter fan for hardwired exhaust ventilation where a 24-inch fan, 4,548 CFM airflow, and adjustable-speed capability with an optional control fit the application.
