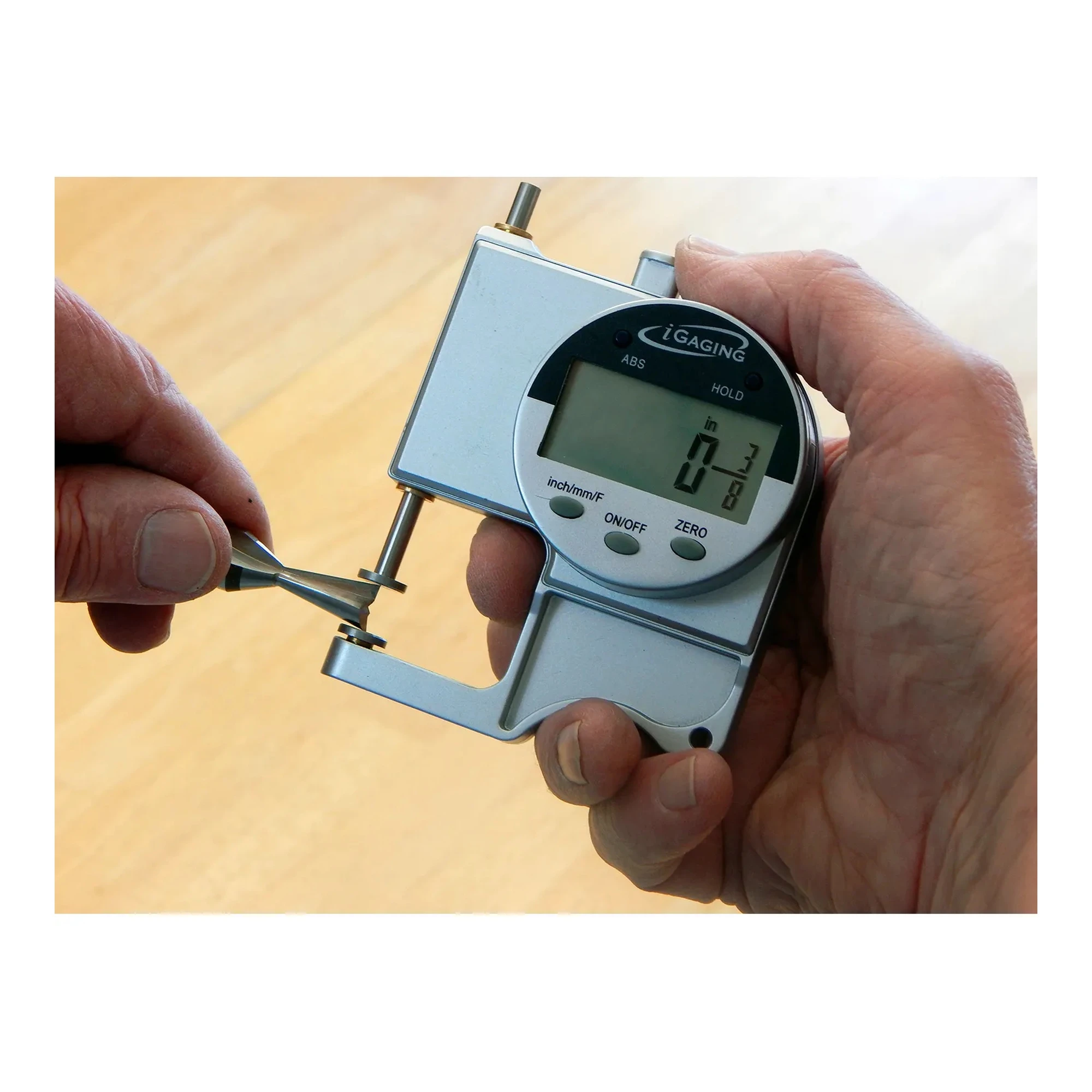

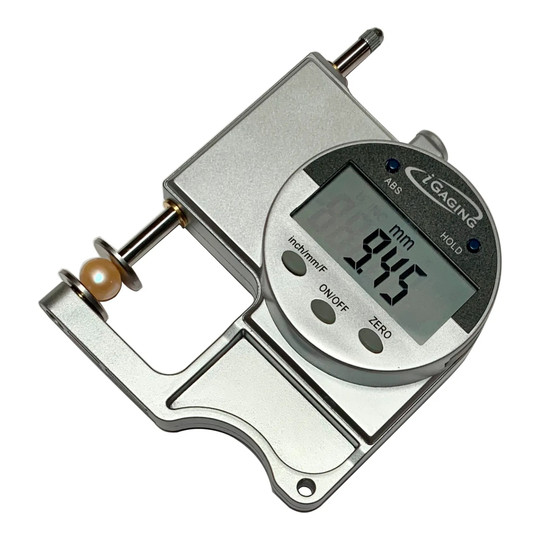

Digital Snap Thickness Gauge with Interchangeable Contacts

This digital snap thickness gauge helps inspectors, machinists, and quality-control teams measure material thickness with a spring-loaded contact movement. Its snap-style design supports quick checks of parts and materials within its measuring range.

The gauge measures from 0 to 1-1/16 in. (27 mm) and provides resolution of 0.0005 in., 0.01 mm, or 1/64 in. Accuracy is rated at 0.0015 in. It uses a push-button CR2032 battery and includes interchangeable ball and flat contacts with #4-48 threads.

Key Features:

• Digital measurement display: Provides fine measurement resolution in inch, millimeter, and fractional-inch increments.
• Spring-loaded movement: Helps apply contact pressure during thickness checks.
• Interchangeable contacts: Allows ball or flat contact selection for different measurement surfaces.
• 0 to 1-1/16 in. range: Supports thickness measurements up to 27 mm.
• CR2032 battery operation: Uses a common push-button battery for power.

Choose this snap thickness gauge for routine thickness inspection when a digital readout, spring-loaded operation, and interchangeable ball or flat contacts suit the measurement task.
