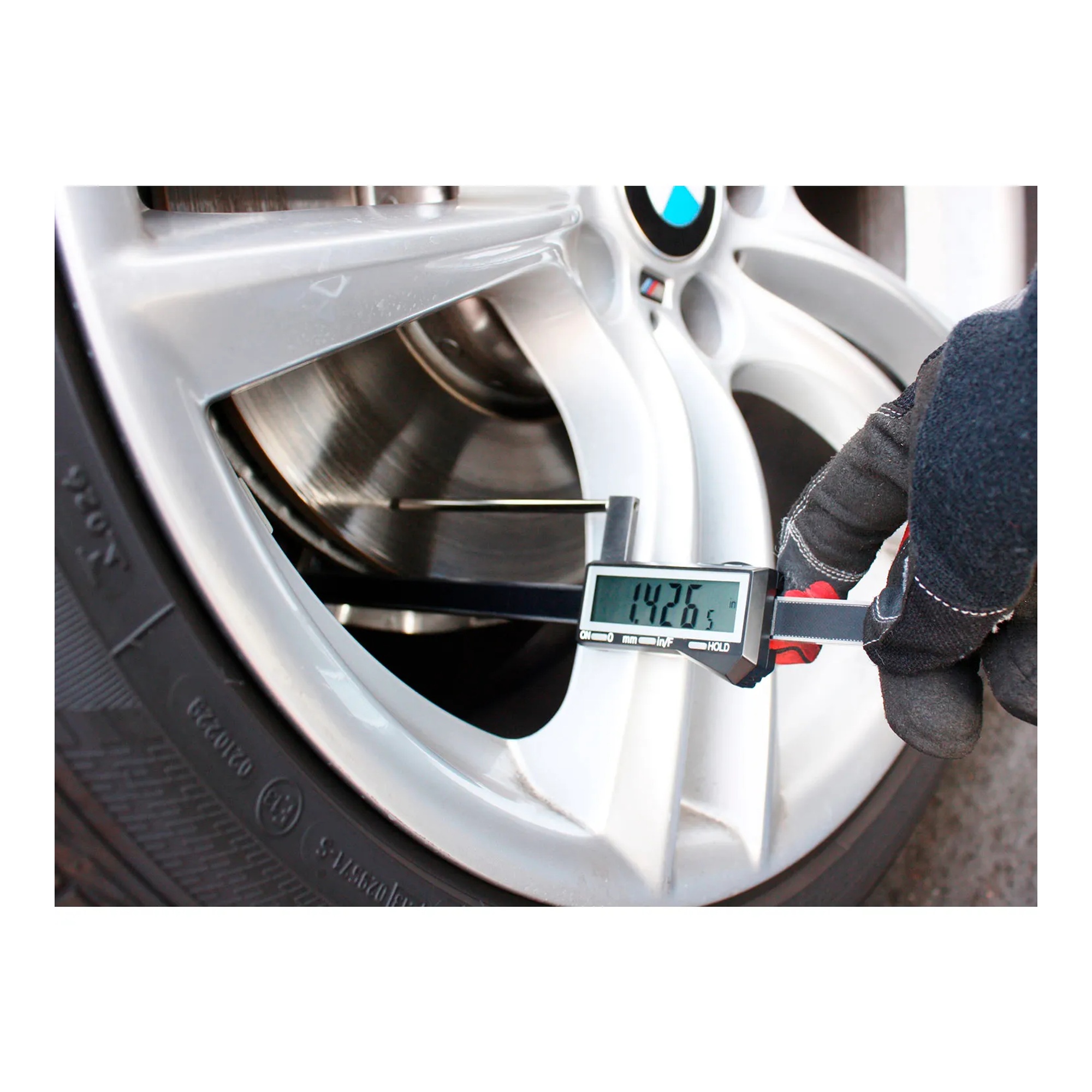

This digital brake rotor thickness gauge helps automotive service professionals measure brake rotor thickness without removing the wheel. It provides a direct reading for inspection and maintenance work.
The gauge measures from 0 to 3.2 in. (80 mm) with 0.0005 in., 0.01 mm, and 1/64 in. resolution. It has ±0.001 in. (0.02 mm) accuracy, 0.001 in. (0.01 mm) repeatability, a 3.5 in. jaw depth, and an extra-large LCD display. The hardened stainless steel body is rated IP54 for moisture and dust resistance. On/off and hold buttons support operation, and a 3V CR2032 battery and protective case are included.
Key Features:
This gauge is suited for brake rotor thickness checks where wheel-on measurement, digital readability, and a 3.5 in. jaw depth are needed.
| Country of Origin: | CN |
| Material: | Stainless Steel |
| Product Depth: | 4.33 |
| Product Height: | 0.8125 |
| Product Type: | Wheel |
| Product Width: | 1.8125 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 100-048 |
| Length: | 10-7/16 |
| Weight: | 1 lbs |
| Leaf Length: | 1-1/8 in |
| Leaf Width: | 4-1/8 in |
| Max Measurement: | 3 |
| Max Size: | 3 in |
| Min Inside Measurement: | N |
| Min Size: | 0 in |
| Range: | 0 - 3" |
| Resolution/Graduation: | 0.01 |
| Accuracy: | 0.002 mil |
| Data Output: | No |
| Digital: | Yes |
| Fraction Option: | Yes |
| IP Rating: | IP40 |
| Manufacturers Part Number: | 100-048 |
| Mechanical Or Digital: | Digital |
| Number of Pieces: | 1 |
| Package Quantity: | 1 |
| Resolution: | 0.0005"/0.01 mm |
| Resolution Or Graduation: | 0.005 in |
| Style: | General Purpose |
| Type: | Digital Brake Rotor Gauge |
| Shipping Method: | Parcel |
| Width: | 4.33 in |
| Height: | 1.18 in |
| Depth: | 12.28 in |
No additional information available.
