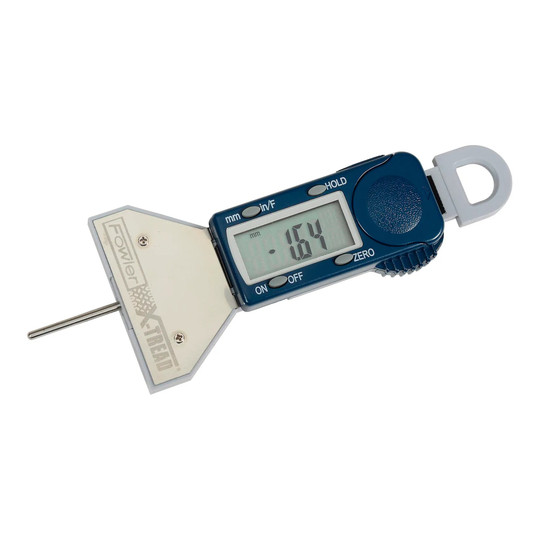

This digital tire tread thickness gauge helps automotive technicians and maintenance professionals check tire tread depth quickly. It is designed for routine tire inspections and provides an easy-to-read measurement for evaluating tread condition.

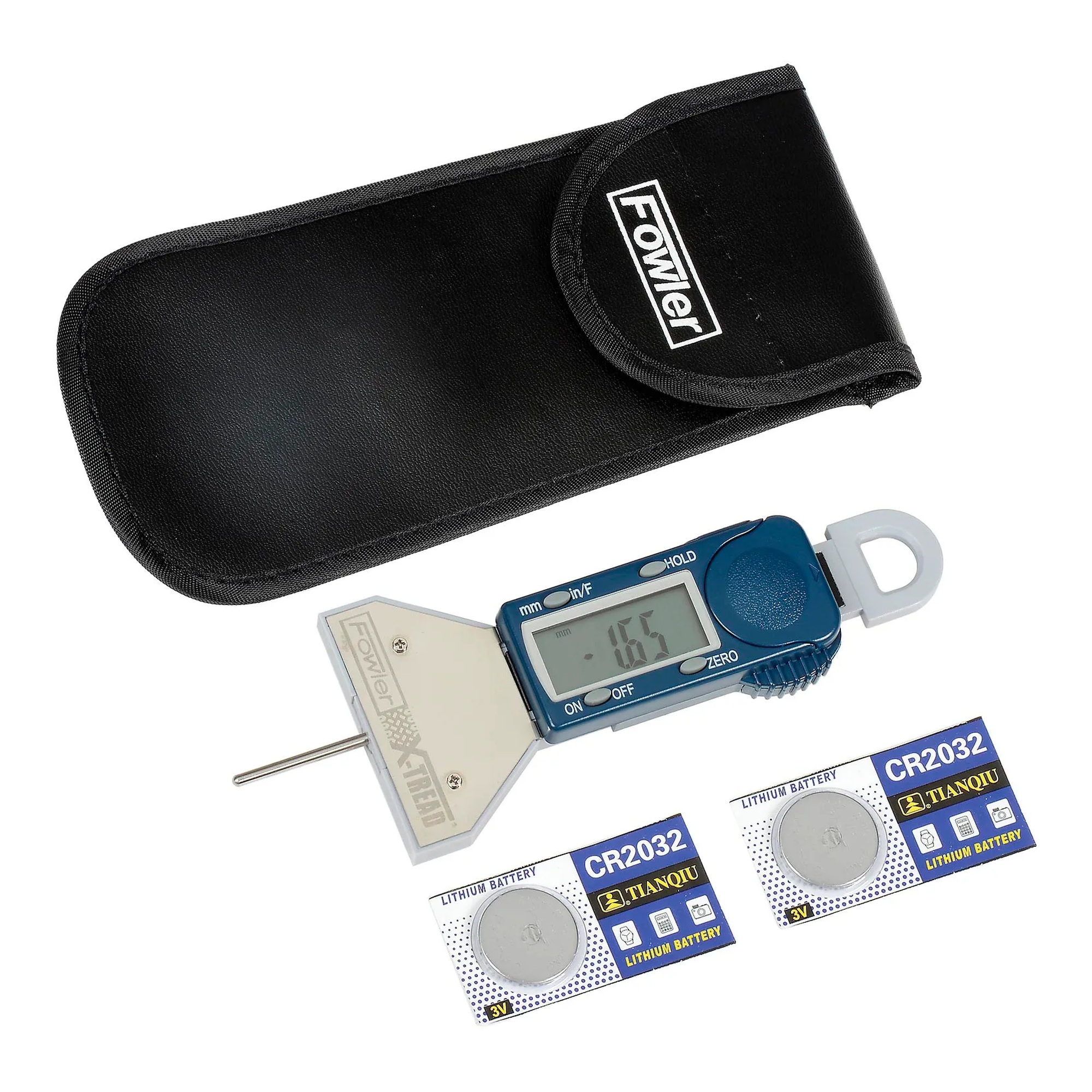

The spring-loaded gauge has a large display and a hold button to retain a measurement. It measures up to 1 inch or 25 mm, with resolution of 0.0005 inch or 0.01 mm. Fraction readings are shown in 1/64-inch increments. A vinyl holster is included.
Key Features:
A practical choice for professionals who need a spring-loaded digital gauge for checking tire tread thickness, with a large display and retained-reading function.
| Color/Finish: | Blue |
| Country of Origin: | CN |
| Material: | Vinyl |
| Product Depth: | 4 |
| Product Height: | 1.5 |
| Product Type: | Micrometers |
| Product Width: | 4 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 54-225-500-0 |
| Color: | Blue |
| Length: | 8-5/8 |
| Base Size: | 2 in |
| Max Measurement: | 25 in |
| Metric or Inch: | Inch,Metric in |
| Min Measurement: | 0 in |
| Range: | 0-1 |
| Resolution/Graduation: | 0.0005 in |
| Accuracy: | 0.0001 IN °F |
| Battery Type: | CR2032 |
| Case: | Yes |
| Case Type: | Vinyl Holster |
| Data Output: | No |
| Description: | X-Tread Tire Tread Thickness Gage |
| Digital: | Yes |
| Fraction Option: | Yes |
| IP Rating: | None |
| Manufacturers Part Number: | 54-225-500-0 |
| Measuring Face Material: | Steel |
| Mechanical Or Digital: | Digital |
| Number of Rods: | 1 |
| Power Source: | Battery |
| Series: | X-Tread |
| Style: | Tire Tread |
| Type: | Depth Gage |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 4.00 in |
| Height: | 1.50 in |
| Depth: | 8.60 in |
