This outside micrometer is a precision measuring tool for machinists, inspectors, and other commercial users who need to measure external dimensions on workpieces within a 2–3 inch range.
The micrometer measures from 2 to 3 inches and has 0.0001 inch imperial graduations and 0.01 mm metric graduations. It features carbide measuring tips and is supplied with setting standards and a fitted storage case.
Key Features:
Choose this outside micrometer for external measurement work requiring a 2–3 inch range, fine imperial or metric graduations, carbide tips, and included setup and storage accessories.
| Country of Origin: | CN |
| Product Depth: | 4.803 |
| Product Height: | 1.26 |
| Product Type: | Micrometers |
| Product Width: | 8.661 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 3203-3A |
| Length: | 3-15/16 |

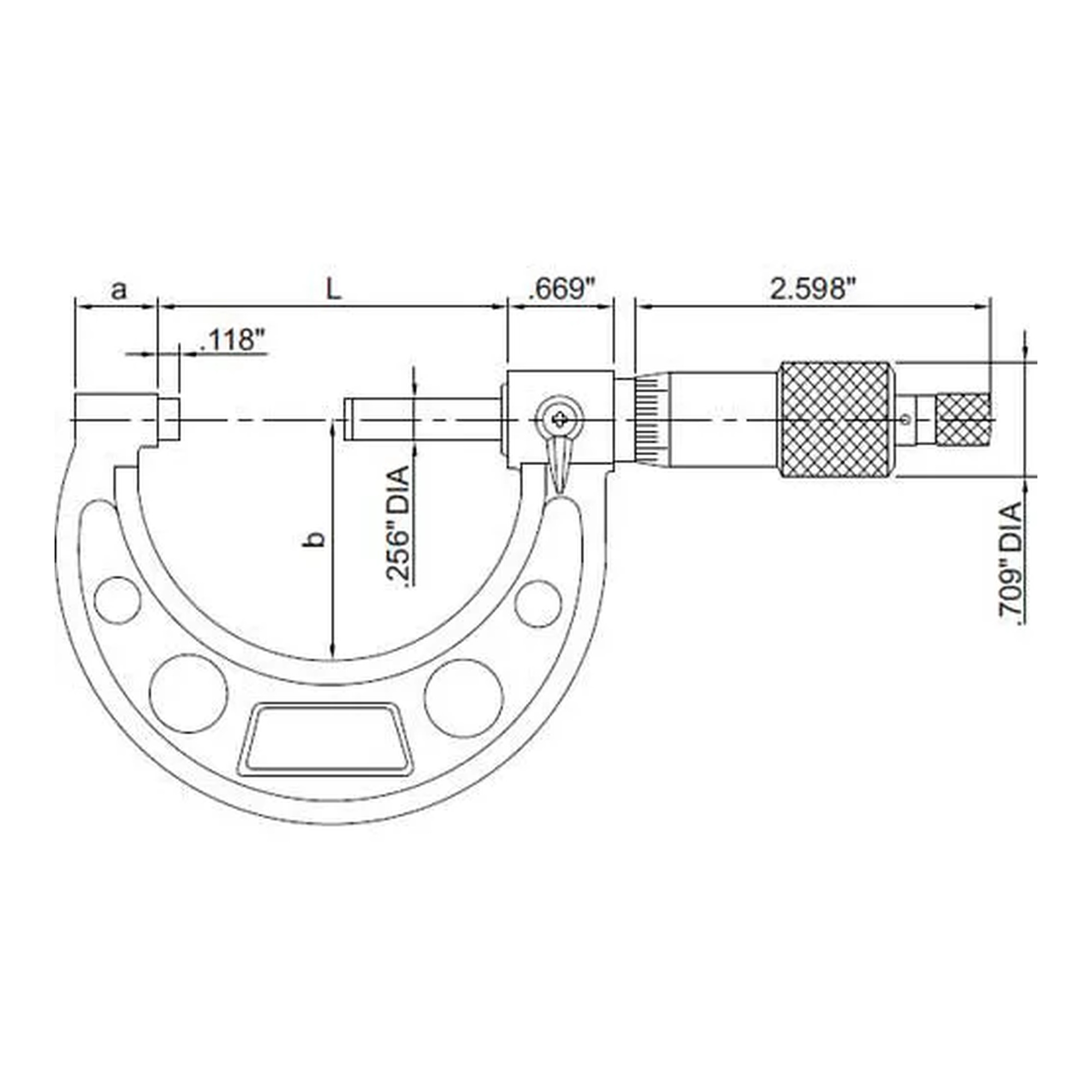

| Dimension A: | .591" |
| Dimension B: | 1.929" |
| Dimension L: | 3.228" |
| Metric or Inch: | Inch in |
| Min Measurement: | 2 in |
| Min Outside Diameter: | 2 in |
| Range: | 2-3 |
| Resolution/Graduation: | 0.0001 in |
| Accuracy: | 0.0002 IN °F |
| Anvil Shape: | Flat |
| Case: | Yes |
| Data Output: | No |
| Description: | Outside Micrometer |
| Digital: | No |
| Digital Counter: | No |
| Fraction Option: | No |
| IP Rating: | None |
| Manufacturers Part Number: | 3203-3A |
| Measuring Face Material: | Carbide |
| Mechanical Or Digital: | Mechanical |
| Power Source: | None |
| Rotating Spindle: | Yes |
| Series: | 3203 |
| Style: | General Purpose |
| Thimble Type: | Ratchet Stop |
| Type: | Outside Micrometer |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 4.80 in |
| Height: | 1.26 in |
| Depth: | 8.66 in |
No additional information available.
