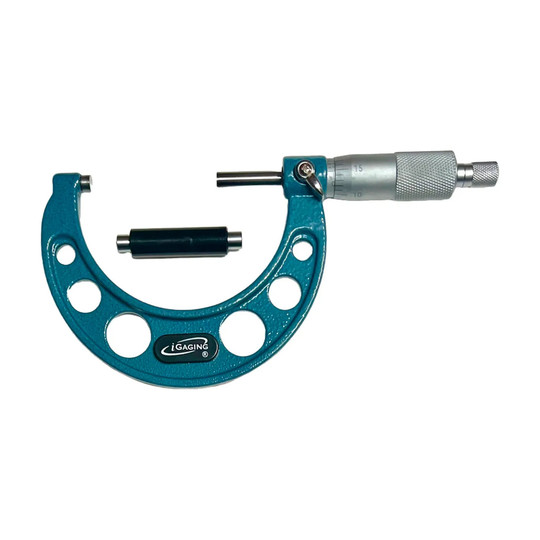

This 2–3 inch micrometer helps inspectors, machinists, and shop professionals measure workpieces within its stated range. Its ratchet thimble supports controlled measuring pressure, while the spindle lock helps retain a measurement for checking or comparison.
The micrometer has 0.0001 inch graduations, precision-lapped carbide measuring faces, and a reinforced painted steel C-frame with a heat shield. It includes a ratchet thimble and spindle lock. For the 2–3 inch range, a standard is included, and the tool is supplied in a protective case. Overall dimensions are 4.53 inches wide, 9.17 inches deep, and 1.42 inches high.
Key Features:
Choose this micrometer for shop and inspection work requiring a 2–3 inch measuring range, fine graduations, and a ratchet-operated thimble in a protective case.
| Color/Finish: | Blue |
| Country of Origin: | CN |
| Material: | Plating Steel/Hardened Steel/Cast Iron |
| Product Depth: | 4.53 |
| Product Height: | 3.5 |
| Product Type: | Micrometers |
| Product Width: | 0.6875 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 36-103 |
| Color: | Blue |
| Length: | 7-3/8 |
| Max Measurement: | 3 |
| Metric or Inch: | Inch in |
| Min Measurement: | 2 |
| Min Outside Diameter: | 2 in |
| Range: | 2 - 3 |
| Resolution/Graduation: | 0.0001 |
| Accuracy: | 0.0002 °F |
| Anvil Shape: | Flat |
| Case: | Yes |
| Data Output: | No |
| Description: | Mechanical Micrometer Set |
| Manufacturers Part Number: | 36-103 |
| Measuring Face Material: | Carbide |
| Mechanical Or Digital: | Mechanical |
| Rotating Spindle: | Yes |
| Style: | Micrometer |
| Thimble Type: | Ratchet |
| Type: | Micrometer Set |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 4.53 in |
| Height: | 1.42 in |
| Depth: | 9.17 in |
