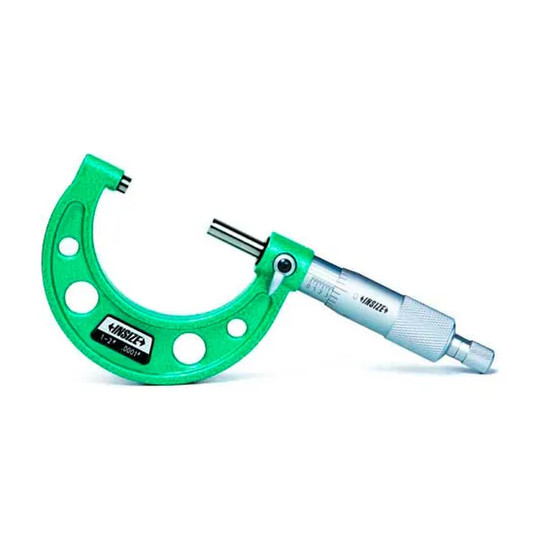

This outside micrometer is a precision measuring tool for machinists, inspectors, and shop professionals who need to check external dimensions on workpieces within a 1–2 inch range.
The micrometer provides 0.0001 inch imperial graduations and 0.01 mm metric graduations. It has carbide measuring tips and is supplied with setting standards and a fitted storage case.
Key Features:
Choose this outside micrometer for external measurement tasks that require a 1–2 inch range, imperial and metric graduations, and carbide-tipped contact points.
| Country of Origin: | CN |
| Product Depth: | 4.331 |
| Product Height: | 1.26 |
| Product Type: | Micrometers |
| Product Width: | 7.717 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 3203-2A |
| Length: | 2-15/16 |

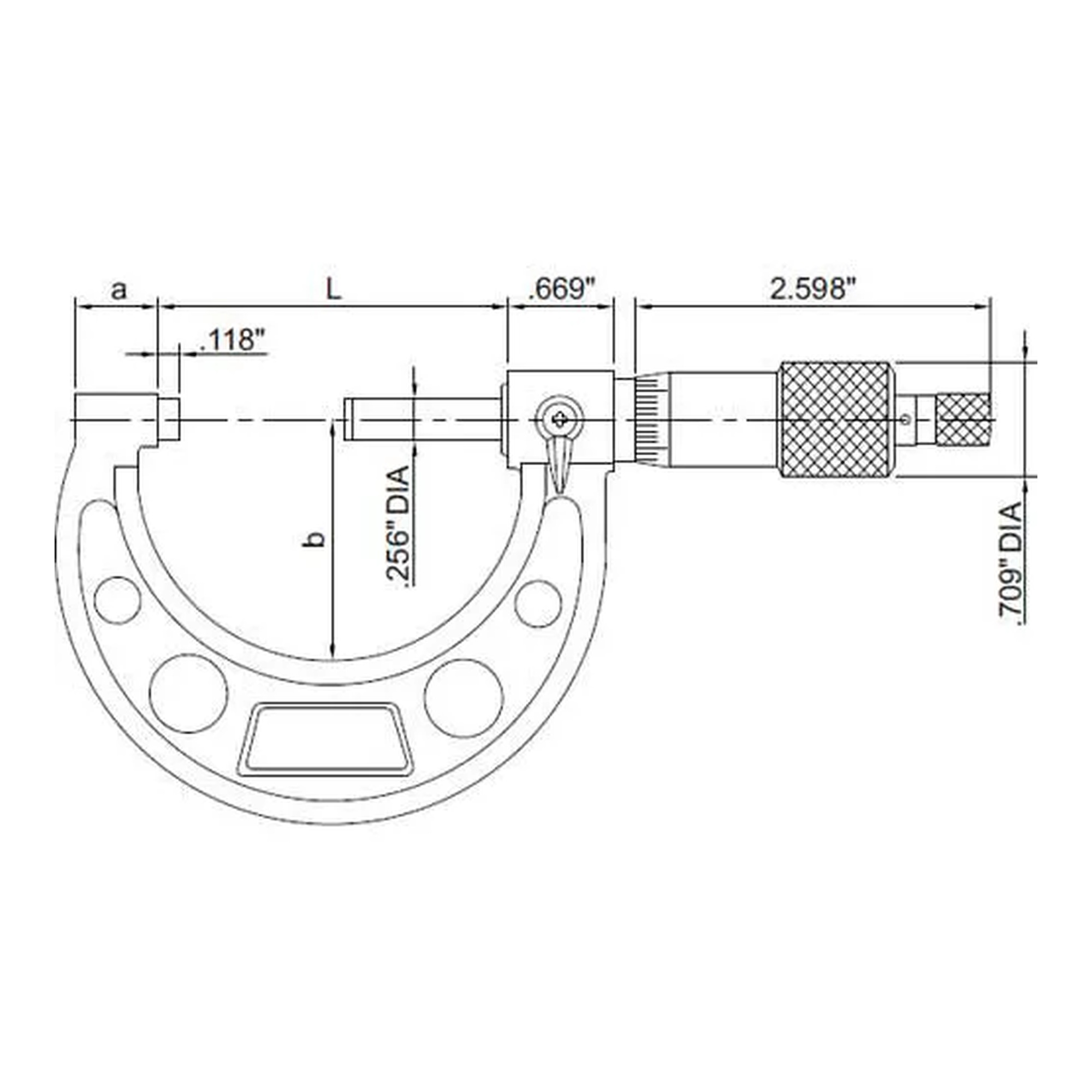

| Dimension A: | .551" |
| Dimension B: | 1.496" |
| Dimension L: | 2.244" |
| Metric or Inch: | Inch in |
| Min Measurement: | 1 in |
| Min Outside Diameter: | 1 in |
| Range: | 1-2 |
| Resolution/Graduation: | 0.0001 in |
| Accuracy: | 0.00016 IN °F |
| Anvil Shape: | Flat |
| Case: | Yes |
| Data Output: | No |
| Description: | Outside Micrometer |
| Digital: | No |
| Digital Counter: | No |
| Fraction Option: | No |
| IP Rating: | None |
| Manufacturers Part Number: | 3203-2A |
| Measuring Face Material: | Carbide |
| Mechanical Or Digital: | Mechanical |
| Power Source: | None |
| Rotating Spindle: | Yes |
| Series: | 3203 |
| Style: | General Purpose |
| Thimble Type: | Ratchet Stop |
| Type: | Outside Micrometer |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 4.33 in |
| Height: | 1.26 in |
| Depth: | 7.72 in |
