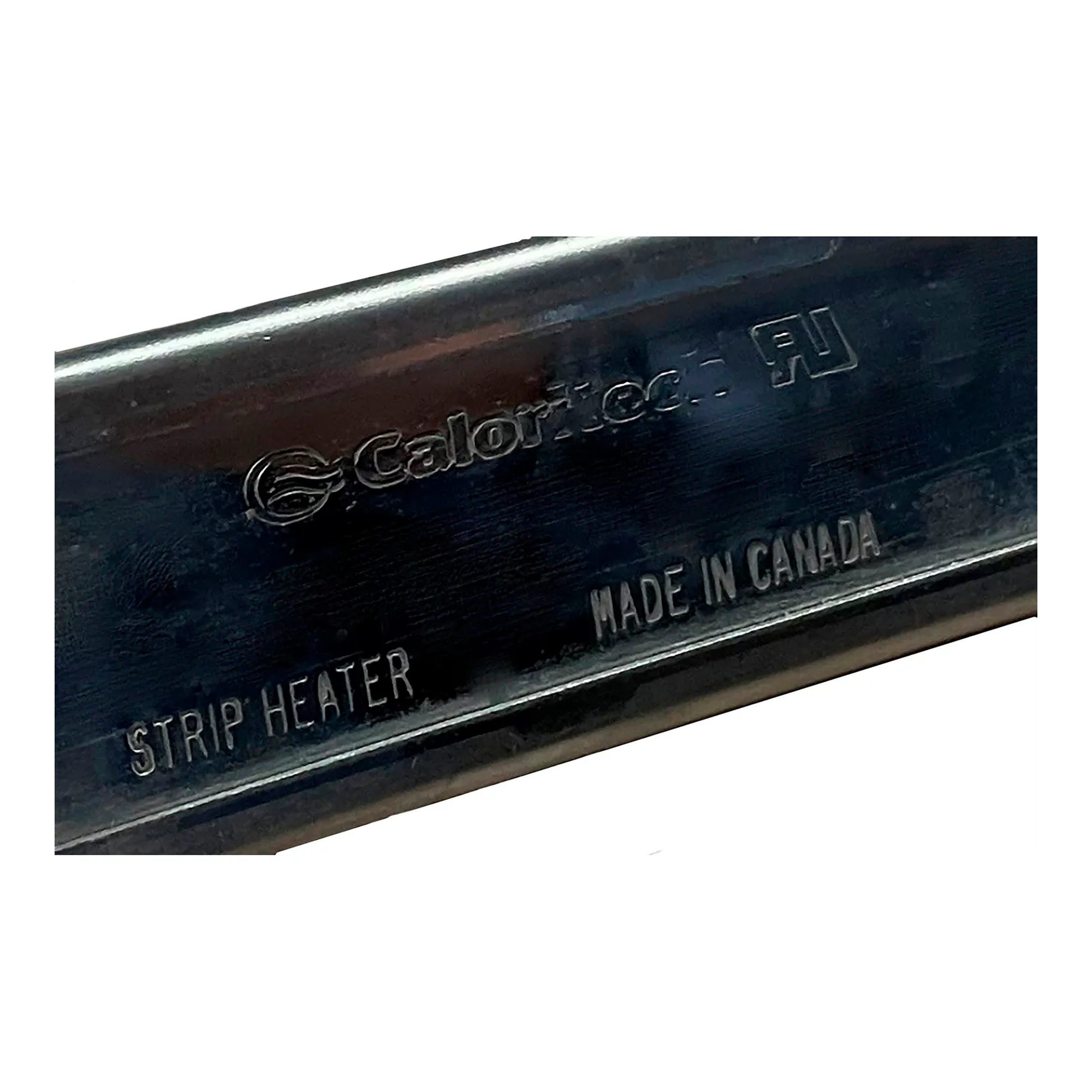

This component strip heater provides radiant heat for industrial equipment users who need a compact heating source for surface or process-air heating applications. Its strip format supports installation on equipment such as platens, dies, molds, tanks, piping, cabinets, and ovens.

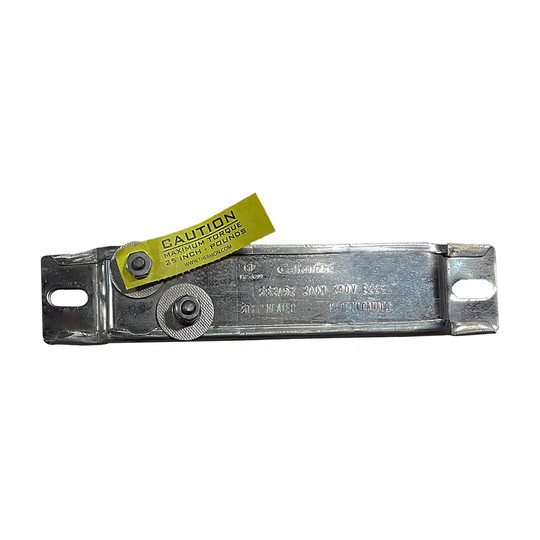

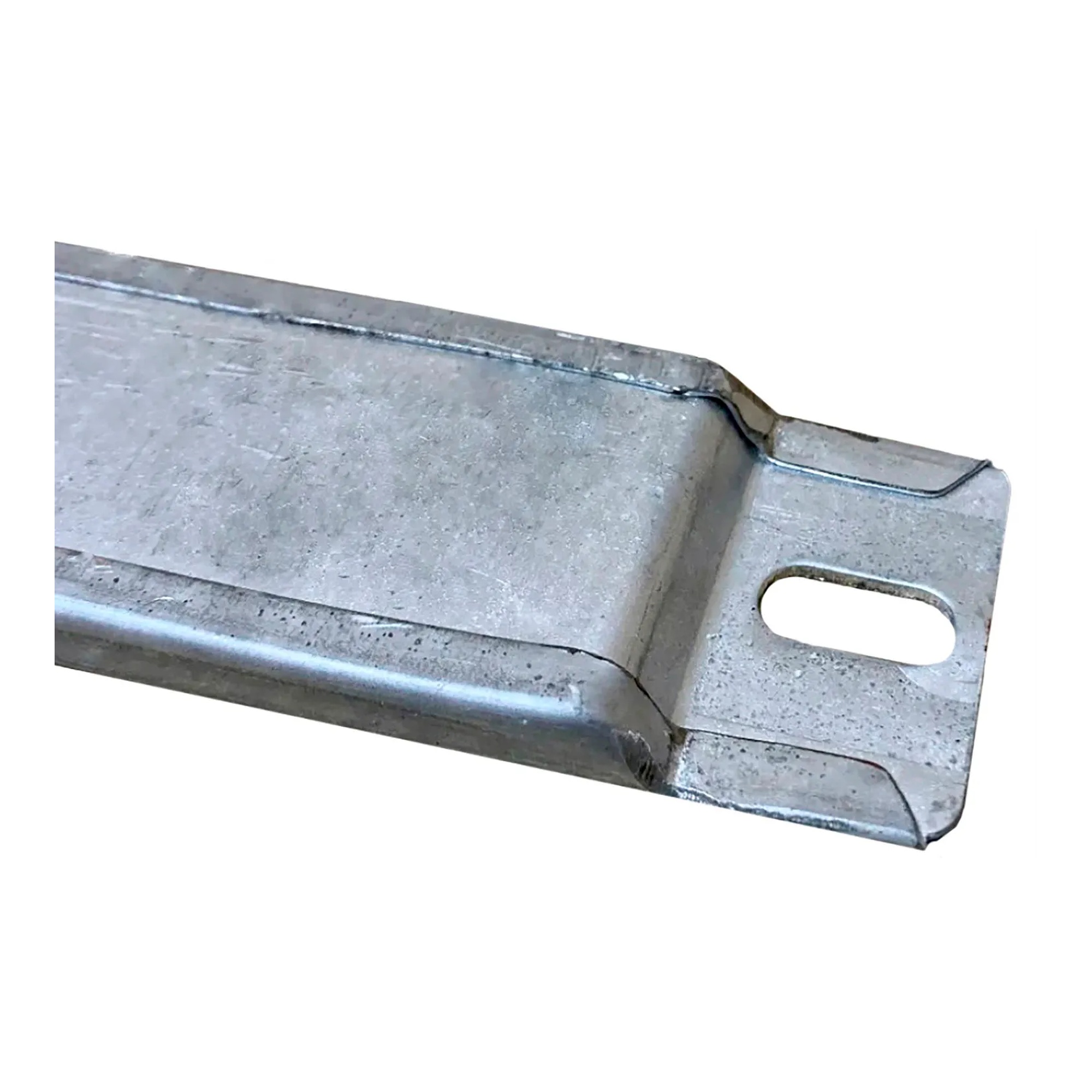

The heater operates at 240V and 200W and measures 7-1/4 inches long. The assembly is enclosed in a stainless steel sheath and has two offset bolt-type terminals at one end. Mounting holes support secure installation, and the heater can be controlled with a heating control panel, mechanical thermostat, or surface-mounted bi-metal thermostat. Maximum sheath temperature is 1000°F (538°C).
Key Features:
Choose this 7-1/4-inch stainless steel strip heater for compatible 240V industrial heating installations that require 200W output, end-mounted terminals, and secure mounting provisions.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 9" |
| Quantity Included: | 1 |
| Shipping Weight: | 5 lbs |
| Voltage: | 240 V |
| Manufacturer Part Number: | SS2052 |
| Length: | 7-1/4 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS2052 |
| Max Exposure Temperature: | 1200 °F |
| Sheath Material: | Stainless Steel |
| Type: | Strip Heater |
| Watt Density: | 16.4 W |
| Wattage: | 200 W |
| Watts High: | 200 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 9.00 in |
