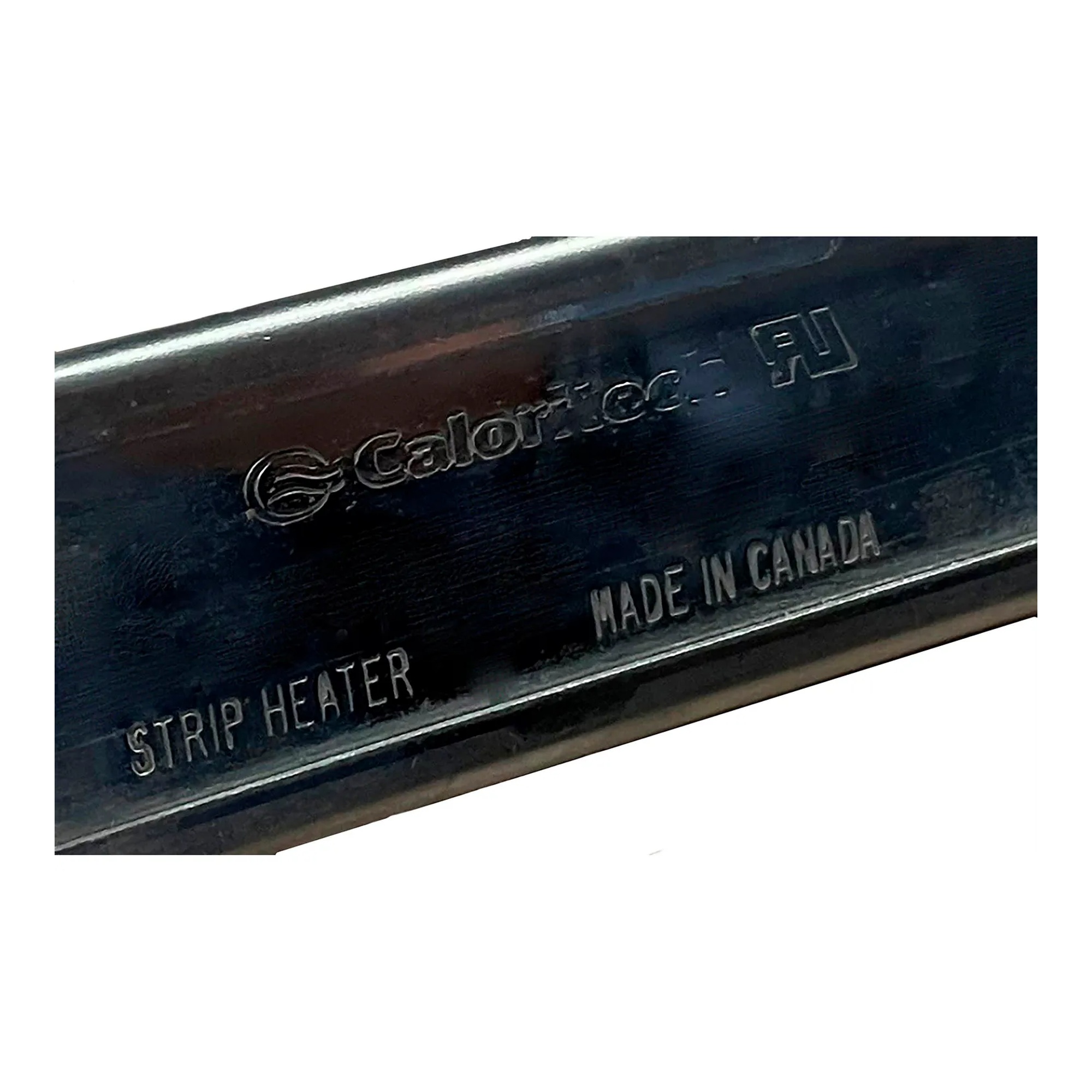

This 120V component strip heater provides radiant heat for industrial facilities and equipment builders that need heating for surfaces or process-air equipment. It is suited for heating applications involving items such as platens, dies, molds, tanks, piping, drying cabinets, and ovens.

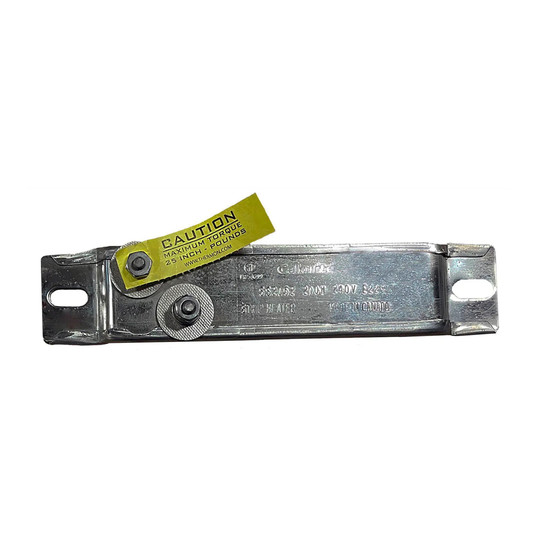

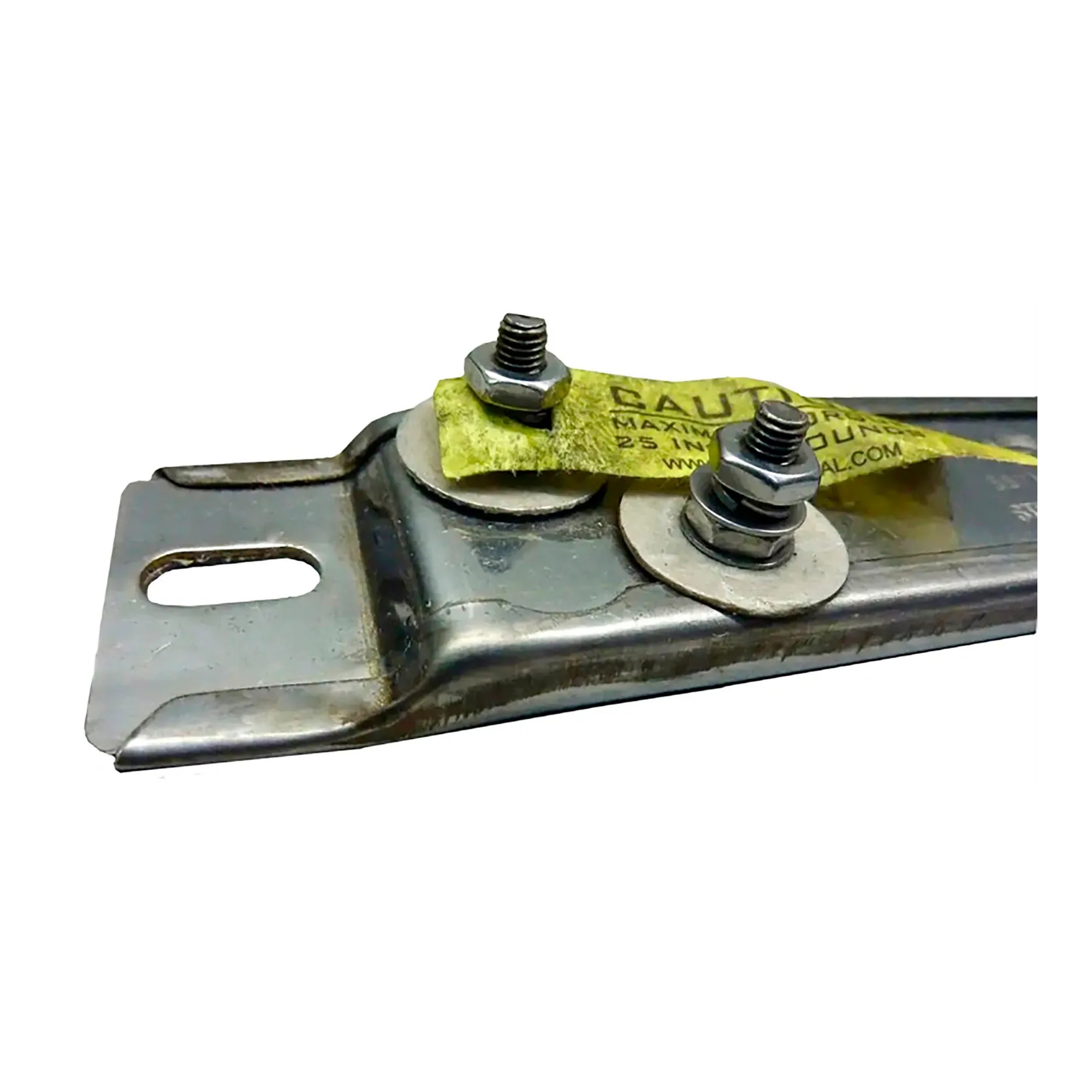

The heater has a stainless steel sheath and is rated for 120V, 200W operation. It measures 7-1/4 inches long and uses two offset bolt-type terminals at one end. Mounting holes support secure installation, and the terminal arrangement provides an electrical connection point. It can be controlled with a heating control panel, mechanical thermostat, or bi-metal thermostat installed on the heater surface.
Key Features:
Choose this component strip heater when a 120V, 200W stainless steel heating element with end-mounted terminals and mounting holes fits your equipment layout.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 7" |
| Quantity Included: | 1 |
| Shipping Weight: | 5 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | SS2041 |
| Length: | 7-1/4 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS2041 |
| Max Exposure Temperature: | 1200 °F |
| Sheath Material: | Stainless Steel |
| Type: | Strip Heater |
| Watt Density: | 16.4 W |
| Wattage: | 200 W |
| Watts High: | 200 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 7.00 in |
