This component strip heater is an industrial heating unit for users who need controlled heat for surface-heating or process-air applications. It provides 400W of heat for integration into equipment and heating assemblies.

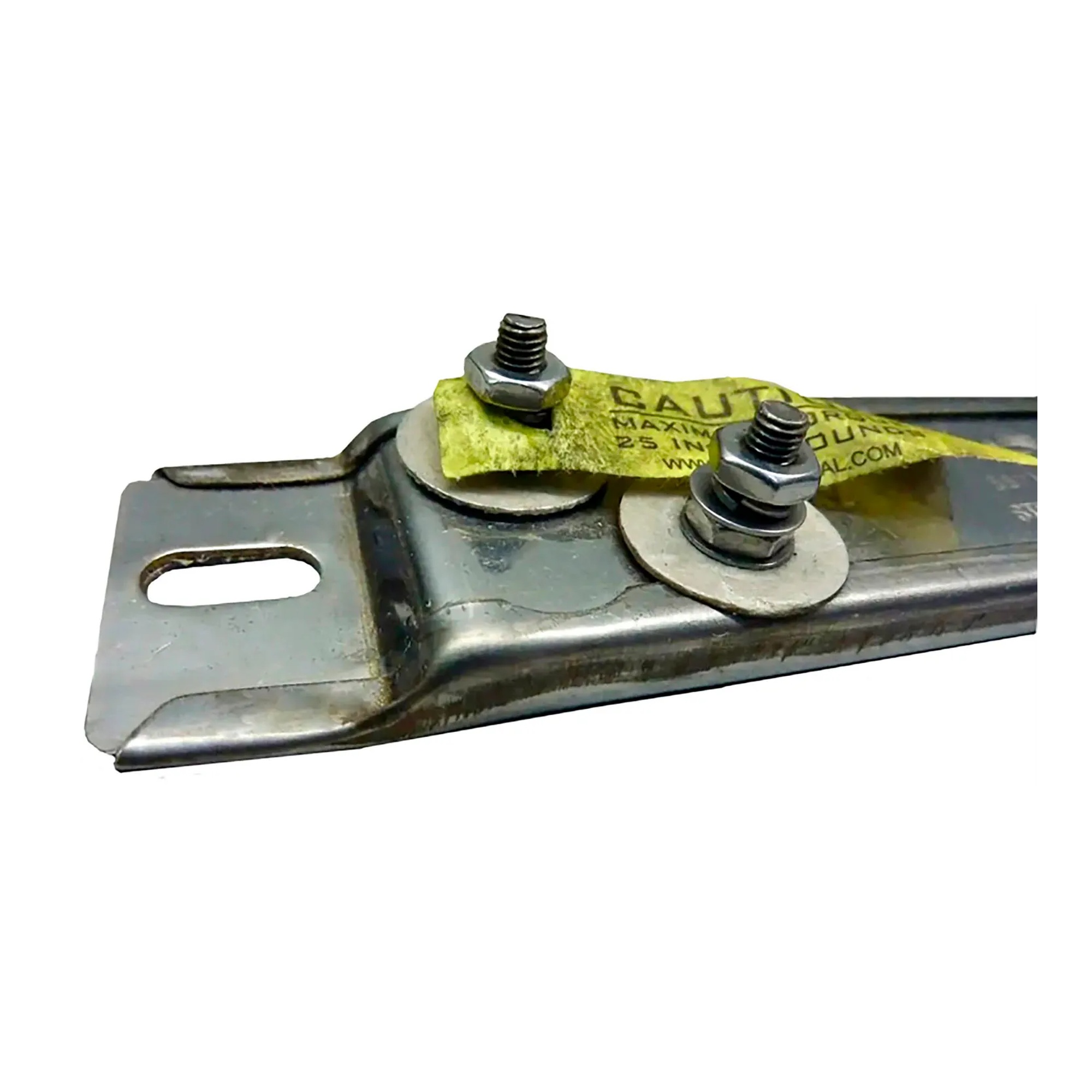

The heater operates at 240V and is rated at 400W with an 8 in. length. Its assembly is enclosed in a stainless steel sheath compressed under high pressure. Two offset bolt-type terminals are located at one end, and mounting holes support secure installation. It can be controlled with a heating control panel, mechanical thermostat, or surface-mounted bi-metal thermostat.
Key Features:
Choose this 8 in. component strip heater for equipment installations requiring a 240V, 400W stainless steel heating element with one-end terminals and mounting provisions.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 10" |
| Quantity Included: | 1 |
| Shipping Weight: | 6 lbs |
| Voltage: | 240 V |
| Manufacturer Part Number: | SS2092 |
| Length: | 8 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS2092 |
| Max Exposure Temperature: | 1200 °F |
| Sheath Material: | Stainless Steel |
| Type: | Strip Heater |
| Watt Density: | 26.7 W |
| Wattage: | 400 W |
| Watts High: | 400 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 10.00 in |
No additional information available.
