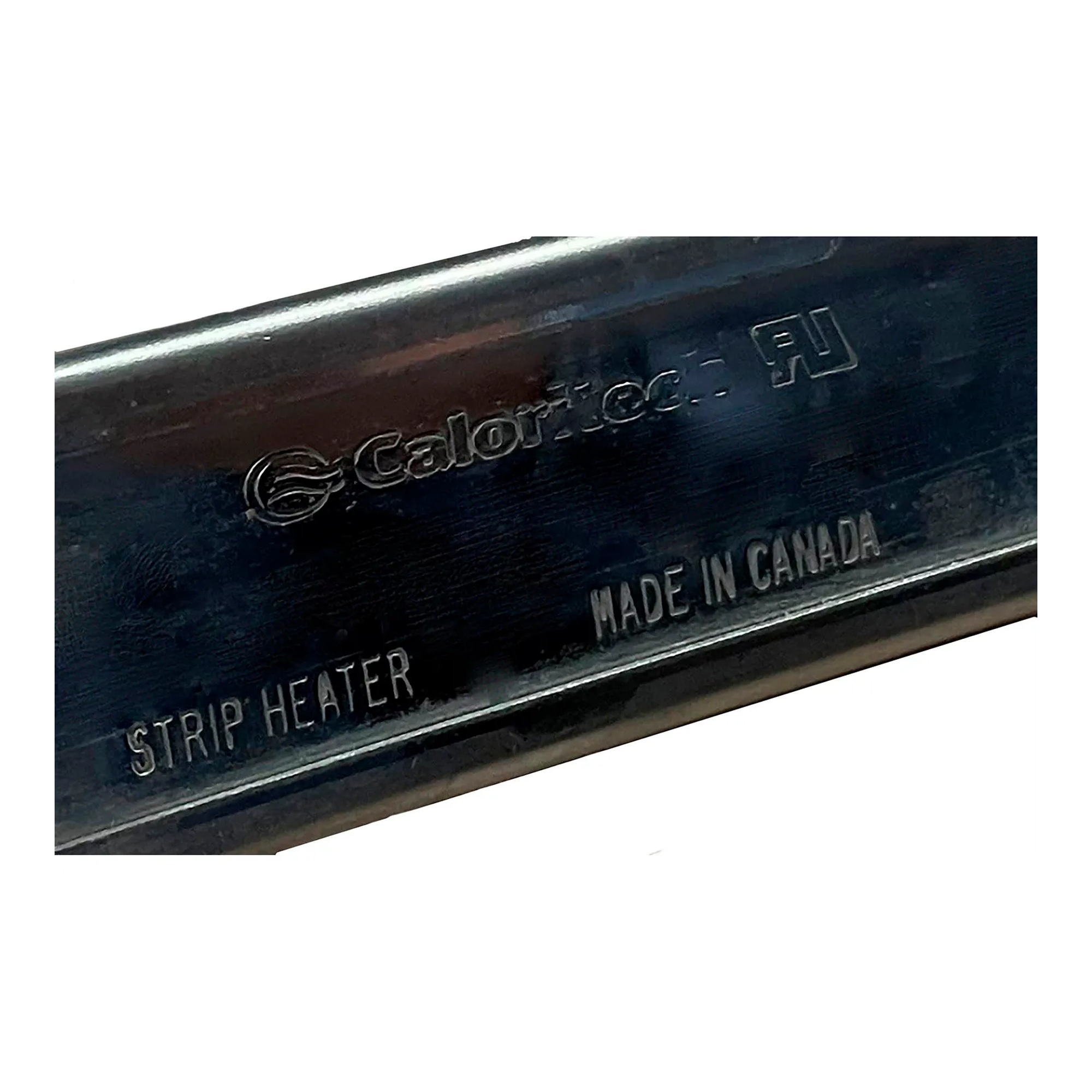

This component strip heater provides radiant heat for industrial users who need to heat surfaces or process air. It is suited to installations involving equipment such as platens, dies, molds, tanks, piping, drying cabinets, and ovens.

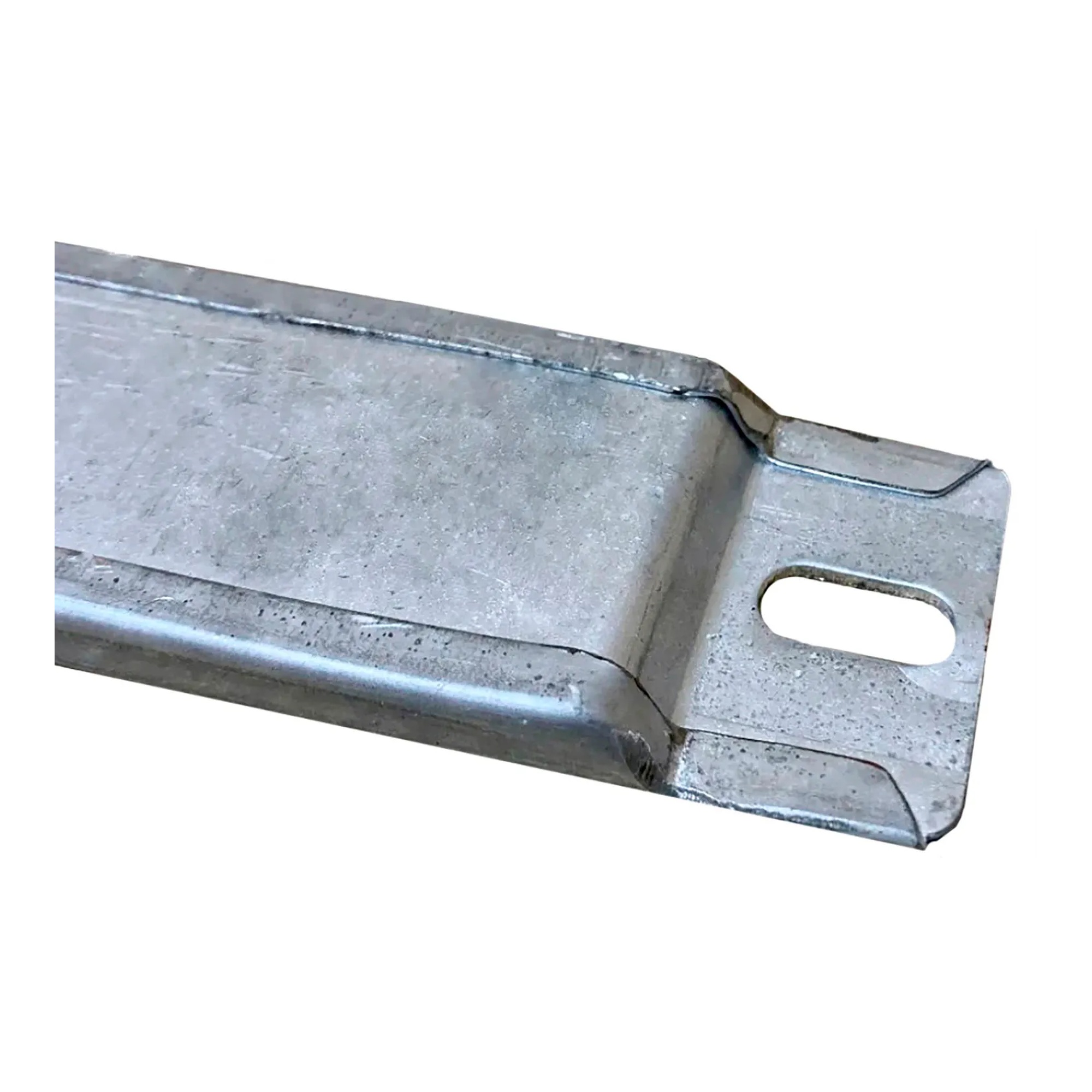

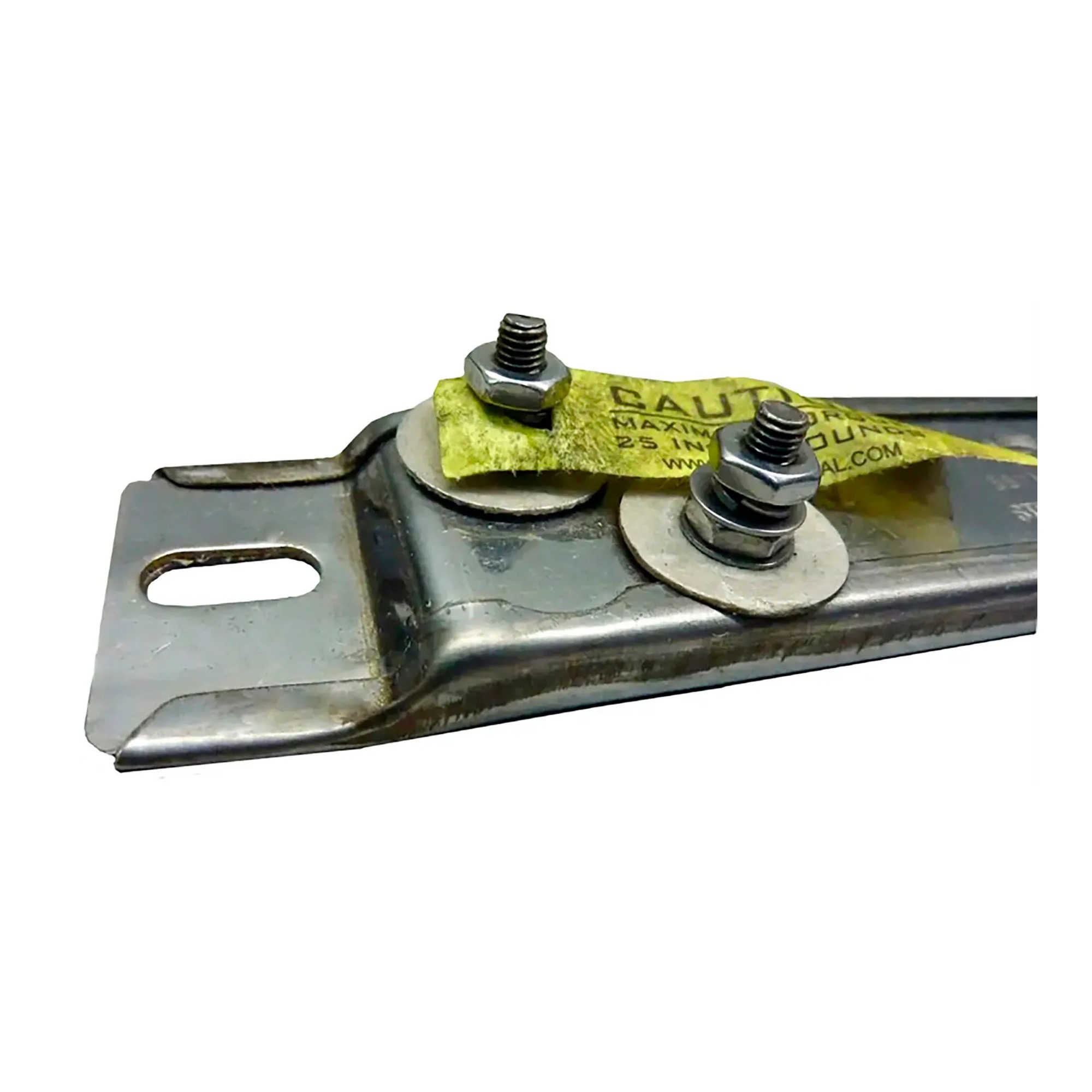

The 120V, 500W heater measures 11-3/4 inches long and has a stainless steel sheath compressed under high pressure. Two offset bolt-type terminals are located at one end, and mounting holes support secure installation. The sheath is suitable for applications with maximum sheath temperatures up to 1000°F (538°C).
Key Features:
Choose this stainless steel component strip heater for 120V industrial heating installations requiring a 500W, 11-3/4-inch heater with one-end terminals and mounting holes.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 14" |
| Quantity Included: | 1 |
| Shipping Weight: | 7 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | SS2161 |
| Length: | 11-3/4 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS2161 |
| Max Exposure Temperature: | 1200 °F |
| Sheath Material: | Stainless Steel |
| Type: | Strip Heater |
| Watt Density: | 17.2 W |
| Wattage: | 500 W |
| Watts High: | 500 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 14.00 in |
