120V 500W component strip heater with offset terminals

120V 500W Component Strip Heater, 23-1/2 in. L

SKU:
WBB3151213
Model/MPN:
SS1361
Our Price:
$76.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: CA
Material: Stainless Steel
Product Depth: 4"
Product Height: 4"
Product Type: Strip Heaters
Product Width: 20"
Quantity Included: 1
Voltage: 120 V
Manufacturer Part Number: SS1361
Length: 23-1/2 in
Width: 1-1/2 in
Screw Size: 10 - 32
Slotted Hole Length: 5/8 in
Slotted Hole Width: 9/32 in
Brand: Caloritech
Manufacturers Part Number: SS1361
Max Exposure Temperature: 1000 °F
Sheath Material: Aluminum Steel
Type: Strip Heater
Watt Density: 6.8 W
Wattage: 500 W
Watts High: 500 W
Warranty: 1
Certifications: CSA, UL Safety
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: CA
Material: Stainless Steel
Product Depth: 4"
Product Height: 4"
Product Type: Strip Heaters
Product Width: 20"
Quantity Included: 1
Voltage: 120 V
Manufacturer Part Number: SS1361
Length: 23-1/2 in
Width: 1-1/2 in
Screw Size: 10 - 32
Slotted Hole Length: 5/8 in
Slotted Hole Width: 9/32 in
Brand: Caloritech
Manufacturers Part Number: SS1361
Max Exposure Temperature: 1000 °F
Sheath Material: Aluminum Steel
Type: Strip Heater
Watt Density: 6.8 W
Wattage: 500 W
Watts High: 500 W
Warranty: 1
Certifications: CSA, UL Safety

This component strip heater is an industrial heating element for maintenance teams, equipment builders, and process operators that need controlled heat at a surface or in process-air equipment. It supports applications such as heating platens, dies, molds, tanks, piping, and ovens.

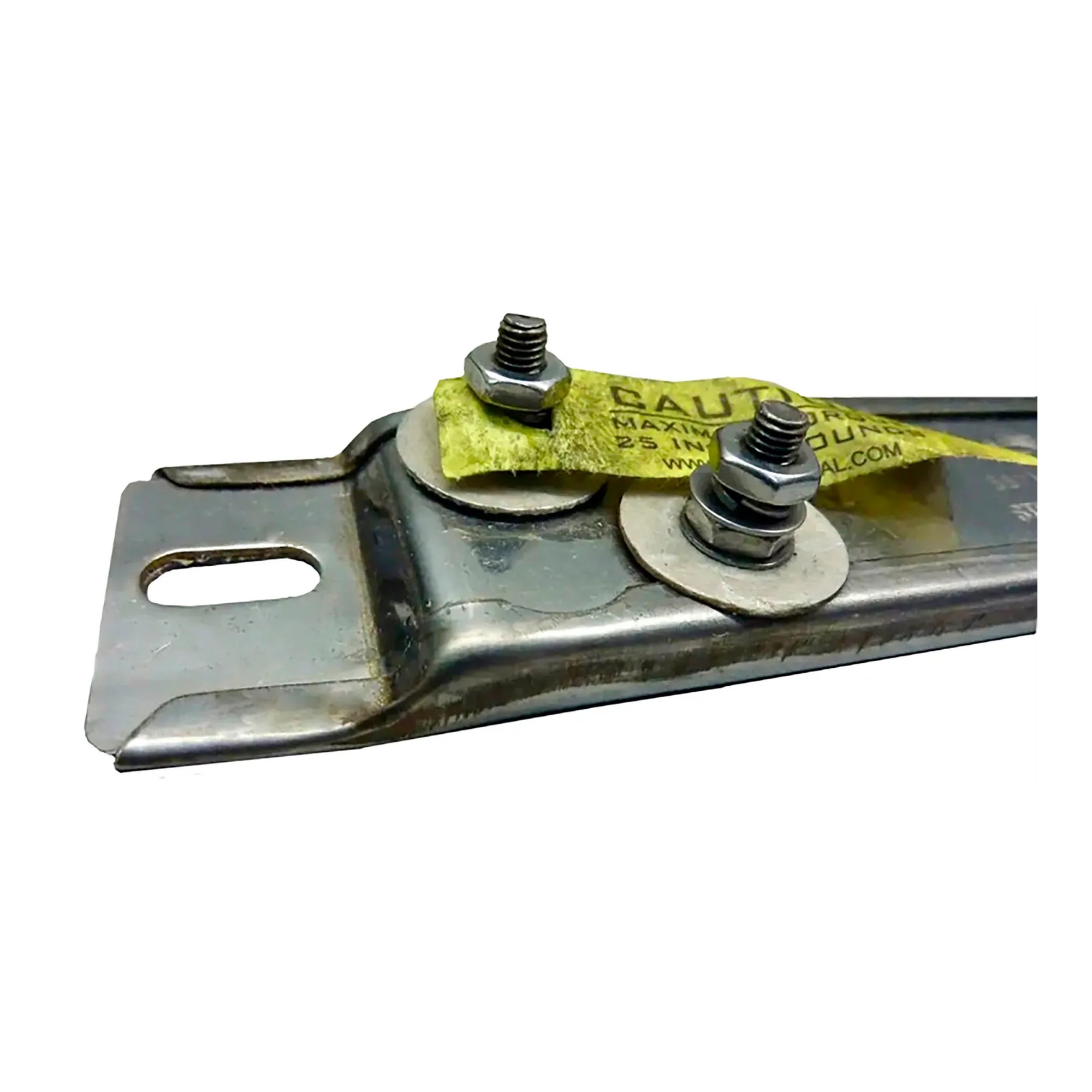

The 23-1/2 in. long heater operates on 120V and provides 500W of heating output. Its heater assembly is enclosed in an aluminized steel sheath, with two offset bolt-type terminals positioned at one end. Mounting holes allow secure attachment, and the sheath is suitable for applications with maximum sheath temperatures up to 1000°F (538°C).

Key Features:

  • 120V, 500W operation: Matches applications requiring a 120V strip heater with 500W of heat output.
  • Offset bolt terminals: Provides connection points at one end of the heater for electrical installation.
  • Aluminized steel sheath: Encloses the heater assembly and provides corrosion resistance.

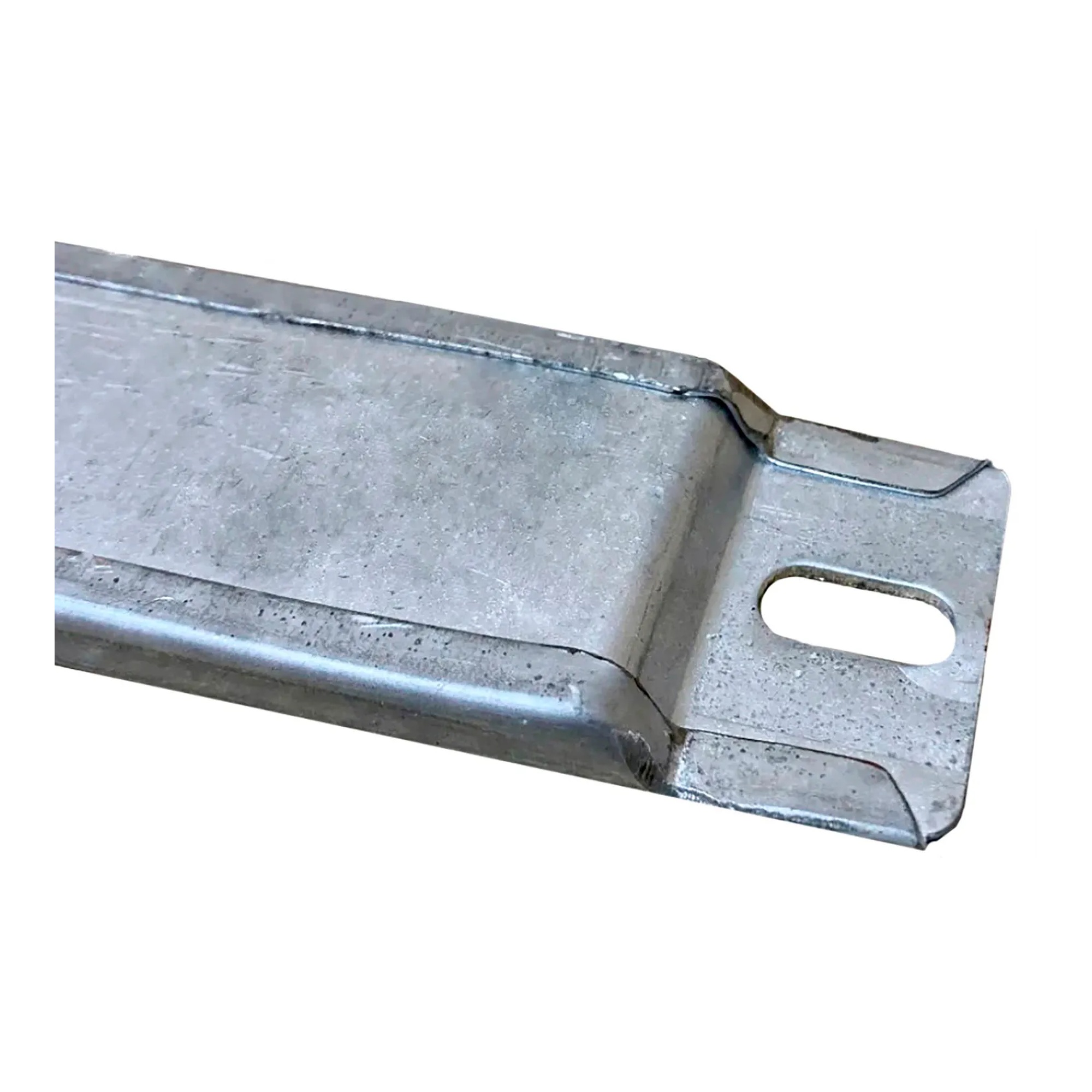

  • Mounting holes: Helps secure the heater to a wall or housing.
  • Surface-mount control compatibility: Can be controlled with a heating control panel, mechanical thermostat, or bi-metal thermostat installed on the heater surface.

Choose this component strip heater for industrial surface-heating or process-air applications that require a 120V, 500W heater with end-mounted terminals and mounting holes.

Country of Origin: CA
Material: Stainless Steel
Product Depth: 4"
Product Height: 4"
Product Type: Strip Heaters
Product Width: 20"
Quantity Included: 1
Voltage: 120 V
Manufacturer Part Number: SS1361
Length: 23-1/2 in
Width: 1-1/2 in
Screw Size: 10 - 32
Slotted Hole Length: 5/8 in
Slotted Hole Width: 9/32 in
Brand: Caloritech
Manufacturers Part Number: SS1361
Max Exposure Temperature: 1000 °F
Sheath Material: Aluminum Steel
Type: Strip Heater
Watt Density: 6.8 W
Wattage: 500 W
Watts High: 500 W
Warranty: 1
Certifications: CSA, UL Safety
Width: 4.00 in
Height: 4.00 in
Depth: 20.00 in
!
