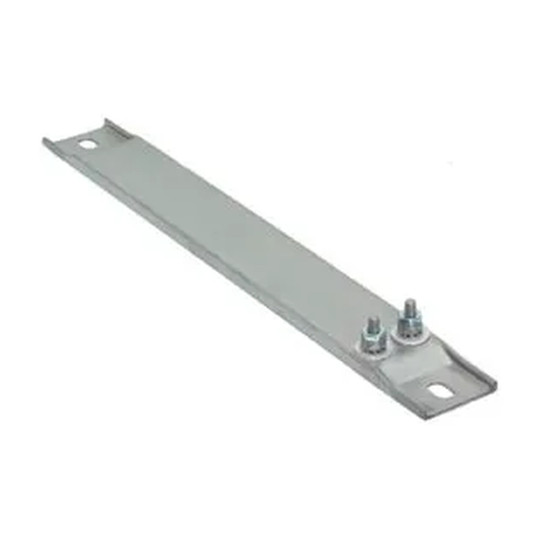

This channel strip heater is for commercial and industrial buyers who need a compact electric heating component for equipment or assemblies. Its 500W output and 120V operation support applications requiring a strip-style heater with a stainless steel sheath.
The heater has a T3 termination, an 8-inch length, and a 1-1/2-inch width. It operates at 120V and is rated at 500W. The stainless steel sheath includes 10-32 screw mounting provisions with 1/2-inch-long by 5/16-inch-wide slotted holes.
Key Features:
Choose this 8-inch channel strip heater when your equipment calls for a 120V, 500W unit with T3 termination, a stainless steel sheath, and slotted mounting holes.
| Country of Origin: | US |
| Material: | Stainless Steel |
| Product Depth: | 1.6" |
| Product Height: | 1.2" |
| Product Type: | Strip Heaters |
| Product Width: | 8.1" |
| Quantity Included: | 1 |
| Shipping Weight: | 43 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | CSH00323 |
| Length: | 8 in |
| Width: | 1-1/2 in |
| Mounting Dimensions: | 7 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 1/2 in |
| Slotted Hole Width: | 5/16 in |
| Brand: | Tempco |
| Manufacturers Part Number: | CSH00323 |
| Max Exposure Temperature: | 1200 °F |
| Sheath Material: | Stainless Steel |
| Type: | Strip Heater |
| Watt Density: | 34 W |
| Wattage: | 500 W |
| Watts High: | 500 W |
| Width: | 1.60 in |
| Height: | 1.20 in |
| Depth: | 8.10 in |
