This component strip heater provides radiant heat for industrial users who need to warm surfaces or process air. It is suited for installations involving equipment such as platens, dies, molds, tanks, piping, drying cabinets, and ovens.

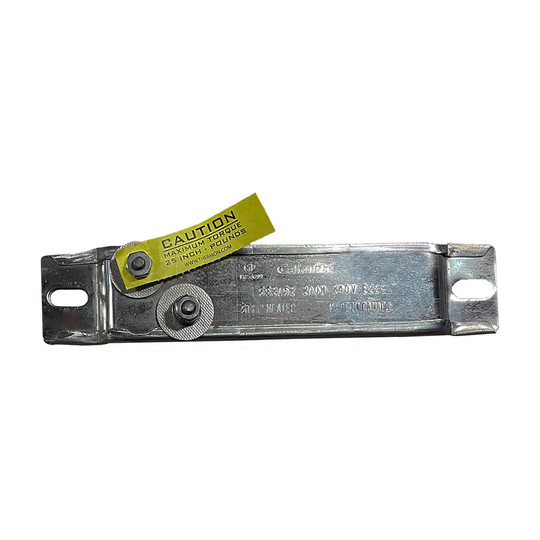

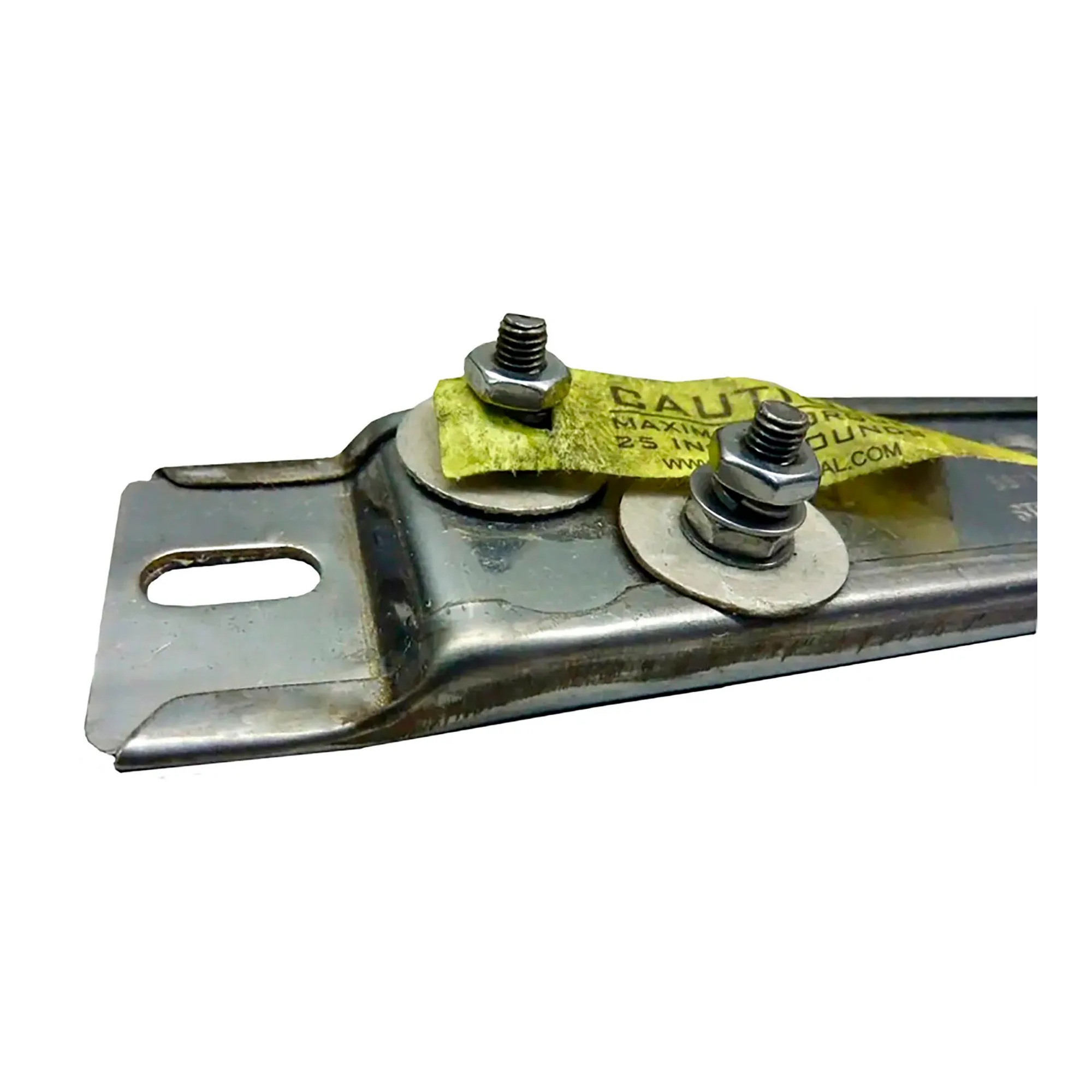

The 240V, 500W heater measures 17-3/4 inches long and has a stainless steel sheath. Two offset bolt-type terminals are located at one end, and mounting holes support secure installation. It can be controlled with a heating control panel, mechanical thermostat, or bi-metal thermostat installed on the heater surface.
Key Features:
Choose this component strip heater for industrial surface or process-air heating installations that require a 240V, 500W unit with one-end terminals and mounting provisions.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 20" |
| Quantity Included: | 1 |
| Shipping Weight: | 12 lbs |
| Voltage: | 240 V |
| Manufacturer Part Number: | SS1272 |
| Length: | 17-3/4 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS1272 |
| Max Exposure Temperature: | 1000 °F |
| Sheath Material: | Aluminum Steel |
| Type: | Strip Heater |
| Watt Density: | 9.7 W |
| Wattage: | 500 W |
| Watts High: | 500 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 20.00 in |
