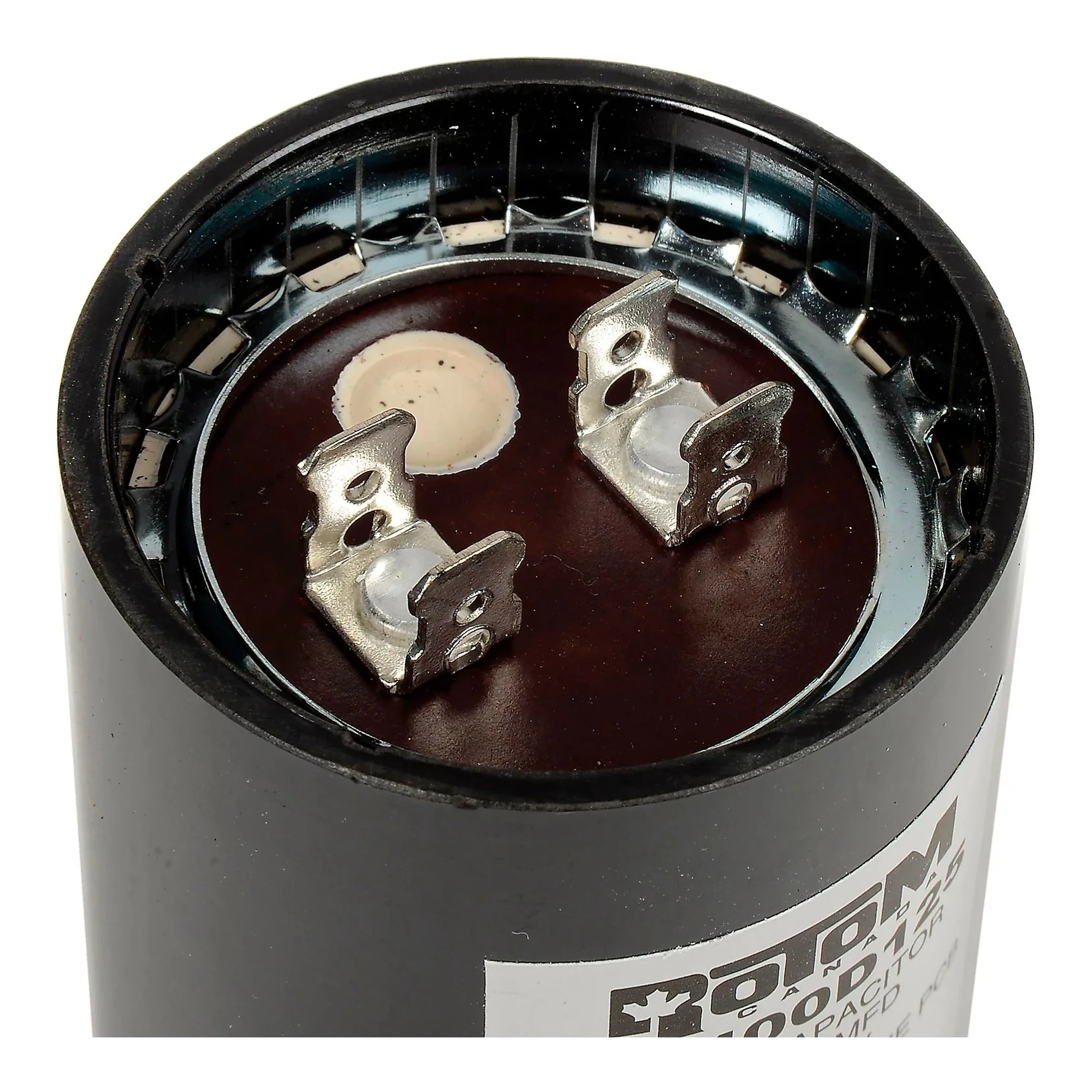

Round Motor Start Capacitor, 400-480 MFD, 110/125V

This round motor start capacitor is for HVAC technicians and maintenance professionals servicing AC motor starting circuits. It provides the starting capacitance needed for intermittent motor-start operation.

This dry electrolytic, non-polarized capacitor is rated 400-480 MFD at 110/125V for 50/60 Hz AC circuits. Its round moisture- and oil-resistant molded phenolic resin or plastic case measures 2 in. x 2 in. x 3.5 in. and has standard dual blade terminals. It is rated for 3-second starts, up to 20 starts per hour, and operation from -40 to 149 degrees F.

Key Features:

• Intermittent start duty: Supports AC motor starting circuits with a 3-second start rating and up to 20 starts per hour.
• 400-480 MFD rating: Provides the specified capacitance range for compatible 110/125V motor-start applications.
• Dual blade terminals: Allows connection through standard dual blade terminal interfaces.
• Resistant round case: Moisture- and oil-resistant molded housing helps protect the capacitor in operating environments.
• Wide temperature range: Operates in temperatures from -40 to 149 degrees F.

Choose this capacitor when your compatible AC motor starting circuit requires a round 400-480 MFD, 110/125V component with dual blade terminals and intermittent-duty operation.
