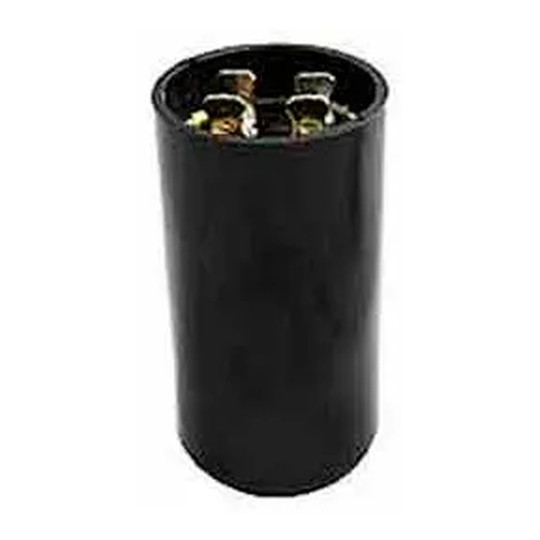

Round Motor Start Capacitor, 1290–1548 MFD, 110/125V

This round motor start capacitor is for technicians and maintenance professionals working with AC motor starting circuits. It provides the starting capacitance needed for intermittent-duty motor starts.

This dry electrolytic, non-polarized capacitor is rated for 1290–1548 MFD at 110/125V and operates on 50/60 Hz systems. Its round molded phenolic resin or plastic case resists moisture and oil, and standard dual blade terminals support connection. It is rated for 3-second starts, up to 20 starts per hour, and temperatures from -40°F to 149°F. Overall dimensions are 2.25 in. wide x 2.25 in. deep x 4.5 in. high.

Key Features:

• Intermittent-duty design: Supports AC motor starting applications with a 3-second start rating.
• 1290–1548 MFD rating: Provides the specified capacitance range for compatible 110/125V motor starting circuits.
• Dual blade terminals: Allows connection using standard dual blade terminal configurations.
• Moisture- and oil-resistant case: Helps protect the capacitor housing in environments where moisture or oil may be present.
• 20 starts per hour: Accommodates applications requiring repeated motor starts within the rated limit.

Choose this round start capacitor for compatible 110/125V AC motor starting circuits that require a 1290–1548 MFD capacitor with dual blade terminals and intermittent-duty operation.
